Default Injector Firing Angle

Should I just leave this as it was in the base map I was sent with my ECU, or are there any specific numbers you guys like to run? 1.6L.
falcon is offline   Reply With Quote
Old 07-23-2011, 11:50 AM   #2
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

if you know your cam profile, you can start by having the end of squirt about 10 degrees before the intake vale opens.
y8s is offline   Reply With Quote
Old 07-23-2011, 08:01 PM   #3
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

I'll see if i can find the paper with all the specs form when they were degree'd. Right now I just checked, everything is set to 420* from 1000RPM to redline.
falcon is offline   Reply With Quote
Old 07-23-2011, 11:50 PM   #4
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

this is a megasquirt?

the inj timing table is set up so that your valves are opening just after TDCC/360deg.

you'll probably have numbers in the mid to high 300s.
y8s is offline   Reply With Quote
Old 07-24-2011, 02:18 AM   #5
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

No, Haltech. And my cams aren't stock. They have quite a bit more duration and lift. I've read some stuff, that you want it injecting at different degrees based on what RPM you're at.
falcon is offline   Reply With Quote
Old 07-24-2011, 11:11 AM   #6
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

that is true. intake mass flow increases with rpm and/or MAP.

you can start by making some educated guesses on the angle to finish the injection and then when you are next on a dyno do some back to back runs and measure AFR and power as you change injection timing (do no not use O2 corrections--keep pulsewidth fixed).

Here's brainy's take on it:
http://www.msextra.com/forums/viewto...timing#p266854
y8s is offline   Reply With Quote
Old 07-24-2011, 01:22 PM   #7
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

I'm not familiar with your Haltech but the same basic principles should apply. Basically you can change the injector timing then take a datalog and if it shows you can pull fuel while still hitting your target AFR, you have made an improvement. If you have to add fuel, you changed injector timing in the wrong direction. This is easy with the autotuning funtion in tunerstudio because you can see where it wants to add or pull fuel in real time, but you can accomplish the same thing with datalogs.

I have been thinking about injector timing mostly in terms of fuel efficiency as opposed to power output. But I would think that as long as you're maintaining the same target AFR then your power would remain the same. (?)

I started with Braineysack's map then dropped the timing so it was a tad less advanced, and was able to pull a few % of pulse width. I believe Brain set his up based on theory or prevailing wisdom, but my testing suggests it is a tad too advanced. The changes are not dramatic so it takes a good bit of logging to have high confidence in the results. Mine is mostly different in the sub-4000 rpm range and up to 100 kPa (still n/a). It is an improvement but still a work in (slow) progress. Timing is set for end-of-squirt. Maps for a 1.6 should be similar to a 1.8 since the injectors are in a similar position relative to the valves. If you know how your cams differ from stock then this could give you an idea of where to start.
Attached Thumbnails

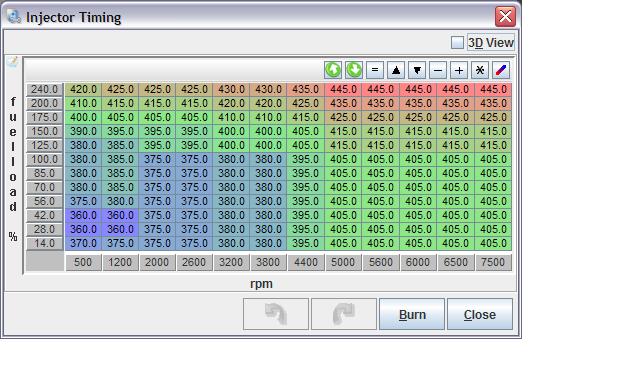

Injector Firing Angle-injtiming2.jpg
ScottFW is offline   Reply With Quote
