Default Link A/F Is this as good as it gets?

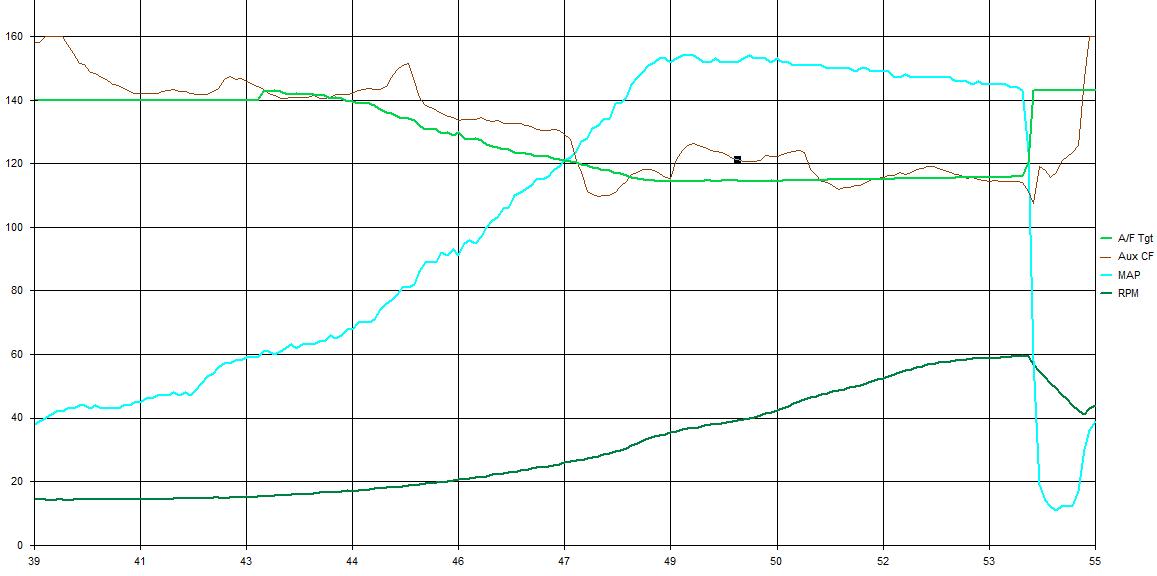

Pretty much title. Is the below picture as good as it gets with a link ecu? or is it possible to get it closer to the target with more fine tuning / manual smoothing. Any way to fix the lean tip in? the enrichments dont help as they add the extra fuel too late. Or does it not matter being a bit lean on tipin? i would rather not be .

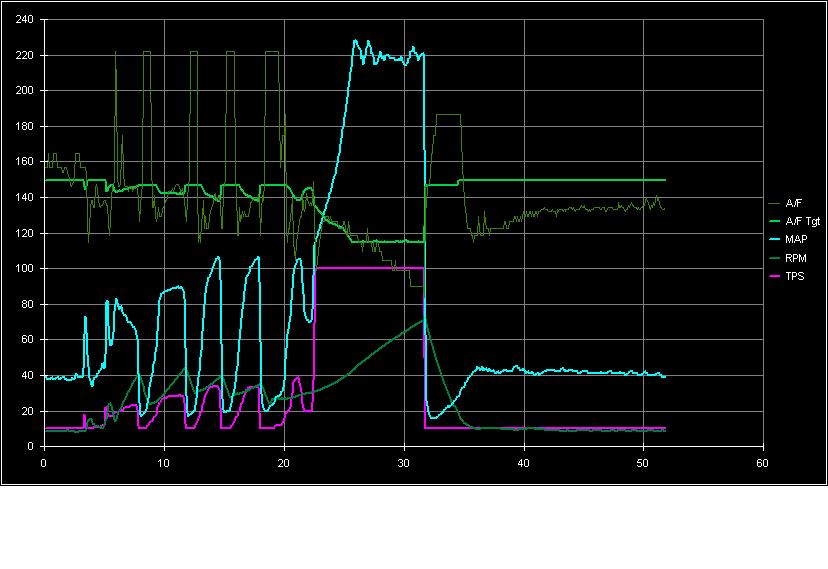

Added second pic i found - a dyno tuned link that i think shows its possible to get some decently accurate fueling. still really open to comments.
Attached Thumbnails
Link A/F Is this as good as it gets?-af-tuning.jpg   Link A/F Is this as good as it gets?-dyno-tuned-link.jpg

Last edited by Oni; 04-14-2010 at 06:03 AM. Reason: Added pic
Oni is offline   Reply With Quote
Old 04-14-2010, 09:53 AM   #2
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Is that autotuning? I tuned my MiataLINK with the FM software and the OE LinkElectro software manually and had no problems doing what was needed. Basically went like this: Log, tune, load, store and repeat.
m2cupcar is offline   Reply With Quote
Old 04-14-2010, 10:54 AM   #3
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,419
Total Cats: 9
Default

if you haven't done any manual tuning, that's the problem. the autotune can only get you so close. also, if it's getting lean on tip in but it's near the point of full boost, then you fix that by adding fuel on the zf table. on my car i had to add fuel from 3500-4500rpm.
spoolin2bars is offline   Reply With Quote
Old 04-18-2010, 10:40 PM   #4
Oni
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Tasmania, AUS
Posts: 164
Total Cats: 3
Default

Thanks guys, ill get on it. How long does it take to get to a point where your comfortable with the tune? ive been working on it on and off but never really get a big block of time. I figure 3-4 hours should get it pretty nailed
