Default Looking for an LED AFR

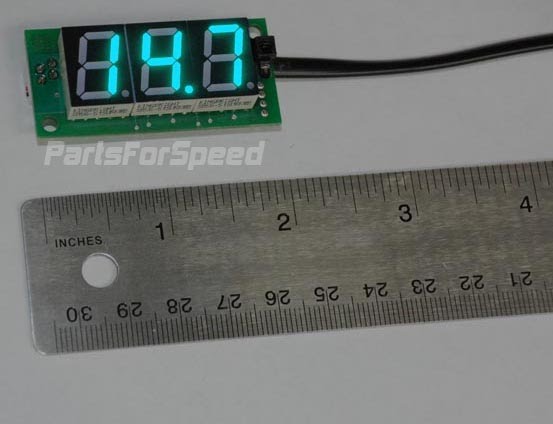

Does anyone make a LED/LCD type AFR read out that is not a gauge? Looking for something slim (not a 52mm gauge) that I can mount on my steering column.

Like this but something OTS

Attached Thumbnails
Looking for an LED AFR-ztxhackr.jpg
falcon is offline   Reply With Quote
Old 04-24-2012, 12:39 AM   #2
Junior Member
iTrader: (10)

Join Date: May 2008
Location: Baldwin Park, CA
Posts: 151
Total Cats: 6
Default

http://www.ebay.com/itm/Waterproof-4...ht_2334wt_1025

Like that? Any kind of volt meter will work, long as you program the controller to output correctly.
ssmith is offline   Reply With Quote
Old 04-24-2012, 01:22 AM   #3
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

No need powah!!!!!!!!
elesjuan is offline   Reply With Quote
Old 04-24-2012, 01:59 AM   #4
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

lol...

So how would I work that? Set the calibrations on the Innovate program to match the display? Seems to me like it is meant for a voltage readout how would I get a 0-5v sensor to work on that?
falcon is offline   Reply With Quote
Old 04-24-2012, 02:26 AM   #5
Junior Member
iTrader: (10)

Join Date: May 2008
Location: Baldwin Park, CA
Posts: 151
Total Cats: 6
Default

http://miataturbo.wikidot.com/wideband-gauge

Yeah just set the outputs on the lc1, or whatever you're using.
ssmith is offline   Reply With Quote
Old 04-24-2012, 02:29 AM   #6
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Interesting. I imagine you would have to play with it a bit to get it right on? By having ht elaptop open with the innovate gauge on there and trying to match it up?
falcon is offline   Reply With Quote
Old 04-24-2012, 02:39 AM   #7
Junior Member
iTrader: (10)

Join Date: May 2008
Location: Baldwin Park, CA
Posts: 151
Total Cats: 6
Default

Nah, do the 1-2v range, 10:1 at 1v and 20:1 at 2v.

So if you have 14.7 itl output 1.47v.

On some volt displays you can change the decimal point and make the 1.47v show 14.7v.

I had this running back with my old MS1 and LC1, everything was spot on.
ssmith is offline   Reply With Quote
Old 04-24-2012, 09:45 AM   #8
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

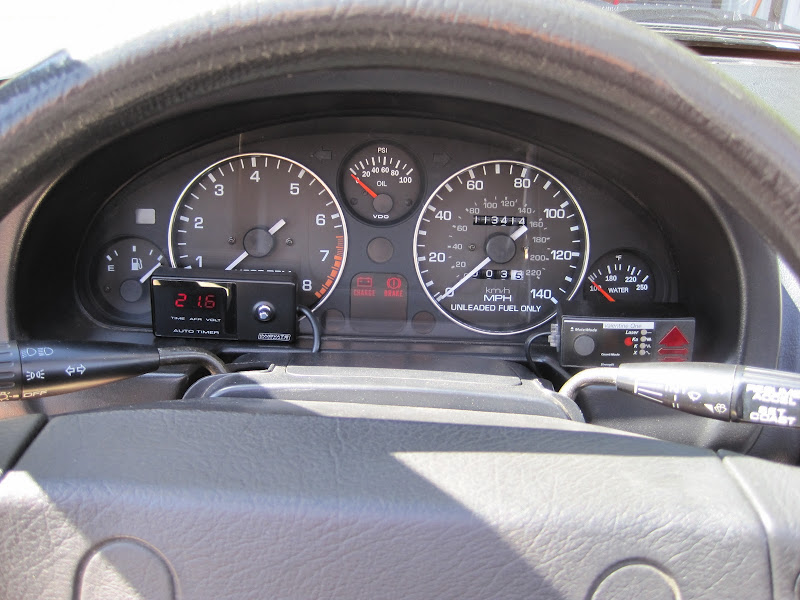

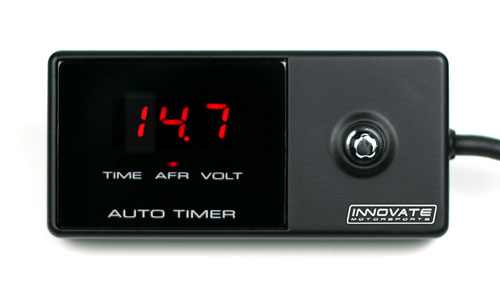

Innovate Auto Timer - Wideband gauge / Turbo Timer / Volt Gauge



C
Attached Thumbnails
Looking for an LED AFR-autotimeer_500.jpg   Looking for an LED AFR-img_0040.jpg
chriscar is offline   Reply With Quote
