Default MSDroid discussion pages?

Hi can someone tell me where the MSDroid pages are if any. I've done a few searches and cannot seem to find the discussion or topics about it.
Roadstercycle is offline   Reply With Quote
Old 01-29-2016, 12:32 AM   #2
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:
Originally Posted by Roadstercycle View Post
Hi can someone tell me where the MSDroid pages are if any. I've done a few searches and cannot seem to find the discussion or topics about it.
What do you need to know?
aidandj is offline   Reply With Quote
Old 01-29-2016, 12:38 AM   #3
Newb
Thread Starter

Join Date: Nov 2015
Posts: 39
Total Cats: 12
Default

I have a Nexus 7 which is working fine with bluetooth with the MSDroid but I would like a more solid worry free connection like a few others got using the Nexus 7 and an OTG cable setup. So I bought the cable and checked to see if it work with a usb thumb drive and it did.
The issue is it won't work with MSDroid. I'm going from serial to usb adapter with the OTG and won't work. I'm I missing something?
Roadstercycle is offline   Reply With Quote
Old 01-29-2016, 12:39 AM   #4
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Your serial to USB adapter might not be supported.

Which one are you using.
aidandj is offline   Reply With Quote
Old 01-29-2016, 12:47 AM   #5
Newb
Thread Starter

Join Date: Nov 2015
Posts: 39
Total Cats: 12
Default

The one I got from Tuner studios for Shadow dash.
Roadstercycle is offline   Reply With Quote
Old 01-29-2016, 12:48 AM   #6
Newb
Thread Starter

Join Date: Nov 2015
Posts: 39
Total Cats: 12
Default

I just ordered one from DIYautotune today as a backup.
Roadstercycle is offline   Reply With Quote
Old 01-29-2016, 12:48 AM   #7
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Interesting. That one should work. What version megasquirt do you have.
aidandj is offline   Reply With Quote
Old 01-29-2016, 12:54 AM   #8
Newb
Thread Starter

Join Date: Nov 2015
Posts: 39
Total Cats: 12
Default

I have a MSPNP, just bought it in December for a 2001 Miata.
Roadstercycle is offline   Reply With Quote
Old 01-29-2016, 12:56 AM   #9
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Is it the pnppro? Just use the USB port.
aidandj is offline   Reply With Quote
Old 01-29-2016, 01:03 AM   #10
Newb
Thread Starter

Join Date: Nov 2015
Posts: 39
Total Cats: 12
Default

It's a MSPNP PRO but no usb port that I can see. Serial port.
Roadstercycle is offline   Reply With Quote
Old 01-29-2016, 01:05 AM   #11
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

It's a USB-B port. It's there.
aidandj is offline   Reply With Quote
Old 01-29-2016, 01:10 AM   #12
Newb
Thread Starter

Join Date: Nov 2015
Posts: 39
Total Cats: 12
Default

Really, Is it in the back near the serial port and vacuum line. I just looked at the picture I took of it when it was out and did not see it. If it's there that's awesome, I'll have to pull it and look at it. Don't know if that will fix the Nexus but it's a shot. Weird thing is, it says on the DIY website RS232 serial port tuning and you may need an adapter. Does not mention USB at all.
Roadstercycle is offline   Reply With Quote
Old 01-29-2016, 01:15 AM   #13
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

I might be wrong. I though all the ms3 devices had it.
aidandj is offline   Reply With Quote
Old 01-29-2016, 01:18 AM   #14
Newb
Thread Starter

Join Date: Nov 2015
Posts: 39
Total Cats: 12
Default

Quote:
Originally Posted by aidandj View Post
It's a USB-B port. It's there.

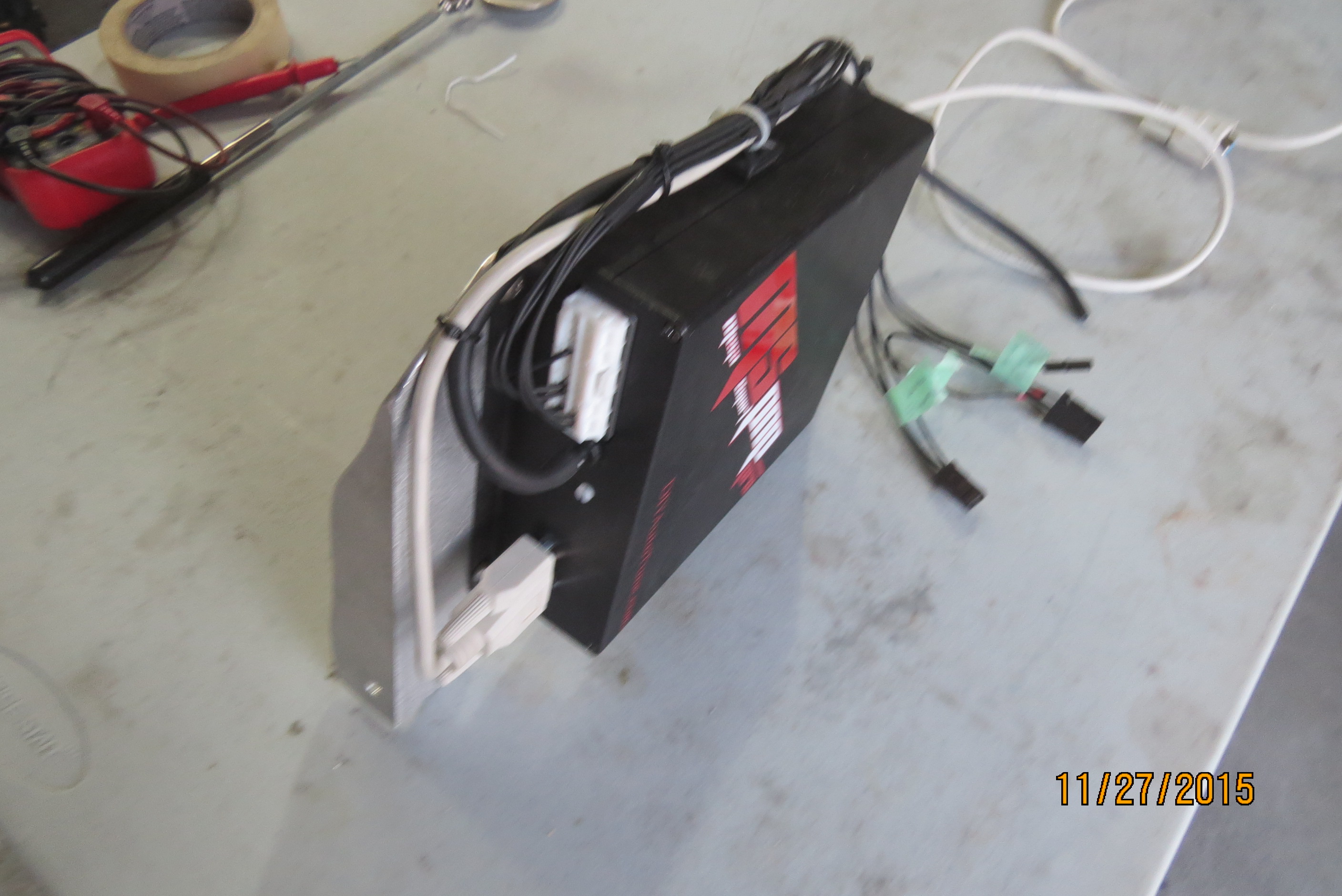

Here's a pic, I don't see it
Attached Thumbnails
MSDroid discussion pages?-img_2278.jpg
Roadstercycle is offline   Reply With Quote
Old 01-29-2016, 01:18 AM   #15
Newb
Thread Starter

Join Date: Nov 2015
Posts: 39
Total Cats: 12
Default

I looked at all the build pics of it and nothing. bummer.
Roadstercycle is offline   Reply With Quote
Old 01-29-2016, 08:18 AM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

MSPNP-Pro is a serial port.
Braineack is offline   Reply With Quote
Old 01-29-2016, 12:01 PM   #17
Senior Member

Join Date: Dec 2007
Location: ATL
Posts: 728
Total Cats: 48
Default

Subscribed, cause I couldn't get it to work w/ a Gen 2 PNP (not Pro) either.

Also wondering if anyone knows how to scale a bar display of RPM's on the display. I put up a RPM bar but it must be scaled for 20K RPM max 'cause 5K barely shows 1/4 of the way across the span of the bar.
rwyatt365 is offline   Reply With Quote
Old 01-31-2016, 12:53 AM   #18
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,707
Total Cats: 19
Default

My 2013 nexus 7 works great with MSPNP2 and generic serial / USB adapter and OTG cable.
Stealth97 is offline   Reply With Quote
Old 01-31-2016, 10:11 AM   #19
Senior Member

Join Date: Dec 2007
Location: ATL
Posts: 728
Total Cats: 48
Default

I have a Nexus 7 2012
rwyatt365 is offline   Reply With Quote
Old 01-31-2016, 11:33 AM   #20
Newb
Thread Starter

Join Date: Nov 2015
Posts: 39
Total Cats: 12
Default

Quote:
Originally Posted by Stealth97 View Post
My 2013 nexus 7 works great with MSPNP2 and generic serial / USB adapter and OTG cable.
It may be because of running Marshmallow 6.1, who knows???
Roadstercycle is offline   Reply With Quote
