Old 07-02-2013, 08:48 AM   #21
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Double check your timing with a timing light. Lock it at 10 degrees and flash the timing light at it. Wait you're telling me you made 190 horses at 12psi with 30 degrees of timing?
triple88a is offline   Reply With Quote
Old 07-02-2013, 08:52 AM   #22
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

yes...

(when you say 30 degrees, to what area/cell do you refer to?)
elior77 is offline   Reply With Quote
Old 07-02-2013, 09:13 AM   #23
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by elior77 View Post
yes...

(when you say 30 degrees, to what area/cell do you refer to?)
the entire 12 psi horizontal line.
triple88a is offline   Reply With Quote
Old 07-04-2013, 05:44 AM   #24
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

Good news everyone !

The base timing was off ~8 degrees !

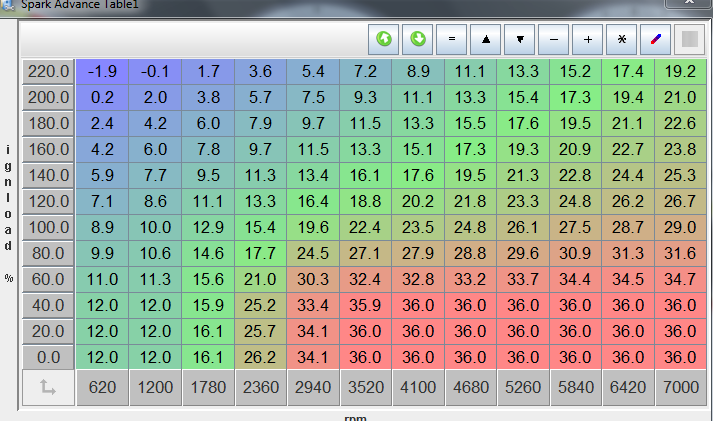

The new map:



old vs new

Attached Thumbnails
NA TD04 Spark map-p2pc.png   NA TD04 Spark map-qnh7.jpg
elior77 is offline   Reply With Quote
Old 07-05-2013, 08:36 AM   #25
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

2.5" pipe, 98 RON fuel, EBC and more boost - I hope I can get closer to 250wbhp
elior77 is offline   Reply With Quote
Old 07-05-2013, 09:36 AM   #26
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

wbhp? lolwut

The "new" map isn't bad. Yes I think 2.5 exhaust will help you. 3 will help you even more. Though like I said in your other thread: I think the turbo is going to be completely tapped out at 220 or so, and any more boost is going to bump your midrange but not produce much more topend gains since it will be tapering back down by redline.
Not a good idea to have the knock sensor in that location. I bet its picking up a ton of valvetrain noise. You need it on the block IMO
18psi is offline   Reply With Quote
Old 07-05-2013, 10:05 AM   #27
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by 18psi View Post
wbhp? lolwut
The "new" map isn't bad.
It's pretty much the same as the one everyone was belming about being too advanced, except knocked back down the 8deg that his timing was out of sync by.

If the dyno operator can't advance any further due to knock I'd say it's as good as he's going to get it.

Looking at the dyno output it looks a nice smooth output with not weird dips or drops/spikes in HP/Torque.

Quote:
Not a good idea to have the knock sensor in that location. I bet its picking up a ton of valvetrain noise. You need it on the block IMO
I don't think that's a permanent installation, merely for the Dyno operator to use/listen through. Human ears are much better at discerning knock from valvetrain noise

P.S. US always use bhp as at the wheels, whereas in most european countries bhp is at the fly, either calculated or from a dedicated engine dyno, so to avoid any confusion the OP has preceded the 'bhp' with w to indicate wheel bhp rather than flywheel bhp
richyvrlimited is offline   Reply With Quote
Old 07-06-2013, 02:50 AM   #28
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

spot on, thanks
elior77 is offline   Reply With Quote
Old 07-20-2013, 07:05 PM   #29
Newb

Join Date: Sep 2011
Location: Sweden, Írebro
Posts: 34
Total Cats: 2
Default

Knocksensor location sucks..

latest spark tables is similar to what i ended up with my old td04-15 setup. Did hit MBT before knock..

Stock block?
myrando is offline   Reply With Quote
Old 07-21-2013, 06:57 AM   #30
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by myrando View Post
Knocksensor location sucks..

latest spark tables is similar to what i ended up with my old td04-15 setup. Did hit MBT before knock..

Stock block?
Knock sensor location is temporary for the dyno, with it plugged into det cans the location definitely doesn't suck
richyvrlimited is offline   Reply With Quote
Old 07-28-2013, 10:17 AM   #31
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

Quote:
Originally Posted by myrando View Post
Knocksensor location sucks..

latest spark tables is similar to what i ended up with my old td04-15 setup. Did hit MBT before knock..

Stock block?
stock
elior77 is offline   Reply With Quote
