Default NA TD04 Spark map

Hey,

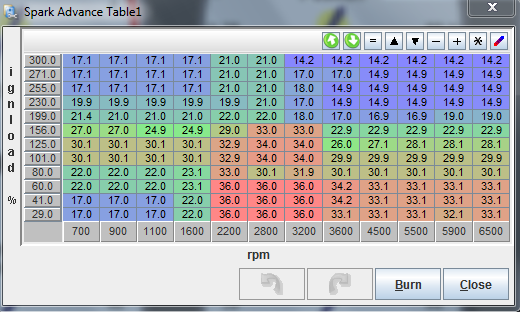

I would like to get some input on my spark table:



I still use my original clutch, it holds, on the dyno it did 170-180wbhp @ 10psi
Attached Thumbnails
NA TD04 Spark map-79846803.png
elior77 is offline   Reply With Quote
Old 06-17-2013, 02:05 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Can you describe the strategy behind it?
Braineack is offline   Reply With Quote
Old 06-17-2013, 02:08 PM   #3
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Clearly the strategy behind it is to have the largest jumps in timing from cell to cell as possible.
thenuge26 is offline   Reply With Quote
Old 06-18-2013, 03:00 AM   #4
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

It's a road tune made by a guy I paid.

The things I don't like are the map is upto 300kpa while the car makes around 200kpa and less and it looks to much pf a mess...

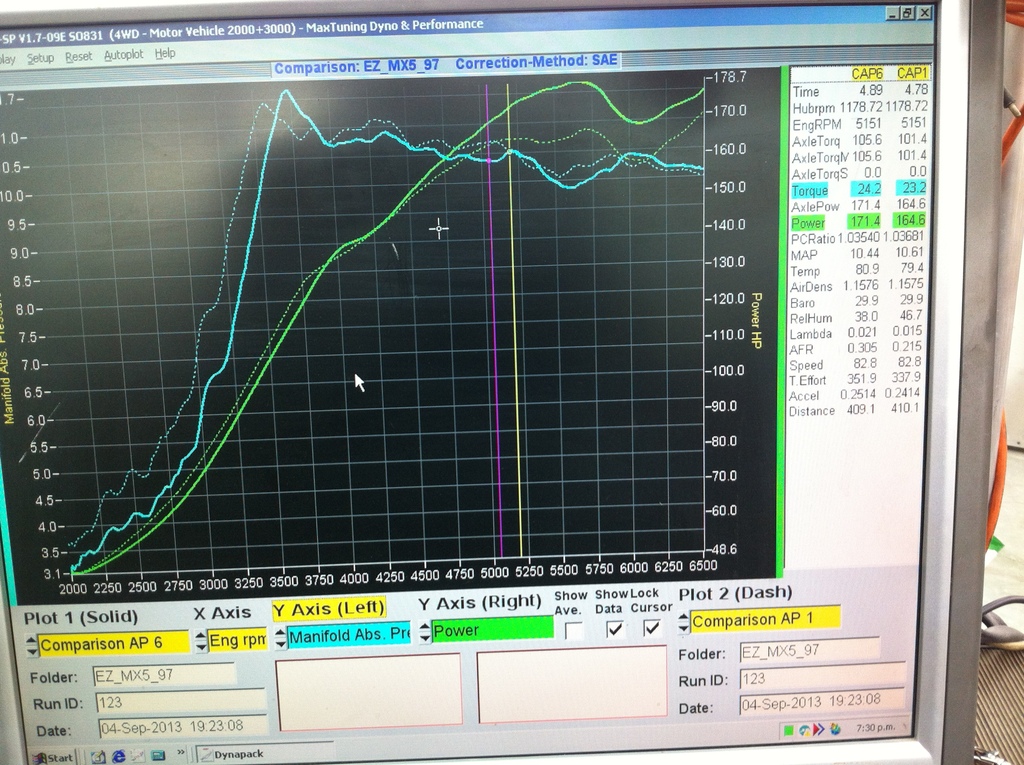

I don't fill I can tune it myself so I went to a dyno close by, this is the bhp and boost chart I got:



I think I will give the dyno guy to tune this map, I want to know how much off is it...
Attached Thumbnails
NA TD04 Spark map-riao.jpg
elior77 is offline   Reply With Quote
Old 06-18-2013, 03:05 AM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

Its terrible.

Seriously.

Start over completely.
18psi is offline   Reply With Quote
Old 07-02-2013, 04:46 AM   #6
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

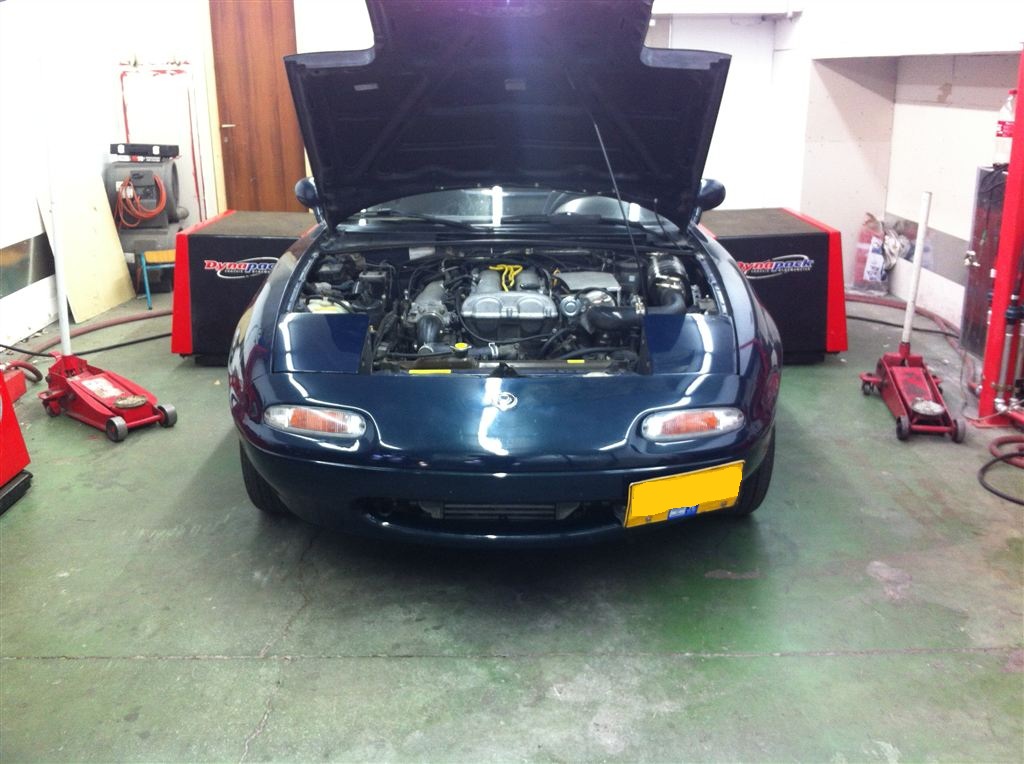

Just did:



The fuel does not allow further spark advance with out knock...

I will change to 98 octane (Israel octane that is) and get a 2.5" exhaust over my stock one.

MaxTuning

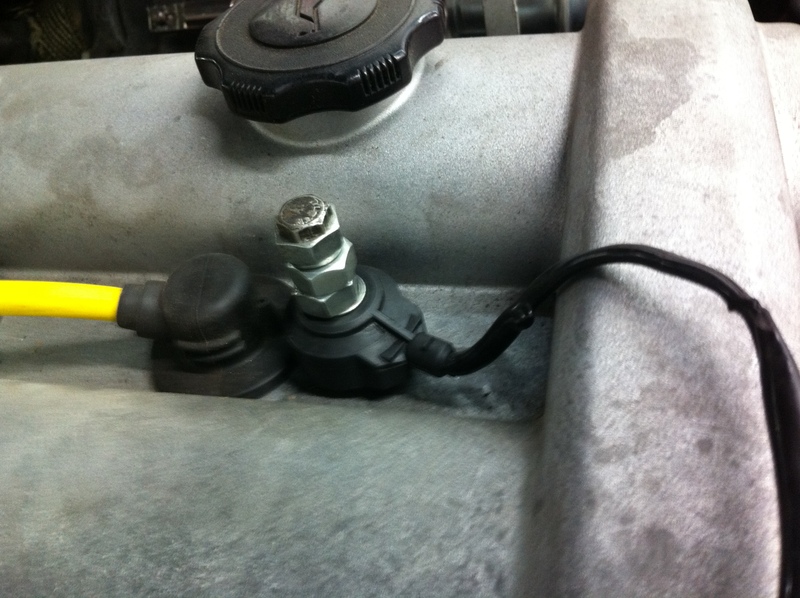

Knock Sensor



Attached Thumbnails
NA TD04 Spark map-2va.jpg   NA TD04 Spark map-snfn.jpg   NA TD04 Spark map-aa9h.jpg   NA TD04 Spark map-xma7.png

Last edited by elior77; 07-02-2013 at 07:56 AM.
elior77 is offline   Reply With Quote
Old 07-02-2013, 05:21 AM   #7
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 598
Default

33 degrees of timing? Interesting.
triple88a is online now   Reply With Quote
Old 07-02-2013, 05:27 AM   #8
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

Can you explain ?
elior77 is offline   Reply With Quote
Old 07-02-2013, 06:05 AM   #9
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 598
Default

at 2-3k at 10psi theres no way you should be at 27-28ish degrees of timing.. . Just no. Also update the rest of ur map.. if ur wastegate gets stuck closed u're fucked. Way too much timing so you'll for sure **** up your motor.

30 degrees of timing at 1500rpm? LoL. Betcha the main bearings are crying so hard they can't knock.
triple88a is online now   Reply With Quote
Old 07-02-2013, 06:08 AM   #10
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

I believe you are referring to the first map... and I believe you are right.

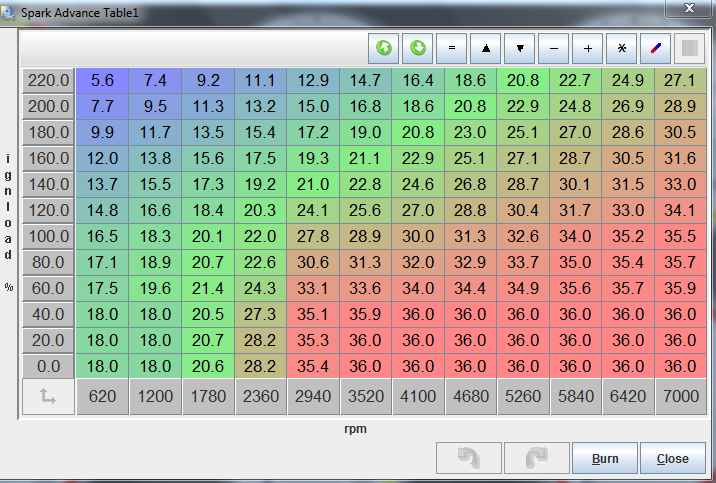

The new map is just a post above you. (all @ 12psi~)
elior77 is offline   Reply With Quote
Old 07-02-2013, 06:34 AM   #11
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 598
Default

You only posted 1 map.
triple88a is online now   Reply With Quote
Old 07-02-2013, 07:56 AM   #12
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

fixed
elior77 is offline   Reply With Quote
Old 07-02-2013, 08:10 AM   #13
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 598
Default

lol thats even worse man, 30 degrees at redline at 10 psi? I wouldnt run that much spark even on e85.
triple88a is online now   Reply With Quote
Old 07-02-2013, 08:16 AM   #14
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

12psi
elior77 is offline   Reply With Quote
Old 07-02-2013, 08:20 AM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

are you really running 98 octane or 98 ron?

I can't imagine running that much timing on a stock block without it blowing up, especially coupled with what it seems to be a stock exhaust and a tiny turbo.

If you upgrade the exhaust you will unlock significant power...but don't stop at 3".

But I also think you're walking a thin line...
Braineack is offline   Reply With Quote
Old 07-02-2013, 08:23 AM   #16
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 598
Default

12psi... even worse.... especially since you dyno tuned at 18 degrees.
triple88a is online now   Reply With Quote
Old 07-02-2013, 08:26 AM   #17
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

Could be the base timing is off ?

I have the last beta fw for my MS, the last base timing calibration we did was on the previous fw version.
elior77 is offline   Reply With Quote
Old 07-02-2013, 08:28 AM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

no, that stays the same. FWIW, I can't get away with more than 18 timing at 14-15psi; running 93 octane.

your map is pretty much 10 more advanced than mine everywhere and I have a larger turbo and a better flowing exhaust.
Braineack is offline   Reply With Quote
Old 07-02-2013, 08:29 AM   #19
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Wouldn't hurt to double check it...
timk is offline   Reply With Quote
Old 07-02-2013, 08:43 AM   #20
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

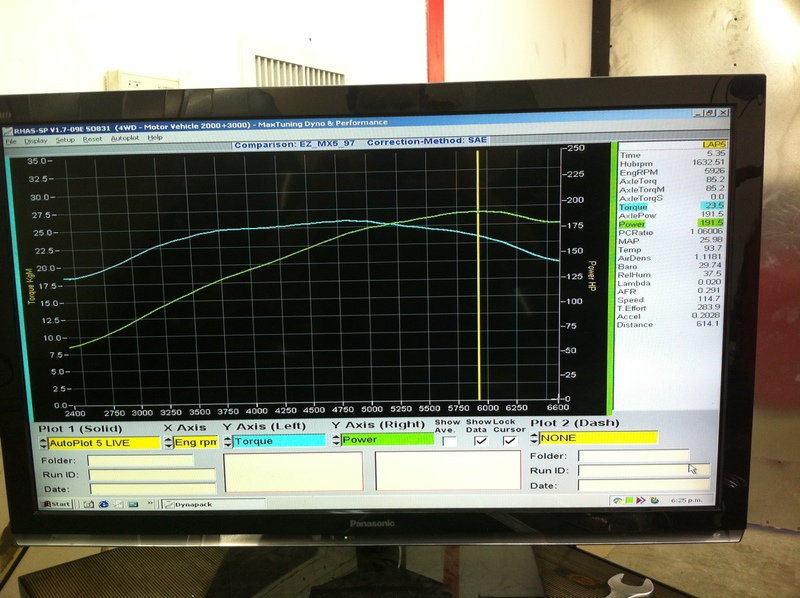

That's what we got, any more sparks and knock is at the door.
Attached Thumbnails
NA TD04 Spark map-snfn.jpg
elior77 is offline   Reply With Quote
