Default NB ECU jumper harness length

No, I'm not that lazy. Car's in storage and difficult to get to. I am going to build a 01 Miata > MegaSquirt adapter harness that places the MegaSquirt in the glove box area.

Can someone who has built an adapter harness for an NB please tell me the harness length required from ECU connector under the driver's side dash to the ECU location at the glove box?
Ben is offline   Reply With Quote
Old 10-01-2012, 04:09 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

ask y8s.
Braineack is offline   Reply With Quote
Old 10-01-2012, 05:58 PM   #3
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

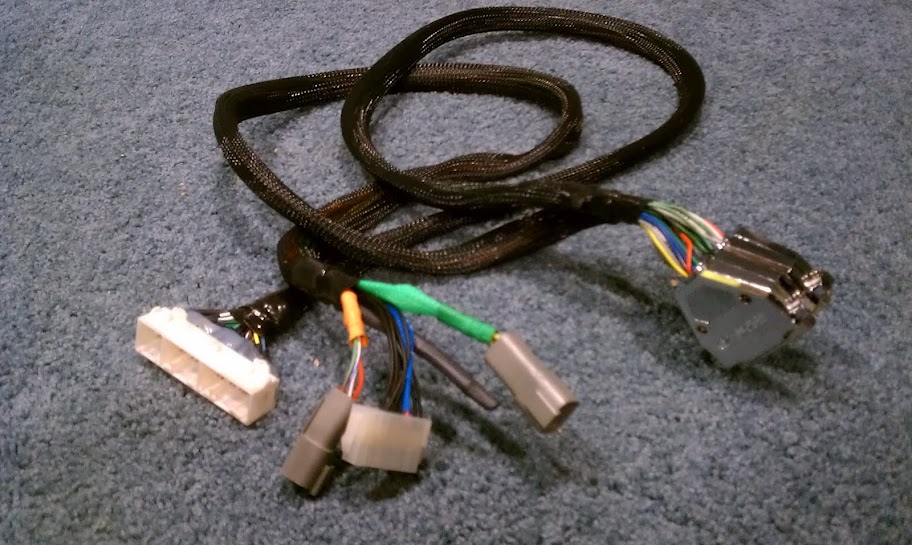

Four feet gives me plenty of length to run it to the glove box and mount it underneath and have about a good 8-10 inches of extra service loop. plus you can make 3 of these from a 12 foot cable that you sell.






you COULD make it shorter, but it might be a pain in your ***.
Attached Thumbnails
NB ECU jumper harness length-imag1089.jpg
y8s is offline   Reply With Quote
Old 10-01-2012, 05:59 PM   #4
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

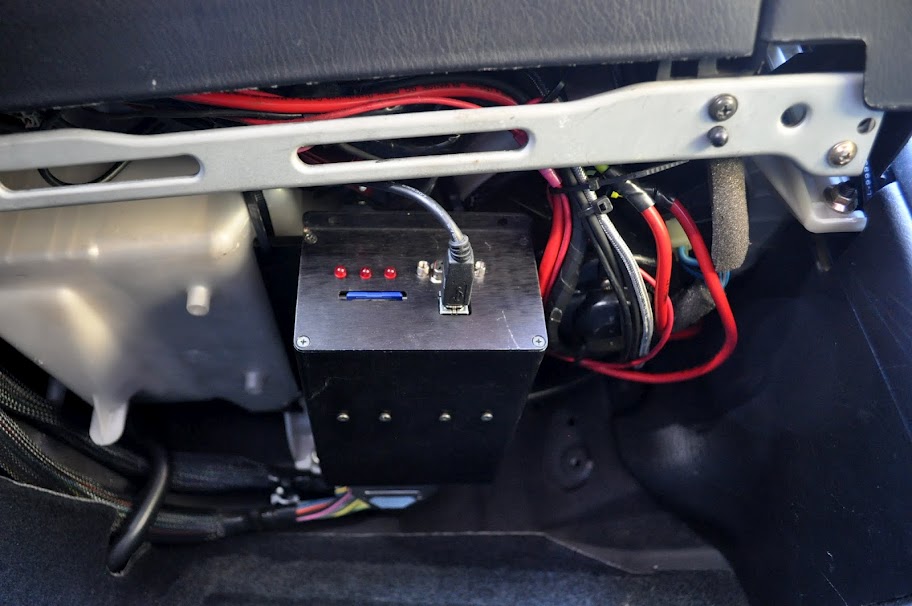

oh yeah, here's where it's mounted:

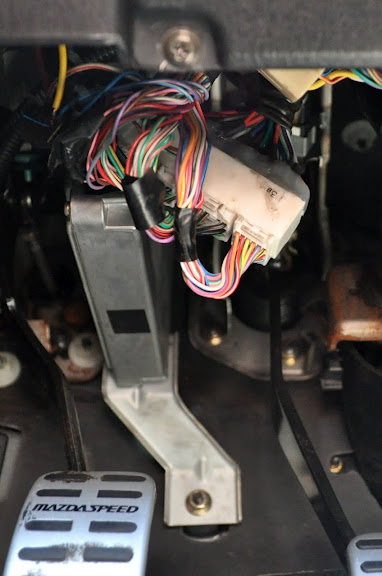

and the other end:

Attached Thumbnails
NB ECU jumper harness length-dsc_5643.jpg   NB ECU jumper harness length-dsc_5645.jpg
y8s is offline   Reply With Quote
Old 10-01-2012, 06:04 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

I like this glue idea.
Braineack is offline   Reply With Quote
Old 10-01-2012, 06:08 PM   #6
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by Braineack View Post
I like this glue idea.
PLEASE do this. I use glue up to the point where all the wires meet, and then wrap everything up - the glue may partially melt if the car is left under the sun on a hot summer's day.
Reverant is offline   Reply With Quote
Old 10-01-2012, 07:44 PM   #7
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by y8s View Post
Four feet gives me plenty of length to run it to the glove box and mount it underneath and have about a good 8-10 inches of extra service loop. plus you can make 3 of these from a 12 foot cable that you sell.

you COULD make it shorter, but it might be a pain in your ***.
Thanks mate. 3.5-4 foot looked like a good range. I'll go for 4.

Quote:
Originally Posted by Reverant View Post
PLEASE do this. I use glue up to the point where all the wires meet, and then wrap everything up - the glue may partially melt if the car is left under the sun on a hot summer's day.
Won't be necessary. The wires will be soldered to a PCB which will be mounted inside an enclosure.
Ben is offline   Reply With Quote
Old 10-01-2012, 10:21 PM   #8
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by Reverant View Post
PLEASE do this. I use glue up to the point where all the wires meet, and then wrap everything up - the glue may partially melt if the car is left under the sun on a hot summer's day.
I use shrink over two SUPER TIGHT zip ties and then just glue the last part over the solder joints and maybe 1/2" of wire. It's plenty well supported.

Sadly it's impossible to rework.
y8s is offline   Reply With Quote
Old 10-02-2012, 03:14 AM   #9
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by Ben View Post
The wires will be soldered to a PCB which will be mounted inside an enclosure.
I was talking to Brainy.
