Default Thoughts on tune and what should I change dyno msq

1994 1.8
mspnp
460 injectors
begi s1 kit
2560 Garrett

I did a lot of searching and reading but wanted to toss it out in case someone had some thoughts that i missed.

was out driving the other day and a ball joint broke while driving. I just did the front brakes a month back and did not see any issues with the joints so not sure what happened. It did scare the crap out of me losing most my steering while going down the road. I figure I better have the car checked out. I am sending it to York automotive in MD to get it looked over from front to back and anything that needs fixing fixed.. ie ball joints, tie rods and things like that.

I am also getting TRM CM3s installed (i know most don't like them but came down to cost) and an alignment done. radiator put in, and a thermostat.

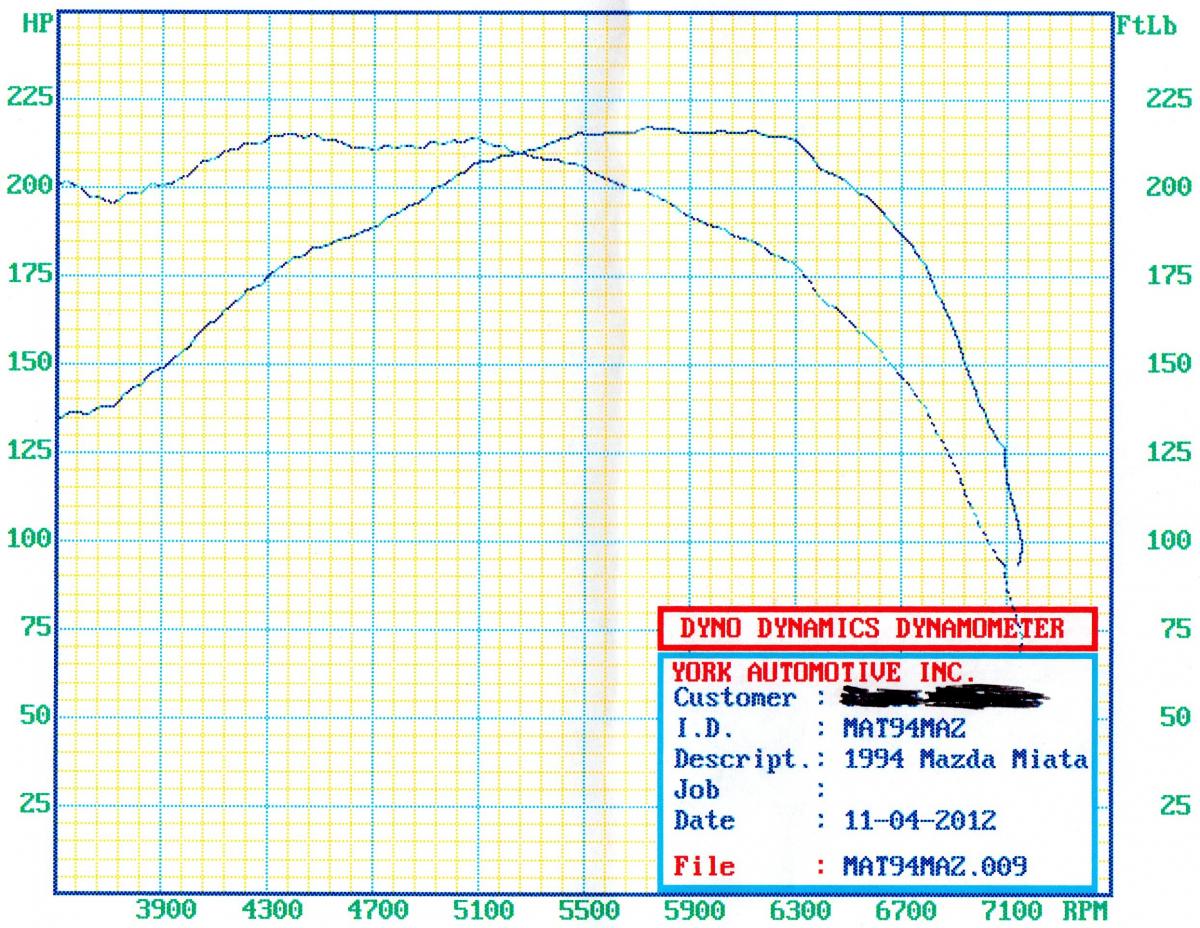

Now that I got all that out of the way. They tuned the car a few months back and I was happy with the tune. Seemed to run fine and have no issues. Some people did not like the curve and where the hp and trq peaked.

My question what should I have them look at as far as the tune. Should I tell them that the trq and hp does not look right. or is it more that it just ends up being what it is and nothing that can be changed.

Also i have read every post out there for max hp and trq and really does not seem to be a definitive answer on what the motor can handle. Right now it is at 12.5psi around 215hp and trq. In your opinion.. and just looking for opinions it is worth it to bump it up to lets say 14psi and close in closer to 250hp or is it not worth it. it is fun like it is but more power is could be more fun. also with those heavy *** wheels might be nice to have more power.

I have read that 250 is the max others say 225hp and trq.

Any thoughts would be appreciated. If it was your car what would you do?
Attached Thumbnails

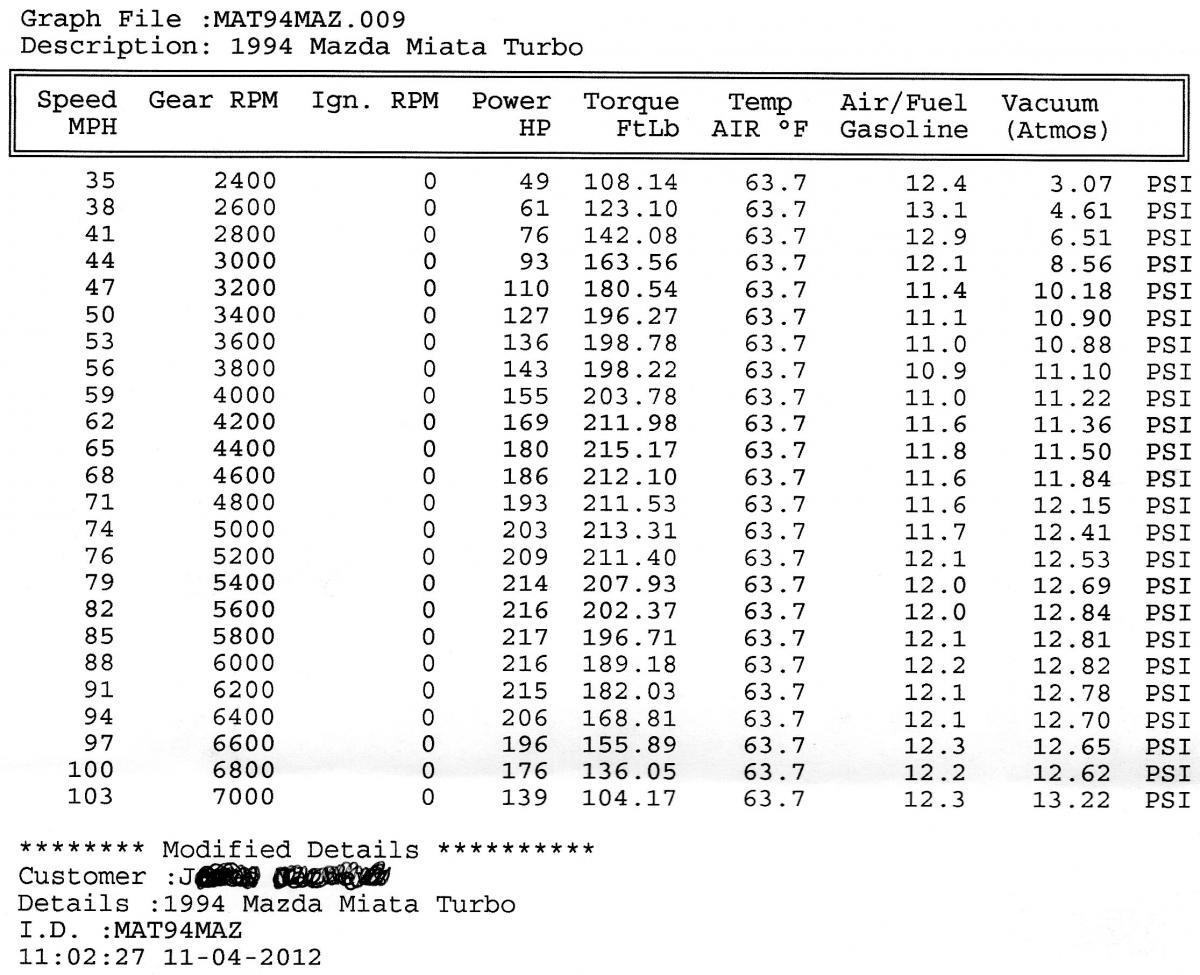

Thoughts on tune and what should I change dyno msq-dyno.jpg   Thoughts on tune and what should I change dyno msq-air-fuel.jpg   Thoughts on tune and what should I change dyno msq-graph-file.jpg
Attached Files
File Type: msq megasquirt201204281620.msq (35.0 KB, 86 views)
File Type: msl 2012-04-28_16.25.28.msl (76.8 KB, 70 views)
zeroox is offline   Reply With Quote
Old 07-17-2012, 10:28 AM   #2
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

I just noticed this thread, but I'm at work now so I can't go through the MSQ. My first thought is that your timing may be way retarded up top. Have you compared your timing map to any in this thread: https://www.miataturbo.net/megasquir...timingz-18648/ ? Maybe try reducing your spark plug gap to see if your getting blowout at higher rpms. What if you try a run at wastegate pressure, does it still die out up top like that?
pdexta is offline   Reply With Quote
Old 07-17-2012, 10:37 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

see: timing latency.



you should be seeing peak power at ~6700RPM.
Braineack is offline   Reply With Quote
Old 07-17-2012, 11:39 AM   #4
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Nice diesel.
hustler is offline   Reply With Quote
Old 07-17-2012, 11:49 AM   #5
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

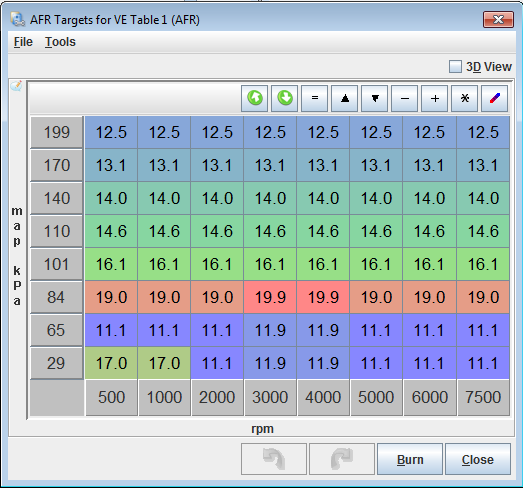

Soooooo aparently this place is not tuning with VEAL or MLV considering this AFR table is loaded:

I guess that helps them sit on the dyno longer and run you on the clock at the hourly rate.

They also have EGO correction turned off, no IAT spark retard.
Attached Thumbnails
Thoughts on tune and what should I change dyno msq-lolwhat.png
hustler is offline   Reply With Quote
Old 07-17-2012, 11:53 AM   #6
Junior Member
Thread Starter

Join Date: Oct 2008
Location: Mechanicsville va
Posts: 91
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
Nice diesel.
I almost forgot about this post.

Diesel miata are going to take over the track. Better gas mileage = less cost to race and more green to keep the tree huggers at bay.

Thanks for the help searching on timing latency to see what I can find.

York Automotive said they were going to dyno tune it today. I guess I will see what they come back with. If it is the same curve I will look at taking it someplace else. With this suggestions provided today not sure I am going to have enough knowledge to call them up and provide suggestions or what I want them to look at.
zeroox is offline   Reply With Quote
Old 07-17-2012, 11:59 AM   #7
Junior Member
Thread Starter

Join Date: Oct 2008
Location: Mechanicsville va
Posts: 91
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
Soooooo aparently this place is not tuning with VEAL or MLV considering this AFR table is loaded:

I guess that helps them sit on the dyno longer and run you on the clock at the hourly rate.

They also have EGO correction turned off, no IAT spark retard.
Thanks.. looking up what that means now.
zeroox is offline   Reply With Quote
Old 07-17-2012, 12:06 PM   #8
Junior Member
Thread Starter

Join Date: Oct 2008
Location: Mechanicsville va
Posts: 91
Total Cats: 0
Default

EGO setting. I realize why that is turned off. This would use the Wide band. Although I have a wide band installed on the car it seems to not read right. I have not been able to solve that problem. They are using the tail pipe probe for AF not my LC1. My hope is to get the LC1 working right so I can attempt to tune myself one day... or maybe drive to NoVa and pay someone for some street tuning time (hint to Braineack ).
zeroox is offline   Reply With Quote
Old 07-17-2012, 12:07 PM   #9
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by zeroox View Post
I almost forgot about this post.

Diesel miata are going to take over the track. Better gas mileage = less cost to race and more green to keep the tree huggers at bay.

Thanks for the help searching on timing latency to see what I can find.

York Automotive said they were going to dyno tune it today. I guess I will see what they come back with. If it is the same curve I will look at taking it someplace else. With this suggestions provided today not sure I am going to have enough knowledge to call them up and provide suggestions or what I want them to look at.
If that AFR table is unchanged, you should ask for your money back.
hustler is offline   Reply With Quote
Old 07-17-2012, 12:10 PM   #10
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by zeroox View Post
EGO setting. I realize why that is turned off. This would use the Wide band. Although I have a wide band installed on the car it seems to not read right. I have not been able to solve that problem. They are using the tail pipe probe for AF not my LC1. My hope is to get the LC1 working right so I can attempt to tune myself one day... or maybe drive to NoVa and pay someone for some street tuning time (hint to Braineack ).
This means they aren't using modern technology like VEAL or MLV which would dramatically speed up the tuning process. This should concern you if have a working wideband. We're talking about ~2 hours to tune a VE table on a dyno manually vs 15 minutes with VEAL.
hustler is offline   Reply With Quote
Old 07-17-2012, 12:16 PM   #11
Junior Member
Thread Starter

Join Date: Oct 2008
Location: Mechanicsville va
Posts: 91
Total Cats: 0
Default

Thanks for taking the time to help me out here guys. So the question is this. I am going to call them up. They were not the original place to set up the MSPNP. What should I ask or tell them when I call.

Just say something like.

-- It looks like I am making peak HP lower than I should on the dyno. Can you check the spark retard and timing latency? ---

I always get worried i am going **** off a shop for some reason.
zeroox is offline   Reply With Quote
Old 07-17-2012, 12:25 PM   #12
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

You can't really ask "are you going to do a good job". You get to pay and see what you end up with. This is why I started tuning cars myself.
hustler is offline   Reply With Quote
Old 07-17-2012, 12:37 PM   #13
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,679
Total Cats: 1,561
Default

Have you done a free air calibration on the LC1?

If you do get the LC1 working correctly and change the target AFRs to something more reasonable, the car will virtually tune itself if you use VE Analyze Live (VEAL) in TunerStudio. You don't need to pay a shop to do it on a dyno.

After you get the timing latency question satisfied you can mimic some of the known safe timing maps that have been discussed in the past by people like Braineak. Your car dies in the higher RPMs and it is likely due to timing. You need to double check that the base timing is set like it is supposed to be.
sixshooter is online now   Reply With Quote
Old 07-17-2012, 01:12 PM   #14
Junior Member
Thread Starter

Join Date: Oct 2008
Location: Mechanicsville va
Posts: 91
Total Cats: 0
Default

I called them up. Mentioned the peak hp how should be later in the rpm. Also asked about the timing. They said they would check everything again. I will wait and see.

I do have the autotune software. I need the Lc1 working. And I plan to tune myself in the future. Right now I just want the car drivable. Have had it for 12 months and been drivable maybe 3. One issue after another.

I will post info when I hear back from them. Said they were putting on the dyno soon.
