Default Tune for 2560 @ 12psi

This is my first attempt at tuning something all by myself. I'm going from 9 to 12psi, with a little headroom.

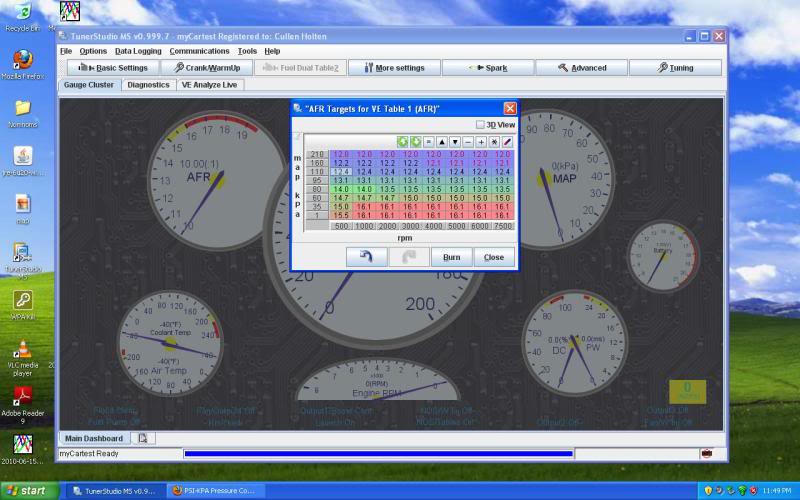

Name:  15psiMap.jpg
Views: 5
Size:  63.2 KB

How does it look?
rider384 is offline   Reply With Quote
Old 08-08-2010, 03:19 AM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,193
Total Cats: 2,583
Default

Looks tiny as ****.

Hit ctrl+alt+print screen after clicking on the map window so it screenshots just the window, and not your whole damn screen. Cause its tiny as **** and most won't squint at it trying to figure out wtf is what
18psi is offline   Reply With Quote
Old 08-08-2010, 05:30 PM   #3
Want fries with that?
Thread Starter
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

Sorry bout that

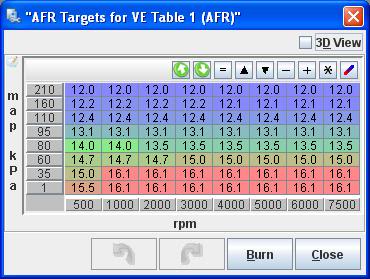

Name:  15psimapres.jpg
Views: 5
Size:  30.5 KB
rider384 is offline   Reply With Quote
Old 08-08-2010, 07:46 PM   #4
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

enlarge 50%.

you want boost cells from 4psi and up to be ~11.5:1 afr (thats where i found it to be the best power output on my engine)
also in higher rpm at low load i.e. 5000-redline in low cells i would set the values to 15:1 use tps modifiers and such to get the crusing AFR leaner instead of the fuel map.
shlammed is offline   Reply With Quote
Old 08-11-2010, 09:07 PM   #5
MT Pony Underground
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

Read that 15.3 is where you want to be for the best MPG, rather than lean it until it gets flakey.

Greg Banish's books are pretty nifty in general, recommend them.
