Default V increase from powering fuel pump from battery w/ relay

I remember seeing a link here for a site where someone wired the battery up to the fuel pump with a relay. I can't find the link anymore and was wondering what V increase that guy saw which I remember being listed at the site. If someone has the link please post it up.
orion4096 is offline   Reply With Quote
Old 04-16-2010, 08:09 AM   #2
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

SLOWMX5

A full volt improvement at the FP
richyvrlimited is offline   Reply With Quote
Old 04-16-2010, 09:51 AM   #3
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Link doesn't work, but it is a good idea.
olderguy is offline   Reply With Quote
Old 04-18-2010, 06:57 AM   #4
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Worked fine when I posted it,looks like the sites gone down :(

I gained about 5% DC when I did the mod on a mates car
richyvrlimited is offline   Reply With Quote
Old 04-18-2010, 09:34 AM   #5
Senior Member
iTrader: (2)

Join Date: Sep 2008
Location: ON
Posts: 523
Total Cats: 2
Default

This is a thread that comes up on every car forum once in a while. Answer is yes, 99% of the time it works.
inferno94 is offline   Reply With Quote
Old 04-18-2010, 11:12 AM   #6
Senior Member
Thread Starter
iTrader: (22)

Join Date: Oct 2007
Location: bay area, ca
Posts: 551
Total Cats: 19
Default

Thanks. Here's the link that works for me: http://www.slowmx5.com/ECU.htm#Fuelpump

I just remembered my car came with an aftermarket alarm which has a fuel cutoff. That might also explain my higher duty cycles if they rewired the pump. I'm between 210-220 whp (no dyno time yet) and seeing 83%+ duty cycles on a walbro 190 and rx-7 460s at 11.3:1.
orion4096 is offline   Reply With Quote
Old 01-23-2014, 05:08 PM   #7
Ian
Junior Member
iTrader: (2)

Join Date: Jan 2012
Posts: 163
Total Cats: 4
Default

Bringing this one back up.

On the only miata rewire documentation I could find, I am not able to view pictures through web.archive.org and the slowmx5.com site is down.

ECU and Electronics

Would anyone be kind enough to post pictures of their rewire for those of us who are primarily visual and not the most electrically inclined?
Ian is offline   Reply With Quote
Old 01-23-2014, 05:29 PM   #8
Newb

Join Date: Dec 2012
Location: Garden Grove, California, United States
Posts: 42
Total Cats: -7
Default

Here let me google that for you


This circuit is a high side switch and switched power circuit, slightly different from your linked article circuit but it will serve your purpose.

Personally I prefer to run a low side switch, with high side switched power. this way you can jump your switch positive voltage from your fused fuel pump source voltage and the whole circuit is fused.
Attached Thumbnails

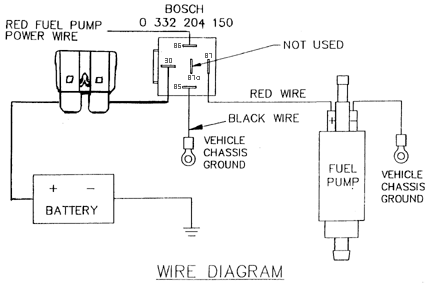

V increase from powering fuel pump from battery w/ relay-fuel%2520pump%2520relay.gif
FAHREN is offline   Reply With Quote
