Old 04-06-2015, 01:53 PM   #21
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

9 out of 10 people that took it apart had issues afterwards, including myself with the last built motor I did. I knwo you said you cleaned it, but.......
18psi is offline   Reply With Quote
Old 04-06-2015, 01:55 PM   #22
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

I've had mine apart twice, it's a pretty simple part. No idea if it works yet, will know soon though. I can't imagine any reason why it wouldn't work though, it's just a few pieces and seals/springs if I remember right, like baby apex seals...
patsmx5 is offline   Reply With Quote
Old 04-06-2015, 02:17 PM   #23
Junior Member
Thread Starter

Join Date: Aug 2014
Posts: 88
Total Cats: -1
Default

It's apart now I'll see if I can hammer it back together soon. I WANNA DRIVE!
stigish is offline   Reply With Quote
Old 04-13-2015, 09:30 AM   #24
Junior Member
Thread Starter

Join Date: Aug 2014
Posts: 88
Total Cats: -1
Default

sad ain't it

stigish is offline   Reply With Quote
Old 04-19-2015, 06:17 PM   #25
Junior Member
Thread Starter

Join Date: Aug 2014
Posts: 88
Total Cats: -1
Default

Thought I'd update and bump the thread.

I picked up a new #1 cam bearing and oil pipe (adapter; the part with the o rings) and installed those with no change. Not that I was really surprised but I started doubting my diagnosis and thinking about just getting enough flow to the rotating assembly to handle some RPM without worrying about the valve timing but also ensuring lubrication makes it to the cam bearing and the actuator.

I made 2 block off plates which sandwich under the supply line. The first one had a 1/8" hole drilled into it. This drill size was arrived at by measuring and closely equivalent to the opening in the oil control valve that allows oil to flow past to the moving parts.

Sketchy huh?



1/8" made little to no difference in upstream oil pressure! But at least it confirms my suspicion that the loss is down stream.

The second plate has a 1/16" hole = 1/4 the area of the first hole. This provides enough oil to the VVT to lubricate while providing 20lb @ 830 rpm and 60lb all the way to 7k rpm with >210* oil!!!!!!

Although this does not provide enough oil for the VVT to function at any level it does

1. Prove the loss is the the VVT system.

2. Provide flow/pressure enough to keep the reciprocating parts happy.

THIS IS A TEMPORARY EXERCISE

Any thoughts?

What would you do next?
stigish is offline   Reply With Quote
Old 04-20-2015, 07:43 AM   #26
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,686
Total Cats: 1,562
Default

1. It proves there is not enough oil volume coming from the pump to feed everything that currently needs to be fed. It does not necessarily villainize the vvt mechanism. The vvt mechanism does require a fair amount of oil, hence the size of the pipe compared to, let's say, a turbo oil feed line. The vvt may still be bad but I wouldn't consider this to be a conclusive deduction.
sixshooter is offline   Reply With Quote
Old 04-22-2015, 02:37 AM   #27
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by patsmx5 View Post
I've had mine apart twice, it's a pretty simple part. No idea if it works yet, will know soon though. I can't imagine any reason why it wouldn't work though, it's just a few pieces and seals/springs if I remember right, like baby apex seals...
Update, I got the VVT hooked up and it works fine in my car, and I disasembled/reassembled the VVT actuator before hand. Works fine! Maybe yours is messed up?

Regarding your engine, I'd still try a 50W oil next. It will not flow as easily, thus whatever(s) in your engine that is leaking too much oil will leak LESS and this will result in higher oil pressure. Worth a shot. Otherwise you gotta tear it down and find out where the leak is.
patsmx5 is offline   Reply With Quote
Old 04-22-2015, 02:44 AM   #28
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by stigish View Post
...
Although this does not provide enough oil for the VVT to function at any level it does

1. Prove the loss is the the VVT system.
Not true. You could also try this: Disassemble the engine and plug off all the oil holes to the main and rod bearings. Result? VVT will go to working! Cause now it will get plenty of oil!

Sixshooter said it well.

What you need to understand is that the pump does NOT supply pressure. All it does is supply FLOW. It pumps a certain amount of oil. All the restrictions in the system (bearings, oil squirters, VVT thingy, etc) present a RESTRICTION to the flow, and thus the pressure rises because of this restriction. You have a big leak(s) somewhere causing a lot of oil to go to one place and not much going everywhere else, and this also means lower oil pressure.

You can do the same thing with a turbo car. Unhook the blow off valve from the charge pipe and watch all the boost go right out the hole instead of in the engine. No restriction, no pressure.
patsmx5 is offline   Reply With Quote
Old 04-22-2015, 04:19 AM   #29
Junior Member
Thread Starter

Join Date: Aug 2014
Posts: 88
Total Cats: -1
Default

Ok, granted guys. Using process of elimination, the squirters are installed with the copper washers and locating pins located and torqued to spec. The bottom end has a max clearance of .00225. The head has no cam bearings. So the head is left.

I guess clearancing all the saddles may point to a new head. Anyone know BP6D clearance? My search showed .006 max for 99 and before.
stigish is offline   Reply With Quote
Old 04-22-2015, 01:17 PM   #30
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,878
Total Cats: 344
Default

Quote:
Originally Posted by stigish View Post
Ok, granted guys. Using process of elimination, the squirters are installed with the copper washers and locating pins located and torqued to spec. The bottom end has a max clearance of .00225. The head has no cam bearings. So the head is left.

I guess clearancing all the saddles may point to a new head. Anyone know BP6D clearance? My search showed .006 max for 99 and before.
Have you considered removing the squirters and blocking off the feed holes?

--Ian
codrus is offline   Reply With Quote
Old 04-22-2015, 01:43 PM   #31
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Also I believe the oil pump has an O-ring at the discharge of the pump IIRC. If that O-ring is missing, bye bye oil pressure? Maybe this is your problem.
patsmx5 is offline   Reply With Quote
Old 04-22-2015, 02:00 PM   #32
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by patsmx5 View Post
Also I believe the oil pump has an O-ring at the discharge of the pump IIRC. If that O-ring is missing, bye bye oil pressure? Maybe this is your problem.
Quote:
Originally Posted by stigish View Post
I bought the BP6D-14-100 from Rosenthal and it did not come with an Oring (Cheap Bastards) but I had one i used with fresh RTV gasket.
Joe Perez is offline   Reply With Quote
Old 04-22-2015, 02:02 PM   #33
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by Joe Perez View Post
Potentially he used the wrong o-ring then, and it's leaking, thus all these problems. Might be onto something!
patsmx5 is offline   Reply With Quote
Old 04-22-2015, 02:26 PM   #34
Junior Member
Thread Starter

Join Date: Aug 2014
Posts: 88
Total Cats: -1
Default

I have only just considered blocking the squirters.

No massive puddles of oil on the floor to account for this much loss.
stigish is offline   Reply With Quote
Old 04-22-2015, 03:33 PM   #35
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by stigish View Post
I have only just considered blocking the squirters.
My VVT engine has adequate oil pressure with the squirters.

So do tens of thousands of others.

So did yours, before whatever went wrong went wrong.





Quote:
Originally Posted by stigish View Post
No massive puddles of oil on the floor to account for this much loss.
I'm trying to remember exactly what this area of the oiling system looks like. In the absence of the O-ring, would oil be escaping from the engine onto the garage floor, or merely escaping from a high-pressure area of the engine into a lower-pressure area (eg: the pan)?
Joe Perez is offline   Reply With Quote
Old 04-22-2015, 03:50 PM   #36
Junior Member
Thread Starter

Join Date: Aug 2014
Posts: 88
Total Cats: -1
Default

Yeah I know, new head or squirters? Or I haven't found the problem yet.

The pump outlet aligns with the block galley and seals with the o ring and/or RTV. If no seal then big leak.
stigish is offline   Reply With Quote
Old 04-22-2015, 04:07 PM   #37
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,686
Total Cats: 1,562
Default

Did the machine shop remove the oil restrictor from the block when cleaning it and not reinstall it?
sixshooter is offline   Reply With Quote
Old 04-22-2015, 04:31 PM   #38
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by stigish View Post
Yeah I know, new head or squirters? Or I haven't found the problem yet.

The pump outlet aligns with the block galley and seals with the o ring and/or RTV. If no seal then big leak.
You haven't found the problem yet. Removing the squirters will help, but it's not the problem. My VVT actuator works at idle in my miata. And I have squirters/stock vvt engine from the oil standpoint.

Try this: Put in 50W motor oil. If pressure goes UP, you have a leak after the pump. If pressure goes DOWN, you have a restriction before the pump (leaking/cracked/clogged pickup tube for example). Try something man! That or tear it down and start going through it.
patsmx5 is offline   Reply With Quote
Old 04-22-2015, 04:32 PM   #39
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by sixshooter View Post
Did the machine shop remove the oil restrictor from the block when cleaning it and not reinstall it?
Curious what is this? I've never heard of it.
patsmx5 is offline   Reply With Quote
Old 04-22-2015, 05:15 PM   #40
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by patsmx5 View Post
Curious what is this? I've never heard of it.

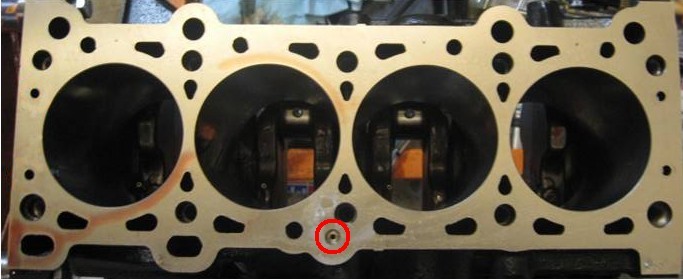

That plug goes in the galley which feeds oil up from the block into the head. It's present in every Miata engine from 1990 through 2005, be it HLA, solid or VVT.
Attached Thumbnails
02 VVT oil pressure loss-48760-where-get-fancy-oil-feed-like-one-f_cyht_53c_u77ts.jpg
Joe Perez is offline   Reply With Quote
