Old 09-05-2013, 11:00 AM   #21
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

what's your O2 in? voltage? you're hitting 0v? what's that like 7.3:1 AFR?

that with your small gap, you're blowing out.


I feel like you need to calibrate your TPS too.
Braineack is offline   Reply With Quote
Old 09-05-2013, 12:40 PM   #22
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

Il try to post a better log tonight. I recalibrated tps, got the 02 reading again, notice it only goes to 21 or 7.4, and my map goes to 200+ in all my logs when I've looked
theshdwconspracy is offline   Reply With Quote
Old 09-05-2013, 02:23 PM   #23
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

so are you or are you not at 7.3:1 AFR (0.02v) in boost?
Braineack is offline   Reply With Quote
Old 09-05-2013, 04:10 PM   #24
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

Not, afr are roughly 11:1 in boost
theshdwconspracy is offline   Reply With Quote
Old 09-05-2013, 07:55 PM   #25
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

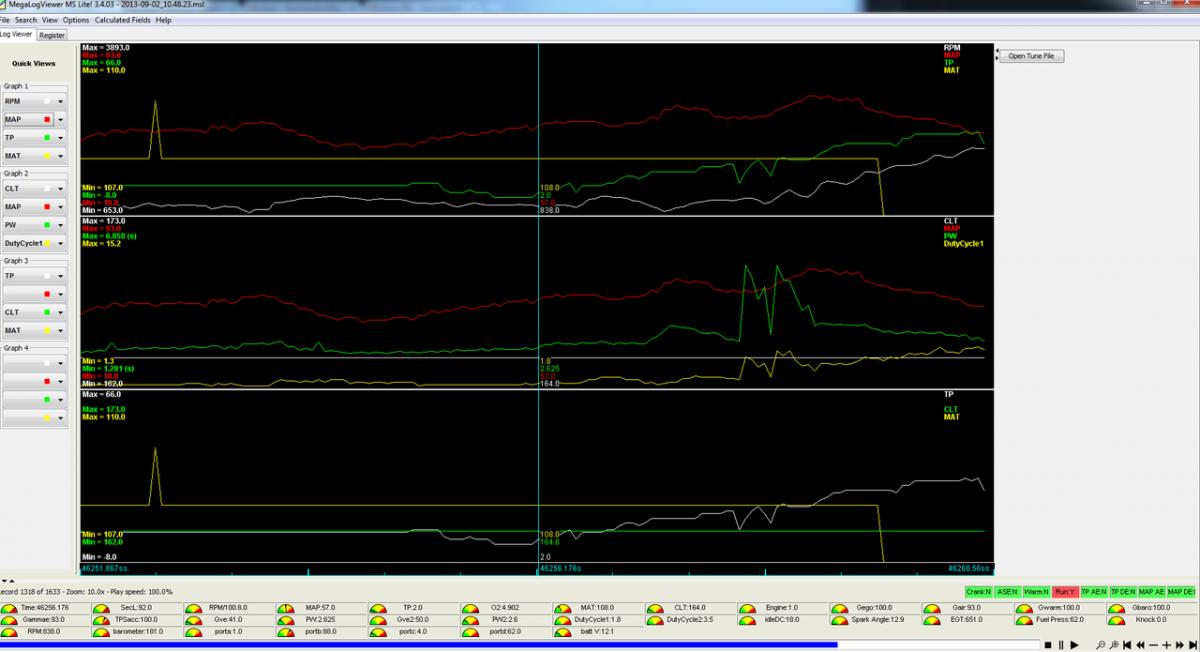

Hrmm.. wtf is up with my viewer.. this is what I see: Max: 93

Attached Thumbnails
1.6L Miata stumble and hesitation problem-vtdz.jpg
FRT_Fun is offline   Reply With Quote
Old 09-06-2013, 12:17 AM   #26
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

Two new logs.

That log you are looking at is correct, these two are hopefully more telling of what's going on.

I'm literally down to: fuel injectors (clogged), and grounds. If someone has another idea, let me know. I honestly don't know where to go from here.
theshdwconspracy is offline   Reply With Quote
Old 09-06-2013, 04:09 AM   #27
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

I had the timing locked at 10* for the first log and that time it pulled better until ~1bar.

I decided to only post one map.
First strange issue, when we first tuned the car, the duty cycle of the injectors maxes out at maybe 75% DC. During this log it hits 99% which isn't correct. I checked the injector screens, but they looked clean. I cleaned them more anyways.


Notice when scrolling through the time line, it says record 500 of 887 and if you advance "frame" by frame, it counts up. At record 534 it's fine and at record 536 it's fine. Where record 535 should be is says MARK 003 RESET.

So, why is my ECU doing that? I cleaned up my current grounds so hopefully they look/work better.

After that I'm out of ideas.
Attached Files
File Type: msl 2013-09-04_22222220.35.38.msl (112.9 KB, 40 views)
theshdwconspracy is offline   Reply With Quote
Old 09-06-2013, 08:29 AM   #28
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

I dont have MLV here, but that above screen shot. That spike in PW is not cool, do you have trigger happy accel enrichments?
Braineack is offline   Reply With Quote
Old 09-06-2013, 09:46 AM   #29
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

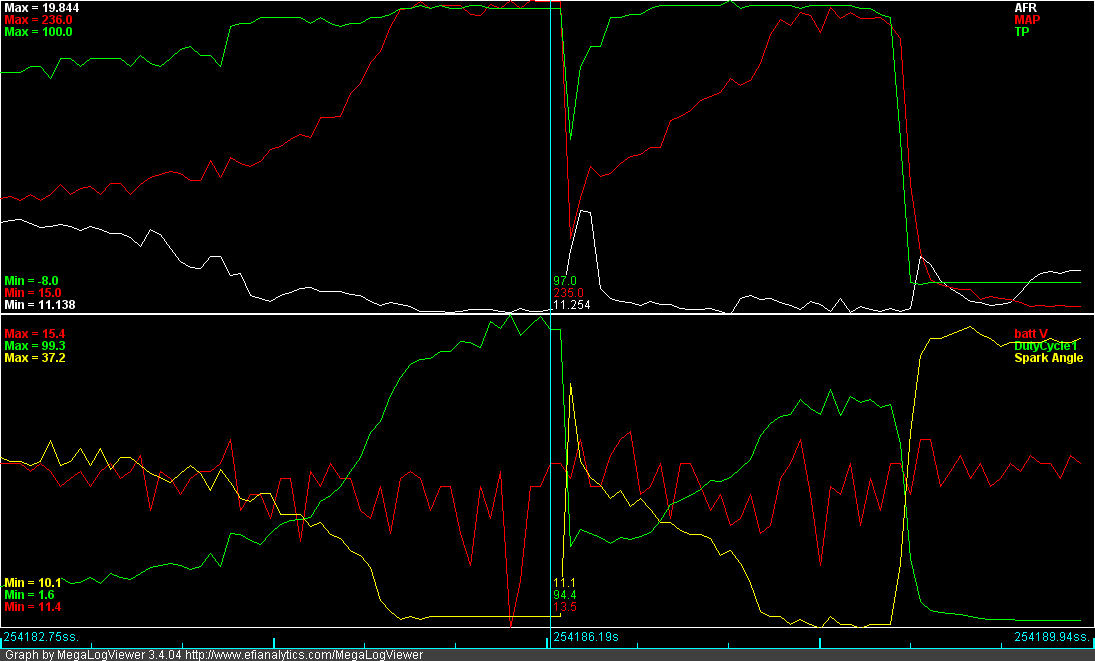

here's a picture of it. There is a red line straight through everything (where the blue line is currently) where the record says RESET
Attached Thumbnails
1.6L Miata stumble and hesitation problem-graph.png
theshdwconspracy is offline   Reply With Quote
Old 09-06-2013, 09:54 AM   #30
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

have you tried to open the gap up to at least .035"

also, why so retarded ignition timing?

and isnt' 11:1 like super rich considering e85?
Braineack is offline   Reply With Quote
Old 09-06-2013, 01:06 PM   #31
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

Tuning issues aside, it ran well like this for a number of days and then all of a sudden stopped working.

That's a little rich, we tuned it to be around 11.5-12:1
Plugs are still closed up (should I try iridiums?)
My friend has been tuning SRs forever so this is probably based on his experience with those, which I know aren't Miata motors. How much more can I run safely? Trying not to max my cylinder pressures because of how fragile those rods are said to be
theshdwconspracy is offline   Reply With Quote
Old 09-06-2013, 01:21 PM   #32
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Just a thought . . .:

Do any of your outputs go to relay coils? I've had these types of resets before and they were caused by flyback voltage. If that's the culprit, there are several ways to address the problem.
hornetball is offline   Reply With Quote
Old 09-08-2013, 04:35 PM   #33
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

We added 3 more grounds to 7-19. We resoldered any connections on the board that might have been questionable, I put in .032" plugs (brand new) and still got resets. I took one run with .024" gaps after the soldering and I had no resets just break up. So I thought maybe te gap suggestion was right, but it reset again with bigger gap. We are thinking mate the coil drivers are overheating and causing a shut down? We just reduced the dwell but haven't had time to test yet. We are thinking maybe these drivers are weak/dying so if this doesn't fix it I was planning on replacing those and going to a 4 bar map sensor just for the extra room since I am nearly maxing this sensor out.
theshdwconspracy is offline   Reply With Quote
Old 09-08-2013, 08:31 PM   #34
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

Reducing dwell didn't help
theshdwconspracy is offline   Reply With Quote
Old 09-08-2013, 09:12 PM   #35
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

I think you should listen to braineack and go into the Acceleration Wizard and set map threshold to 500 and/or the tps threshold to 4.9v. See if that helps. It has with me multiple times when a TPS wire was grounding out occasionally.
curly is offline   Reply With Quote
Old 09-08-2013, 11:16 PM   #36
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

I've tried everything anyone has suggested to this point. I seriously have no clue anymore. This isn't a check your plug gap kind of problem though. For some reason the ecu resets and the log shows a reset condition several times during the course of every pull at 1.4 bar. It's only resetting at full boost not rpm related. The log and data show this
theshdwconspracy is offline   Reply With Quote
Old 09-09-2013, 03:46 AM   #37
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Have you tried increasing your over-boost setting?
curly is offline   Reply With Quote
Old 09-09-2013, 09:47 AM   #38
Newb

Join Date: Sep 2013
Posts: 2
Total Cats: -1
Default

Quote:
Originally Posted by theshdwconspracy View Post
I've tried everything anyone has suggested to this point. I seriously have no clue anymore. This isn't a check your plug gap kind of problem though. For some reason the ecu resets and the log shows a reset condition several times during the course of every pull at 1.4 bar. It's only resetting at full boost not rpm related. The log and data show this
ExtraEFI.co.uk HOME

Tuning Your MegaSquirt-II™ (or MicroSquirt®)
loldrifter is offline   Reply With Quote
Old 09-09-2013, 10:17 AM   #39
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

Are you guys ******* joking?
theshdwconspracy is offline   Reply With Quote
Old 09-11-2013, 02:13 AM   #40
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 782
Total Cats: 23
Default

I think I might have a similar problem so hope that some ideas come forward from this thread.

Car runs perfectly 99% except at high load/boost in 4th, 5th and 6th when it momentarily hesitates (feels just like the rev limiter sometimes, others a lot softer version), the AFR spikes to 16-18 for a split second then car keeps going.

I think the AFR spike is a side effect not the cause.

I also get random resets in my logs, which I believe occur at he same time...

Does this sound similar...?
mx5-kiwi is offline   Reply With Quote
