Default 1.8 stock piston pictures?

Does anyone have any pictures of stock 1.8 pistons? I'm looking for a head-on shot that shows the valve relief cuts.

I've searched all over the interweb and I can't find any pics. Plenty of wisecos/supertechs in this forum but again, I couldn't find stock pics.

Thanks much..
Faeflora is offline   Reply With Quote
Old 05-21-2009, 02:07 PM   #2
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

They all have reliefs on em yeah, even though our motors are non interference i gues its just for insurance.
magnamx-5 is offline   Reply With Quote
Old 05-21-2009, 02:14 PM   #3
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

I'm looking for pics because I'm wondering if the stock pistons have the same little dimple that the supertechs do..
Faeflora is offline   Reply With Quote
Old 05-21-2009, 06:03 PM   #4
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

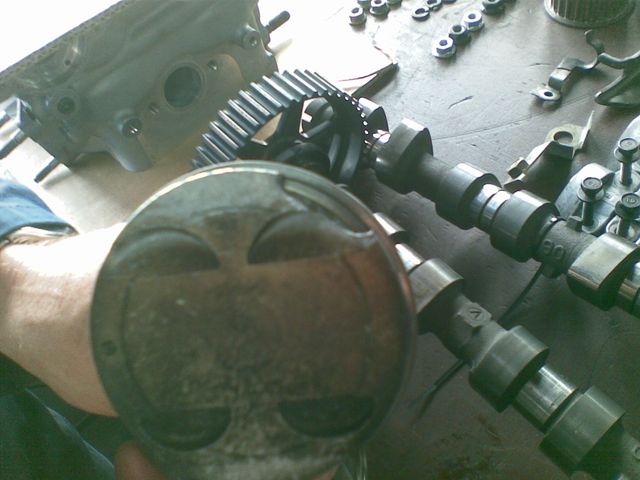

At your service:


The chip missing from the top-right corner is not OEM.
Laur3ns is offline   Reply With Quote
Old 05-22-2009, 12:40 AM   #5
Junior Member
iTrader: (1)

Join Date: Sep 2008
Location: seabrook nh
Posts: 397
Total Cats: 0
Default

heres some high quality pics from when i first took my head off...
ill get a pic or them cleaned up for you later

Name:  DSC00184.jpg
Views: 3
Size:  145.9 KB

Name:  DSC00185.jpg
Views: 3
Size:  154.2 KB

Name:  DSC00186.jpg
Views: 3
Size:  145.3 KB

Name:  DSC00187.jpg
Views: 3
Size:  141.3 KB
bayside blue is offline   Reply With Quote
Old 05-22-2009, 09:41 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

these are 1.6L pistons, they look very similar...

Braineack is offline   Reply With Quote
Old 05-22-2009, 10:53 AM   #7
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by magnamx-5 View Post
They all have reliefs on em yeah, even though our motors are non interference i gues its just for insurance.
Surely the engines are non interference because of the relief cuts in the pistons?
richyvrlimited is offline   Reply With Quote
Old 05-22-2009, 11:31 AM   #8
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

OK so I can't tell. Are these stock pistons or supertech pistons?




Faeflora is offline   Reply With Quote
Old 05-22-2009, 11:40 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

they look like stockers to me. y8s has supertechs in his possession, ask him to compare.
Braineack is offline   Reply With Quote
Old 05-22-2009, 04:28 PM   #10
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Name:  DSCN1492.jpg
Views: 3
Size:  95.7 KB

Super similar, but there's that little dot on the squish area that the Supertechs don't have.
Savington is offline   Reply With Quote
Old 05-22-2009, 05:31 PM   #11
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

So, the pistons I posted are indeed supertech not stockers?
Faeflora is offline   Reply With Quote
Old 05-22-2009, 06:06 PM   #12
Newb

Join Date: Jun 2008
Location: Omaha, NE
Posts: 24
Total Cats: 0
Default

Here's a picture of a new 01 piston. It has three height levels on the face total. The valve reliefs are larger for the intake side of the piston.

The piston next to it is supertech's try at a 84mm factory compression piston. Note the dot on the top surface towards the right.

Your 03 piston should look like the 01 posted if it is factory. - which is doesn't.

Yours could be lower compression supertechs.

Most of the factory pistons have a small cresent shape cut out of them between the intake valve reliefs and the perimeter of the piston.

John
Attached Thumbnails
1.8 stock piston pictures?-piston-01-top.jpg

Last edited by mistersolo; 05-22-2009 at 06:19 PM.
mistersolo is offline   Reply With Quote
Old 05-22-2009, 06:57 PM   #13
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by mistersolo View Post
Here's a picture of a new 01 piston. It has three height levels on the face total. The valve reliefs are larger for the intake side of the piston.
John
Thanks John, the 3 height levels looks like the easiest way to tell. I guess this motor does indeed have the supertechs.

Thanks also to everyone else that posted pics!
