Default 2860 Dyno - smaller housing swap will move tq to lower RPM ? yay or nay ?

Dyno graph from a BEGI Ramhorn tubular mani - GT2860RS with an .86- 12psi


Potential setup I may be buying for my stock VVT 2002.

If I were to swap the .86 for a .64 what will happen exactly ? From my limited knowledge it will move the torque and hp down about 500rpm earlier and sign off a tad sooner ? yay or nay ?

Since this dyno is in a 99 and I have a 02 with VVT will the graph look any different?

I'm asking as it seems to be a tad weaker than other setups when you look at the lower RPM figures.

Need advice - thanks.



BEGI Ramhorn tubular mani - GT2860RS with an .86
Landrew is offline   Reply With Quote
Old 04-28-2011, 01:38 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

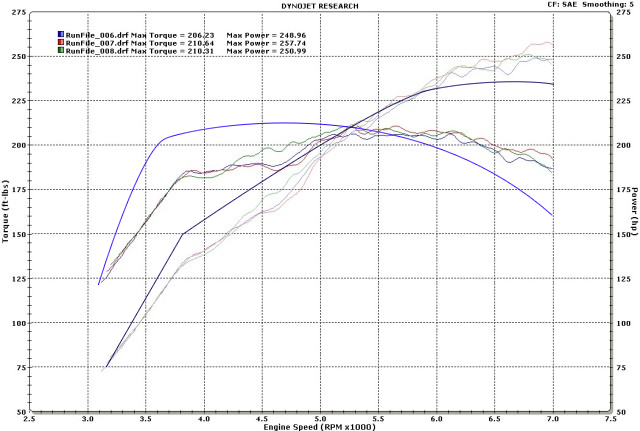

probably something similar to the attached image:




how extreme of a change each side of the curve, I couldn't tell you.
Attached Thumbnails
2860 Dyno - smaller housing swap will move tq to lower RPM ? yay or nay ?-ar_change.jpg
Braineack is offline   Reply With Quote
Old 04-28-2011, 01:51 PM   #3
Senior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

Awesome thanks.


Will a VVT equipped car change anything at all really in that curve vs. a 99 ?? Keeping the same .86 housing
Landrew is offline   Reply With Quote
Old 04-28-2011, 01:54 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

probably best of both worlds.
Braineack is offline   Reply With Quote
Old 04-28-2011, 02:21 PM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

I'd try the vvt with current hotside and see how you like that before going to the .64

What kinda fuel targets are you hitting and what does your spark map look like?
18psi is offline   Reply With Quote
Old 04-28-2011, 02:27 PM   #6
Senior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

I will barely be able to afford the 2860 setup as is so I wont be able to change anything......

If I do end up getting it I'll have to leave it alone and sell pop cans for gas money!

Sounds as if it will be fine at spooling and meet most of my needs compared to my failing 2560.....


I haven't aquired it yet (if at all) so I have no maps to share. If I get it I will definately report in detail.
Landrew is offline   Reply With Quote
Old 04-28-2011, 02:29 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Are you thinking of buying Pat's setup?

I was there when he dynoed it, I wouldn't change it out.
Braineack is offline   Reply With Quote
Old 04-28-2011, 02:33 PM   #8
Senior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

Yes I think that's his first name, not 100% sure. (pschmidt)



I'd be running it on my stock motor, any comments ?
Landrew is offline   Reply With Quote
Old 04-28-2011, 02:38 PM   #9
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

I think that setup is nice. I'd run it as is too
18psi is offline   Reply With Quote
Old 04-28-2011, 02:44 PM   #10
Senior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

Shhh, don't let the good word out. I have to work overtime in the mines and risk the black lung just to give him a lower offer. Word gets out and he'll tilt back in his chair, adjust his monocle and gesture his hand away away with you and I'm done ......

I'm hoping this all comes together, were still stuck on either 2 pigs and a donkey with the turbo kit or free passes to Euro Disney.......it's kind of a stalemate right now...
Landrew is offline   Reply With Quote
Old 04-28-2011, 03:02 PM   #11
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I believe RHarris ran the .64 housing and saw much lower numbers and did not see a "shift left" for torque.

This a log manifold with a .86 housing from my car:

The car was very drivable, and I had zero desire to get a smaller turbine housing. You're going to make better low-end numbers with the tubular housing.

I'm not an engineer, but I know there is a trade-off between turbine AR, spark angle, and back-pressure. It looks like the bigger housing let me run more spark angle down low, which makes the car more drivable and reduces the "hump" in output when the turbo hit's prime flow rate. Coming from a guy with a tubular manifold and .86 turbine housing, leave what you have.
hustler is offline   Reply With Quote
Old 04-28-2011, 03:10 PM   #12
Senior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

Thanks for the info. - I love this site/place !

I'm already bench driving in my head down some of my favorite roads, getting excited............(for something that could still be weeks away!)
Landrew is offline   Reply With Quote
Old 04-28-2011, 03:10 PM   #13
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

I had a 2560 previously. I am now using a 2871 with 0.86 hotside and do not regret the trade off in spool. At the same boost level, I am probably 500-750rpms slower to target boost. Pretty sure the 2860 will be acceptable.

I have VVT, but it's not enabled...yet
dgmorr is offline   Reply With Quote
Old 04-28-2011, 03:12 PM   #14
Elite Member
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

Keep the .86 as it comes as the .64 is too small and tops out too low. If I did it again, I wouldn't hesitate to go with a .86.
rharris19 is offline   Reply With Quote
Old 04-28-2011, 03:20 PM   #15
Senior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

Quote:
Originally Posted by dgmorr View Post
I had a 2560 previously. I am now using a 2871 with 0.86 hotside and do not regret the trade off in spool. At the same boost level, I am probably 500-750rpms slower to target boost. Pretty sure the 2860 will be acceptable.

I have VVT, but it's not enabled...yet

Are you still Adaptronic, I thought it supported VVT?


Let me know how it feels with VVT once you get it ?
Landrew is offline   Reply With Quote
Old 04-28-2011, 06:13 PM   #16
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Landrew View Post
Are you still Adaptronic, I thought it supported VVT?


Let me know how it feels with VVT once you get it ?
I'll show your girlfriend how it feels to "get it".
hustler is offline   Reply With Quote
Old 04-28-2011, 06:16 PM   #17
Senior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

You got into the sugar again didn't you Walter.............
Landrew is offline   Reply With Quote
Old 04-28-2011, 06:27 PM   #18
Senior Member
iTrader: (19)

Join Date: Oct 2007
Location: MoCo, MD
Posts: 703
Total Cats: 0
Default

Quote:
Originally Posted by Landrew View Post
Shhh, don't let the good word out.
*Ahem*

I'm not ignoring your PM, just haven't been able to drag my *** down to the mailroom.

At the time I dyno'd the car I was proud of that graph. It was my first RWD car so as long as the rear end was breaking lose I thought it was the fastest thing on the planet. I wish I could find the spark map I was using so we could all have a good laugh, as I added about 12 degrees of timing in throughout the midrange and picked up a crap ton of torque after that day. Of course, I'm cheap and never re-dyno'd but rather used the dragstrip to gauge my power increases.

The point is, with an optimized spark map you're going to make that graph look like rookie ****. Throw in the VVT and it's game over.
pschmidt is offline   Reply With Quote
Old 04-28-2011, 06:35 PM   #19
Senior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

That setup kind of stinks and will be slow and not really what I was looking for but I guess I'll buy it as a favour to you, "He said trying to sound carefree and not show any enthusiasm and give his secret desires away so the seller would take his offer"




Ahem back at you!


I thought you'd find this. I also thought after looking at other dyno's that there must be more in it. Looks like there is !! I mean if your into that kind of thing. I'm buying it for my sick dogs uncles cousin as a present - I could care less.

Sell it to me, sell it to me.......
Landrew is offline   Reply With Quote
Old 04-28-2011, 08:13 PM   #20
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default



Landrew you are a funny guy.
