Old 03-29-2010, 03:42 AM   #21
Junior Member

Join Date: Mar 2010
Posts: 60
Total Cats: 0
Default

question...how do you feel about chopping the housing/neck from the flange and rewelding it to the position that would best fit?
manata7a is offline   Reply With Quote
Old 03-30-2010, 01:47 PM   #22
Elite Member
Thread Starter
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

I wanted to do this, pretty bad, but it just seemed like it would be hard to make a nice bend. It'd be some close quarters welding, I was thinking you could get a nice neck and then put IT on the end.... But this was not too bad. REally, just cutting off the end, dremelling it flat and laying a bead on it to hold the hose one would be the perfect easy/budget way to do this, if you take care with the dremel.
AbeFM is offline   Reply With Quote
Old 03-30-2010, 10:23 PM   #23
Elite Member
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,762
Total Cats: 18
Default

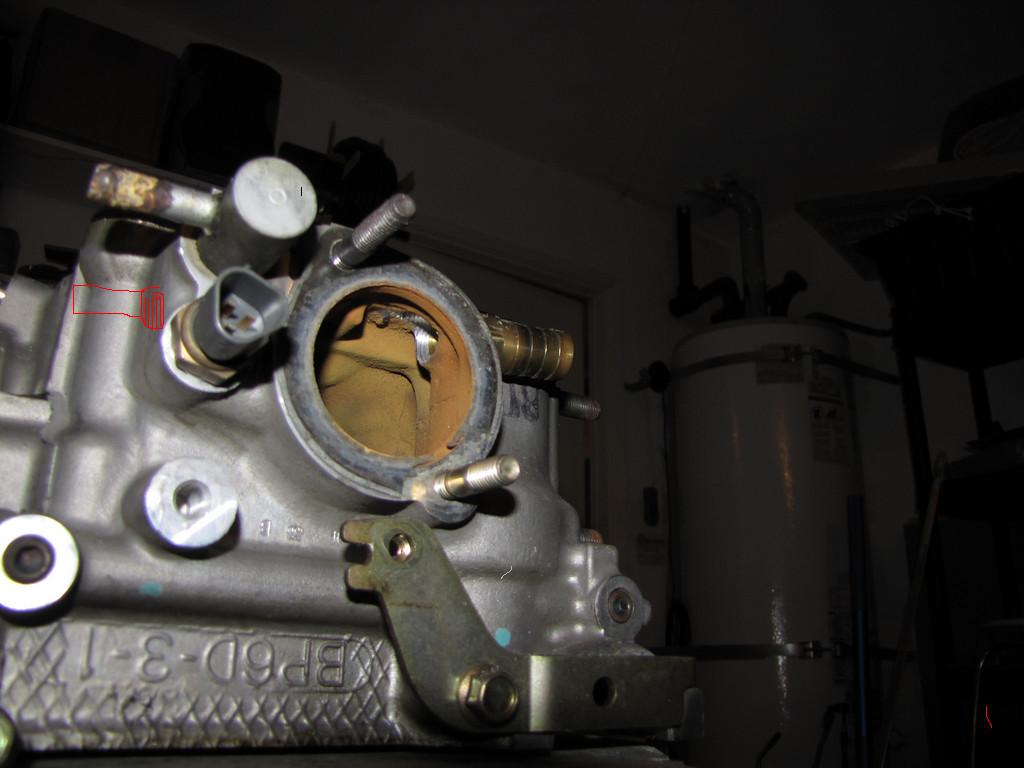

I too an currently doing a reroute on my 00 and I have the spacer that will be taped for heater core and the kia waterneck. I'm looking for a good place to tap the temp sensor. With the cold side reroute I can not place the sensor in the back of the head, it gets in the way of the waterneck. Has anyone taped the side of the head? Like the picture. I understand the EGR tube would be in the way but thats now long gone. I don't have the means to weld aluminum to thicken up the spacer to keep the sensor from hitting the thermostat so thats out. Anyone ever cut a temp sensor; does it really need to be that long?


Thanks!
Attached Thumbnails
Abe's Coolant Re-route Project-head.jpg
IcantDo55 is offline   Reply With Quote
Old 03-30-2010, 10:30 PM   #24
Elite Member
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,762
Total Cats: 18
Default

Quote:
Originally Posted by IcantDo55 View Post
I too an currently doing a reroute on my 00 and I have the spacer that will be taped for heater core and the kia waterneck. I'm looking for a good place to tap the temp sensor. With the cold side reroute I can not place the sensor in the back of the head, it gets in the way of the waterneck. Has anyone taped the side of the head? Like the picture. I understand the EGR tube would be in the way but thats now long gone. I don't have the means to weld aluminum to thicken up the spacer to keep the sensor from hitting the thermostat so thats out. Anyone ever cut a temp sensor; does it really need to be that long?


Thanks!

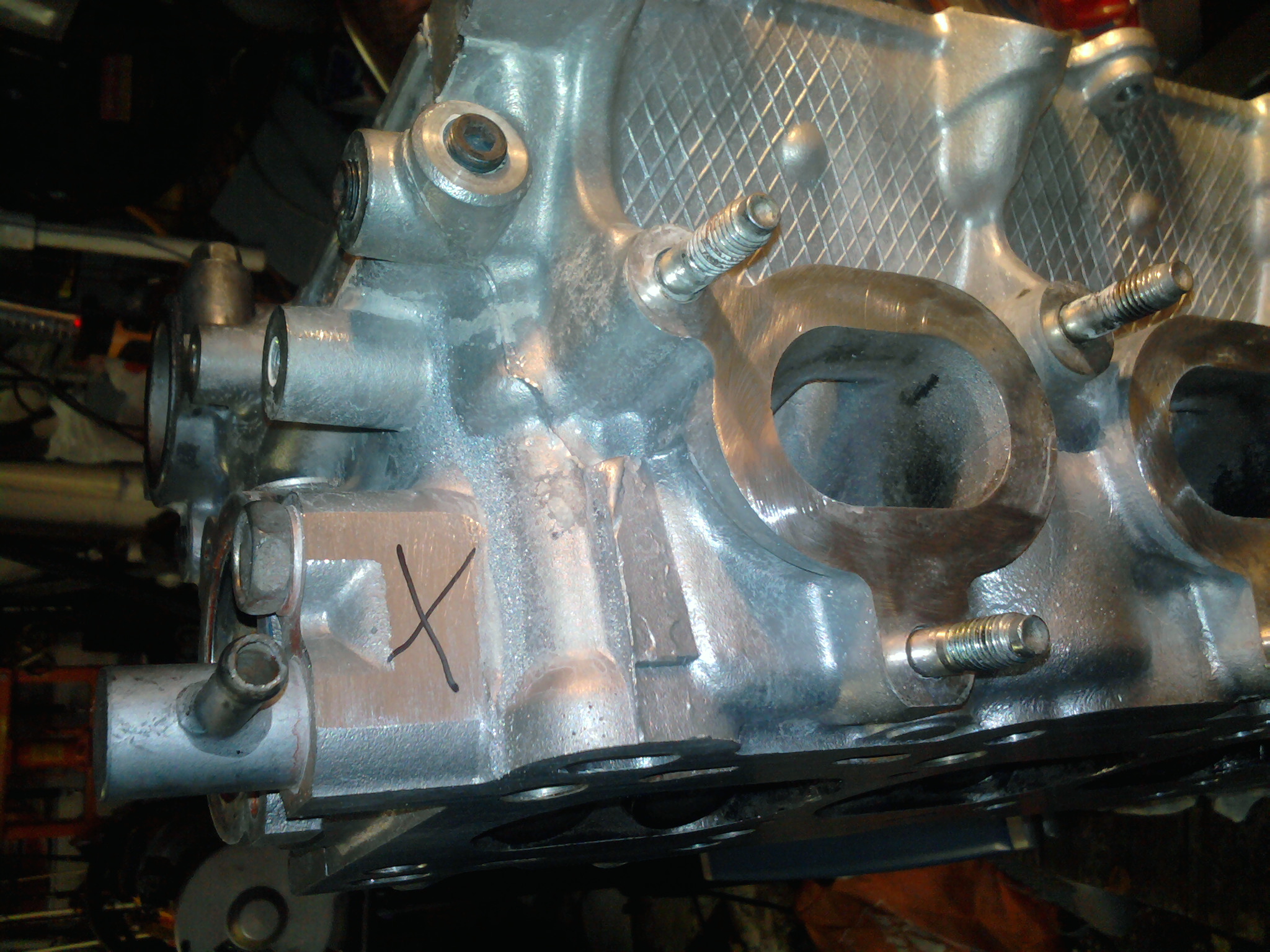

Here a better pic if where I'm thinking of taping.
Name:  2010-03-30190539.jpg
Views: 2
Size:  835.0 KB
IcantDo55 is offline   Reply With Quote
Old 03-31-2010, 01:51 PM   #25
Elite Member
Thread Starter
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

You can't just put it in where that bolt is, above and left of your X. Others have tapped the side of the head, well, basically where I did. Check my pictures. I put a heater core bung there but you could put your temp sensor?
AbeFM is offline   Reply With Quote
