Default Adjustable Cam Gear and Camshaft Snugglespace Hugglezone

I have my new big turbo en route.

My big turbo is actually a real genuine big turbo with a 66mm compressor and a .91 A/R turbine housing. My plan is to pull all the tricks to try to attain the best spool and power under the curve possible. I will be using a quick spool valve and also pre-compressor water injection. I will also put on an adjustable exhaust cam gear and retard it to help the turbo spool.

I'm also considering camshafts. I know more airflow = more power but what would be the best way to get more airflow in lower RPMS (3000-5000RPM)? Would it be best to stick with the stock camshafts? If I put in a mondo big cam, will it screw up my spool?

The overall goal is not numbers or drag times- in short I want the car to be a total beast on the road. If I lose 30hp peak for 80hp gain under the curve that would probably make me happy.

Cam reccomendations?
Faeflora is offline   Reply With Quote
Old 04-16-2011, 02:36 PM   #2
Senior Member
iTrader: (7)

Join Date: Dec 2006
Location: Chicagoland
Posts: 1,362
Total Cats: 3
Default

Usually from experience the bigger the cams the more the power band goes right. Kelfords are really, really quality. I love mine, idle is a little rough with 272s but sounds awesome, and the power keeps climbing. If you're planning on revving north of 8,000 I recommend these.
jtothawhat is offline   Reply With Quote
Old 04-16-2011, 02:37 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,849
Total Cats: 1,788
Default

a 66mm compressor is big now?
Braineack is online now   Reply With Quote
Old 04-16-2011, 02:47 PM   #4
Senior Member
iTrader: (7)

Join Date: Dec 2006
Location: Chicagoland
Posts: 1,362
Total Cats: 3
Default

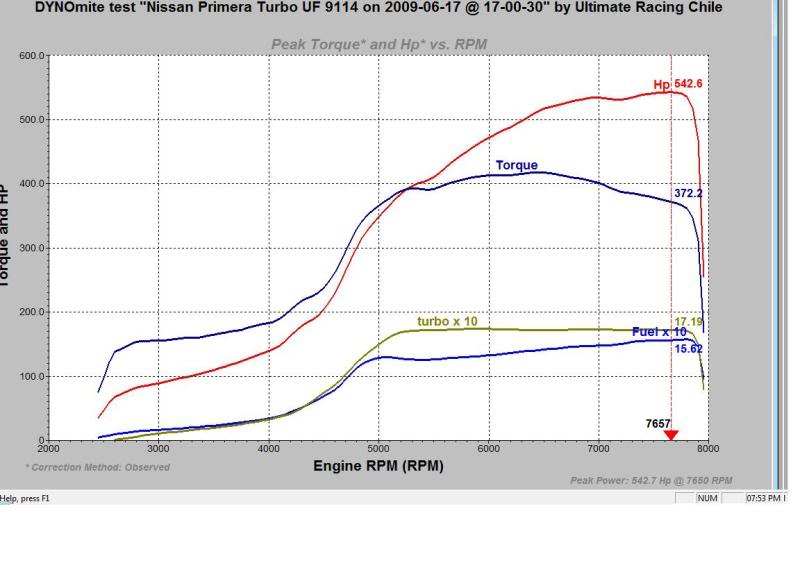

Name:  primeradynosr16camsto8000rpm17lbs.jpg
Views: 1
Size:  50.7 KB

Your turbo on a SR20 twin scroll S300 with 1.15 hotside.
jtothawhat is offline   Reply With Quote
Old 04-16-2011, 03:50 PM   #5
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,895
Total Cats: 109
Default



You have to ask yourself how much setup change you are willing to do.

Monster cams means supporting mods everywhere, including gearing.
miata2fast is offline   Reply With Quote
Old 04-16-2011, 06:24 PM   #6
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default



What other changes? I already have 3.6gears. Not gonna go above 8000rpm.. Stock bearings FTL
Faeflora is offline   Reply With Quote
Old 04-16-2011, 07:36 PM   #7
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,069
Total Cats: 253
Default

How high can you rev the car? What head work do you have done?
viperormiata is offline   Reply With Quote
Old 04-16-2011, 07:58 PM   #8
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default



Fm Valve springs
Port n polish
+1 intake n exhaust valves

Could theoretically go 8500 but am just afraid for kablooue
Faeflora is offline   Reply With Quote
Old 04-17-2011, 01:09 AM   #9
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Braineack View Post
a 66mm compressor is big now?
big to a miata..

come on, it's pretty much a 4094 equivalent hater!

btw are you going to the WVA autox sunday?
Faeflora is offline   Reply With Quote
Old 04-18-2011, 04:08 PM   #10
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,295
Total Cats: 22
Default

So uh.. what's your plan for the gt30
Der_Idiot is offline   Reply With Quote
Old 04-18-2011, 04:24 PM   #11
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

Have you looked into Integral cams I have heard a lot of good things out of there cams.
Sean is offline   Reply With Quote
Old 04-18-2011, 08:07 PM   #12
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Der_Idiot View Post
So uh.. what's your plan for the gt30

Sell it. Will be putting up my whole hotside for sale once the new turbo is in the car. That will include GT3071 with ceramic coated turbine housing, S5 cast ceramic coated manifold, purple tial 38mm wastegate, 3" stainless steel downpipe.
Faeflora is offline   Reply With Quote
Old 04-18-2011, 09:19 PM   #13
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

infinitely adjustable intake manifold.
fooger03 is offline   Reply With Quote
Old 04-18-2011, 09:44 PM   #14
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

I have jtothawhat's old cams and saw spool almost 500 rpms sooner than with my stock cams. I never had my car running properly with the new cams but it defiantly had better spool for some reason.
Gotpsi? is offline   Reply With Quote
Old 04-19-2011, 12:15 AM   #15
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

I just read this nice little camshaft faq:

http://www.streetracersonline.com/articles/camshafts/

I think I will give Megacycle (integral) and also Paeco cams a call tomorrow.

Here is the Paeco link:

http://www.paeco.com/Mazda%20Miata%2...obe%20Cams.htm

Paeco looks cheap.

This cam of theirs sounds good :

INTAKE: 42/82 EXHAUST: 80/44 DURATION: 304 LIFT: 422"
Faeflora is offline   Reply With Quote
Old 04-19-2011, 03:26 AM   #16
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

I had cams ground locally for cheap ($300 set) and they more than met my expectations. Doing it this way also lets you sit down a really fine tune cams that will work with your setup and headwork.

They are not custom profiles. We dug through hundreds of existing profiles he had on file to find what we wanted and matched two cams together. Iirc they come from an old Aston Martin and lotus from the 70's.

Ignore total duration. You want to find out what the lift/duration is at like .050 and the opening and closing ramp speeds. My cams are in the 310* total duration but you wouldn't be able to tell if you listened to my car. .050 is around .207/.213 degrees respectively and 8mm lift.
falcon is offline   Reply With Quote
Old 04-19-2011, 03:41 AM   #17
Senior Member
iTrader: (7)

Join Date: Dec 2006
Location: Chicagoland
Posts: 1,362
Total Cats: 3
Default

Falcon...That is a really mild cam, what is the stock degree/lift?
jtothawhat is offline   Reply With Quote
Old 04-19-2011, 12:02 PM   #18
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by falcon View Post
I had cams ground locally for cheap ($300 set) and they more than met my expectations. Doing it this way also lets you sit down a really fine tune cams that will work with your setup and headwork.

They are not custom profiles. We dug through hundreds of existing profiles he had on file to find what we wanted and matched two cams together. Iirc they come from an old Aston Martin and lotus from the 70's.

Ignore total duration. You want to find out what the lift/duration is at like .050 and the opening and closing ramp speeds. My cams are in the 310* total duration but you wouldn't be able to tell if you listened to my car. .050 is around .207/.213 degrees respectively and 8mm lift.
Did you have your stock cams reground or did you provide them with mazdaspeed blanks?
Faeflora is offline   Reply With Quote
Old 04-19-2011, 12:10 PM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,849
Total Cats: 1,788
Default

Quote:
Originally Posted by Faeflora View Post
big to a miata..

the 2871 and 3071 both have a 71mm compressor... and those still aren't "Big" turbos.


oh i see, you quoted the inducer like a n00b. That wheel you speak of has an 87mm exducer...

Braineack is online now   Reply With Quote
Old 04-19-2011, 12:43 PM   #20
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Braineack View Post
the 2871 and 3071 both have a 71mm compressor... and those still aren't "Big" turbos.


oh i see, you quoted the inducer like a n00b. That wheel you speak of has an 87mm exducer...

No it's actually a 91mm exducer.

That is larger than a gt4088 approaching a gt4094 which is the category, per Garrett's website, of "Large Frame".

I win!
