Default Awesome Rod Failure Carnage (dialup beware)

So I pulled the blown engine out of the car today and tore it down to investigate the engine condition after the engine failure discussed here:
https://www.miataturbo.net/forum/t29521/
This is the event preceding the engine build to be shown here:
https://www.miataturbo.net/forum/t30899/

First of all special thanks to Barry who came by with his fantastic engine hoist and gave me a hand with the engine/transmission removal/teardown. From start (engine in the car, on jack stands) to finish (torn apart engine) took less than four hours. Engine tilt attachment on the engine hoist FTW!

After tear down and accident reconstruction process, I am almost certain that this failure was caused by an overstressed rod that collapsed, and not brought on by detonation or hydrolock. This is my hypothesis on how the failure happened:
1. Cold temperatures and slight overboost created cylinder pressures too high for the rods.
2. On the power stroke the #4 piston rod buckles, twists, and collapses, greatly shortening the piston to crank distance.
3. The #4 piston travels downward and impacts the crank.
4. BANG!
5. In rapid succession the piston skirt shatters, then the piston wrist pin 'caps' fail, tearing the wrist pin completely out of the piston skirt.
6. The wrist pin and connecting rod begin flailing wildly around in the bore, smashing two holes in the block (one on each side), damaging the windage tray, and breaking the connecting rod into bits, along with several other parts.
7. The wrist pin is ejected from the engine case, along with several pieces of piston.

For complete photos of the carnage go to this link:
Picasa Web Albums - John - Engine Removal

Here are some of the key photos with descriptions below:

Last edited by ZX-Tex; 01-31-2009 at 09:07 PM.
ZX-Tex is offline   Reply With Quote
Old 01-31-2009, 07:01 PM   #2
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Barry contemplates the meaning of power and its consequences


Look, Daddy blew his engine! Hahaaaa!
ZX-Tex is offline   Reply With Quote
Old 01-31-2009, 07:07 PM   #3
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

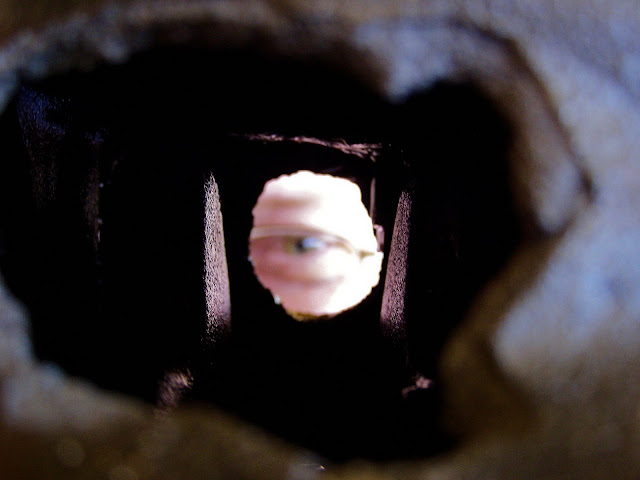

The hole clear through the block. Turns out there was another hole behind the starter that could not be seen until the starter was removed. The starter is OK and was cleared by paramedics at the scene.

Last edited by ZX-Tex; 01-31-2009 at 07:27 PM.
ZX-Tex is offline   Reply With Quote
Old 01-31-2009, 07:11 PM   #4
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

The #4 piston stuck in the bore. Note the extreme failure of the piston wrist pin 'caps'.


All the bits and pieces of the #4 piston, wristpin, and connecting rod, gathered from all throughout the engine and engine bay. Check out the awesome bend and twist in the center section of the rod.
ZX-Tex is offline   Reply With Quote
Old 01-31-2009, 07:15 PM   #5
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

This is what happens when the rod end is turned into a high-speed rotary hammer.

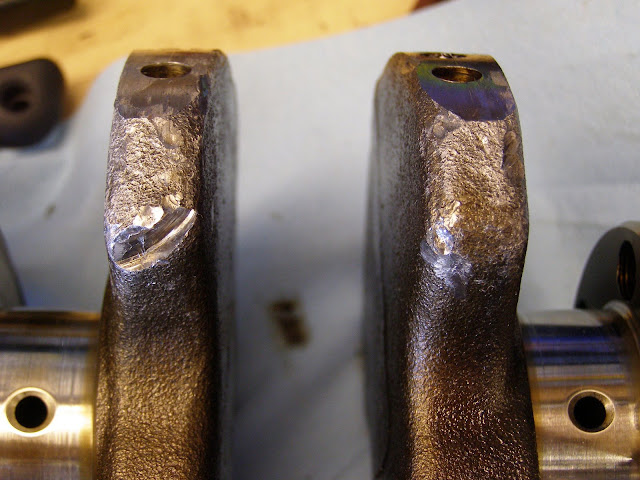

Here is where the piston hit the crankshaft. Otherwise the crank looks great. Hopefully it is reusable; I'll see what the machine shop thinks.
ZX-Tex is offline   Reply With Quote
Old 01-31-2009, 07:22 PM   #6
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Ugh, that gives me the chills.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 01-31-2009, 07:30 PM   #7
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

*Walks outside to dial down MBC*

Damn. Was the engine fully warmed up when this happened? Or was it 1/2 warmed up? Perhaps it seized a piston, which caused the rod to stretch/fatigue/fail?
patsmx5 is offline   Reply With Quote
Old 01-31-2009, 07:34 PM   #8
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

This is starting to sound like the old days when everyone pushed their engines and we had lots of 99+ blow-ups in the 250+ range. I think you get some god motors, but most eventually give up and exit the block!
M-Tuned is offline   Reply With Quote
Old 01-31-2009, 07:38 PM   #9
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Oh yeah, I almost forgot to mention... When we were cleaning up I picked up the remaining piston/rod assemblies and noticed that another one of them is also bent! I do not know which bore it came from.



The fact that a rod other than #4 was bent (not due to a hot cylinder), the lack of any detected detonation when it happened, the lack of signs of detonation on any of the components (no chipped rings, plugs, pistons, etc) not-extremely-aggressive timing, no head gasket leaks, and good AFR, leads me to conclude that this was simply an Euler column bucking event brought on my too much boost.
ZX-Tex is offline   Reply With Quote
Old 01-31-2009, 07:46 PM   #10
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by patsmx5 View Post
*Walks outside to dial down MBC*

Damn. Was the engine fully warmed up when this happened? Or was it 1/2 warmed up? Perhaps it seized a piston, which caused the rod to stretch/fatigue/fail?
Nope, engine was completely warmed up.
ZX-Tex is offline   Reply With Quote
Old 01-31-2009, 07:46 PM   #11
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by [email protected] View Post
This is starting to sound like the old days when everyone pushed their engines and we had lots of 99+ blow-ups in the 250+ range. I think you get some god motors, but most eventually give up and exit the block!
I agree. I do not think there is anything sinister at work here other than my EBC tuning
ZX-Tex is offline   Reply With Quote
Old 01-31-2009, 07:58 PM   #12
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

must be the cold winter air.
y8s is offline   Reply With Quote
Old 01-31-2009, 08:26 PM   #13
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by y8s View Post
must be the cold winter air.
Yes I believe that also contributed; A highly knowledgeable IC Engine R&D Engineer buddy of mine suggested this as well. It was a cool morning when it happened, in the upper 40s to lower 50s IIRC. Most of us know from experience the fact that engines tend to make more power in cooler weather, all else being equal.
ZX-Tex is offline   Reply With Quote
Old 01-31-2009, 08:32 PM   #14
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

God damn that is impressive.
Savington is offline   Reply With Quote
Old 01-31-2009, 08:33 PM   #15
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

Holy ****
18psi is offline   Reply With Quote
Old 01-31-2009, 08:55 PM   #16
Former Vendor

Join Date: Dec 2007
Location: Texas Hill Country
Posts: 271
Total Cats: 16
Default

I don't think I would re-use those parts.
Corky Bell is offline   Reply With Quote
Old 01-31-2009, 09:11 PM   #17
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Dang it, my last hopes of saving the #4 components are dashed against the rocks. Corky I was going to see if you guys could weld that stuff back together for me. Then I could drill and ream the rod end. I thought I could also bend the rings back into shape. I also figured I could patch the holes in the block with some JB Weld and bits of sheet metal.

Corky you know this is all your fault. Your stuff works too well. I think you owe Barry and I a Margarita.

I am just glad it looks like the head was not damaged, and the crank is OK (hopefully). It could have been... worse?

Last edited by ZX-Tex; 01-31-2009 at 10:29 PM.
ZX-Tex is offline   Reply With Quote
Old 01-31-2009, 11:01 PM   #18
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I like how not only is the south Texas miata crew full of big-time turbo cars but also full of people who could kill me...instantly, lol.
hustler is offline   Reply With Quote
Old 01-31-2009, 11:04 PM   #19
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

speaking of corky's stuff working too well,I met a guy at the NASA TT today with an MSM and a BEGi kit which was driven in 3-classes by 3-drivers...and its a daily driver. lol
hustler is offline   Reply With Quote
Old 01-31-2009, 11:22 PM   #20
Senior Member
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

Quote:
Originally Posted by Corky Bell View Post
I don't think I would re-use those parts.
Due to Corky's experience and wisdom, I am going to concur. Do not reuse those parts.









wes65 is offline   Reply With Quote
