Old 09-27-2012, 09:12 AM   #21
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

I saw that you have the EBC, presumably controlled by the link as intended. If so, it should reach target boost. In my experience the link does a decent job of controlling boost.
If you can't reach boost with a decent EBC, then your turbo is choking on something -> the cat hopefully. It could also be blowing air somewhere else and not into the intake. But since the link uses the stock ECU and MAF when not boosting, and for part of the fuel delivery when boosting, it should also have bad AFRs which you are not reporting. So I doubt it's an air leak.

Extended Autobahn high-speed runs could also cause really hot combustion chambers and from that valve-failure. I hope that's not it, but if it's not the cat you may want to pull the head.
stefanst is offline   Reply With Quote
Old 09-27-2012, 09:18 AM   #22
Newb

Join Date: Sep 2009
Location: Netherlands
Posts: 23
Total Cats: 0
Default

I have build the car together with Jasper. After his unfortunate run in Germany, I have helped him re-installing the couplers that were badly installed in the shop they took him to. We did not boost test the setup, looked at the couplers and they seemed ok. I also checked the torque on the manifold bolts and the down pipe, all tight. No visible cracks.

The cat was on my list of suspects too but since the car sounded not louder or muffled, I guessed it would be Oke. Think we have to check it just to rule it out.

Scott that is one scary picture!
henksmiata is offline   Reply With Quote
Old 09-27-2012, 09:20 AM   #23
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,908
Total Cats: 1,793
Default

that happened after I blew a motor and the cat got dowsed in oil...that was after trying to run the new motor and it just wasn't quite running well
Braineack is offline   Reply With Quote
Old 09-27-2012, 09:28 AM   #24
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Check the studs!!!!
curly is offline   Reply With Quote
Old 09-27-2012, 01:36 PM   #25
Newb

Join Date: Sep 2009
Location: Netherlands
Posts: 23
Total Cats: 0
Default

studs are okay
henksmiata is offline   Reply With Quote
Old 09-27-2012, 01:41 PM   #26
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,908
Total Cats: 1,793
Default

Quote:
Originally Posted by henksmiata View Post
studs are okay

yeah they are! wooo woooooooo

Braineack is offline   Reply With Quote
Old 09-27-2012, 02:07 PM   #27
Newb

Join Date: Sep 2009
Location: Netherlands
Posts: 23
Total Cats: 0
Default

LOL , thats why I called them bolts in the first post
henksmiata is offline   Reply With Quote
Old 09-27-2012, 03:31 PM   #28
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 799
Total Cats: 25
Default

Quote:
Originally Posted by henksmiata View Post
If the cat melted to a lump shouldn't there be a noticeable change in exhaust note?
There wasn't enough change at idle on the car I heard for us to figure it out right away. I never drove/rode in it and on the track I had my own exhaust to listen to. Turbos are already muffled by nature so the exact same failure NA would certainly sound different.
mr_hyde is offline   Reply With Quote
Old 09-27-2012, 04:23 PM   #29
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,882
Total Cats: 45
Default

It should be easy to unbolt the cat and look inside to check it's health.


If it looks fine, you could still have a boost leak. Also, check the wastegate actuator preload. If it was loose, it may not be putting the same amount of force on the flapper as it used to, meaning you might have lost your 1-2psi there. You could also have spike really lean and detonated really hard when the coupler popped off. If you haven't replaced the plugs and tossed the old ones yet, pull them out and check for detonation residue (tiny ***** of aluminum on the insulator).
vehicular is offline   Reply With Quote
Old 09-28-2012, 04:01 AM   #30
Newb

Join Date: Sep 2009
Location: Netherlands
Posts: 23
Total Cats: 0
Default

We checked the plugs, nothing that indicated detonation, new plugs are installed.
Haven't checked the preload on the actuator yet, it goes on the check list.
henksmiata is offline   Reply With Quote
Old 10-02-2012, 06:17 AM   #31
Newb
Thread Starter

Join Date: Jul 2010
Location: Dutchland 8-)
Posts: 44
Total Cats: 0
Default

Wow, lots of replies! My notification system didn't work any more....
Henk is right, we've got to check everything step by step.

We're both quite busy so it'll take a while. ;-)
prxprx is offline   Reply With Quote
Old 10-02-2012, 08:44 AM   #32
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Pop the pipe going to the cat off and run it. It will be loud but if it works like normal its sledge hammer and jack handle time.
Leafy is offline   Reply With Quote
Old 10-03-2012, 04:09 PM   #33
Newb
Thread Starter

Join Date: Jul 2010
Location: Dutchland 8-)
Posts: 44
Total Cats: 0
Default

This Saturday i'll try to pop the midpipe out. My cat is clamped in between two pieces of exhaust (midpipe) with exhaust clamps... And I do not really want to take those clamps off. (We had a bit of trouble sealing them up)

So I'll probably remove everything after the downpipe... so the full midpipe+cat and possibly together with the muffler.
prxprx is offline   Reply With Quote
Old 10-08-2012, 05:07 PM   #34
Newb
Thread Starter

Join Date: Jul 2010
Location: Dutchland 8-)
Posts: 44
Total Cats: 0
Default

Took off the exhaust this weekend, right after the downpipe and flex piece.
Serious amount of noise that made us giggle like little girls. Had a good time, lol...

Took it for a short spin while my friend was recording everything with his phone.

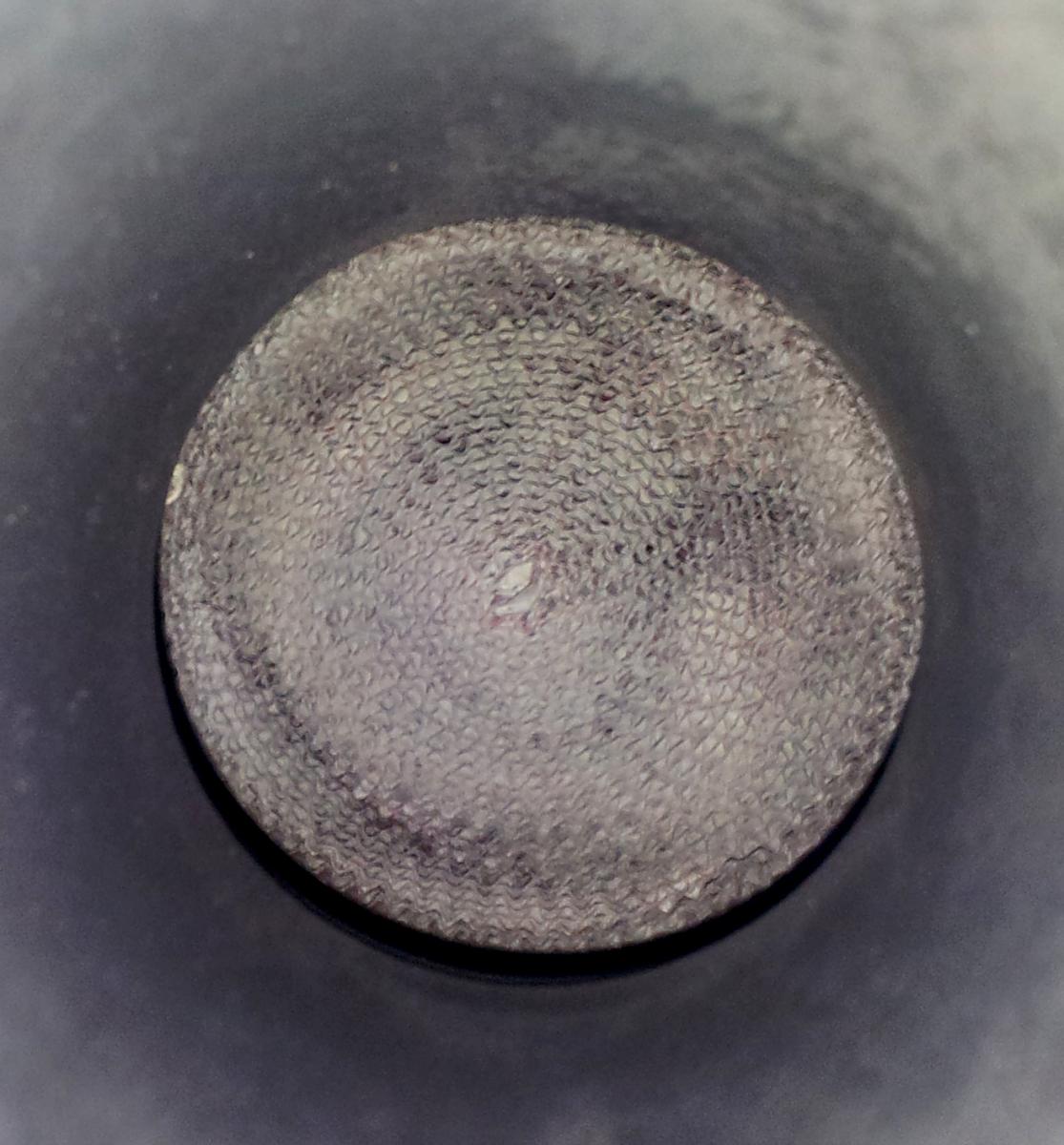

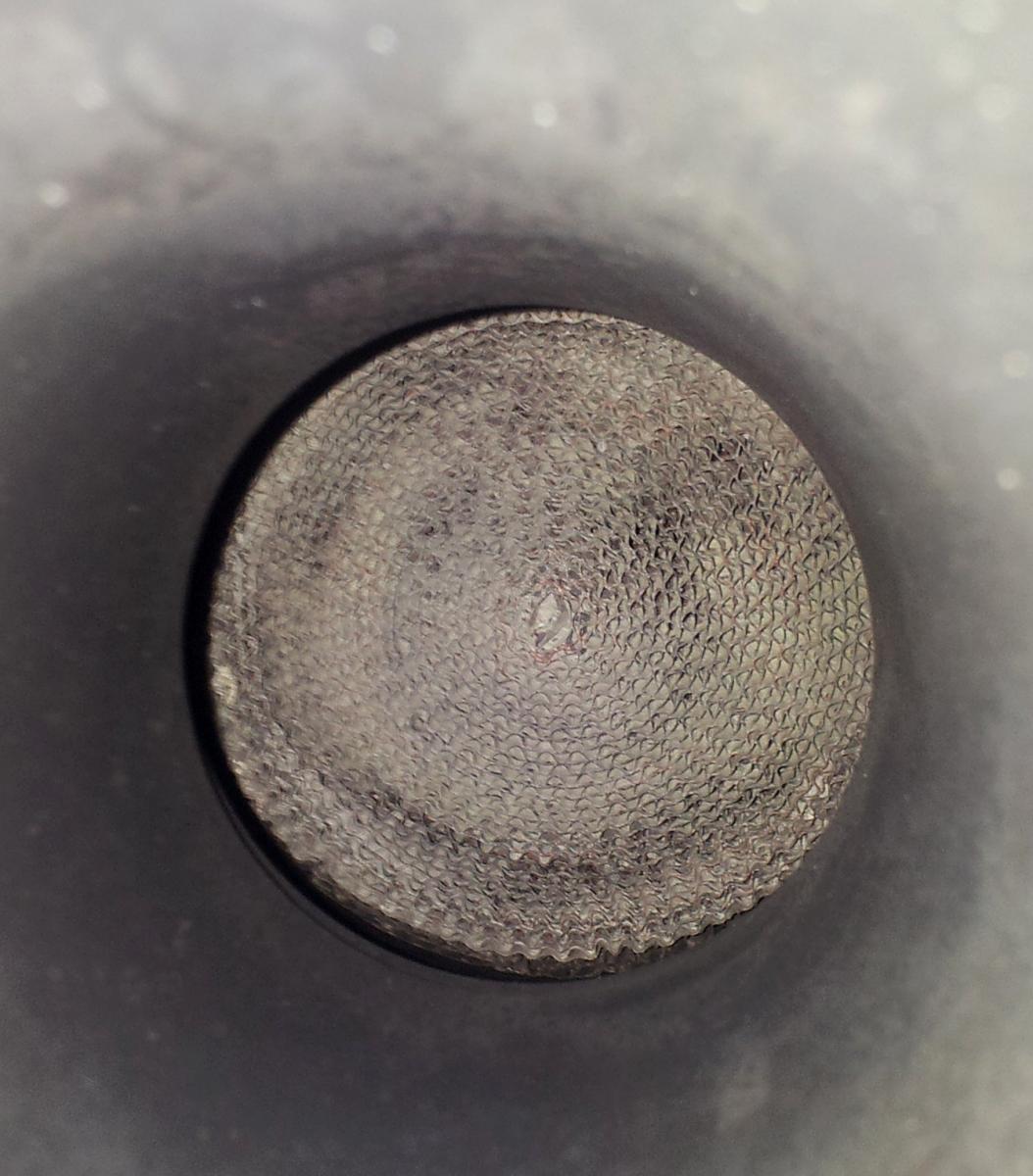

The cat looked better than I hoped, no big blobs or molten stuff, but it looks to be a bit off to the side and it also kinda looks like it's a bit clogged...

But like I said, we took it for a spin and although I think I had more power, it still wasn't nearly as good as it was before... So it can't be just the cat that's causing problems.
Attached Thumbnails
Car makes noticably less power after Autobahn incident (intercooler pipe came loose)-20121007_133344.jpg   Car makes noticably less power after Autobahn incident (intercooler pipe came loose)-c360_2012-10-07-13-34-23.jpg
prxprx is offline   Reply With Quote
Old 10-08-2012, 05:17 PM   #35
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,908
Total Cats: 1,793
Default

metal core?
Braineack is offline   Reply With Quote
Old 10-08-2012, 05:19 PM   #36
Newb
Thread Starter

Join Date: Jul 2010
Location: Dutchland 8-)
Posts: 44
Total Cats: 0
Default

Yeah, bought last year @ Flyin' Miata. You can't see daylight through the cat because there's a bended pipe after/in front of the cat.
prxprx is offline   Reply With Quote
Old 10-11-2012, 04:08 PM   #37
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Have you run a compression test yet? That would tell you what shape your valves and/or rings are in...
stefanst is offline   Reply With Quote
