Default Compression help

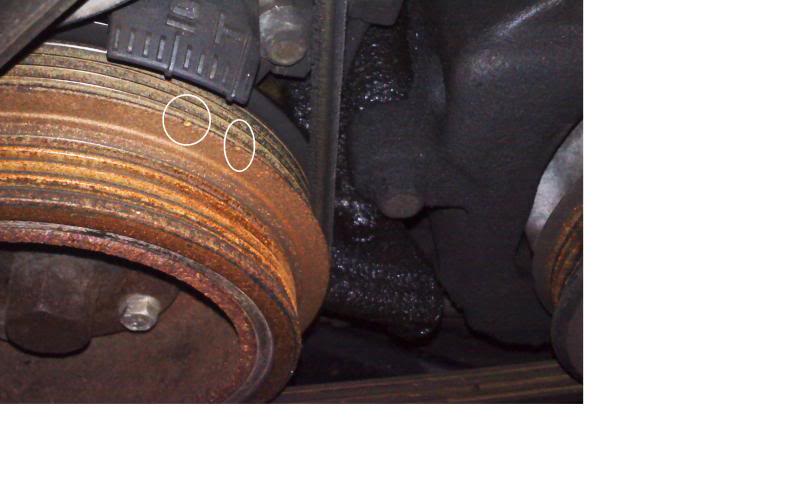

Block is at TDC cyl #1 and this is what the pulley looks like,Cams look as though they are on time. I remember reading about crank snout problems but I thought that this was only from the earily ones. I would have love to see a broken timing belt =( 0 compression. Any help would be amazing. Cams 100% in time. But I think the crank pulley moved? I honestly do not know. Car just cranks with 0 compression.
Name:  chi.jpg
Views: 2
Size:  36.9 KB

Quote:
Originally Posted by blkmkiii View Post
So cylinders 1&3 are filled with oil, 2&4 are ultra clean, I know the car ran without a radiator fan for a while and the is some heavy tan sludge in it. Going to pressure test the head and go from there.

#1

#2

#3

#4

Last edited by blkmkiii; 04-27-2011 at 09:47 PM.
blkmkiii is offline   Reply With Quote
Old 04-25-2011, 12:34 PM   #2
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2011
Posts: 273
Total Cats: -163
Default

25 views and no one knows
blkmkiii is offline   Reply With Quote
Old 04-25-2011, 12:43 PM   #3
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Yeah, that's weird.
hustler is offline   Reply With Quote
Old 04-25-2011, 12:45 PM   #4
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

For a question like this you need to be more specific. does your guage work? Did you test with a guage or are you guessing it has no compression, timing belt may be stretched to all get out, you may be checking the marks while turning the engine anti clockwise instead of clockwise, no pulley can slip.

The harmonic balancer can which will show correct timing when it isnt, but its easy to tell, put a screwdriver into the no1 plug hole and crank manually until its at tdc with the cam marks lined up, no wyou will know if the balancer slipped.

Dann
nitrodann is offline   Reply With Quote
Old 04-25-2011, 08:38 PM   #5
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2011
Posts: 273
Total Cats: -163
Default

balancer did slip. engine at tdc, still off. that being said car has 0 compression.(bought it this way. +the rad fan was broken. so p.o probably cooked the motor
blkmkiii is offline   Reply With Quote
Old 04-25-2011, 09:11 PM   #6
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

no compression on all 4?
flounder is offline   Reply With Quote
Old 04-25-2011, 10:40 PM   #7
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2011
Posts: 273
Total Cats: -163
Default

car cranks like no spark plugs are hooked up. intake has a nice amount of oil.
i did a leakdown on cyl#[email protected] with out plugs in the motor, there was air coming out of cyl #2s plug hole. Then i realized there was a good amount of air coming out the intake with #1 both lobes pointing out.
blkmkiii is offline   Reply With Quote
Old 04-25-2011, 10:46 PM   #8
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2011
Posts: 273
Total Cats: -163
Default

it just cranks with no compression, just free flow
blkmkiii is offline   Reply With Quote
Old 04-25-2011, 11:09 PM   #9
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Do you have stock cams/gears in it? Got any pics with the valve cover removed?

You can try disconnecting the belt and turning both #1 cam lobes up away from the valves then try a leak down again.

It could also be jacked up valves, but kinda unlikely on all four cylinders?
flounder is offline   Reply With Quote
Old 04-25-2011, 11:51 PM   #10
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2011
Posts: 273
Total Cats: -163
Default

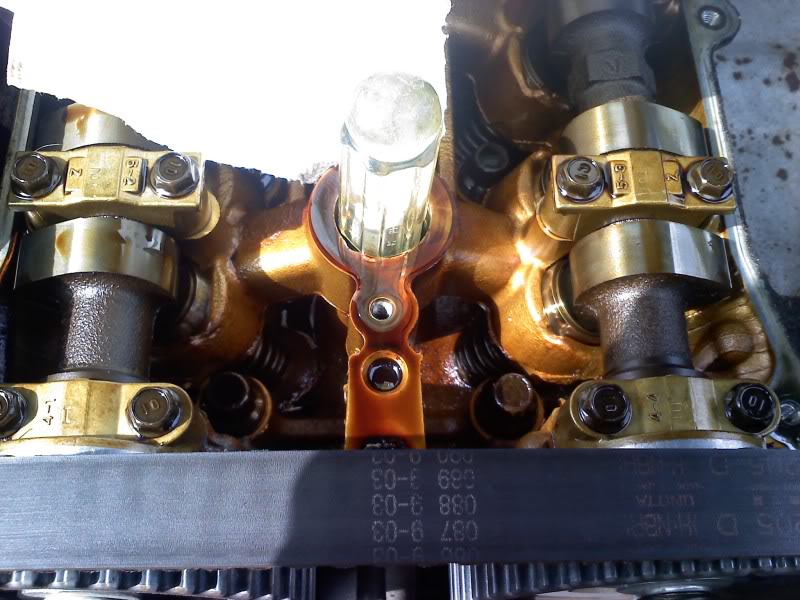

Not a long screw driver but its tdc

Name:  0424111545.jpg
Views: 2
Size:  90.5 KB
blkmkiii is offline   Reply With Quote
Old 04-25-2011, 11:59 PM   #11
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

They look closed. How's the lash? If your getting leakage from the intake, it has to be in the valves.
flounder is offline   Reply With Quote
Old 04-26-2011, 12:08 AM   #12
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2011
Posts: 273
Total Cats: -163
Default

Head will be off bright and early, we will go from there. off topic but can i pull the motor and leave the trans in place? (im a fwd/evo guy)
blkmkiii is offline   Reply With Quote
Old 04-26-2011, 12:13 AM   #13
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Yep
flounder is offline   Reply With Quote
Old 04-26-2011, 12:44 AM   #14
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

you can but its easier to pull tranny with motor at the same time imo
Techsalvager is offline   Reply With Quote
Old 04-26-2011, 01:03 AM   #15
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Indeed, while it's certainly possible to remove the engine while leaving the transmission in, it's very annoying to get the two separated in situ. To be specific, a couple of the bellhousing bolts are in a really awkward spot.

Some folks actually prefer to pull the whole engine / transmission combo just to do a simple clutch job.
Joe Perez is offline   Reply With Quote
Old 04-26-2011, 01:47 AM   #16
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

yeah both at once is way easier.

Dann
nitrodann is offline   Reply With Quote
Old 04-27-2011, 01:42 PM   #17
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2011
Posts: 273
Total Cats: -163
Default

So cylinders 1&3 are filled with oil, 2&4 are ultra clean, I know the car ran without a radiator fan for a while and the is some heavy tan sludge in it. Going to pressure test the head and go from there.

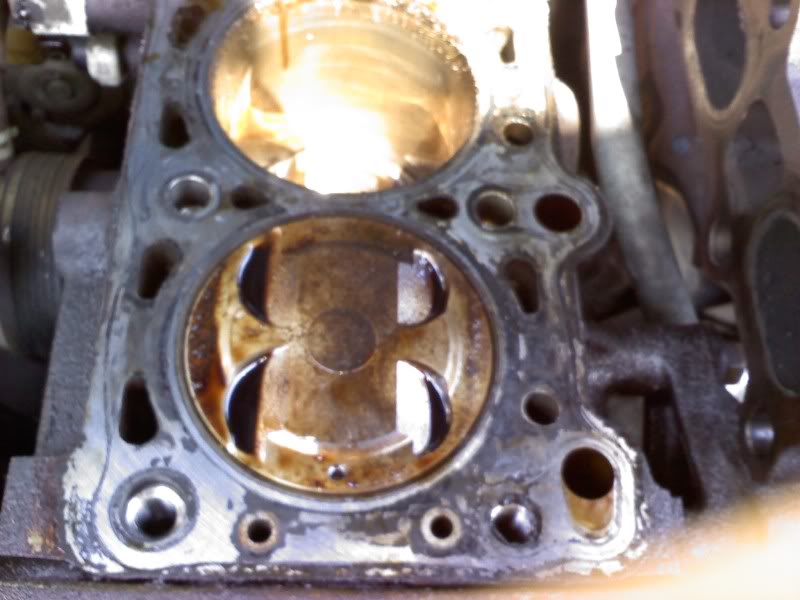

#1
Name:  0426111211.jpg
Views: 2
Size:  57.8 KB

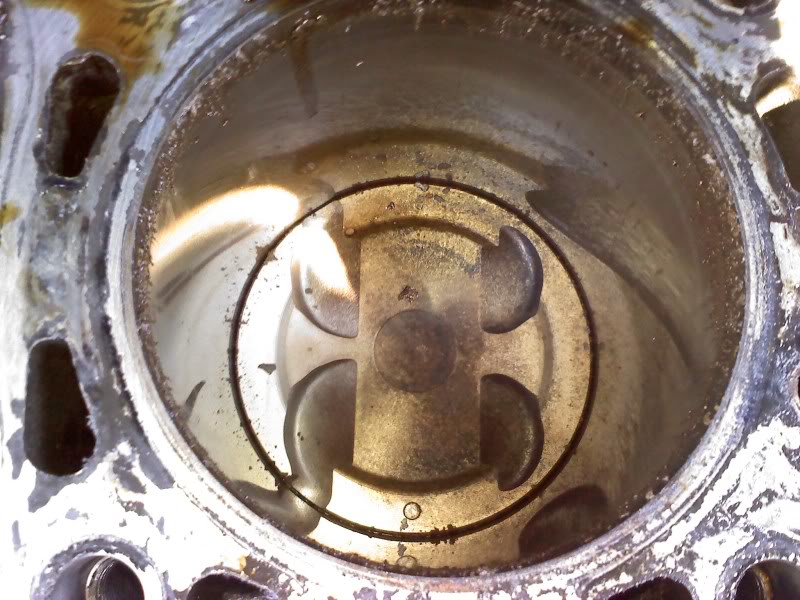

#2
Name:  0426111212.jpg
Views: 2
Size:  96.8 KB

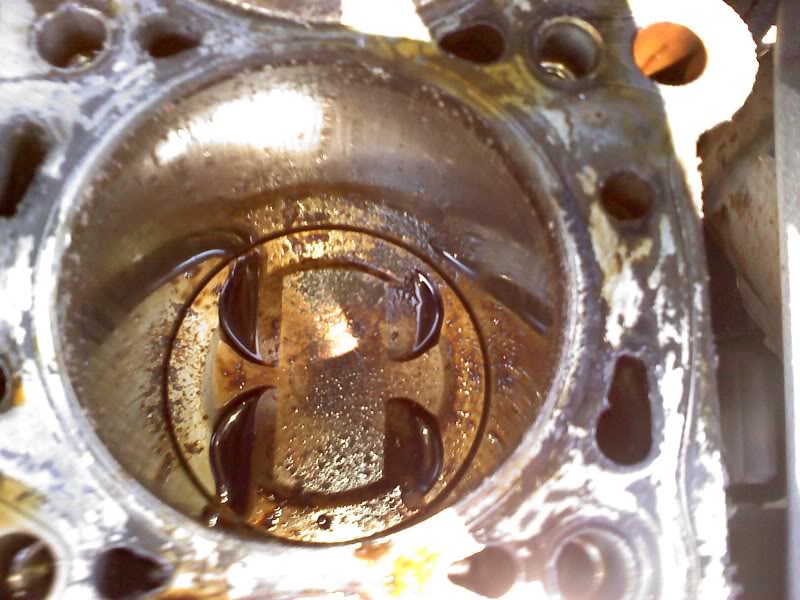

#3
Name:  0426111212a.jpg
Views: 2
Size:  81.2 KB

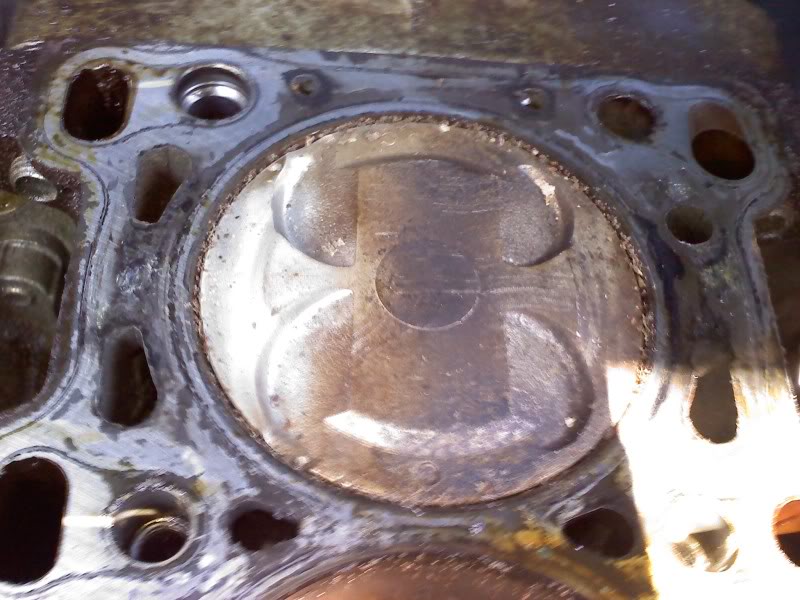

#4
Name:  0426111212b.jpg
Views: 2
Size:  85.1 KB
blkmkiii is offline   Reply With Quote
Old 04-27-2011, 02:22 PM   #18
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Looks nice and crusty. Just the way I like my bread.
Faeflora is offline   Reply With Quote
Old 04-27-2011, 03:06 PM   #19
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2011
Posts: 273
Total Cats: -163
Default

yeah, checking out the head at an old machine shop on Friday.
blkmkiii is offline   Reply With Quote
Old 04-27-2011, 09:47 PM   #20
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2011
Posts: 273
Total Cats: -163
Default

tttt
