Default Cool oil cooler ideas

Ok, gearing up for the track I've purchased all the pieces that Savington pointed me to for a decent oil cooler setup - mocal sandwich adapter w/ 180* thermo, BSP fittings for the sandwich plate, Push-lock fittings and 10 ft of hose, and Tru-cool cooler.
So now I'm having trouble deciding on a good way to mount it. I would like to keep the oil cooler out of the front bumper mouth - the intercooler and radiator already use that space, plus I'd like to not have it in the path of a possible front end collision (car is street driven) that would then dump all my oil onto the road.

So, any ideas welcome! Pics of other cars' oil cooler locations encouraged - does not need to be a miata, ideas can transfer over to the miata.

Thanks!
-Ryan
ThePass is offline   Reply With Quote
Old 01-26-2010, 01:15 AM   #2
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

mount it behind the pass headlight, then put a scoop on that side above the cooler to get air flow to it?

or you can mount it almost anywhere you want then buy some small computer cooling fan and mount it to the oil cooler to suck air though it!
WonTon is offline   Reply With Quote
Old 01-26-2010, 09:20 AM   #3
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

just mount it to the front bumper... it's the next cool thing to do..be ahead of the curve.
Doppelgänger is offline   Reply With Quote
Old 01-26-2010, 10:22 AM   #4
Junior Member
iTrader: (1)

Join Date: Apr 2008
Location: Bristol
Posts: 442
Total Cats: 0
Default

Plumb it infront of the AC matrix in the cabin so you can super cool it
Duckie_uk is offline   Reply With Quote
Old 01-26-2010, 10:43 AM   #5
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

I would have identified the space then bought the cooler to fit the space. IMO the ideal place is between the base of the (stock size/located) radiator and the under tray. This is how most circle track cars run them. That means the wide short oil coolers are readily available and provide excellent cooling for the width providing extended exposure to the oil. For example:

Nascar oil cooler AN-12 lines 4"x5"x30" w/fittings $49- no bids. Even the buy-it-now is less than the cost of the hose and fittings.
Attached Thumbnails
Cool oil cooler ideas-screen-shot-2010-01-26-9.40.46-am.jpg
m2cupcar is offline   Reply With Quote
Old 01-26-2010, 10:46 AM   #6
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Or buy the $10 shroud below and stick it where it'll fit.
Oil cooler shroud
Attached Thumbnails
Cool oil cooler ideas-screen-shot-2010-01-26-9.45.33-am.png
m2cupcar is offline   Reply With Quote
Old 01-26-2010, 04:29 PM   #7
Senior Member
iTrader: (3)

Join Date: Jul 2005
Location: Connect-I-Cut
Posts: 1,431
Total Cats: 0
Default

Hold it out the window?
miataspeed2005 is offline   Reply With Quote
Old 01-26-2010, 04:31 PM   #8
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

Quote:
Originally Posted by Doppelgänger View Post
just mount it to the front bumper... it's the next cool thing to do..be ahead of the curve.
that was cool... 10 years ago
Full_Tilt_Boogie is offline   Reply With Quote
Old 01-26-2010, 04:43 PM   #9
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by m2cupcar View Post
I would have identified the space then bought the cooler to fit the space. IMO the ideal place is between the base of the (stock size/located) radiator and the under tray. This is how most circle track cars run them. That means the wide short oil coolers are readily available and provide excellent cooling for the width providing extended exposure to the oil. For example:

Nascar oil cooler AN-12 lines 4"x5"x30" w/fittings $49- no bids. Even the buy-it-now is less than the cost of the hose and fittings.
Anyone here bidding on this before I start a war?
gospeed81 is offline   Reply With Quote
Old 01-26-2010, 04:50 PM   #10
Junior Member
iTrader: (2)

Join Date: Feb 2009
Location: 94401
Posts: 240
Total Cats: -2
Default

Quote:
Originally Posted by gospeed81 View Post
anyone here bidding on this before i start a war?
i was thinking about it
proughj is offline   Reply With Quote
Old 01-26-2010, 04:58 PM   #11
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

That one is a sensational deal- but there are a bunch there, and they come up all the time. You can get stellar deals on just the lines too. Just make sure you flush the stuff out before putting it into service.
m2cupcar is offline   Reply With Quote
Old 01-26-2010, 05:00 PM   #12
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

Quote:
Originally Posted by Doppelgänger View Post
just mount it to the front bumper... it's the next cool thing to do..be ahead of the curve.
This is what a friend of mine said - apparently old porsche race cars did this... probalby the exact opposite of what I want to do though
ThePass is offline   Reply With Quote
Old 01-31-2010, 10:06 PM   #13
Senior Member
iTrader: (3)

Join Date: Mar 2007
Posts: 567
Total Cats: 1
Default




pretty cool idea.
slutz4 is offline   Reply With Quote
Old 01-31-2010, 10:23 PM   #14
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Nose mounted in front of radiator. This is the LS1 car so there is no intercooler to deal with , at least not yet
ZX-Tex is offline   Reply With Quote
Old 02-01-2010, 09:03 AM   #15
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

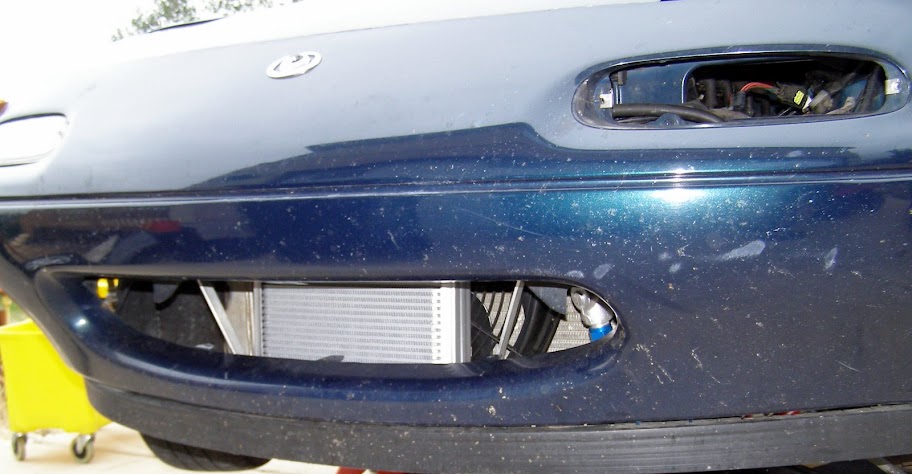

looks like I[ve got the same Ebay 25row cooler... My miata is track only, so I don't need the parking lights (or headlights for that matter)... and obviously it'll be ducted in pretty well. Half of the opening will be ducted to the radiator, the other half to the cooler. If you had to retain the lughts, then you'll be stuck putting it somewhere in the radiator area. Vmount the intercooler and put the cooler up front, or vice-versa?

[IMG][/IMG]
[IMG][/IMG]
GeneSplicer is offline   Reply With Quote
Old 02-01-2010, 09:15 AM   #16
Senior Member

Join Date: Aug 2009
Location: Long Island, NY
Posts: 576
Total Cats: 0
Default

How about like this

02semiata is offline   Reply With Quote
Old 02-01-2010, 09:25 AM   #17
Senior Member
iTrader: (5)

Join Date: Apr 2008
Location: VA
Posts: 828
Total Cats: -2
Default

Quote:
Originally Posted by 02semiata View Post
How about like this

That's the route I took but I'm fabbing some ducting to get better flow and give a little protection.
thymer is offline   Reply With Quote
Old 02-01-2010, 09:45 AM   #18
Senior Member

Join Date: Aug 2009
Location: Long Island, NY
Posts: 576
Total Cats: 0
Default

Well its missing the splash shield
02semiata is offline   Reply With Quote
Old 02-01-2010, 09:50 AM   #19
Senior Member
iTrader: (5)

Join Date: Apr 2008
Location: VA
Posts: 828
Total Cats: -2
Default

So you run the stock splash shield over your oil cooler? Flow much?
thymer is offline   Reply With Quote
Old 02-01-2010, 10:00 AM   #20
Senior Member

Join Date: Aug 2009
Location: Long Island, NY
Posts: 576
Total Cats: 0
Default

This setup is from FM so its not my car. BUT from what I understand they cut out the slash shield in that spot so there is air flow to the cooler. I trust FM know what they are doing.
02semiata is offline   Reply With Quote
