Old 03-20-2013, 01:51 PM   #21
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by Joe Perez View Post
I suppose it's better than a remotely-mounted thermostat (eg: M-Tuned) but you're still not getting much in the way of active coolant circulation around the thermostat. In the FWD configuration (at least on the 323GTX), the heater core feed was taken from the actual back of the head, from a port directly adjacent to the thermostat housing.
Joe, put down the scotch. He's saying run that line to the heater core, and just use the normal fwd thermo cover with no spacer with a thermo in the rear. I guess you could always used one of these in the upper rad hose for the temp sensor.
Leafy is offline   Reply With Quote
Old 03-20-2013, 02:15 PM   #22
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,925
Default

Yes, I understand.

My point was that while this is close-ish to the original FWD configuration, it is not the same. In the 323, the feed to the heater core was taken from the back of the head, out of a port right next to the thermostat. In other words, there was constant circulation of water around the thermostat because it had to go up that way to get to the heater core outlet.

In the design as shown, water exiting to feed the heater core is not circulating past the thermostat.

It won't be nearly as bad as a remotely-mounted thermostat (since the thermostat is at least inside the head) but it's not the same as the OEM configuration.
Joe Perez is offline   Reply With Quote
Old 03-20-2013, 03:10 PM   #23
Junior Member
Thread Starter

Join Date: Jun 2008
Posts: 82
Total Cats: 1
Default

Quote:
Originally Posted by Joe Perez View Post
Yes, I understand.

My point was that while this is close-ish to the original FWD configuration, it is not the same. In the 323, the feed to the heater core was taken from the back of the head, out of a port right next to the thermostat. In other words, there was constant circulation of water around the thermostat because it had to go up that way to get to the heater core outlet.

In the design as shown, water exiting to feed the heater core is not circulating past the thermostat.

It won't be nearly as bad as a remotely-mounted thermostat (since the thermostat is at least inside the head) but it's not the same as the OEM configuration.

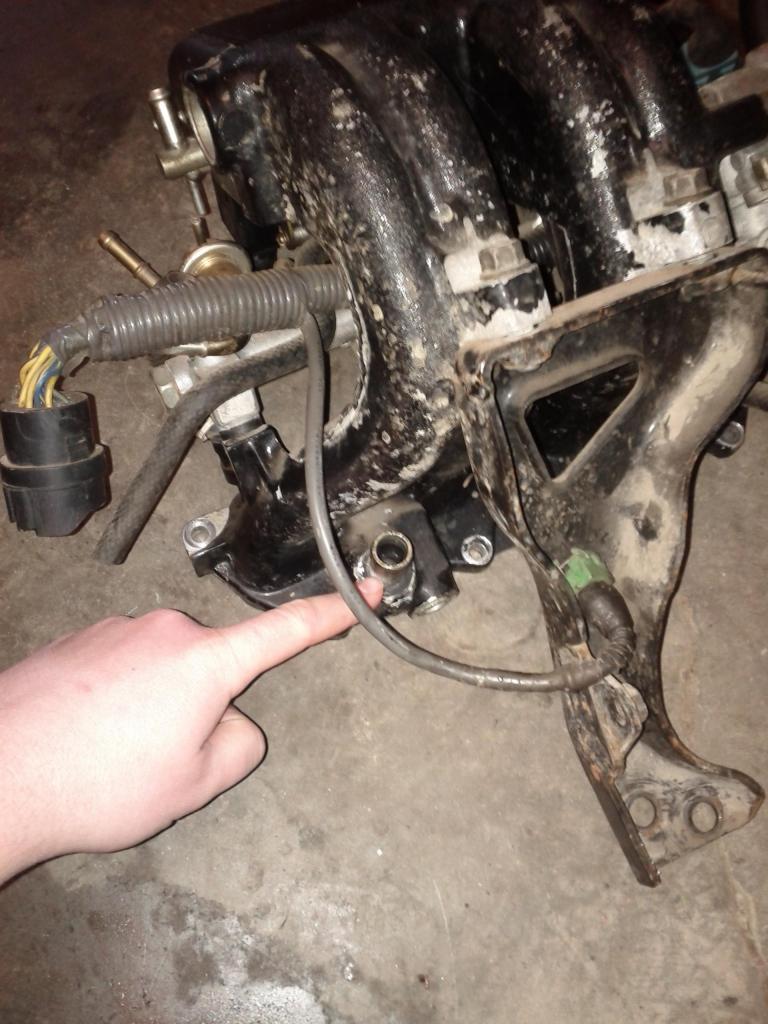

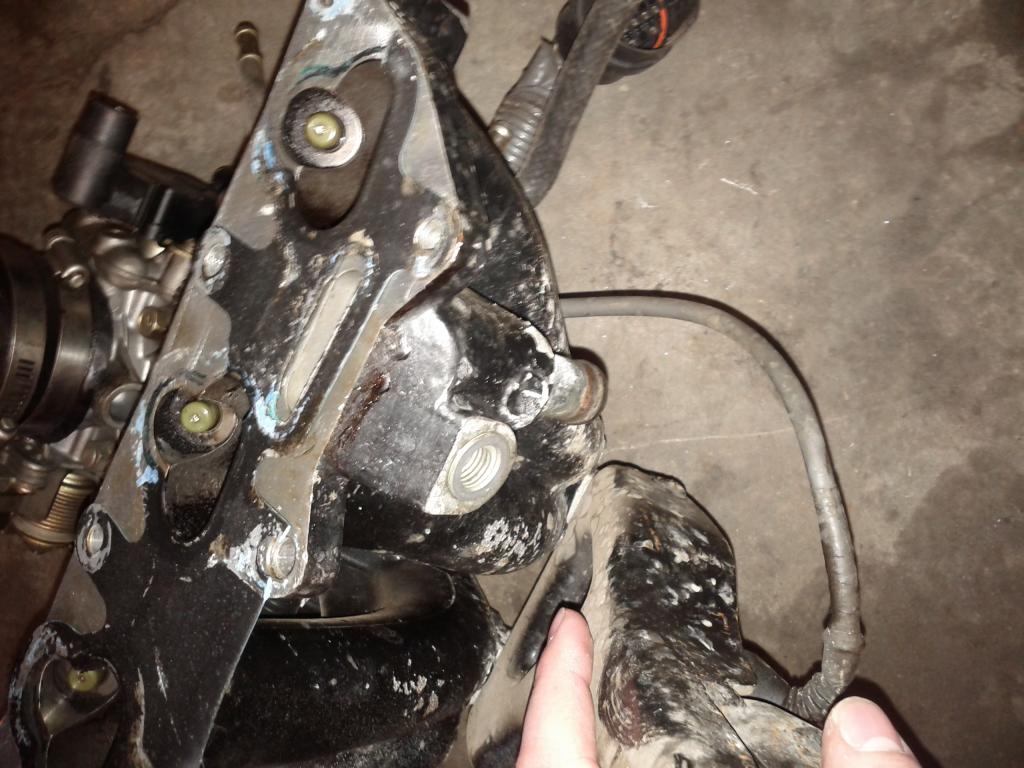

im kind of lost on what your saying, forgive me:

the 323 GTX intake manifold flows coolant from the exact same space as that miata intake manifold is drilled/tapped, circulates it coolant through the oil cooler and goes into one bung of the heater core doesn't it???




sorry for crappy quality.
Attached Thumbnails
Coolant Reroute for 1.6. Will this work? Has it been done? probably...-img_20130320_120303_zpsad12d473.jpg   Coolant Reroute for 1.6. Will this work? Has it been done? probably...-img_20130320_120342_zpsfd0237c7.jpg
miata39 is offline   Reply With Quote
Old 03-20-2013, 03:20 PM   #24
Junior Member
Thread Starter

Join Date: Jun 2008
Posts: 82
Total Cats: 1
Default

lol i was waiting to get roasted from you guys, i should of explained myself more clearly.

There is a bunch of possibilities for the green temp plug.

The reason id do it this way is:
-People who cant weld aluminum

-People who don't want to remove their head to drill/tap the actual head rather than the intake manifold, (Intake manifold is easier to come out IMHO)

-People who are doing a budget build.

or lastly
-People who have 2 miatas, and 1 festiva with the same problem, and dont want to spend 300$ on spacers alone. (aka me)
miata39 is offline   Reply With Quote
Old 03-20-2013, 03:56 PM   #25
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

I hope you meant $30.
Braineack is offline   Reply With Quote
Old 03-20-2013, 08:34 PM   #26
Junior Member
Thread Starter

Join Date: Jun 2008
Posts: 82
Total Cats: 1
Default

Quote:
Originally Posted by Braineack View Post
I hope you meant $30.
????

i was referring to the begi spacer, but $30 sounds better.
miata39 is offline   Reply With Quote
Old 03-20-2013, 09:02 PM   #27
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,925
Default

Quote:
Originally Posted by miata39 View Post
the 323 GTX intake manifold flows coolant from the exact same space as that miata intake manifold is drilled/tapped, circulates it coolant through the oil cooler and goes into one bung of the heater core doesn't it???
Interesting.

Historically, I have always referred to the following diagram as a reference for the FWD configuration, which comes from the '89-94 323GTX with the 1.8l BPT engine.



Clearly, the coolant supply to the oil cooler / heater core and throttle body is being drawn from a port at the back of the head, directly adjacent to the thermostat housing.



I did a bit more googling, and came up with a diagram which differs slightly:



The source for this image designates it as referring to the '85-88 model with the B6T engine. This diagram matches your description, with coolant being sourced from a port in the intake manifold.

So it would seem that Mazda modified the configuration between the two engines in the 323, much as they did with the transition from the B6 to the BP in the Miata.
Attached Thumbnails
Coolant Reroute for 1.6. Will this work? Has it been done? probably...-323-1.gif   Coolant Reroute for 1.6. Will this work? Has it been done? probably...-323_1600_gtx_cooling.gif
Joe Perez is offline   Reply With Quote
Old 03-20-2013, 09:39 PM   #28
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

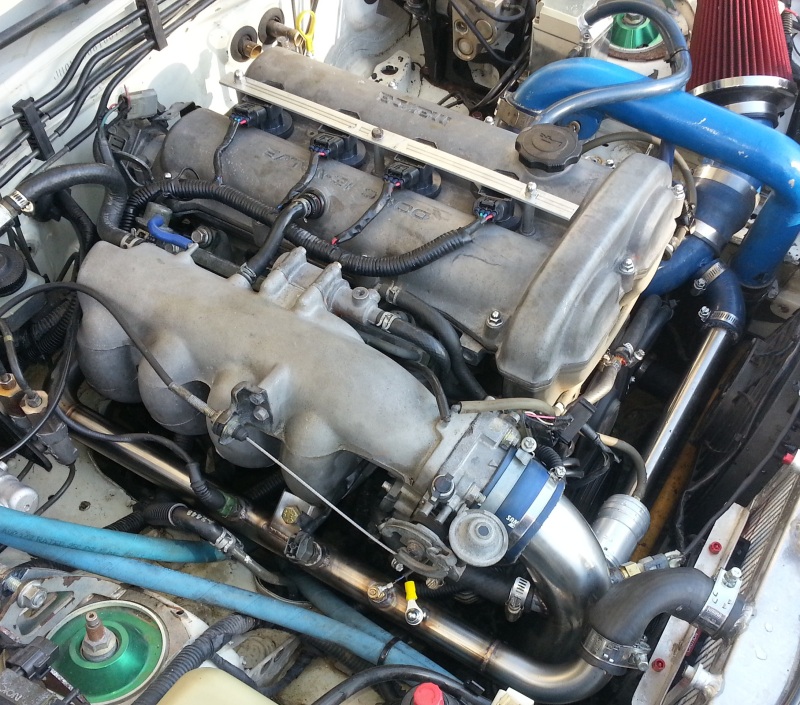

This is the best way imo,



if you want a heater drill and tap as has been said.

Dann
Attached Thumbnails
Coolant Reroute for 1.6. Will this work? Has it been done? probably...-fnbfqd.jpg
nitrodann is offline   Reply With Quote
Old 03-20-2013, 09:40 PM   #29
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,925
Default

Is that your coolant sensor (or, rather, sensors) installed in the line downstream of the thermostat?
Joe Perez is offline   Reply With Quote
Old 03-20-2013, 09:55 PM   #30
Junior Member
Thread Starter

Join Date: Jun 2008
Posts: 82
Total Cats: 1
Default

Quote:
Originally Posted by Joe Perez View Post
Is that your coolant sensor (or, rather, sensors) installed in the line downstream of the thermostat?
lol...i believe it is.
miata39 is offline   Reply With Quote
