Old 08-05-2018, 02:25 PM   #581
Junior Member

Join Date: Nov 2016
Location: Chicago
Posts: 204
Total Cats: -8
Default

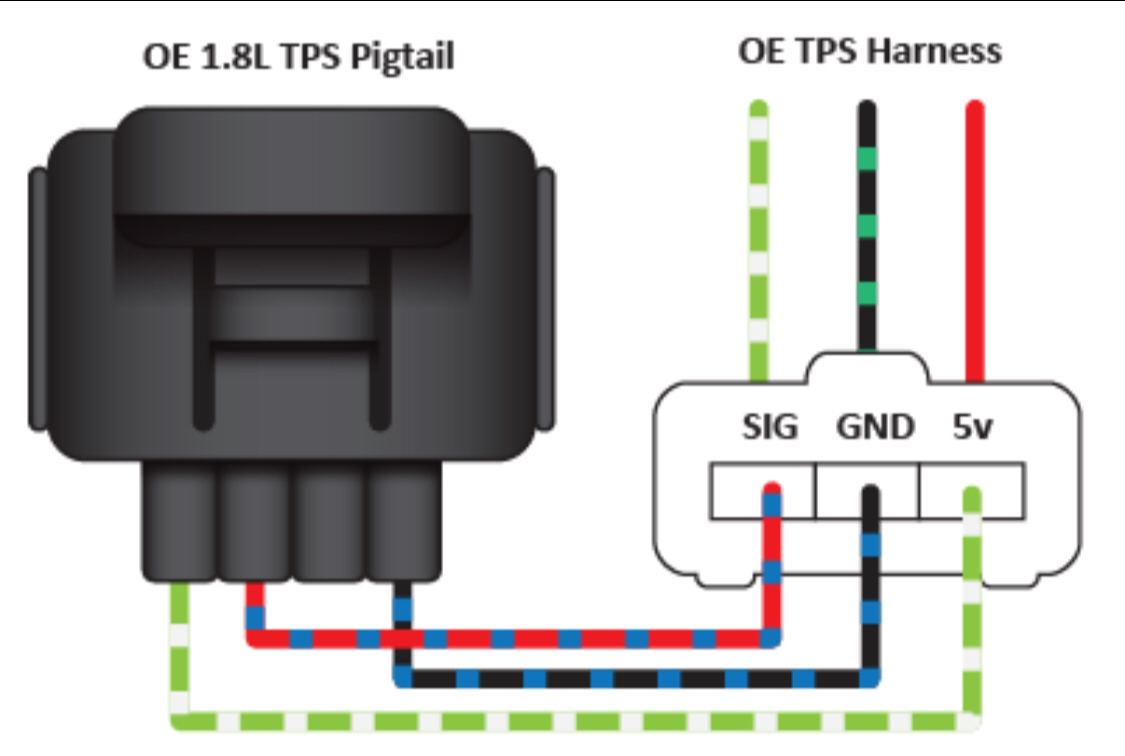

try this
Attached Thumbnails
The Definitive "VVT swap into 90-97 chassis" Megathread.-photo675.jpg
stevos555 is offline   Reply With Quote
Old 08-05-2018, 04:43 PM   #582
Junior Member

Join Date: Feb 2018
Posts: 114
Total Cats: 24
Default


​​​​​​got my friend to send a pic of his 99.

​​​​​​Top: green/black (signal)
Middle: black/red (ground)
Bottom: light green/red (5v)







Marioshi is offline   Reply With Quote
Old 08-21-2018, 05:08 PM   #583
Newb

Join Date: May 2008
Posts: 9
Total Cats: 0
Default

I have a 1994 Miata race car that needs a new motor. Do not care about emissions or car classing. I have a friend selling a 05 VVT Engine and a Square Top Intake Manifold. Before I jump in and buy the motor I want some validation/feedback that my plan is feasible.

Current engine
· 01 Block / 2000 head with exhaust cam swap
· Toyota COPS firing off of the CAS at the back of the exhaust cam
· MS PNP using IAT and engine vacumn
· M-Tuned Fuel rail with recently cleaned stock injectors and an external FPR on the firewall at 60 lbs

VVT plan
· Use the existing 94 wiring where possible
· Ignition - put the CAS in and the run COPS (trimmed to fit)(have the stock 05 coils if needed)
· Fuel – use the M-Tuned fuel rail and external FPR – square top manifold – stock injectors
· Throttle Body – have the stock 94 – also have a Skunkworks2 that plugs into stock harness – also have the stock 05 – don’t know which way to go yet
· Run the VVT off of the VVTuner using inputs from the front Cam Angle Sensor and the Crank Angle Sensor

Questions – do I need to link the VVTuner to the MSPNP? Do I need to wire the Idle Air Control to the VVTuner? Anything I am missing?
bhoss is offline   Reply With Quote
Old 08-25-2018, 09:28 PM   #584
Junior Member

Join Date: May 2015
Posts: 53
Total Cats: 2
Default NB throttle cable

So I literally ripped out my NA throttle cable and went to install the NB cable I sourced and have an issue.

The end of the cable that attaches to the thottle cable doesn't seem to fit correctly. The metal ball at the end is smaller in diameter compared to the larger metal disk at the end of the NA cable. The smaller ball doesn't seem to catch correctly in the pedal assembly.

What am I missing? Thanks!
blackandtan22 is offline   Reply With Quote
Old 08-26-2018, 01:21 PM   #585
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,842
Total Cats: 1,686
Default

NA and NB cables are identical except for the length.
__________________
Trackspeed Engineering
High-Performance Turbo Specialists - Sunnyvale, CA - 650-701-7223 - Email us!
Quote:
Originally Posted by codrus View Post
Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
Savington is offline   Reply With Quote
Old 08-26-2018, 01:45 PM   #586
Senior Member
iTrader: (2)

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 977
Total Cats: 139
Default

IIRC, there's a green plastic clip that is supposed to sit in between the ball on the cable end and the pedal assy.

***Edit***

​​​​if memory serves, that green clip is what actually attached the cable to the pedal.


Last edited by wackbards; 08-26-2018 at 01:50 PM. Reason: Picture
wackbards is offline   Reply With Quote
Old 08-26-2018, 01:57 PM   #587
Junior Member

Join Date: May 2015
Posts: 53
Total Cats: 2
Default

Please see pictures. Ends are different and metal ball is too small. My car is a 94.
blackandtan22 is offline   Reply With Quote
Old 08-26-2018, 02:11 PM   #588
Senior Member
iTrader: (2)

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 977
Total Cats: 139
Default

Yeah. The green plastic thing clips into the pedal. The metal ball pulls against the green plastic thing, not directly against the gas pedal.
wackbards is offline   Reply With Quote
Old 08-26-2018, 02:16 PM   #589
Junior Member

Join Date: May 2015
Posts: 53
Total Cats: 2
Default

Cool guess I just misunderstood how it worked.
blackandtan22 is offline   Reply With Quote
Old 08-26-2018, 03:26 PM   #590
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,438
Total Cats: 587
Default

Quote:
Originally Posted by bhoss View Post
I have a 1994 Miata race car that needs a new motor. Do not care about emissions or car classing. I have a friend selling a 05 VVT Engine and a Square Top Intake Manifold. Before I jump in and buy the motor I want some validation/feedback that my plan is feasible.

Current engine
· 01 Block / 2000 head with exhaust cam swap
· Toyota COPS firing off of the CAS at the back of the exhaust cam
· MS PNP using IAT and engine vacumn
· M-Tuned Fuel rail with recently cleaned stock injectors and an external FPR on the firewall at 60 lbs

VVT plan
· Use the existing 94 wiring where possible
· Ignition - put the CAS in and the run COPS (trimmed to fit)(have the stock 05 coils if needed)
· Fuel – use the M-Tuned fuel rail and external FPR – square top manifold – stock injectors
· Throttle Body – have the stock 94 – also have a Skunkworks2 that plugs into stock harness – also have the stock 05 – don’t know which way to go yet
· Run the VVT off of the VVTuner using inputs from the front Cam Angle Sensor and the Crank Angle Sensor

Questions – do I need to link the VVTuner to the MSPNP? Do I need to wire the Idle Air Control to the VVTuner? Anything I am missing?
No, you don't need to link VVT to the MSPNP. They don't know the other exists, and operate as such. VVT tuner will alter VE, so your tune in the MS should compensate with fueling and ignition. VVT tuner is literally just a giant PWM controller, with MAP, CMP, and CKP inputs.

As always, I'd highly recommend taking this opportunity to upgrade to a MS3 Basic, available from Trackspeed Engineering. It's always going to run better when you not only upgrade the ECU, but also integrate the VVT control into the main ECU. This would also allow you to run higher resolution in your trigger wheel, and eliminate the CAS and it's wiring.

As for throttle bodies, you have to switch IAC and TPS pigtails, but I would use the NB unit, since it integrates the IAC inlet, eliminating the plumbing it requires. Much smaller IAC as well for an altogether cleaner look.

curly is offline   Reply With Quote
Old 09-02-2018, 04:39 PM   #591
Junior Member

Join Date: May 2015
Posts: 53
Total Cats: 2
Default Fuel line

Quote:
You will need to retain one of the fuel injection fittings from the 01-05 fuel rail to use as an adapter on the 99-00 fuel rail.
Can someone please give me a bit more detail on this? Do I cut the 01-05 plastic line, slip over my rubber line and use a oem clamp over it? I just don't want to screw up fuel.

Also on Amazon I see Dorman 800-081 Fuel Line Quick Connector for 5/16 In. Steel to 5/16 In. Nylon Tubing, Pack of 2. Any chance this would work. I don't actually have a 01 line so this would be preferred for sure.

Last edited by blackandtan22; 09-02-2018 at 04:59 PM.
blackandtan22 is offline   Reply With Quote
Old 09-02-2018, 08:38 PM   #592
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,438
Total Cats: 587
Default

Just cut off the plastic line and clamp on the rubber line.
curly is offline   Reply With Quote
Old 09-21-2018, 03:50 AM   #593
Junior Member

Join Date: Jul 2017
Location: Sussex, England
Posts: 45
Total Cats: 0
Default

Perhaps not relevant for most on here, but does anyone know the compatibility of the VVT and NA power steering pumps?

I'm an EPAS Engineer at an OEM and have noticed my NA saturates the pump very easily (it can even happen during oversteer correction!). I'm not sure whether the rapid weight transfer of my Supermiata big grip kit is causing this or whether the pump is now tired. My NBFL does not saturate the pump, however hard I try, though it does have softer suspension.

Basically I'm trying to work out whether the NA pump just can't cope with what I'm asking for (and so I need an NB pump?) or whether my NA pump is now tired.
Tran is offline   Reply With Quote
Old 09-21-2018, 06:32 AM   #594
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,292
Total Cats: 79
Default

Quote:
Originally Posted by Tran View Post
Perhaps not relevant for most on here, but does anyone know the compatibility of the VVT and NA power steering pumps?

I'm an EPAS Engineer at an OEM and have noticed my NA saturates the pump very easily (it can even happen during oversteer correction!). I'm not sure whether the rapid weight transfer of my Supermiata big grip kit is causing this or whether the pump is now tired. My NBFL does not saturate the pump, however hard I try, though it does have softer suspension.

Basically I'm trying to work out whether the NA pump just can't cope with what I'm asking for (and so I need an NB pump?) or whether my NA pump is now tired.
Should probably be is own thread but I don't know that I've noticed difference in similarly prepped cars (all with NB racks) between the pumps. I do also know that even running the higher pressure volvo v70 electric pump it's still possible to saturate the PS but much more difficult.
Leafy is offline   Reply With Quote
Old 09-21-2018, 06:45 AM   #595
Junior Member

Join Date: Jul 2017
Location: Sussex, England
Posts: 45
Total Cats: 0
Default

Quote:
Originally Posted by Leafy View Post
Should probably be is own thread but I don't know that I've noticed difference in similarly prepped cars (all with NB racks) between the pumps. I do also know that even running the higher pressure volvo v70 electric pump it's still possible to saturate the PS but much more difficult.
My thinking behind the relevance was those swapping in a VVT (my NA is VVT swapped, but still NA rack + subframe etc) won't know whether to keep the NA pump or run the NB pump.

If it is such that my NA pump is tired and I just need to replace it fine. But if the NB pump is of a larger capacity and fits, then that would be the one to run if you have saturation issues with the NB pump, but you'd still want to run the NA pump if you don't, since a lower capacity pump should have lower losses and so eat up less power and generate less heat.

The volvo V70 pump sounds a good idea though.... If it frees up power, lets me delete a belt and doesn't saturate as easily, then it's a win win. Are there any documented installs of it? Search is returning nothing for me.
Tran is offline   Reply With Quote
Old 09-21-2018, 06:49 AM   #596
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,292
Total Cats: 79
Default

V70 pump detailed somewhere in my build thread.
Leafy is offline   Reply With Quote
Old 09-21-2018, 07:54 AM   #597
Newb

Join Date: Jun 2011
Posts: 7
Total Cats: 0
Default

Hi, It's common enough to have steering 'bind' when rotating the steering quickly, say for example, driving through a chicane quickly. A simple mod can be done to allow increased flow through the pump to resolve this issue. Below the high pressure line on the top of the PS pump is a valve body (not the valve itself as you don't want to increase the pressure). You remove this and open the orifice slightly, using a slightly larger drill bit. This will increase the flow of oil and stop this 'bind'. It will make the steering slightly lighter, but not by much if you don't open the hole too much. I've had this mod done to all my competition MX5's over the years and it works perfectly. Here a pic of the valves from the NA & NB.

Piers14 is offline   Reply With Quote
