The Definitive "VVT swap into 90-97 chassis" Megathread.

Engine Performance This section is for discussion on all engine building related questions.
Sponsored by:
Sponsored by:

The Definitive "VVT swap into 90-97 chassis" Megathread.


Old 11-03-2018, 09:29 PM
  #601
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,671
Total Cats: 633
Default

ah ok, that's what I sorta figured, the banjo threads into the bspt threads reasonably?
curly is offline
Old 11-03-2018, 09:41 PM
  #602
Senior Member
iTrader: (2)

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 1,064
Total Cats: 158
Default

Yeah, I didn't even notice there was a discrepancy in the threading. I also just got the big kit of copper washers from HF for $5. It's got a size that works for both upper and lower banjo bolts. 2x washers for both bolts & you should be GTG.
wackbards is offline
Old 11-04-2018, 11:21 AM
  #603
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,168
Total Cats: 1,925
Default

The block is tapped BSPP, not BSPT.

reference this post: https://www.miataturbo.net/diy-turbo...6/#post1379147
__________________
Trackspeed Engineering
High-Performance Turbo Specialists - Sunnyvale, CA - 650-701-7223 - Email us!
Originally Posted by codrus View Post
Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
Savington is online now
Old 11-04-2018, 01:28 PM
  #604
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,671
Total Cats: 633
Default

Perfect, the last post in that threads pretty much summarizes my reaction. Thanks!
curly is offline
Old 11-16-2018, 01:02 PM
  #605
Newb

Join Date: Dec 2016
Posts: 21
Total Cats: 0
Default

Originally Posted by aidandj View Post
That looks correct
What do you mean "fried"
Just double-checking... I also was unable to salvage the cam and crank angle plugs from my donor VVT engine and am wiring new plugs from scratch, and want to verify the pin order for both. The above post indicates the order (facing the sensor receptacle) from left to right is GRND / SIG / +12V. The 2005 wiring diagram (snippet below) show that the pin order is the same for both cam and crank sensors but the GRND and +12V pins seem to be reversed vs. the post above. Or perhaps I'm reading the diagram backwards. Can someone verify?
gcross is offline
Old 11-16-2018, 01:12 PM
  #606
Newb

Join Date: Dec 2016
Posts: 21
Total Cats: 0
Default

crap, my attachments didn't work as expected above. Below is the snippet from the 2005 wiring diagram. If I'm reading it correctly the GRND is on the left side in the diagram, but it would be on the right if facing the sensor. Post 402 shows a picture of the CAM sensor with GRND labeled on the left side. Is post 402 correct and I'm reading the diagram wrong?

gcross is offline
Old 11-19-2018, 01:31 AM
  #607
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,168
Total Cats: 1,925
Default

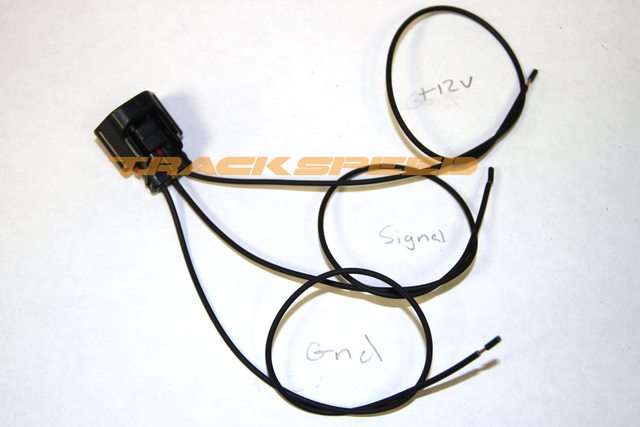

Crank

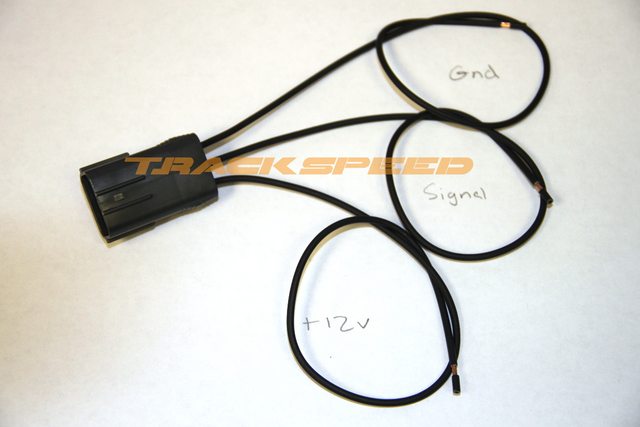

Cam
__________________
Trackspeed Engineering
High-Performance Turbo Specialists - Sunnyvale, CA - 650-701-7223 - Email us!
Originally Posted by codrus View Post
Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
Savington is online now
Old 11-19-2018, 01:58 PM
  #608
Newb

Join Date: Dec 2016
Posts: 21
Total Cats: 0
Default

Perfect! Thanks again for all the info on this thread!
gcross is offline
Old 11-19-2018, 03:01 PM
  #609
Junior Member

Join Date: Mar 2015
Posts: 131
Total Cats: 10
Default

Originally Posted by Savington View Post
Crank


Cam
Are these the pigtails Trackspeed sells? There aren't any photos on the page, just curious if this is what it looks like
cpierr03 is offline
Old 11-19-2018, 05:18 PM
  #610
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,168
Total Cats: 1,925
Default

Yes
__________________
Trackspeed Engineering
High-Performance Turbo Specialists - Sunnyvale, CA - 650-701-7223 - Email us!
Originally Posted by codrus View Post
Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
Savington is online now
Old 01-22-2019, 06:24 PM
  #611
Newb

Join Date: Oct 2018
Location: Székesfehérvár
Posts: 1
Total Cats: 0
Default

Hi guys!
I just finished my swap today, and wired everything together. I have an EUDM 96 so its a 1.6 so the wiring was a bit different and the car wont start. Its cranking, the oil perssure is up, the o2 sensor is calibrated and the MS3X can see it, also I have coolant temp so some things work, but the car won't start. I also don't have TPS, when I turn the ignition on it starts at 24% and slowly creeps to 34% and just stops there (I tried calibrating but it reads the same). So I started sniffing around the engine bay to look for clues and I noticed that the 01 coils were getting really hot, so I turned the ignition off and unplugged the battery.
I started measuring things and the really weird thing is that the coils power (Black/White) and the ground (Black) are CONNECTED somehow. And I couldn't figure out where. Also on the ignitor side I connected it as per the OP instructions I crimped together 1 and 2, 8 and 7 and left the rest, oddly I don't have wire number 5 the Black/White wire on the ignitor. I used the coil connector to hook it up to the Coils. So I started disconnecting things and the 12 V BLUE (number 3) connector on the ignitor is still connected to the black(number 6) ground wire.
I don't really know what could be up, tomorrow I will start pulling all the things I made, connector wise and keep measuring connection between the BLUE and BLACK wire on the ignitor to see if any of the connections are wrong.
Btw I have a MS3 with the X extension and it has a DIY 97 1.8 wiring harness.
If any of you have any clue as what could this possibly be or any tips or leads I can start on, it would be greatly appriciated as this whole thing let me down a bunch.
Thank you!!!
rappit4 is offline
Old 02-11-2019, 01:15 PM
  #612
Newb

Join Date: Jun 2018
Posts: 2
Total Cats: -1
Default Swap from Chile

Originally Posted by Savington View Post
The Definitive 1990-1997 VVT Swap Megathread.

I've made several posts on this topic, but I've never consolidated all of the information into once place until now. This thread will outline all of the mechanical and wiring tweaks necessary to install a 2001+ engine in a 1990-1997 chassis. This method relies mostly on OEM 1990-1997 wiring, and assumes you will be using a standalone ECU (either an AEM or a Megasquirt of some variety).

There are other ways to complete the same task, but this post will outline the methods I've used successfully. I believe that this is the easiest way to complete this swap with the least cost and headaches incurred.

In some places, I have added info that is 99-00 specific, but this thread is largely VVT-specific. If you are doing a 99-00 BP4W swap, you'll need to fill in the gaps yourself.

VVT = Variable Valve Timing
VICS = Variable Intake Control System
VTCS = Variable Throttle Control System
EUDM = European Domestic Market
TPS = Throttle Position Sensor
IAC = Idle Air Control
CAS = Cam Angle Sensor (refers specifically to the 90-97 sensor)

Motor mounts, transmission, clutch, flywheel, starter motor
Any 1994-2005 motor mount will bolt up to the 2001-2005 block. The 2001-2005 engines used a unique 4-hole mount, but any 94-05 3-hole mount will work in place of these. All 1.8 mounts (94-05) will bolt into the 90-97 sub-frame.

All 5 and 6-speed 90-05 transmissions will bolt up to the 99-05 block. You can use any clutch (1.6 or 1.8) as long as you use a matching flywheel (1.6 clutch with 1.6 flywheel, 1.8 clutch with 1.8 flywheel).

The starter motors are functionally identical. The NB starter is lighter, so if you have the choice, use it.

Alternator and pulleys
Use a 1994-1997 alternator and pulley. The 1.6 alternator has a different shaft diameter, so a pulley swap is not possible - the entire alternator must be swapped. It may be possible to use the 99-05 ECU with wiring changes and an ECU with alternator control, but few/no PnP ECUs for 1990-1997s will have this feature, so it's easiest to simply use a 94-97 alternator with onboard control. For 90-93 cars, you will need to enlarge the hole in your factory alternator wire ring terminal, or install a new, larger ring terminal to match the larger 94-97 alternator lug.


Intake manifold, throttle body, and throttle cable
Use any 1999-2005 intake manifold (VICS, VCTS, or EUDM Squaretop). There are three OEM intake manifold options. The 99-00 "VICS" manifold will produce the most low-end torque (assuming you are controlling the VICS butterflies). The 01-05 "VTCS" manifold is the most common and the cheapest, but it makes slightly less power than the other two options and requires very slight modification to clear the 99-00 fuel rail. The 02-05 JDM/EUDM "Squaretop" manifold was available overseas and makes more power than either US-market intake manifold, but slightly less mid-range torque than the 99-00 VICS manifold. The 1994-1997 intake manifold will bolt up, but the ports on the 99-05 heads are significantly higher and the 94-97 IM ports are misaligned by 3/4". All three intake manifolds are EGR compatible. The EUDM manifolds came with an EGR valve in Europe, while Japanese market cars were shipped with block-off plates on those ports.

All three intake manifolds have the same throttle body location. Any 1994-2005 throttle body can be used, but the 99-05 TB is more desirable for its internal idle valve routing, which makes plumbing for custom 2.5" cold air intakes or intercooler piping much simpler. Using the 99-05 throttle body will require that you change the TPS and IAC valve pigtails, but this is a fairly simple modification. The 1990-1993 throttle body cannot be used on the 99-05 manifold without an adapter, and you lose the benefits of the linear TPS on all 94-05 throttle bodies.

Use a 1999-2005 throttle cable. It will bolt directly into the NA chassis and fit perfectly with the NB engine. The NA cable is too long.

Exhaust manifold and exhaust
Any header from 1994-2005 will bolt up to the head. If you are using a 1994-1997 header, you will need to delete the EGR tube and EGR valve, but you will be able to use a cat and catback exhaust from a 1994-1997 (the exhaust hangar locations are the same for 90-97). Using a 1999-2005 header will allow you to retain the EGR tube, but you will need to have a custom cat pipe built to jump from the 99-05 header flange to your 90-97 catback (you cannot use an NB catback without changing several of the exhaust hangars). If you use a 99-05 header to retain EGR, the 2001+ headers flow much better and are significantly more desirable.

Fuel system:
Use a 1999-2000 fuel rail and a 1990-1993 USDM fuel pressure regulator installed upside down with the fuel outlet bent straight to clear the intake manifold. No other combination of USDM parts will work. The 90-93 fuel rails are too short, the 94-97 rails have incorrect mounting tabs, and the 01-05 rail places the fuel pressure regulator in a spot which interferes with the cylinder head. The 94-97 FPR places the pressure reference in a spot which interferes with the cylinder head and the 99-05 regulators do not have a return line.

In Europe/Japan, a return-style 1.8L NB was available, and the FPR from that car will bolt up to the USDM 1999-2000 fuel rail as well. No modifications are needed to install this part, and the return line will face down. The part number is BP5B-13-280. This is a 43.5psi vacuum-referenced regulator (1:1), just like the USDM 90-97 regulators.

You will need to retain one of the fuel injection fittings from the 01-05 fuel rail to use as an adapter on the 99-00 fuel rail. I prefer to use a 90* adapter instead of a straight adapter to aid fuel line routing around the alternator. Do not simply slip a fuel hose over the end of the 99-00 fuel rail - it will not stay in place. Use 5/16" fuel hose to run from the feed line to the 90* fuel injection adapter and into the fuel rail. For the return, install the 90-93 FPR upside down in place of the OEM 99-00 fuel damper (fuel outlet facing up). Use 5/16" fuel line to run around the back of the intake manifold and into the return line on the chassis. The fuel pressure will be 43psi with a pressure reference, just like the 1990-1993 fuel system.

Alternatively, you can use an aftermarket fuel pressure regulator. The stock VVT fuel rail can be used if the factory fuel damper is replaced with an adapter and used in conjunction with an aftermarket fuel pressure regulator.

This adapter will fit and allows you to use the OEM VVT fuel rail: Trackspeed FPR Adapter

Coils:
Use the 2001-2005 coils and wires. The VVT oil feed line interferes with the 1990-2000 coil mounting location. The 01-05 coils are fairly reliable and easy to wire up.

Wiring:
CAS:


You must use the NB cam and crank angle sensors if you want VVT control. There is no way to control the VVT if you use an NA-style CAS driven from the exhaust camshaft.

The OEM 1990-1997 CAS has 4 wires. One wire is +12v, one wire is a sensor ground, and there is a signal wire for the crank position and a signal wire for the cam position. You will need to cut the factory plug off and extend the +12v and ground wires to each of the NB sensors. The cam signal wire will get routed to the camshaft sensor on the top of the valve cover, and the crank signal wire will get routed to the crankshaft sensor located near the harmonic damper. This will bring the appropriate cam and crankshaft patterns along the OEM harness into the ECU, and all of the other changes necessary will happen in the firmware/software of your ECU.

12v (extend 90-97 wire to both 99-05 sensors):
90-97: White/Red
99-05: White/Red

Cam (extend to Cam sensor only):
90-97: yellow/blue
99-00: grey/blue
01-05: grey/blue

Crank (extend to Crank sensor only)
90-97: white
99-00 grey/red
01-05 violet/white

Ground (extend to both 99-05 sensors)
90-97: black/light green
99-05: black/blue

IAC Valve:
If you are swapping to the 99-05 throttle body to upgrade to the internally routed IAC valve, you will need to swap the pigtails for the TPS and IAC wires. The IAC valve wiring is not sensitive to polarity, so you can simply swap the pigtail without worrying about which wire goes where.

TPS:
The 90-93 manual chassis did not originally come with a 0-5v variable TPS. To use a 94-05 0-5v throttle position sensor in a 90-93 chassis, consult with your ECU supplier to confirm the wiring changes that are necessary.

The 1994-1997 chassis did come with a 0-5v variable TPS. It is a standard 3-wire TPS with an additional fourth wire (red) which serves as a wide-open switch. Your standalone ECU will likely not use this fourth wire, so if you are changing the pigtail to a 99-05 style, simply heat-shrink over this unused wire. If you are using your 94-97 throttle body, there are no wiring changes necessary. If you are using the 99-05 sensor, wiring colors are listed below:

5v Reference:
94-97: Light Green/White
99-05: Light Green/Red

Signal:
94-97: Red/Black
99-05: Green/Black

Ground:
94-97: Black/Blue
99-05: Black/Red

VVT:
The VVT solenoid is a 2-wire PWM solenoid, just like an EBC valve. There is no polarity on the wires. Connect one wire to +12v (the injector harness is very close and has plenty of extra current room on its fuse) and the other wire directly to your ECU's VVT control pin.

Coils
The wiring modifications for the coils are chassis-specific.
1990-1993:
You will need to delete the ignitor first. The 01-05 coils have on-board ignitors. Connect the wires as follows:



Route 1 (white) to 2 (brown/yellow) (trigger for cyl 1/4, the text in the pic above is wrong, see post #156)
Route 7 (brown) to 8 (red) (trigger for cyl 2/3, text in pic above is wrong, see post #156)
Route 4 (yellow/blue) to 5 (black/white) (connects ECU directly to tachometer at gauge cluster)
Terminate 3 (blue) (unused +12v)
Terminate 6 (black) (unused ground)

At the 90-93 coil connector, there are three wires (+12v and two triggers, no ground). Connect as follows:

12v:
90-93: Blue
99-05: Black/White




Trigger cyl 1/4:
90-93: white
99-00: brown/yellow
01-05: brown/white

Trigger cyl 2/3:
90-93: red
99-00: brown
01-05: black/yellow

Ground:
90-93: none
99-05: black (ground to intake manifold)

The 01-05 coils have no provisions for a tachometer output. The MS Labs MS3 Basic, AEM Series 1 (30-1710), AEM EMS-4 (30-6905), MSPNP2, MS3-Pro, and all 94+ MSPNP1s have a tachometer driver which will run the factory tach in lieu of the factory coils. For 90-93 MSPNP1 owners, you will need an aftermarket tachometer driver, which can either be added to your ECU or purchased and wired separately. See posts 44 and 62 for more details.

1994-1997 coils:
+12v:
94-97: Blue
99-05: Black/White

trigger cyl 1/4:
94-00: brown/yellow
01-05: brown/white

trigger cyl 2/3:
94-00: brown
01-05: black/yellow

ground:
94-05: black

Injectors (90-93 only)
Most people elect to switch to sequential fuel while doing this swap. The factory 1990-1993 cars (except for California-emissions 1993 cars) have fuel injectors wired in pairs (1/3 and 2/4). I typically elect to run new trigger wires for injectors #3 and #4 and leave the OEM trigger wires in place for cylinders #1 and #2. Simply cut the trigger wires (Yellow and Yellow/Black) at the #3 and #4 injector pigtails, heat-shrink the loose ends on the harness side, and attach/route two new wires directly from your ECU to the trigger wires for injectors #3 and #4. Terminate all loose wire ends.

Injectors ('93 California emissions and all 94-97):
Use your factory 94-97 injector harness. No modifications are necessary.

CLT sensors
The 90-93 cars have two coolant temp sensors and a thermo-switch. The two-wire sensor on the back of the head is the sensor that provides the ECU. The one-wire sensor on the back of the head provides signal to the gauge cluster. The one-wire switch on the front of the engine switches the fans on and off. The 1994-1997 cars have the same two sensors on the back of the head, but the OEM ECU controls the fans instead of a separate thermo-switch.

Install your 1990-1997 2-wire ECU coolant temp sensor and your one-wire gauge coolant temp sensor in the 2001-2005 engine. This will allow you to retain your OEM CLT sensor pigtails. The 01-05 engines have a small plug in the hole used by the one-wire gauge sender - simply remove the plug and install the sender in the 01-05 engine. The front thermo-switch (90-93) is no longer necessary, as your ECU will control the fans.

HI!, I would like to ask for your help with my swap, I have a miata 97 and I bought an NB2 engine, I followed this post: https://www.miataturbo.net/engine-pe...t-swap-into-90 -97-chassis-megathread-80469 / I have Megasquirt 2 MSPNP2 V1.3a the other code that I have on the board is MSPNP2-MM9697 V1.1 (c) 2013 DIYAUTOTUNE.COM The problem is that the megasquirt does not read the signal from the cam sensor, the trigger blinks that recognizes the crankshaft when the engine turns and only the cam signal is missing. Please your help is the only thing left to get back on track. Thank you!
sebakxf is offline
Reply
Leave a poscat -1 Leave a negcat
Old 02-11-2019, 01:16 PM
  #613
Newb

Join Date: Jun 2018
Posts: 2
Total Cats: -1
Default

Good afternoon, I would like to ask for your help with my swap, I have a miata 97 and I bought an NB2 engine, I followed this post: https://www.miataturbo.net/engine-pe...t-swap-into-90 -97-chassis-megathread-80469 / I have Megasquirt 2 MSPNP2 V1.3a the other code that I have on the board is MSPNP2-MM9697 V1.1 (c) 2013 DIYAUTOTUNE.COM The problem is that the megasquirt does not read the signal from the cam sensor, the trigger blinks that recognizes the crankshaft when the engine turns and only the cam signal is missing. Please your help is the only thing left to get back on track. Thank you!
sebakxf is offline
Old 03-05-2019, 10:52 AM
  #614
Junior Member

Join Date: May 2011
Location: Miami
Posts: 145
Total Cats: 10
Default

Hey guys, I just wanted to add that I am in the parts gathering phase for vvt swapping my 1.6 miata. In doing some research and finding some pictures online I found this connector. I bought it on a whim and sure enough it fits the cas connector where the cas would connect. So without splicing anything or cutting off my stock cas connector I am able to have the 4 wires from the cas to connect to the cam and crank sensors. I've been trying to make everything as plug and play as possible with as little cutting of the chassis harness as possible.

Here is the link.
https://www.bmotorsports.com/shop/pr...oducts_id/4161





andym is offline
Old 03-05-2019, 11:05 AM
  #615
Junior Member

Join Date: Mar 2015
Posts: 131
Total Cats: 10
Default

Originally Posted by andym View Post
Hey guys, I just wanted to add that I am in the parts gathering phase for vvt swapping my 1.6 miata. In doing some research and finding some pictures online I found this connector. I bought it on a whim and sure enough it fits the cas connector where the cas would connect. So without splicing anything or cutting off my stock cas connector I am able to have the 4 wires from the cas to connect to the cam and crank sensors. I've been trying to make everything as plug and play as possible with as little cutting of the chassis harness as possible.

Here is the link.
https://www.bmotorsports.com/shop/pr...oducts_id/4161
Heck yeah, great find!!! I (and quite a few others I'm sure) have been looking for this! Pos-cat for you!
cpierr03 is offline
Old 03-05-2019, 11:08 AM
  #616
Junior Member
iTrader: (4)

Shibby's Avatar

Join Date: Oct 2006
Location: Hagerstown, MD
Posts: 213
Total Cats: 37
Default

There's a Miata specific page for all sorts of pigtails on that site. I use it all the time.

https://www.bmotorsports.com/shop/static.php/post/miata
Shibby is offline
Old 03-05-2019, 11:26 AM
  #617
Junior Member

Join Date: May 2011
Location: Miami
Posts: 145
Total Cats: 10
Default

Originally Posted by cpierr03 View Post
Heck yeah, great find!!! I (and quite a few others I'm sure) have been looking for this! Pos-cat for you!
Originally Posted by Shibby View Post
There's a Miata specific page for all sorts of pigtails on that site. I use it all the time.

https://www.bmotorsports.com/shop/static.php/post/miata
I use that link too, but thanks for the heads up.

What I am looking for now is a connector that would plug in in place of the 1.6 igniter to run the vvt ignition coils. I am not that thrilled about de-pinning my stock connector to put on a nb style one.

Also, I could not find it on bmotorsports but for people looking for the connector for the air intake temp sensor that would connect on the stock 1.6 afm wiring, I found on speedyefi that they had that connector. I have been unable to find that connector anywhere else so I have no idea how they sourced it.It lets me run my ait without having to have it electrical taped into the connectors on my AFM harness.
https://speedyefi.com/product/90-93-...f-delete-plug/











I am sure that a larger manufacturer makes that plug since jackson racing used to make an extension harness with that connector once upon a time but their extension harness was around $90 last time I checked if it was even able to be had anymore.

Also, I bought this and it fit great for the 1.6 chassis tps connector. This connector coupled with a stock 1.8 tps connector will let me make a tps sensor pigtail to go from 1.6 to 1.8 without having to actually cut any chassis wires. Thought it might be helpful to you guys in the future who don't want to cut any chassis wires.

https://www.ebay.com/itm/1-x-Female-...item3d3695fd2a
andym is offline
Old 03-05-2019, 08:37 PM
  #618
Junior Member

Join Date: Mar 2015
Posts: 131
Total Cats: 10
Default

Originally Posted by Shibby View Post
There's a Miata specific page for all sorts of pigtails on that site. I use it all the time.

https://www.bmotorsports.com/shop/static.php/post/miata
They don't list the male version of the CAS connector, this is the first I've seen it
cpierr03 is offline
Old 03-11-2019, 04:25 PM
  #619
Newb

Join Date: Mar 2018
Location: Toronto, ON
Posts: 23
Total Cats: 1
Default

Originally Posted by Shibby View Post
There's a Miata specific page for all sorts of pigtails on that site. I use it all the time.

https://www.bmotorsports.com/shop/static.php/post/miata
Any suggestions for other connectors to purchase to make the least number of alterations to the stock wiring harness as possible?
6monther is offline
Old 03-11-2019, 06:58 PM
  #620
Junior Member

Join Date: May 2011
Location: Miami
Posts: 145
Total Cats: 10
Default

Originally Posted by 6monther View Post
Any suggestions for other connectors to purchase to make the least number of alterations to the stock wiring harness as possible?
you will need a connector for the crank sensor and another connector for the cam sensor.

If you are using the vvt coils you will need a connector on the chassis side and on the coil side.
andym is offline

Thread Tools
Search this Thread
Quick Reply: The Definitive "VVT swap into 90-97 chassis" Megathread.


Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
