Old 07-26-2010, 07:08 PM   #21
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
I think he means removing the VTCS butterflies, not gutting the plenum.
Im not sure what all goes into it but it may be possible to pull those suckers out of there and JB weld up the throttle shaft holes.
FWIW I have a ****** gutted 01+ plenum in my GF's dad's trailer. Who wants me to do a back to back test! Yay! ****, I will do a whole intake manifold shootout on my own dime if you bitches send me them to test.

Hmm starting new thread
Faeflora is offline   Reply With Quote
Old 07-26-2010, 07:12 PM   #22
Junior Member
iTrader: (1)

Join Date: Aug 2008
Location: Granada, Spain
Posts: 336
Total Cats: 2
Default

Quote:
Originally Posted by faeflora View Post
FWIW I have a ****** gutted 01+ plenum in my GF's dad's trailer. Who wants me to do a back to back test! Yay! ****, I will do a whole intake manifold shootout on my own dime if you bitches send me them to test.

Hmm starting new thread
Does it looks like your frame rail?
ismael_pt is offline   Reply With Quote
Old 07-26-2010, 07:15 PM   #23
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

lulz

RotorNutFD3S is offline   Reply With Quote
Old 07-26-2010, 07:23 PM   #24
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by ismael_pt View Post
Does it looks like your frame rail?
My frame rail fucked your dad for breakfast. I can post hot pics of intake if you want.
Faeflora is offline   Reply With Quote
Old 07-27-2010, 12:22 AM   #25
Junior Member

Join Date: Jun 2007
Location: Grayslake IL
Posts: 410
Total Cats: 2
Default

Quote:
Originally Posted by faeflora View Post
My frame rail fucked your dad for breakfast. I can post hot pics of intake if you want.
rule 34 on your frame rail?
Aricjm15 is offline   Reply With Quote
Old 07-27-2010, 02:56 AM   #26
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

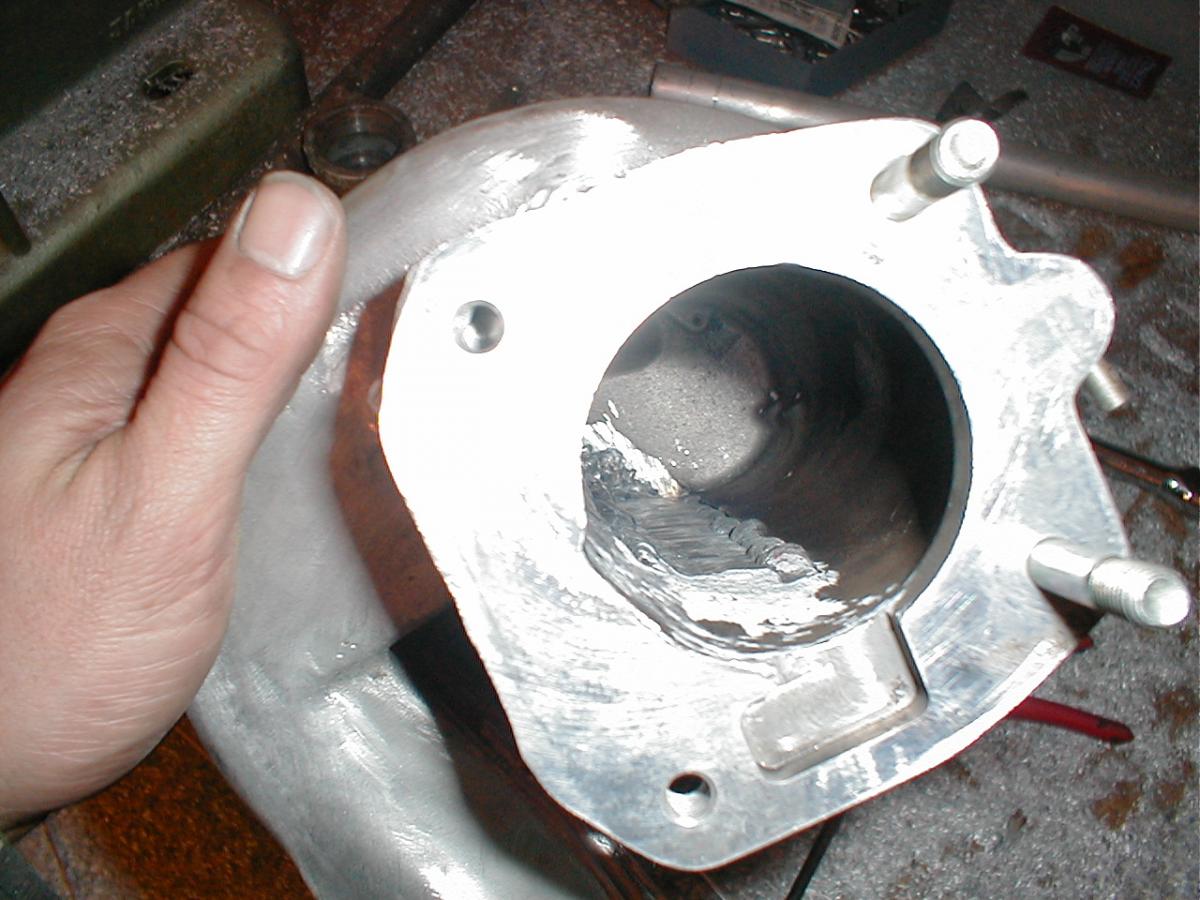

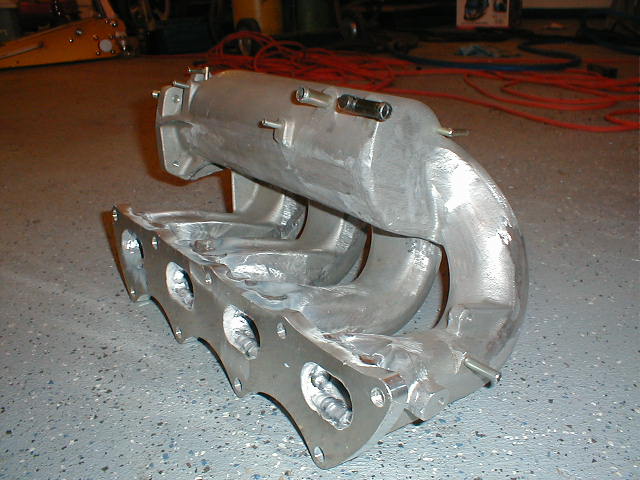

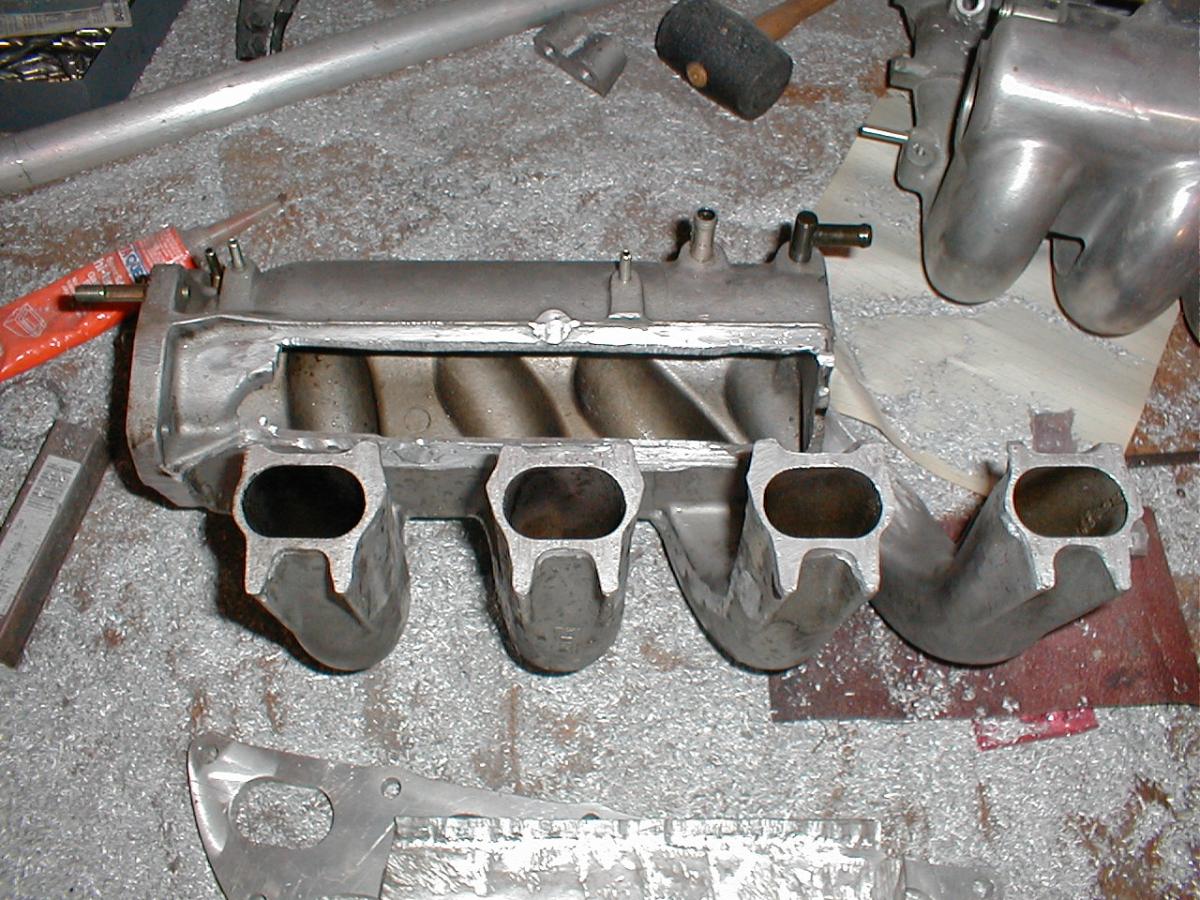

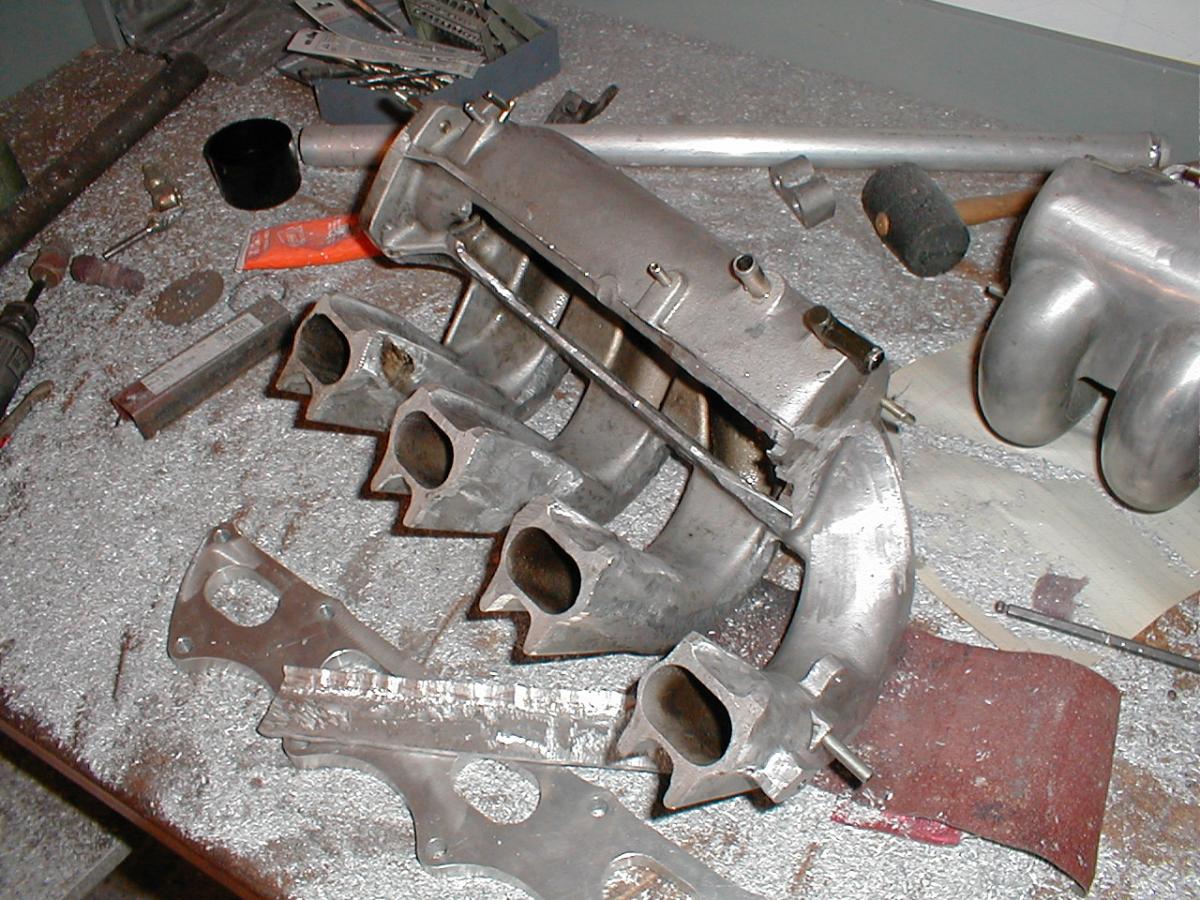

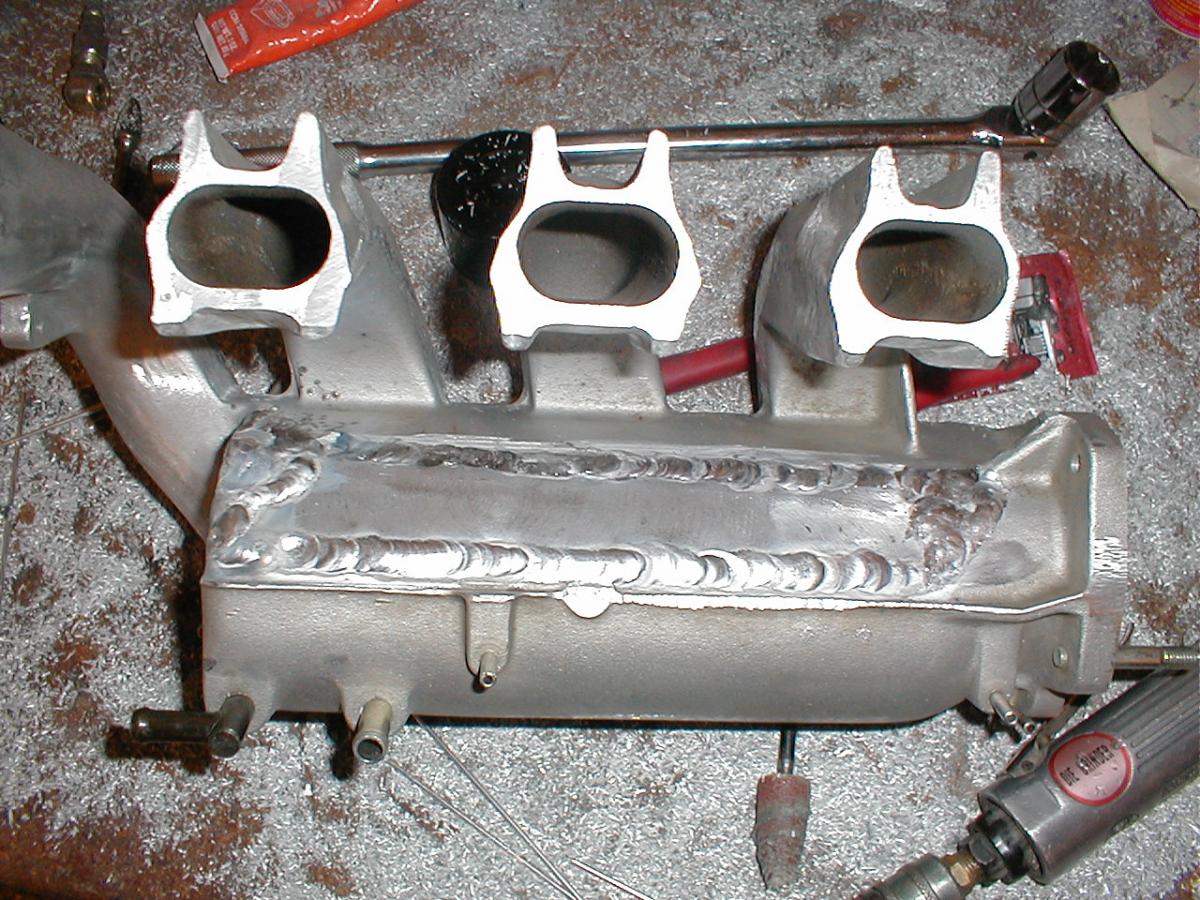

Some pics of my modified 94 manifold.

Bob
Attached Thumbnails
Early 1.8 intake manifold vs 01+ intake manifold?????-p3090011.jpg   Early 1.8 intake manifold vs 01+ intake manifold?????-p3090013.jpg   Early 1.8 intake manifold vs 01+ intake manifold?????-p3090017.jpg   Early 1.8 intake manifold vs 01+ intake manifold?????-p3090019.jpg   Early 1.8 intake manifold vs 01+ intake manifold?????-p3110004.jpg

bbundy is offline   Reply With Quote
Old 07-27-2010, 08:12 AM   #27
Elite Member
Thread Starter
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Interesting...def. loks like something I'd like to try. How much did the EGR equipment impede into the plenum? Looks like a much better flow over the NB IM.
Doppelgänger is offline   Reply With Quote
Old 07-27-2010, 12:37 PM   #28
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by Doppelgänger View Post
Interesting...def. loks like something I'd like to try. How much did the EGR equipment impede into the plenum? Looks like a much better flow over the NB IM.
I don’t think the EGR created much impedance to flow but it had to create some. It had a little hump right after the throttle body to create a disturbance for better mixing of the EGR gas. I was sort of conscerned the little hump might actually improve flow by creating a swirl but I decided to take it out anyway. My car started out as a 90 so it didn’t have EGR originally.

I suspect my manifold performs similar to some of the Honda setups, but with slightly longer runners. Seems like to me the short runners would be more tuned to RPM’s beyond where a Miata motor happily runs.

Bob
bbundy is offline   Reply With Quote
Old 07-27-2010, 12:53 PM   #29
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

This is the intake mani I wanna use badly

http://performanceparts.com/part.php?partID=320138



"The "Performer X" series of intake manifolds from Edelbrock are an ideal choice for high performance street or strip applications that have peak torque and horsepower bands in the 4500-8200 rpm range."
leatherface24 is offline   Reply With Quote
Old 07-27-2010, 01:05 PM   #30
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by leatherface24 View Post
This is the intake mani I wanna use badly

http://performanceparts.com/part.php?partID=320138



"The "Performer X" series of intake manifolds from Edelbrock are an ideal choice for high performance street or strip applications that have peak torque and horsepower bands in the 4500-8200 rpm range."
Interesting that my torque hump is more 3800 to 6000 rpm. Start loosing torque pretty rapidly at 7200. This is with a 2.0L stoker with all the Flyin Miata bells and wistles and a 99 head.

I don’t think it is the intake manifold that is the primary source for the torqe drop at high RPM though.

Bob
bbundy is offline   Reply With Quote
Old 07-27-2010, 01:06 PM   #31
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by leatherface24 View Post
This is the intake mani I wanna use badly

http://performanceparts.com/part.php?partID=320138



"The "Performer X" series of intake manifolds from Edelbrock are an ideal choice for high performance street or strip applications that have peak torque and horsepower bands in the 4500-8200 rpm range."
Because you are fail and don't listen to people who are win.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 07-27-2010, 01:48 PM   #32
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by bbundy View Post

I don’t think it is the intake manifold that is the primary source for the torqe drop at high RPM though.

Bob
What do you think is the primary source?
Faeflora is offline   Reply With Quote
Old 07-27-2010, 01:51 PM   #33
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by faeflora View Post
What do you think is the primary source?
probably cams Im guessing.

Bob
bbundy is offline   Reply With Quote
Old 07-27-2010, 02:01 PM   #34
Senior Member
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

Bob, what you did with that intake is great.

I have had this question in my mind for a while.

Those pics def mad me feel like that IM is much better than my current 99gutted set up.

I may look into that after the Vegas event in a few weeks.

I am also interested in the new BEGI intake..
TURNS101 is offline   Reply With Quote
Old 07-27-2010, 04:33 PM   #35
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

Quote:
Originally Posted by bbundy View Post
probably cams Im guessing.

Bob
And a head that is generally poor flowing when the cams are open.
fooger03 is offline   Reply With Quote
Old 07-27-2010, 05:38 PM   #36
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by fooger03 View Post
And a head that is generally poor flowing when the cams are open.
Yea I think it is a combo of the two.

The strong point of the Mazda BP engine compared to a Honda is mid range torque It is simply different than a 9000 rpm Honda. Putting a 9000 rpm Honda intake manifold on a Mazda head doesn’t suddenly make it flow like a Honda.

Bob
bbundy is offline   Reply With Quote
