Old 11-29-2015, 05:18 AM   #901
Junior Member

Join Date: Jan 2014
Location: Western Australia
Posts: 450
Total Cats: 74
Default

Someone needs to test it.

If the square top manifold gives a healthy increase to a stock engine then the Honda intake could only be better again (im talking high revs). Sure, you need big cams, valves and lots of head work and free exhaust flow to really unlock the power but the stock intake is still restrictive at high revs. You might loose some low - mid range torque but the engine will be able to breathe up high.
Madjak is offline   Reply With Quote
Old 02-17-2016, 04:32 AM   #902
Senior Member
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 542
Total Cats: 15
Default

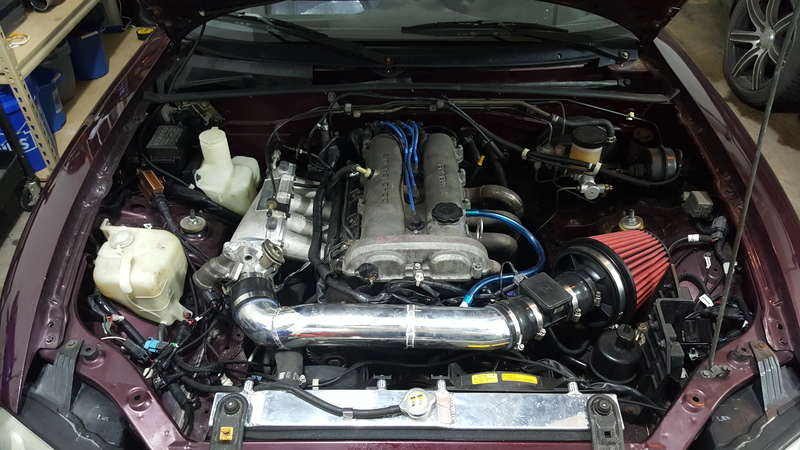

The future is now people.


This manifold is confusing.



Attached Thumbnails
Honda intake manifold-20160217_030349_zps1wpja4ho.jpg
vteckiller2000 is offline   Reply With Quote
Old 02-17-2016, 07:55 AM   #903
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 605
Total Cats: 16
Default

So, what are we look'in at here?
Brand? Runner length? It looks like the plenum can seperate from the runners. Throttle body?
2manyhobyz is offline   Reply With Quote
Old 02-17-2016, 08:36 AM   #904
Senior Member
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 542
Total Cats: 15
Default

Quote:
Originally Posted by 2manyhobyz View Post
So, what are we look'in at here?
Brand? Runner length? It looks like the plenum can seperate from the runners. Throttle body?
Skunk2 ultra street b series honda manifold reflanged for bp. 64mm skunk2 miata tb.
vteckiller2000 is offline   Reply With Quote
Old 02-17-2016, 08:47 AM   #905
Junior Member

Join Date: Jan 2014
Location: Western Australia
Posts: 450
Total Cats: 74
Default

Nice work... I'm very interested to see how it goes. From the pic it looks like the throttle body is welded on or is that an adapter plate? I can see its on a 45 degree angle which will help with clearance between the tps and chassis.
Madjak is offline   Reply With Quote
Old 02-17-2016, 10:21 AM   #906
Senior Member
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 542
Total Cats: 15
Default

Quote:
Originally Posted by Madjak View Post
Nice work... I'm very interested to see how it goes. From the pic it looks like the throttle body is welded on or is that an adapter plate? I can see its on a 45 degree angle which will help with clearance between the tps and chassis.
I have an adapter plate for the bp throttle body welded on but rotated to clear the hood. I have a second upper plenum to out the alpha 70mm honda throttle body later once I get the megasquirt on.
vteckiller2000 is offline   Reply With Quote
Old 02-17-2016, 10:47 AM   #907
Junior Member

Join Date: Jan 2014
Location: Western Australia
Posts: 450
Total Cats: 74
Default

Quote:
Originally Posted by vteckiller2000 View Post
I have an adapter plate for the bp throttle body welded on but rotated to clear the hood. I have a second upper plenum to out the alpha 70mm honda throttle body later once I get the megasquirt on.
If you are dynoing it, I would really like to see if there is any difference between the 64mm and 70mm tb. I would bet there wouldn't be much in it but it would be nice to know for sure at least at one data point.

I've moved to a s90 70mm tb now which is 100 x better than the skunk2. I was getting leaks through the throttle plate which could wiggle a few mm making idle inconsistent and the tps to throttle shaft connector first came loose then failed entirely.
Madjak is offline   Reply With Quote
Old 02-17-2016, 11:16 AM   #908
Senior Member
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 542
Total Cats: 15
Default

Quote:
Originally Posted by Madjak View Post
If you are dynoing it, I would really like to see if there is any difference between the 64mm and 70mm tb. I would bet there wouldn't be much in it but it would be nice to know for sure at least at one data point.

I've moved to a s90 70mm tb now which is 100 x better than the skunk2. I was getting leaks through the throttle plate which could wiggle a few mm making idle inconsistent and the tps to throttle shaft connector first came loose then failed entirely.
Ill see what I can do. Is the s90 tb the same bolt pattern? I need to figure out my idle motor setup with the new throttle body.

Last edited by vteckiller2000; 02-17-2016 at 12:06 PM.
vteckiller2000 is offline   Reply With Quote
Old 02-17-2016, 11:48 AM   #909
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,917
Total Cats: 93
Default

Quote:
Originally Posted by vteckiller2000 View Post
Ill see stay I can do. Is the s90 tb the same bolt pattern? I need to figure out my idle motor setup with the new throttle body.
Just use the Honda idle valve on the plenum.
Leafy is offline   Reply With Quote
Old 02-17-2016, 11:49 AM   #910
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,852
Total Cats: 992
Default

Key to making that short runner manifold work is full race cams. Like way past STL and into EP territory. Madjak talks about how simple it is but he's talking about a full race motor that lives above 8000rpm, makle crap power below 4000, requires at least 100 octane and probably idles above 1500rpm. While exciting and interesting, that is probably only relevant to like 12 people in the US. The other tens of thousands of Miata owners would like something that makes more power from 4000-7500, idles pretty much like stock and runs on pump gas. The key delineator here is cams. .500 lift, 290 duration in the case of the short runner 200whp beast, more like .420 lift, 260 duration in the case of the 165whp pump gas daily.

The Skunk2 manifold is sized for the big cams and 200whp. Again, interesting from a purely academic perspective but personally, I'm far more interested in a long runner manifold to pick up where the squaretop leaves off.
emilio700 is offline   Reply With Quote
Old 02-17-2016, 11:53 AM   #911
Senior Member
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 542
Total Cats: 15
Default

I'm going to have to put it on a dyno because I honestly feel an increase in torque below 4k from the vics manifold. And I confirmed it was working fine prior.

That is what is confusing about it. I expected massive loss down low, but that didn't happen. Manifold is getting milled and ported now, so I will have more than initial perceptions soon.

Last edited by vteckiller2000; 02-17-2016 at 12:07 PM.
vteckiller2000 is offline   Reply With Quote
Old 02-17-2016, 01:36 PM   #912
Junior Member
iTrader: (1)

Downmented's Avatar

Join Date: Oct 2014
Location: Annapolis, MD
Posts: 485
Total Cats: 56
Default

Read through this entire thread today from start to finish, a lot of information. The thread peaked, then died off. One thing i did notice was about 4 different people promise aftermarket intake manifolds for us and yet literally the only option that came of any of it was BEGI redesigning their existing manifold with noone else making any head way. The thread is over 5yrs old lol.

Several people have posted cnc head flanges, but are these available from anyone? Someone mentioned a CAD file for a head flange, but never listed it. Ive searched for it a bit with no luck if anyone can share.

Seems like the ultimate conclusion is go custom sheet metal or have the welds crack frequently on the honda conversion manifold. Are there any threads with legitimate documentation stating that the BEGI unit does not perform? (no im not talking about their customer service, ive read that thread )
Downmented is offline   Reply With Quote
Old 02-17-2016, 01:45 PM   #913
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,053
Total Cats: 908
Default

Right now I don't know of any place you can buy good CNC head flanges from. I was talking to a shop to get some made last fall. I needed to order a minimum of 15 to get them made and only have 4 or 5 people interested in them. I don't have the capital to sit on 10+ flanges and just hold until I possibly sell them sometime in the future.

Besides dealing with Begi, I honestly think they are the only ones actively making intake manifolds if you asked.
shuiend is online now   Reply With Quote
Old 02-17-2016, 01:54 PM   #914
Junior Member
iTrader: (1)

Downmented's Avatar

Join Date: Oct 2014
Location: Annapolis, MD
Posts: 485
Total Cats: 56
Default

Quote:
Originally Posted by shuiend View Post
Right now I don't know of any place you can buy good CNC head flanges from. I was talking to a shop to get some made last fall. I needed to order a minimum of 15 to get them made and only have 4 or 5 people interested in them. I don't have the capital to sit on 10+ flanges and just hold until I possibly sell them sometime in the future.

Besides dealing with Begi, I honestly think they are the only ones actively making intake manifolds if you asked.

Completely understandable with you not wanting to just sit on flanges with hopes of them selling, I wouldnt have done that either.

And in regards to BEGI manifolds, it seems like people dont really want anything to do with their manifolds, is that primarily for performance reasons with them, or just their overall shitty customer service? Personally I can deal with shitty customer service to a solid performing product lol

Here is this thread as well- https://www.miataturbo.net/bellengin...anifold-27089/
Downmented is offline   Reply With Quote
Old 02-17-2016, 01:59 PM   #915
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 992
Total Cats: 26
Default

I have a local source for laser cut flanges (no machining) if there is any interest. I've also got the S2 from Sav's old car that I'm not planning on using.
TheBandit is offline   Reply With Quote
Old 02-17-2016, 03:05 PM   #916
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,852
Total Cats: 992
Default

For an N/A build with less than full race cams, I'd suggest using a 4G63 IM as your donor. Much closer to what the BP wants than any B series Honda manifold.
emilio700 is offline   Reply With Quote
Old 02-17-2016, 05:58 PM   #917
Junior Member

Join Date: Jan 2014
Location: Western Australia
Posts: 450
Total Cats: 74
Default

Quote:
Originally Posted by emilio700 View Post
For an N/A build with less than full race cams, I'd suggest using a 4G63 IM as your donor. Much closer to what the BP wants than any B series Honda manifold.
When I moved from stock NA8 intake to the skunk2 I picked up gains across the rev range. As Emilio points out earlier though my engine is not even close to what you'd consider streetable. The stock intake in my case was limiting airflow massively. This is not the case with stock engines.

Still I'm interested because I'd really like to see the results of a stock engine on a dyno especially given runner length is only one factor to intakes. We know the square top helps but is it due to increased runner size / better internal flow path / better harmonics? It will be a combination of all of them. The Skunk2 might not have ideal runner length for a stock engine but the gains elsewhere could make it worthwhile.

Thats the problem with air intakes. Sometimes strange combinations work better than you'd expect ... and you won't really know until you try it.
Madjak is offline   Reply With Quote
Old 02-17-2016, 06:13 PM   #918
Junior Member

Join Date: Jan 2014
Location: Western Australia
Posts: 450
Total Cats: 74
Default

Quote:
Originally Posted by Downmented View Post
Several people have posted cnc head flanges, but are these available from anyone? Someone mentioned a CAD file for a head flange, but never listed it. Ive searched for it a bit with no luck if anyone can share.
Anyone wanting CAD profiles here is my online file share of ones people might find useful. Please note: use of my designs is for non commercial use only. Please test fittment and dimensions prior to making.

MadJak's 3D and CAD files

If anyone wants it I can CAD a later model intake flange. Someone will need to proof fitment though. In terms of getting them made, I use a local waterjet place and they'll cut a single 10mm flange for $50 US. Cnc tends to cost a little more on the thicker cuts.

If you plan to fit a Honda intake you need to undersize the port holes on the flange then port them once welded to match the angles in the head and to the runners on the plenum. I think I have a CAD profile online thats had the two external ports narrowed for this purpose. Have a look at my thread reharding welding braces on to stop the cracking. Mine is holding up well.
Madjak is offline   Reply With Quote
Old 02-17-2016, 06:38 PM   #919
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 605
Total Cats: 16
Default

Quote:
Originally Posted by emilio700 View Post
For an N/A build with less than full race cams, I'd suggest using a 4G63 IM as your donor. Much closer to what the BP wants than any B series Honda manifold.
Just to clarify, are you suggesting the stock intake manifold or an aftermarket ones?
2manyhobyz is offline   Reply With Quote
Old 02-17-2016, 07:19 PM   #920
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,852
Total Cats: 992
Default

Quote:
Originally Posted by 2manyhobyz View Post
Just to clarify, are you suggesting the stock intake manifold or an aftermarket ones?
OEM. There are a few variants. I've drifted this thread a bit though (sorry!). Start a new thread if you want to continue your research on non-Honda options.
emilio700 is offline   Reply With Quote
