Default Hustler wakes up my sleepy '94

No exciting turbo or anything, but a MegaSquirt install and tune made a shitload of difference! Last year, johnwag and I did a '99 head/intake swap, but I didn't really see any improvement at the dyno. It was a whopping 108 whp on a Dynojet. I fiddled with the timing, yadda yadda, but it just felt a little sleepy like it was bone stock.

So over the last few weeks, I got a box of old parts from wags (header, intake, MegaSquirt, and some other stuff). They worked long and hard to get everything squared away, and today was D-day for the final tune...

On the Mustang dyno we used, the sucker made 126 hp and 116 lb-ft at the wheels. That should translate to 140/130 at the wheels on a Dynojet. Needless to say, it's a whole different animal... and a WHOLE lot more fun to drive. And the best part is, Trey got the drivability nailed. It idles nice, doesn't buck under part throttle, and it doesn't belch flames or anything. In other words, it drives like stock until you stick your foot in it.

Excellent work, sir...
trickyrix is offline   Reply With Quote
Old 08-13-2011, 07:48 PM   #2
I'm Miserable!

Join Date: Feb 2010
Posts: 584
Total Cats: 0
Default

You must be enjoying your car a lot more Tricky…

Good job Trey!
sjmarcy is offline   Reply With Quote
Old 08-13-2011, 08:09 PM   #3
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Thanks, I had fun tuning it. The looks on your faces for the 6000rpm steady-state tuning was pretty funny.

The car is a pleasure to drive, it's doing everything right. Don't forget that we need to mark the crank pully (not the damper-ring) since it slipped.

This winter I'll have to tune the cold-start.
hustler is offline   Reply With Quote
Old 08-14-2011, 04:52 PM   #4
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default



This was the car that I said had the slipped balancer, right? Nice numbers, strong for a 9:1 bottom end.
Savington is offline   Reply With Quote
Old 08-14-2011, 05:23 PM   #5
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Savington View Post

This was the car that I said had the slipped balancer, right? Nice numbers, strong for a 9:1 bottom end.
Yeah. The spark angle numbers are lower than I expected so I question my improvised timing. We are going to put the car at TDC and put reference marks on the crank pully and and CAS.
hustler is offline   Reply With Quote
Old 08-14-2011, 05:29 PM   #6
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Damn, very nice NA numbers. My car needs to come to Texas. It'd be easier if you came up here Trey. My new laptop needs to be broken in by your fingers.
curly is offline   Reply With Quote
Old 08-14-2011, 06:19 PM   #7
I'm Miserable!
iTrader: (11)

Join Date: Apr 2008
Location: Texas, 'Murica
Posts: 2,505
Total Cats: 7
Default

Yeah good work. I made 130ishwhp on a p&p 97 head, header, exhintake, and exhaust with a megasquirt. Picking up 20 whp makes if feel like a new car, especially na.Oh, I had a 99 SB too, so more compression.
chicksdigmiatas is offline   Reply With Quote
Old 08-14-2011, 06:21 PM   #8
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default


I brought spark down a bit and reduced fuel too because I didn't like what I was hearing in the det cans.

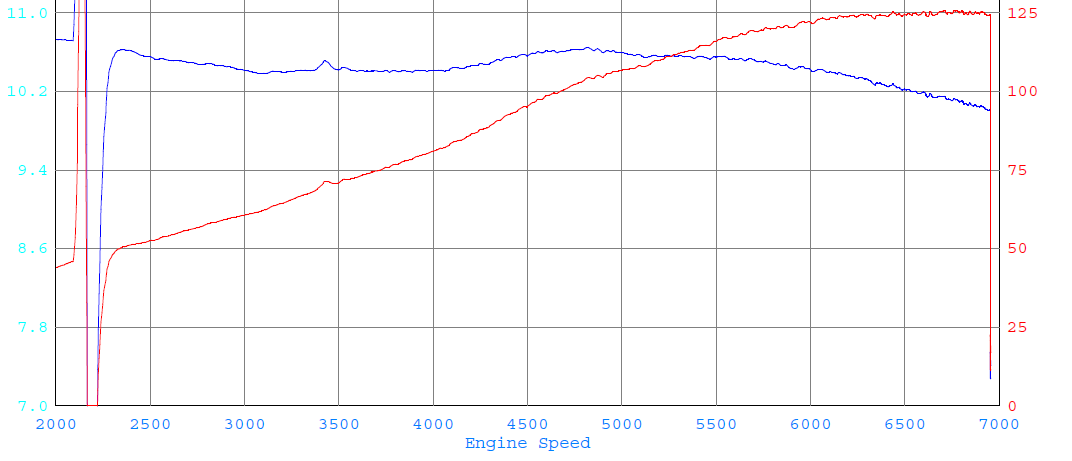

I cropped the dyno because the dyno owner keeps sending me pdf files.
Attached Thumbnails
Hustler wakes up my sleepy '94-2qjzv39.png
hustler is offline   Reply With Quote
Old 08-14-2011, 06:23 PM   #9
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by chicksdigmiatas View Post
Yeah good work. I made 130ishwhp on a p&p 97 head, header, exhintake, and exhaust with a megasquirt. Picking up 20 whp makes if feel like a new car, especially na.Oh, I had a 99 SB too, so more compression.
What plugs, AFRs, and did you find MBT or detonation?
hustler is offline   Reply With Quote
Old 08-14-2011, 10:07 PM   #10
Junior Member
iTrader: (3)

Join Date: Jul 2008
Location: Pinellas park Fl
Posts: 308
Total Cats: 1
Default

very nice numbers, mind sharing the timing map ?
what target AFR is it tuned for ?

Im just waiting to do my exhintake swap, then need to dyno tune.
92Miata is offline   Reply With Quote
Old 08-14-2011, 10:20 PM   #11
Junior Member
iTrader: (4)

Join Date: May 2009
Location: Athens GA
Posts: 434
Total Cats: 3
Default

Trey,

It would be a great help to everybody if you coud write an article on you tuning procedure.

-Raj
redrider706 is offline   Reply With Quote
Old 08-15-2011, 12:08 AM   #12
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by redrider706 View Post
Trey,

It would be a great help to everybody if you coud write an article on you tuning procedure.

-Raj
https://www.miataturbo.net/ecus-tuning-54/dyno-tuning-practices-56374/
hustler is offline   Reply With Quote
Old 08-15-2011, 12:13 AM   #13
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by 92Miata View Post
very nice numbers, mind sharing the timing map ?
what target AFR is it tuned for ?

Im just waiting to do my exhintake swap, then need to dyno tune.
Here. Remember that the base timing was finicky. I approached detonation in a few cells in the mid range but hit MBT everywhere. I leaned-out the a little bit for 12.8-12.9. But this was the last log I kept.
Attached Thumbnails
Hustler wakes up my sleepy '94-rick-log.jpg   Hustler wakes up my sleepy '94-ricks-table.png

Last edited by hustler; 08-15-2011 at 01:10 AM.
hustler is offline   Reply With Quote
Old 08-15-2011, 12:55 AM   #14
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

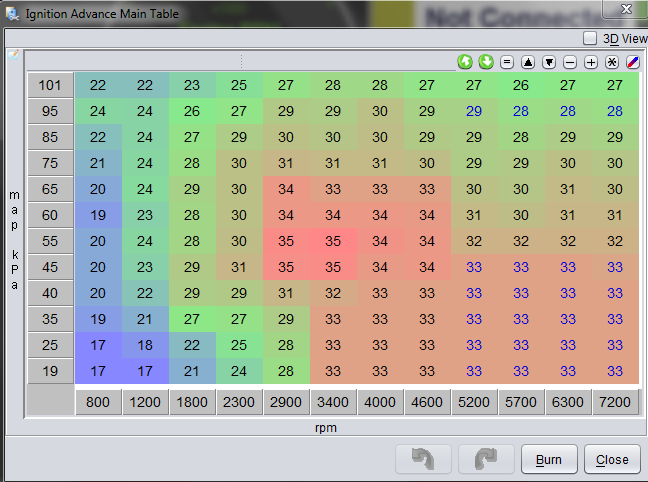

Here is the billiard-table shaped 1.6 table I made.

I still want to do some cruise tuning on both cars. I had up to 38* spark and 16.5:1 on the dyno, trying to find knock and couldn't...so I'm going to road tune with the det cans for both guys.
Attached Thumbnails
Hustler wakes up my sleepy '94-chris-kearns-spark.png
hustler is offline   Reply With Quote
Old 08-15-2011, 08:30 PM   #15
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,049
Total Cats: 4
Default

I remember when Hustler was a clueless noob with a knack for e-thugging. Now he's tuning people's cars and generally making the world a better place.

And they say people can't change...
Efini~FC3S is offline   Reply With Quote
Old 08-15-2011, 10:14 PM   #16
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Efini~FC3S View Post
I remember when Hustler was a clueless noob with a knack for e-thugging. Now he's tuning people's cars and generally making the world a better place.

And they say people can't change...
I owe this forum a lot.
hustler is offline   Reply With Quote
Old 08-15-2011, 10:32 PM   #17
Junior Member
iTrader: (3)

Join Date: Jul 2008
Location: Pinellas park Fl
Posts: 308
Total Cats: 1
Default

Quote:
Originally Posted by hustler View Post
Here. Remember that the base timing was finicky. I approached detonation in a few cells in the mid range but hit MBT everywhere. I leaned-out the a little bit for 12.8-12.9. But this was the last log I kept.

Wow, ive gotten mine up to 42* from 5k-7k at 100kpa and 26*-32* 500-4200k, and have det cans and hear no knock, so i must be very very far past MBT but not finding knock at all.

and my afr is tuned 12.8-13.2

im gonna go try that timing map now lol.
92Miata is offline   Reply With Quote
Old 08-15-2011, 10:33 PM   #18
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by 92Miata View Post
Wow, ive gotten mine up to 42* from 5k-7k at 100kpa and 26*-32* 500-4200k, and have det cans and hear no knock, so i must be very very far past MBT but not finding knock at all.

and my afr is tuned 12.8-13.2

im gonna go try that timing map now lol.
Check your base timing. I doubt your 40* advance story.
hustler is offline   Reply With Quote
Old 08-15-2011, 10:54 PM   #19
Junior Member
iTrader: (3)

Join Date: Jul 2008
Location: Pinellas park Fl
Posts: 308
Total Cats: 1
Default

Quote:
Originally Posted by hustler View Post
Check your base timing. I doubt your 40* advance story.
I have multiple times, and confirmed balancer position.

I put in the top two rows of that timing map in my car just now and honestly cant tell a diffrence faster or slower which tells me i was past mbt and might have even started past it.

I just need to spend the money on the dyno, and find a place local that will work with me to do the tuning right, if i was closer i would just bring it to you.
92Miata is offline   Reply With Quote
Old 08-16-2011, 01:38 AM   #20
Junior Member

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

Informative thread! I may try running the 1.6 map while waiting for a chance to get it on the dyno. A few questions, if i may:

Could I ask the reason for the slight differences in the map/rpm breakpoints between the 1.6 and 1.8 spark tables? Were they done that way on purpose because of the differences in the engines?

Could you show me the afr target tables?

Thanks!
