Old 06-08-2009, 02:16 PM   #21
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,679
Total Cats: 1,561
Default

Kabluey!

All of the pieces that are missing form that spark plug are either embedded in your piston, still in the combustion chamber, or went through your turbine. Oh, that sucks so bad. Oh, so bad...

Maybe if it is foreign object damage you'll still have a piece or two of it in there somewhere. Hmmm... will you find the nut off ZX-Tex's compressor in there?
sixshooter is online now   Reply With Quote
Old 06-10-2009, 05:57 AM   #22
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2006
Location: San Francisco, CA
Posts: 298
Total Cats: 0
Default

Here's an update. Motor's died and gone to heaven. :(
Somehow two of the valves broken along with a fat hole in the piston.
The caused havoc on the head and piston but the wall seems alright. Slight scratch but I think a little boring and it'll be fine.

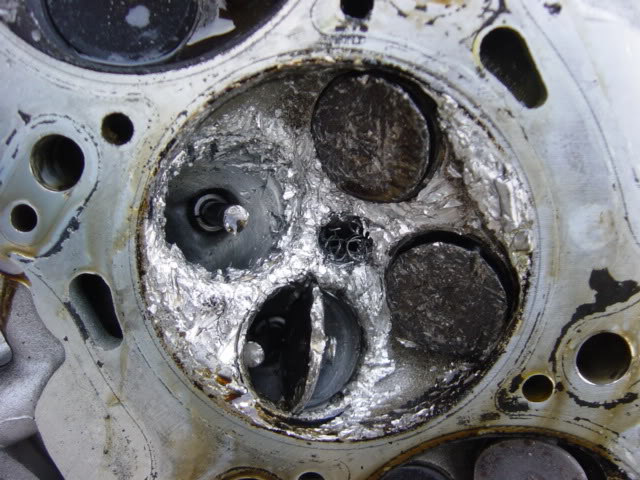

#3 valves
http://i303.photobucket.com/albums/n...a/DSC02195.jpg
Name:  DSC02195.jpg
Views: 10
Size:  76.5 KB

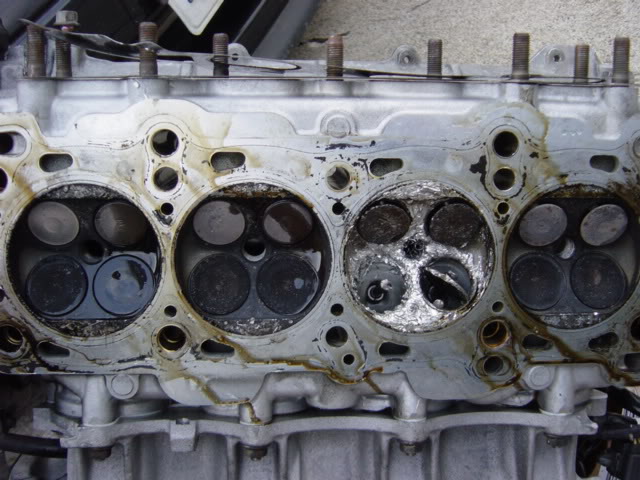

Head
http://i303.photobucket.com/albums/n...a/DSC02196.jpg
Name:  DSC02196.jpg
Views: 10
Size:  71.0 KB

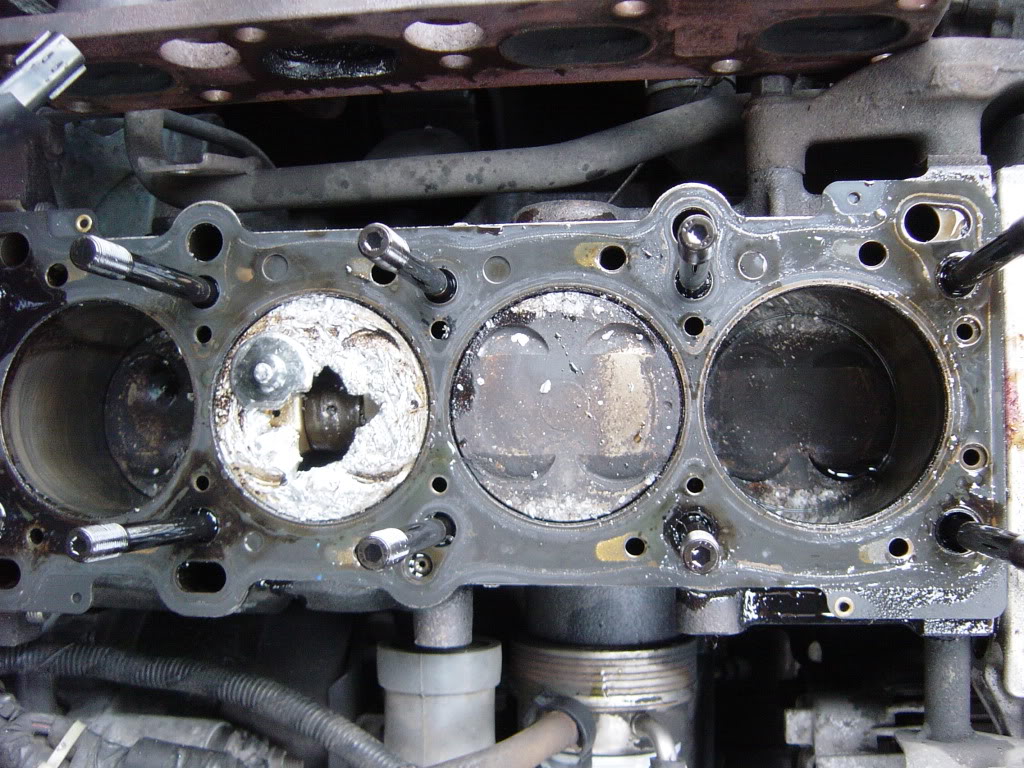

Block
http://i303.photobucket.com/albums/n...a/DSC02199.jpg
Name:  DSC02199.jpg
Views: 10
Size:  195.9 KB

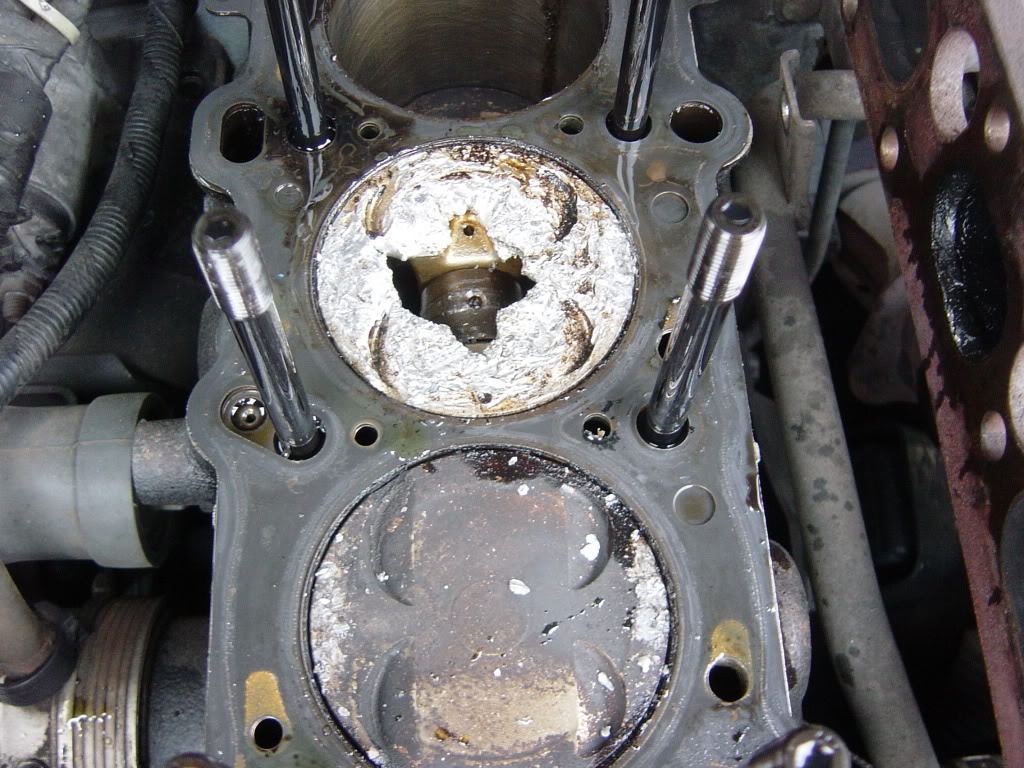

Close up
http://i303.photobucket.com/albums/n...a/DSC02202.jpg
Name:  DSC02202.jpg
Views: 10
Size:  185.7 KB

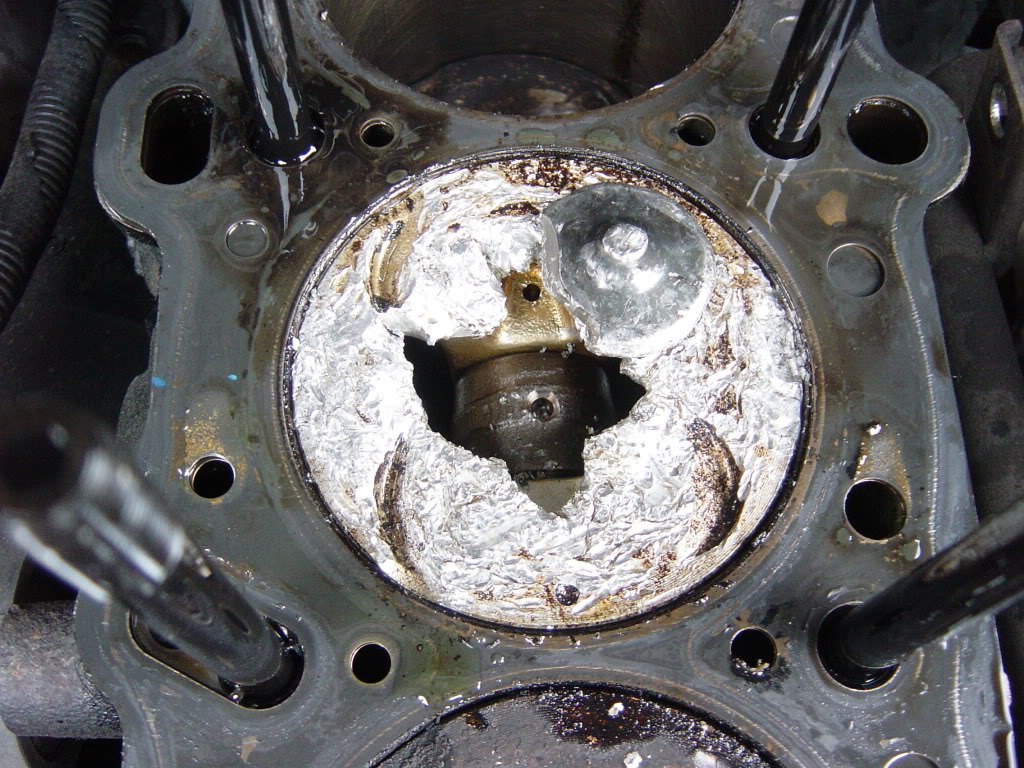

Closer still
http://i303.photobucket.com/albums/n...a/DSC02201.jpg
Name:  DSC02201.jpg
Views: 11
Size:  216.5 KB

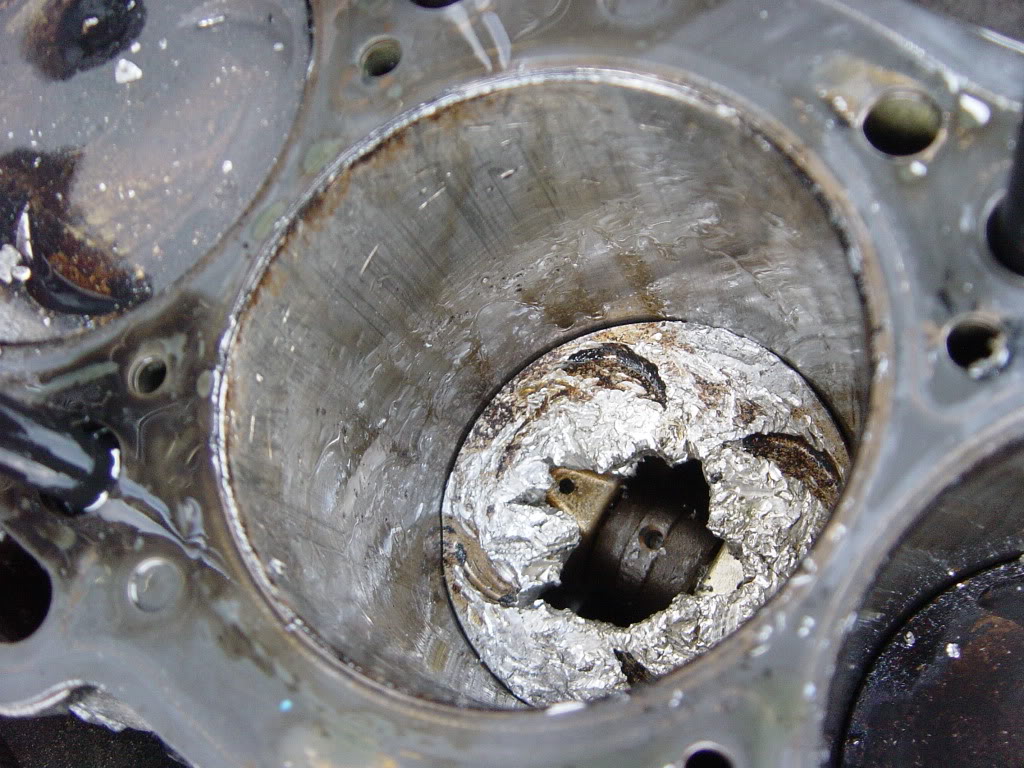

#3 Cylinder wall
http://i303.photobucket.com/albums/n...a/DSC02203.jpg
Name:  DSC02203.jpg
Views: 10
Size:  174.2 KB
Halcyon is offline   Reply With Quote
Old 06-10-2009, 06:00 AM   #23
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Needs more [ i m g ] ... [ / i m g ]
Laur3ns is offline   Reply With Quote
Old 06-10-2009, 06:03 AM   #24
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Wow, that is some serious engine carnage. Looking at #2, your engine saw some serious detonation and then the #3 spark plug exploded and tore down #3 with it.
Laur3ns is offline   Reply With Quote
Old 06-10-2009, 06:25 AM   #25
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Well **** ME! That would do it wouldn't it. I guess the mystery is over. Sucks to see it man, hope you get it rebuilt and back on the road. I would like to know what triggered it. Was it piston killing valves, or was it valves killing piston.
NA6C-Guy is offline   Reply With Quote
Old 06-10-2009, 07:52 AM   #26
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2006
Location: San Francisco, CA
Posts: 298
Total Cats: 0
Default

Spooky: What makes you think #2 had detonation? The shiny metal debris around the piston, I believe, is from #3.

What sux is my Camaro broke down on me as well.
Gonna be a little bit before miata is back in action.
Not sure if i want a quick fix and take my friend's used motor or if I want to get oversized pisons for a rebuild. Think the crank and rods are still good?
Halcyon is offline   Reply With Quote
Old 06-10-2009, 08:39 AM   #27
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by Halcyon View Post
Spooky: What makes you think #2 had detonation? The shiny metal debris around the piston, I believe, is from #3.
Ok, then I don't know. I thought it looked like pitting in that cyl. But if it's just debry from #3 forget what I said.
Quote:
What sux is my Camaro broke down on me as well.
Gonna be a little bit before miata is back in action.
Not sure if i want a quick fix and take my friend's used motor or if I want to get oversized pisons for a rebuild. Think the crank and rods are still good?
Crank yes probably, rods you want to forge anyway if you're doing it right. Otherwise just take your friend's engine. Do both in fact: dump that engine in and drive while you take your time to rebuild this one. You want to rebuild exactly once.
Laur3ns is offline   Reply With Quote
Old 06-10-2009, 10:28 AM   #28
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,679
Total Cats: 1,561
Default

Do not reuse that rod. It spent quite a few revolutions trying to press those broken valves into your cylinder head with all its might.
sixshooter is online now   Reply With Quote
Old 06-10-2009, 11:30 AM   #29
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Holy crap that is impressive carnage. Wow...

I agree your crank is probably OK but have a machine shop check it out. No way I would reuse that rod either, and I recommend upgrading to forged rods as well if you are going to rebuild a motor.

Quote:
Hmmm... will you find the nut off ZX-Tex's compressor in there?
Yeah and if you find it I want it back too, damn it!
ZX-Tex is offline   Reply With Quote
Old 06-10-2009, 11:43 AM   #30
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

now fess up. what did you do.
Braineack is offline   Reply With Quote
Old 06-10-2009, 11:59 AM   #31
Senior Member
iTrader: (1)

Join Date: Sep 2007
Location: Trenton, NJ
Posts: 1,125
Total Cats: 0
Default

That is AWESOME. Good job. (sorry to hear about your car)
ArtieParty is offline   Reply With Quote
Old 06-10-2009, 12:53 PM   #32
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,925
Default

Quote:
Originally Posted by Braineack View Post
now fess up. what did you do.
I'd like some details as to the engine management, the turbo setup, and what sort of operating conditions this engine had been exposed to in the days and hours leading up to the failure. IOW- over-boost, over-rev, etc.

From the pictures, it almost seems like one of the two intake valves might have been the first thing to go- probably the one closest to the #2 cylinder. I can't say that I've ever seen an intake valve spontaneously fail, but if I were doing a failure analysis and event recreation, I'd be biased to presuppose that one of the valves failed at the stem and fell down into the swept area, where it was driven up by the piston during the subsequent compression and exhaust cycles, impacting the adjacent intake valve and causing it to deform and break such that it became lodged in the port.

Were any pieces of foreign matter (such as a nut or screw) found either downstream in the exhaust system or in the oil pan?
Joe Perez is online now   Reply With Quote
Old 06-10-2009, 01:21 PM   #33
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,679
Total Cats: 1,561
Default

Quote:
Originally Posted by Joe Perez View Post
Were any pieces of foreign matter (such as a nut or screw) found either downstream in the exhaust system or in the oil pan?
I still think the turbine is probably hammered, too. That is a lot of garbage to go through it at 100k rpms.
sixshooter is online now   Reply With Quote
Old 06-10-2009, 01:33 PM   #34
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Judging by the pistons/head on each other cylinder....i'd say it detonated just a little a bit.





Now to reiterate: what did you do?
Braineack is offline   Reply With Quote
Old 06-10-2009, 01:43 PM   #35
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Quote:
Originally Posted by Halcyon View Post
Spooky: What makes you think #2 had detonation? The shiny metal debris around the piston, I believe, is from #3.




you had detonation on all cylinders.
Braineack is offline   Reply With Quote
Old 06-10-2009, 01:54 PM   #36
Junior Member
iTrader: (1)

Join Date: Mar 2007
Location: South Florida
Posts: 491
Total Cats: -1
Default

Look at the valve keepers, you might have dropped a valve.

I have to say that even though these are two piece valves, breaking them in two in that fashion is not the norm! They usually just bend.
mrtonyg is offline   Reply With Quote
Old 06-10-2009, 04:06 PM   #37
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2006
Location: San Francisco, CA
Posts: 298
Total Cats: 0
Default

I was honestly cruising to work. Went to a store to get a snack on the way to work. Hopped on the freeway and a quarter mile in it blew up on me. I wasn't even boosting which has me mystified. If I was boosting at least I could say I deserved it.

I'm actually running a M45 supercharger with a smaller pulley. 8psi max.
Bipes + powercard.
E-manage blue still new sitting on work bench :(

No foreign matter found yet. Just pulled the head. Probably not going to pull the rest until I decide what to do.
Halcyon is offline   Reply With Quote
Old 06-10-2009, 04:23 PM   #38
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,679
Total Cats: 1,561
Default

Let me guess. You don't have a wideband either so you don't know just how lean you were running.

Is that a good guess?
sixshooter is online now   Reply With Quote
Old 06-10-2009, 04:27 PM   #39
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,925
Default

Quote:
Originally Posted by Halcyon View Post
I was honestly cruising to work. Went to a store to get a snack on the way to work. Hopped on the freeway and a quarter mile in it blew up on me. I wasn't even boosting which has me mystified. If I was boosting at least I could say I deserved it.
It likely that whatever caused this happened some time before the actual failure occurred.

mrtonyg raises a hugely valid point- It will be interesting to closely examine the valve keepers and their mating point on the stems for the two intake valves which have been destroyed, to see if there is any evidence that the keeper came loose and allowed the valve to fall into the swept area.
Joe Perez is online now   Reply With Quote
Old 06-10-2009, 04:28 PM   #40
Senior Member
iTrader: (1)

Join Date: Sep 2007
Location: Trenton, NJ
Posts: 1,125
Total Cats: 0
Default

Quote:
Originally Posted by Halcyon View Post

I'm actually running a M45 supercharger with a smaller pulley. 8psi max.
Bipes + powercard.
E-manage blue still new sitting on work bench :(
Should've used 2 powercards.
ArtieParty is offline   Reply With Quote
