Old 01-14-2013, 11:11 PM   #1
Senior Member
Thread Starter
iTrader: (1)

BogusSVO's Avatar

Join Date: Mar 2012
Location: Pensacola Fla.
Posts: 590
Total Cats: 191
Thumbs up Mazda BP Valve spring Info

Mazda Valve springs

I took some time and checked out some valve springs for the Mazda 1.8 BP engine.

For a base line I checked the SBI catalog.
SBI replacement valve spring
Part # 160-1250
46 lbs @ 1.600
1.831 free length

AERA, Automotive Engine Rebuilders Association
States the spring installed height is 1.555
The spring pressure is 50-57 lbs closed
OnDemand5 lists the spec as
39.5mm/1.550 installed @ 19.9kg/43.87lbs

I started off by checking 8 valve springs from 2 different heads.
All testing was done using a installed height of 1.555/39.5mm

I found they fell in the range of 37-40lbs
When the factory .020 spring seat was used they came up to 40-43 lbs.
So close enough to be put back into use for a stock rebuild.

Next up are SuperTech,(ST) and Brian Crowder (BC)


I know the ST is widely used on this fourm.
I started with the ST Dual springs, that are advertised to be 74lbs @ 33.75mm/1.329

The ST is a bit light, when the math is done, Keep in mind ST supplies a .250 thick spring seat.
So 1.555 - .250 = 1.305 So .025 shorter installed height
So I tested, I found the springs will install 90lbs @ 1.555
This is a bit off still, due to the inner spring not being fully compressed from the Ti retainer not being installed.
Now I pulled the inner spring, so it would be a ST Single spring

On the ST Singles, ST advertised 56lbs @ 34.2mm/1.345
But here again, with the thick seats, the installed height is shorter by .040
When I pulled the single spring with the thick spring seat, I measured 70lbs

At this time, I have not checked the ST Ti retainers against a stock retainer to see if they step up or not.

Now on to the Brian Crower valve springs.
These install 80lbs @ 1.420
If the same .250 thick ST spring seat is used, the seat pressure is a whopping 110 lbs

That is a bit high, so I need to drop some seat pressure.
Now with two .060 thick shims, .120 total

I get 80lbs on the valve seat.
I like this for a boosted application.
The math works out better also
1.555 - .120 = 1.435
If I add a .015 thick shim, I will have 84lbs on the seat.

Since these are a cost effective spring, that does not require a custom spring seat and will work with the stock retainer, I can see this set up going into use on a wide range of builds.
Attached Thumbnails

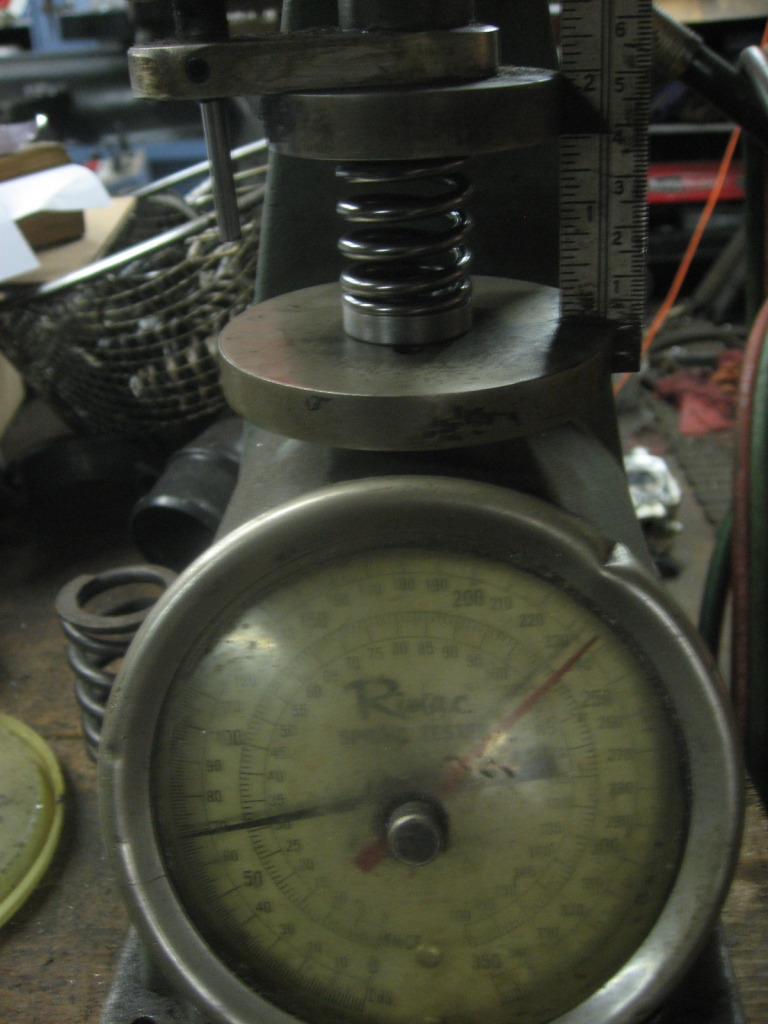

Mazda BP Valve spring Info-img_1692.jpg   Mazda BP Valve spring Info-img_1691.jpg   Mazda BP Valve spring Info-img_1698.jpg   Mazda BP Valve spring Info-img_1701.jpg   Mazda BP Valve spring Info-img_1703.jpg

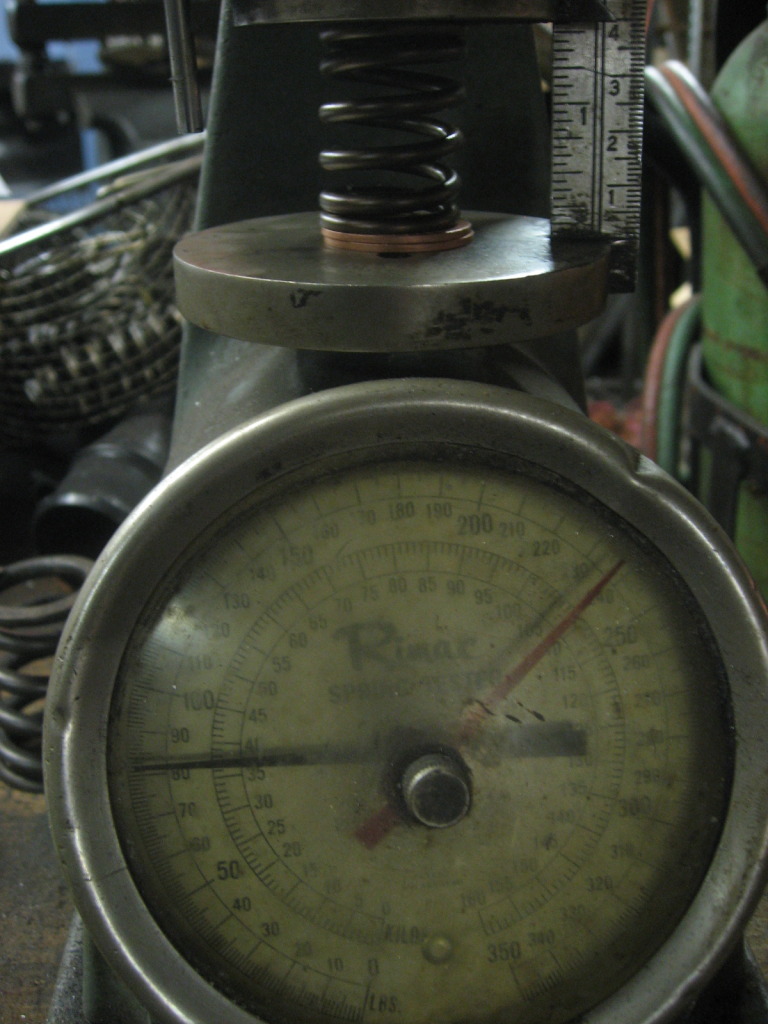

Mazda BP Valve spring Info-img_1704.jpg   Mazda BP Valve spring Info-img_1702.jpg
BogusSVO is offline   Reply With Quote
Old 01-14-2013, 11:55 PM   #2
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Neat!

What's the difference in price? I've not heard of BC, and I think the bias tword SuperTech around here comes from brand recognition more than anything else.
EO2K is offline   Reply With Quote
Old 01-15-2013, 12:05 AM   #3
Junior Member
iTrader: (5)

Join Date: Oct 2011
Location: San Diego, CA
Posts: 402
Total Cats: 21
Default

One question and a couple of notes.

So you're basically doubling the seat pressure from stock?

You can look it up in your books, but I had heard that the earlier Miata engines, maybe 1.8 94-97 had slightly stiffer valve springs. I had also heard that volvo b20 engine valve springs were used as a hi-po upgrade.
slmhofy is offline   Reply With Quote
Old 01-15-2013, 12:12 AM   #4
Senior Member
Thread Starter
iTrader: (1)

BogusSVO's Avatar

Join Date: Mar 2012
Location: Pensacola Fla.
Posts: 590
Total Cats: 191
Default

I use a ton of the BC springs on the 4g heads I build. So I was talking to them one day and wanted to find a budget spring of sorts for the Mazda, so I gave them the spring specs from a used BP spring, and found these.

No as far as price, the ST single kit w/Ti retainers and thick spring seats is around the $325 range, The BC springs with commonly found spring shims along with using the factory used steel retainers will go about $125

I still need to check how the shims and springs fit on the head casting, from all I have checked to this point, it looks to be a solid set up.
BogusSVO is offline   Reply With Quote
Old 01-15-2013, 12:21 AM   #5
Senior Member
Thread Starter
iTrader: (1)

BogusSVO's Avatar

Join Date: Mar 2012
Location: Pensacola Fla.
Posts: 590
Total Cats: 191
Default

Quote:
Originally Posted by slmhofy View Post
One question and a couple of notes.

So you're basically doubling the seat pressure from stock?

You can look it up in your books, but I had heard that the earlier Miata engines, maybe 1.8 94-97 had slightly stiffer valve springs. I had also heard that volvo b20 engine valve springs were used as a hi-po upgrade.
Getting close to double the stock seat pressure, of 43-44lbs

Keep in mind that when the engine is boosted, the valve spring is given a second job, the spring now has to keep the valve closed against boost pressure.

Figure that there is 1 sq/in of area on the back side of the intake valve, now add 20psi of boost, you loose 20lbs of spring pressure just keeping the valve closed.


Ill check my books and look into the springs you mention.

Last edited by BogusSVO; 01-15-2013 at 08:01 PM.
BogusSVO is offline   Reply With Quote
Old 01-15-2013, 08:08 PM   #6
Senior Member
Thread Starter
iTrader: (1)

BogusSVO's Avatar

Join Date: Mar 2012
Location: Pensacola Fla.
Posts: 590
Total Cats: 191
Default

Slmhofy

Checking my SBI catalog, the springs 160-1250 are for the 1990-1997

As far as the Volvo B20 spring, SBI does not have a listing for springs, it could be beacuse they are an older engine, B20B and B20E were made from 1969-1978 and is an OHV
BogusSVO is offline   Reply With Quote
Old 01-16-2013, 12:03 AM   #7
Junior Member
iTrader: (5)

Join Date: Oct 2011
Location: San Diego, CA
Posts: 402
Total Cats: 21
Default

Roger that. I was just trying to throw out some information as it seems like you love knowing everything there is to know about what you're working on.
slmhofy is offline   Reply With Quote
Old 01-16-2013, 08:09 AM   #8
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default

Do you have a part number for the BC springs?
TNTUBA is offline   Reply With Quote
Old 01-16-2013, 08:59 AM   #9
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,896
Total Cats: 109
Default

This is a very informative thread. A+

The question I always wanted to know is how do you calculate the desired seat pressure for valvetrain weight, camshaft specs, and rpm range?

Don't you want to have just the right amount of spring compression for your application? I have seen too many motors with springs way too big for a particular application, throwing horsepower away.
miata2fast is offline   Reply With Quote
Old 01-16-2013, 11:19 AM   #10
Senior Member
iTrader: (3)

Join Date: Feb 2006
Location: Centennial, CO
Posts: 672
Total Cats: 20
Default

Another question, can't too much seat pressure put unnecessary strain on the camshaft causing accelerated wear to the lobes? At what point is too much seat pressure undesirable?
karter74 is offline   Reply With Quote
Old 01-16-2013, 11:31 AM   #11
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

I'm wondering the same thing as the 2 posts above:
whats the perfect balance for your average boost setting (10-15) and/or a bit higher (20+)

Something tells me that you don't want to go too stiff, or you'll be putting excessive wear/tear on your valvetrain and/or throwing away power.

Some completely un-educated guessing here: if a stock motor operates at 1 bar and you're running 15+ psi (2 bar) then the double spring rates shouldn't be too bad? Probably doesn't work that way, just guessing
18psi is offline   Reply With Quote
Old 01-16-2013, 11:47 AM   #12
Senior Member
Thread Starter
iTrader: (1)

BogusSVO's Avatar

Join Date: Mar 2012
Location: Pensacola Fla.
Posts: 590
Total Cats: 191
Default

Quote:
Originally Posted by slmhofy View Post
Roger that. I was just trying to throw out some information as it seems like you love knowing everything there is to know about what you're working on.
True, the more info I have, the better understanding of what I am working on.
Thats what brought me to this foum in the first place.

"Now you know, and knowing is half the battle!"
I would say I watched GI Joe a bit often growing up



Quote:
Originally Posted by TNTUBA View Post
Do you have a part number for the BC springs?
Not at this time, this is a set up that I am working on with BC.

Quote:
Originally Posted by miata2fast View Post
This is a very informative thread. A+

The question I always wanted to know is how do you calculate the desired seat pressure for valvetrain weight, camshaft specs, and rpm range?

Don't you want to have just the right amount of spring compression for your application? I have seen too many motors with springs way too big for a particular application, throwing horsepower away.
Honestly, I tend to be a tad heavy with spring pressures.

The springs first job is to keep the valve in contact with the cam, nasty things happen when it fails at that job.

Ramp rates and cam lift, have to be taken into account, along with boost pressure.

Also you have to allow for wear on the spring, after a season of track use,or a year or two of "fun" street use, the seat pressure will be a bit lower than new spring.

I do not know a fourmula for figuring spring pressures, it boils down to the head builders experiances.

But you are correct, they can get too heavy and cost HP, or be too light and cost HP and/or damage.
BogusSVO is offline   Reply With Quote
Old 01-16-2013, 04:46 PM   #13
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,051
Total Cats: 7
Default

Can I ask a stupid question?

How did we get along before BogusSVO showed up here and starting posting Awesome

???

...

???

Please let me know ASAP when I can buy these BC springs for $125ish, I'll take a set!
Efini~FC3S is offline   Reply With Quote
Old 01-16-2013, 05:26 PM   #14
Senior Member
Thread Starter
iTrader: (1)

BogusSVO's Avatar

Join Date: Mar 2012
Location: Pensacola Fla.
Posts: 590
Total Cats: 191
Default

18psi...A stock engine is NA, so it operates in a vacuume, springtions do not have to be as much as a Turbo engine.

When you add boost, the spring now has to hold the valve closed against the boost pressure.

With a stock 1.8 intake valve, there is appox 1 sq/in.

So the first thing you do is subtract boost pressure from spring seat pressure.

So with 18psi of boost, and 70lbs on the seat ( ST single if dropped in) leaves 52lbs of spring pressure to keep control of valve motion with the cam.

Factory spring is 43, so you have 9lbs more than stock.

Efini, Once I am happy with the set up, and get back with BC on them. I will let you know.
BogusSVO is offline   Reply With Quote
Old 01-16-2013, 05:56 PM   #15
Junior Member
iTrader: (1)

Join Date: Aug 2008
Location: Austin, TX
Posts: 239
Total Cats: 4
Default

Curses! A potential value option starts to form just after I had my 99 head redone with SuperTech
mcfandango is offline   Reply With Quote
Old 01-16-2013, 07:59 PM   #16
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,896
Total Cats: 109
Default

Interestingly, I never though to account for boost pressure trying to keep the valves open. I always wondered about others having issues with valve float, when I was running the same valvetrain at a higher rpm. Them being turboed and mine N/A.
miata2fast is offline   Reply With Quote
Old 01-16-2013, 08:42 PM   #17
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default

Ok. I have been using the Sealed Power ZVS855's. They are about $61 from Summit Racing. At 1.56" installed height they have roughly 66lbs seat pressure and work with the stock retainers and keepers. Just interested if these are a better option.
TNTUBA is offline   Reply With Quote
Old 01-16-2013, 09:41 PM   #18
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

Quote:
Originally Posted by BogusSVO View Post
18
When you add boost, the spring now has to hold the valve closed against the boost pressure.
When is there less pressure inside the cylinder than there is in the intake manifold and you want the valve to be shut? During compression, power, and exhaust strokes there should be more pressure in the cylinder, right? During intake, the valve is open. Or is it just for the brief transition periods around overlap/etc?

--Ian
codrus is offline   Reply With Quote
Old 01-16-2013, 09:43 PM   #19
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

Exactly what I was going to ask next.

I'm guessing he's talking about the split second transition
18psi is offline   Reply With Quote
Old 01-16-2013, 09:58 PM   #20
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,296
Total Cats: 22
Default

So what you're saying is... backpressure from the exhaust manifold or intake manifold can apply pressure pushing the valve in, while at the same time having it beat on my the CAMs causing it to float and turn effectively into a torch, burning the exhaust valves, yes?
Der_Idiot is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Project Gemini - Turbo Civic on the Cheap Full_Tilt_Boogie Build Threads 58 12-13-2017 10:04 PM
OTS Bilstein to motorsports ASN conversion stoves Suspension, Brakes, Drivetrain 5 04-21-2016 04:00 PM
My solution for Oiltemp and Oilpressure input into Megasuirt (MS3) Zaphod MEGAsquirt 41 01-24-2016 01:25 PM
Back to Stock Part Out!! Turbo Parts, MS2 Enhanced 01-05, Suspension, and MOAR! StratoBlue1109 Miata parts for sale/trade 16 10-02-2015 10:39 AM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 04:36 AM.
