Old 06-08-2011, 04:55 PM   #1
Newb
Thread Starter

Join Date: Jun 2010
Posts: 17
Total Cats: 0
Default MSM engine suddenly broke!

Ok, first of all my car used an european 1996 model 1.6 l that had 90 whp. As we all know, not having turbo on a miata is really boring. And especially after Inglar took me out for a spin in his previous car(he had an MSM with the Big enchilada), I was on fire. Only 2 months later I found an MSM engine on ebay with the transmission on, turbo, downpipe and wire harness for only 3000$. And it had only traveled 33 000 miles. Bought the Hydra 2.6 aswell too to make room for further upgrades(soon garret 3071 on vvt engine).

But, 3 months ago something wierd happened. I was at 3000 rpm and changed gear, went straigt up to 4500 and WOT. And suddenly, BAM! I heard very loud knock that changed with rpm. I guessed a rod, but I was in the middle of nowhere, and the knock sound stopped so I went driving the rest of the way home.

Just abou a mile before I was home I heard a bigger bang and the oil pressure went down to 0. Stopped the car asap and opened the engine bay. I quickly saw that the rod had been shot out through the block and the baffle pan making the piston move freely inside the cylinder.

Does anyone have any ideas of what could of have happened? And, is it possible that the pistons have destroyed one of my rods?
Attached Thumbnails

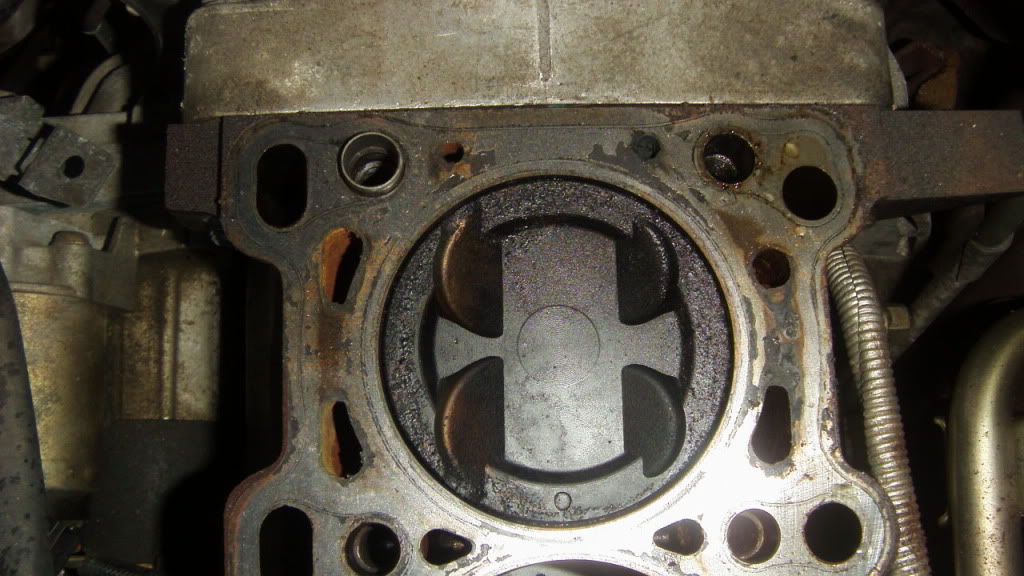

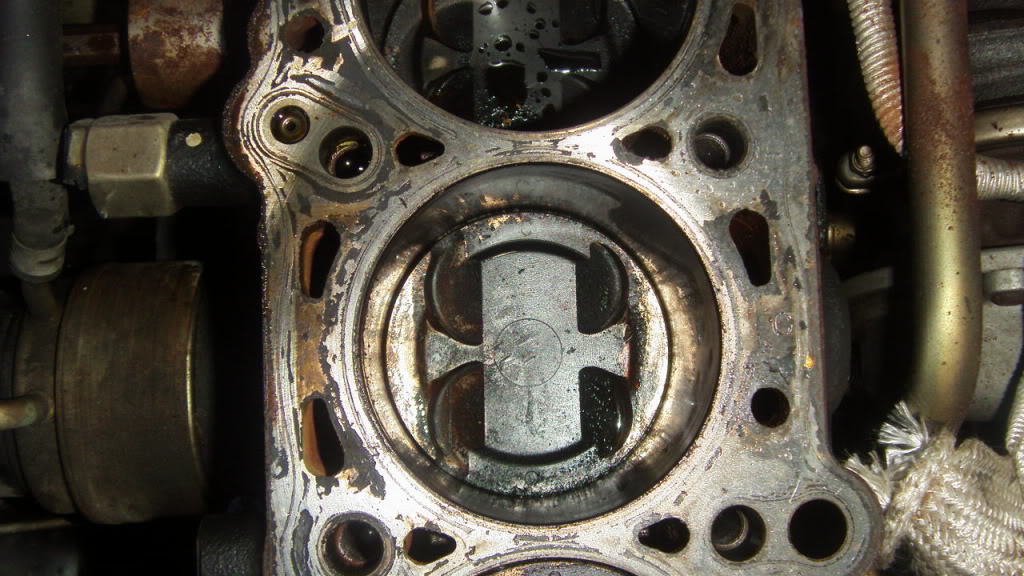

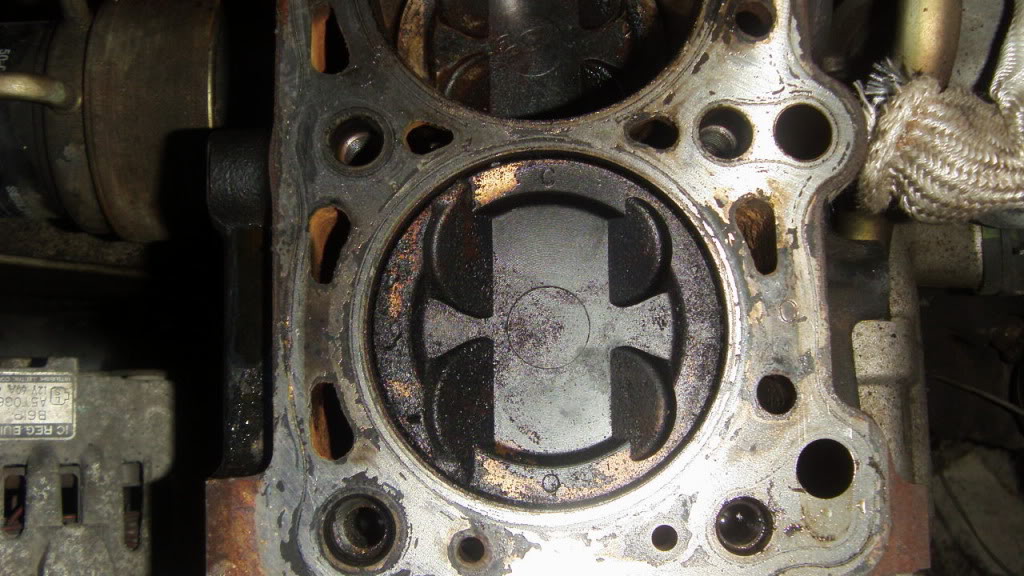

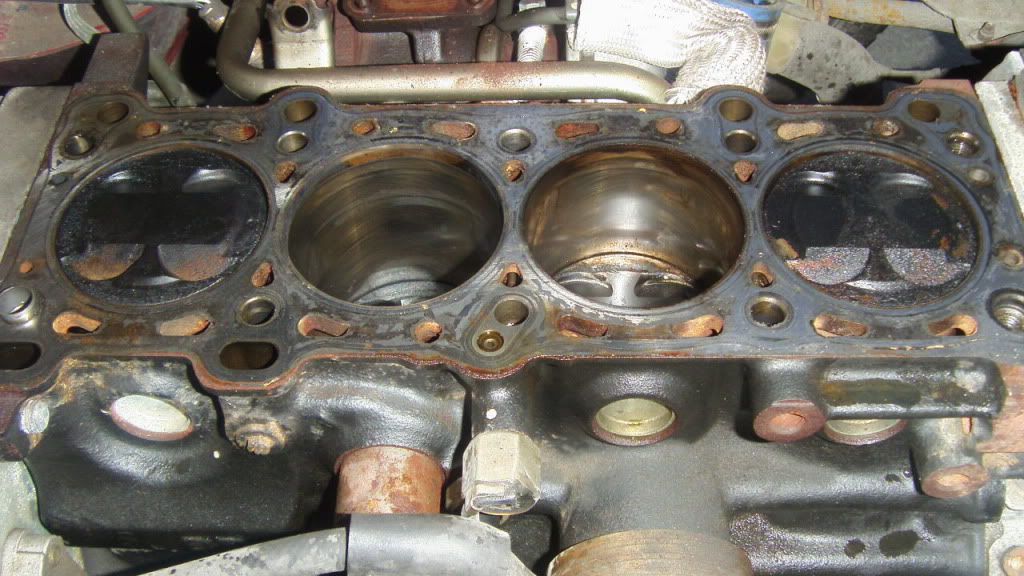

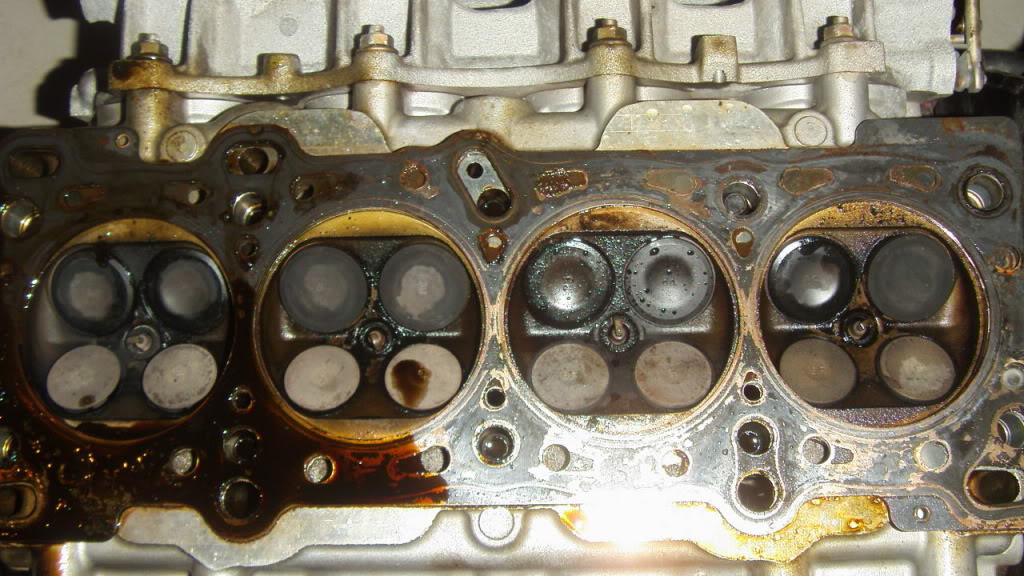

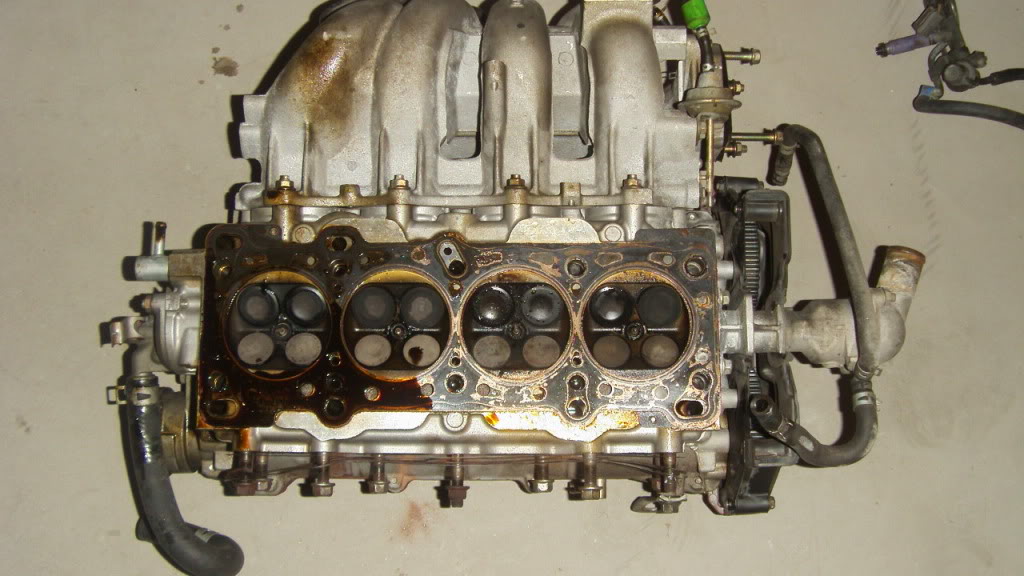

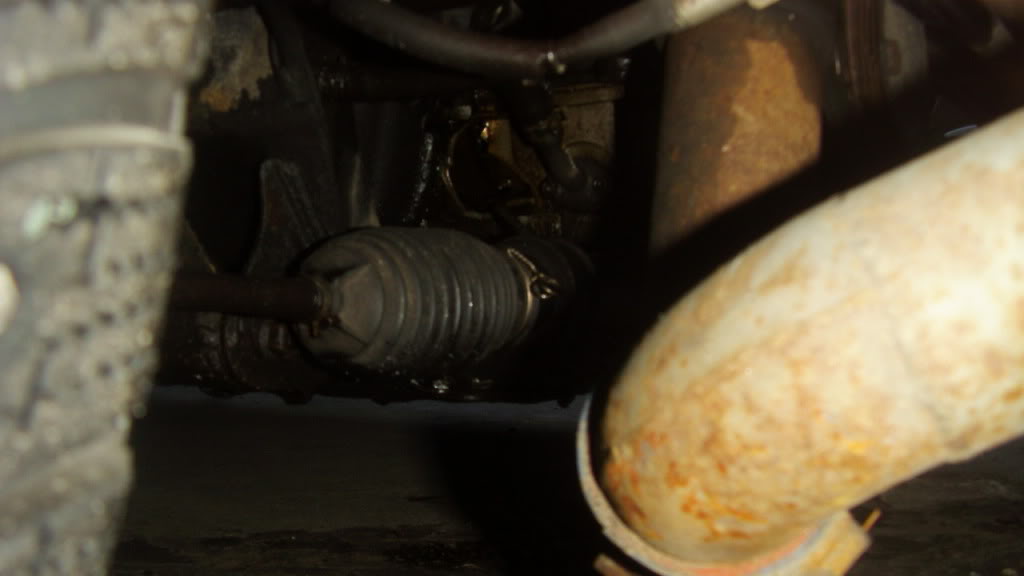

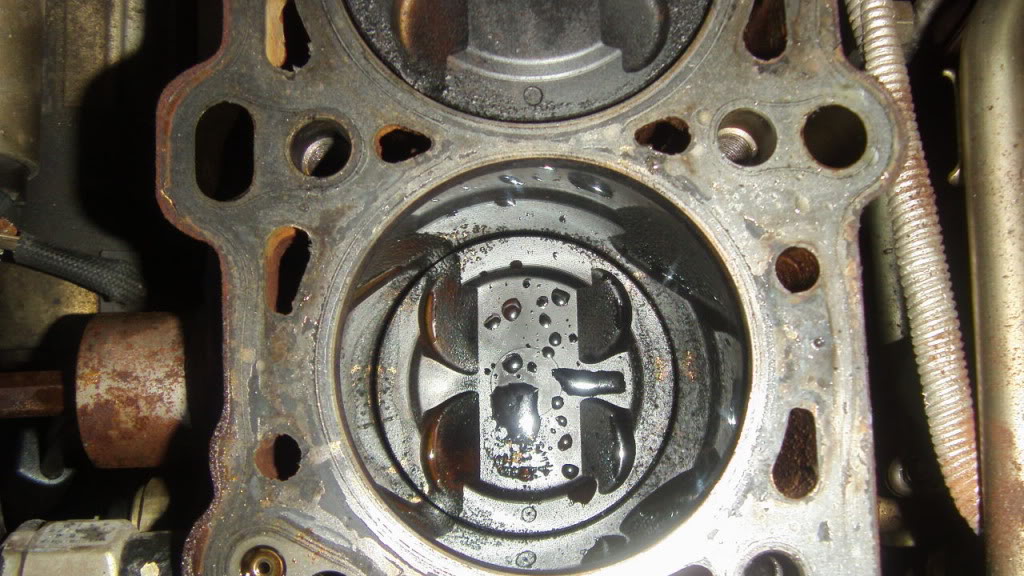

MSM engine suddenly broke!-s73f1465.jpg   MSM engine suddenly broke!-s73f1466.jpg   MSM engine suddenly broke!-s73f1472.jpg   MSM engine suddenly broke!-s73f1473.jpg   MSM engine suddenly broke!-s73f1474.jpg

MSM engine suddenly broke!-s73f1475.jpg   MSM engine suddenly broke!-s73f1476.jpg   MSM engine suddenly broke!-s73f1478.jpg
Stehu is offline   Reply With Quote
Old 06-08-2011, 05:29 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

Quote:
Originally Posted by Stehu View Post
Does anyone have any ideas of what could of have happened?
Yes. You do too:
Quote:
I quickly saw that the rod had been shot out through the block and the baffle pan making the piston move freely inside the cylinder.
Why? Not sure. How hard were you pushing it? boost? timing? afr?
You need to post more details.

As for rods: definitely replace them with stronger ones. Even if they're in ok condition. Stock miata rods are one of the weakest links in the powertrain, no reason not to upgrade them.
18psi is offline   Reply With Quote
Old 06-08-2011, 05:40 PM   #3
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I don't see any detonation on those pistons, I suppose you were unlucky enough to find the limits of the stock rods.


On a side note, #4 is the fattest, #2 is the leanest.
hustler is offline   Reply With Quote
Old 06-08-2011, 05:48 PM   #4
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,334
Default

Need to see a full dissection of the motor to give any more info. It could have been a straight rod failure, a bearing failure, or a rod hardware failure.
Savington is offline   Reply With Quote
Old 06-08-2011, 06:11 PM   #5
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

What compression ratio are the MSM's? Those pistons look really domed up to me for turbo pistons.

Bob
bbundy is offline   Reply With Quote
Old 06-08-2011, 06:30 PM   #6
Senior Member
iTrader: (8)

Join Date: Sep 2010
Location: misery
Posts: 1,130
Total Cats: 9
Default

low end torque is what does this to mazdaspeed3's.
phillyb is offline   Reply With Quote
Old 06-08-2011, 06:33 PM   #7
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,691
Total Cats: 1,562
Default

Quote:
Originally Posted by bbundy View Post
What compression ratio are the MSM's? Those pistons look really domed up to me for turbo pistons.

Bob
I agree that they look domed and I expected dished.
sixshooter is online now   Reply With Quote
Old 06-08-2011, 06:43 PM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

IIRC same as the 99-00 nb which is 9.5:1
18psi is offline   Reply With Quote
Old 06-08-2011, 07:44 PM   #9
Newb
Thread Starter

Join Date: Jun 2010
Posts: 17
Total Cats: 0
Default

Of course I was forgetting some details.

Turbo: stock msm turbo with original DP
catback: some random 2.5 "
Intake: Custom made.
Map: FM's map. Stock timing table
Pressure: 14 psi.
Fuel system: Rebuilt from retourless to retour.

I was driving a while ago with some knock on high rpm, but I got it adjusted quick.

Could the valves have been damaged? They looked fine too me. Btw, the block itself is totally broken. The rod was located in cylinder number 2 from the radiator.
Stehu is offline   Reply With Quote
Old 06-11-2011, 05:10 PM   #10
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,334
Default

What did the wideband say?

The valves could be damaged, they could be fine. Depends on whether the piston hit them or not.

It's obvious that you threw a rod, but in order to give you any more info than that we need to see the inside of the motor. Pull it out, pull the pan/mbsp, and snap some photos of the big end of the rod, condition of the rod hardware, etc.
Savington is offline   Reply With Quote
Old 06-11-2011, 05:45 PM   #11
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Isn't anything above 10-11 psi kinda pushing it for stock rods?
You're at 14.
flounder is offline   Reply With Quote
Old 06-11-2011, 06:02 PM   #12
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,334
Default

Quote:
Originally Posted by flounder View Post
Isn't anything above 10-11 psi kinda pushing it for stock rods?
You're at 14.
Stock MSM turbo at 14psi is well within the range of safety for a stock motor.

People who use boost levels to describe the capability of the stock motor do a huge disservice to this community. Not directed at you, just people in general.
Savington is offline   Reply With Quote
Old 06-11-2011, 06:05 PM   #13
Newb
Thread Starter

Join Date: Jun 2010
Posts: 17
Total Cats: 0
Default

The stock MSM turbo is very small, I don't know how many whp that should be, but not more than 200. I had fuel cut a couple of times so I

I guess that there might be valve damage then, because there's a very big chance for that the rod would have rotated and shot it up, and there are very small marks on the exhaust valves.

I will pull the block apart in about 4 weeks(got a broken wrist atm) and show you more leet photos
Stehu is offline   Reply With Quote
Old 06-11-2011, 07:20 PM   #14
Elite Member
iTrader: (11)

chicksdigmiatas's Avatar

Join Date: Apr 2008
Location: Texas, 'Murica
Posts: 2,505
Total Cats: 7
Default

Welcome to the party, lol. Mine failed in the exact same fashion, although with more boost.
chicksdigmiatas is offline   Reply With Quote
Old 06-11-2011, 07:24 PM   #15
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,334
Default

Quote:
Originally Posted by Stehu View Post
there are very small marks on the exhaust valves.
If it's marked, it's bent. Expect to replace the entire longblock.
Savington is offline   Reply With Quote
Old 06-11-2011, 09:28 PM   #16
Elite Member
iTrader: (11)

chicksdigmiatas's Avatar

Join Date: Apr 2008
Location: Texas, 'Murica
Posts: 2,505
Total Cats: 7
Default

Yeah, what sav said. Mine had piston contact on the valves (like everyone said it wouldn't). It is either time for oversized valves, or a new head. I chose VVT. I did manage to sell my HLA's and exhintake cam to offset the cost of the steal I got on a "needs some work" vvt head.
chicksdigmiatas is offline   Reply With Quote
Old 06-11-2011, 10:08 PM   #17
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Is it possible the last few thousand miles were extremely abusive and ended in a crash? Might be why the engine was being sold. An aquantience had nitrous oxide dumped in the tank and raced until it exploded when his accord was stolen.
curly is offline   Reply With Quote
Old 06-12-2011, 03:02 AM   #18
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,878
Total Cats: 344
Default

Quote:
Originally Posted by Savington View Post
If it's marked, it's bent. Expect to replace the entire longblock.
Head casting & cams should still be fine, no?

--Ian
codrus is offline   Reply With Quote
Old 06-12-2011, 05:25 AM   #19
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

It depends.
If the piston smacked the valve then I doubt it. Pull it apart and find out.

Dann
nitrodann is offline   Reply With Quote
Old 06-12-2011, 05:36 AM   #20
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,334
Default

Quote:
Originally Posted by codrus View Post
Head casting & cams should still be fine, no?

--Ian
If he's going to build a motor, sure - otherwise the cost of a head gasket, four new valves, installation, seals, etc. is going to outstrip the additional cost of a longblock vs. a shortblock.
Savington is offline   Reply With Quote
