Hey every one so its been a few months since I started my engine build in school. decided it's time I FINALY put up a thread for the build feel free to leave any comments or opinions it's much apriciated as this will be met first major build I'm sure I'll be putting up questions. Just to give you a little info on the build its a 1.8 94-97 block and head running forged internals and once broken in will being working on turbo charging it.


I'll start with some pics from when I got it back in February and run you through progress so far

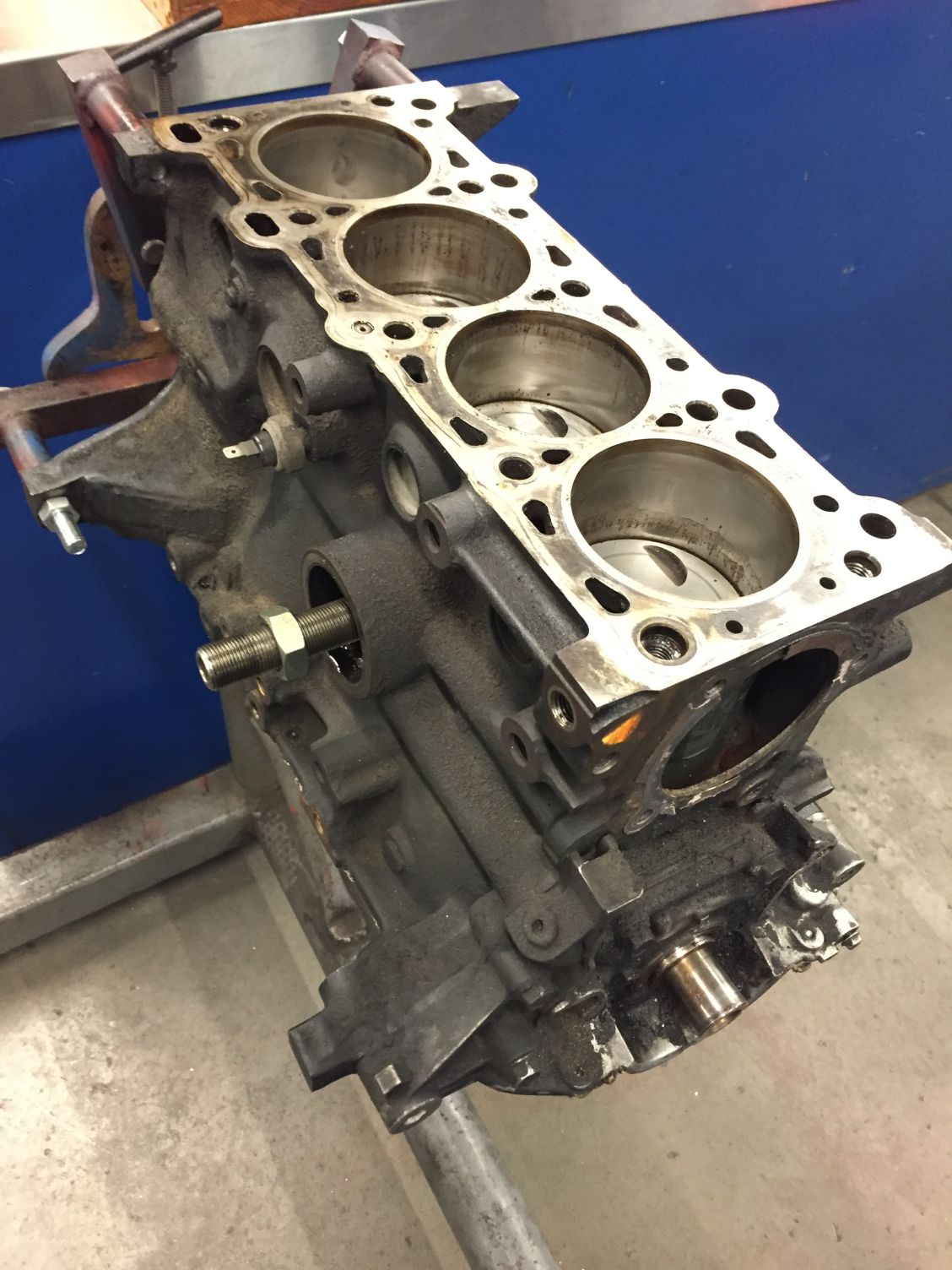

Bottom veiw





Dirty AF

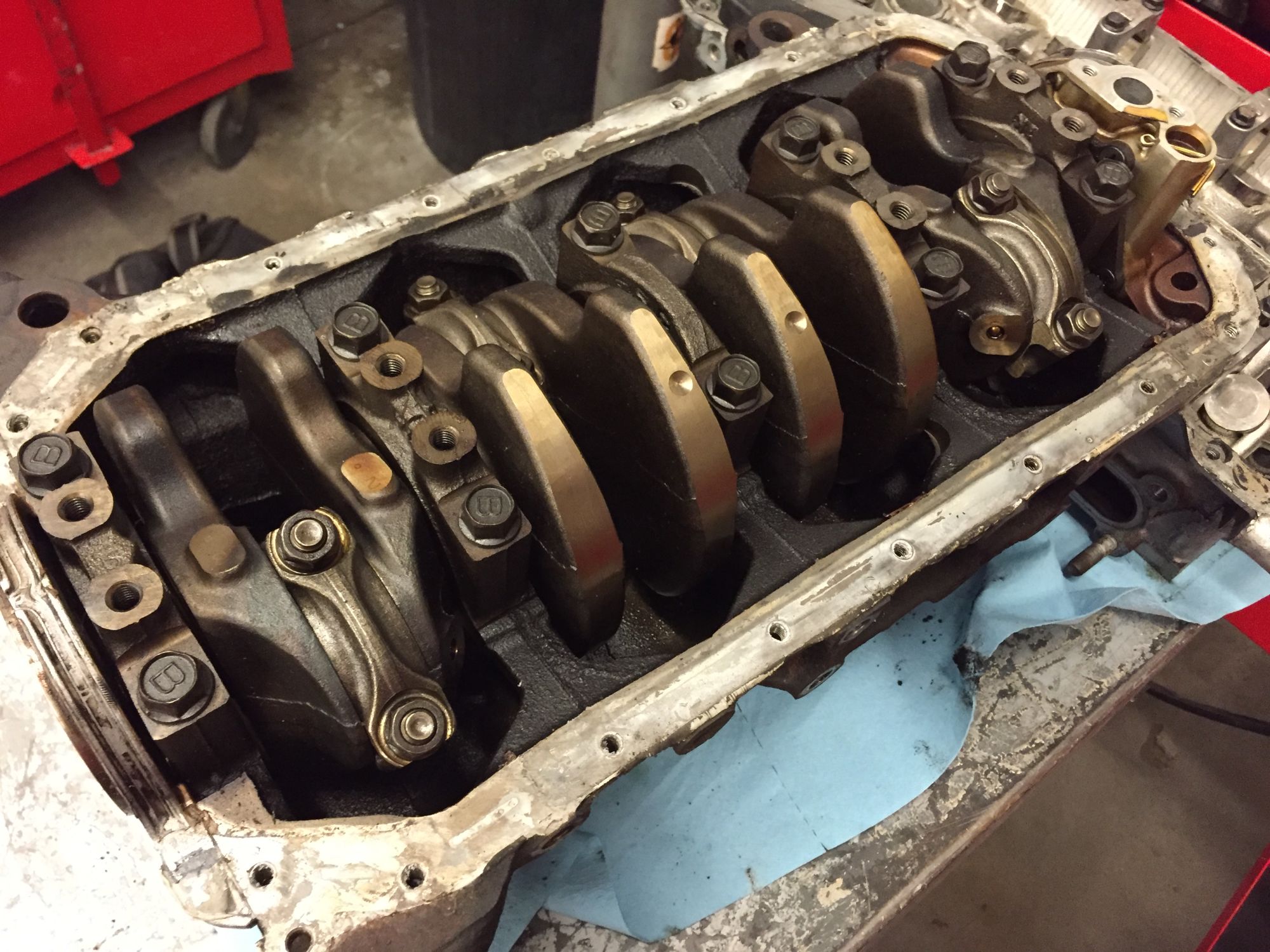

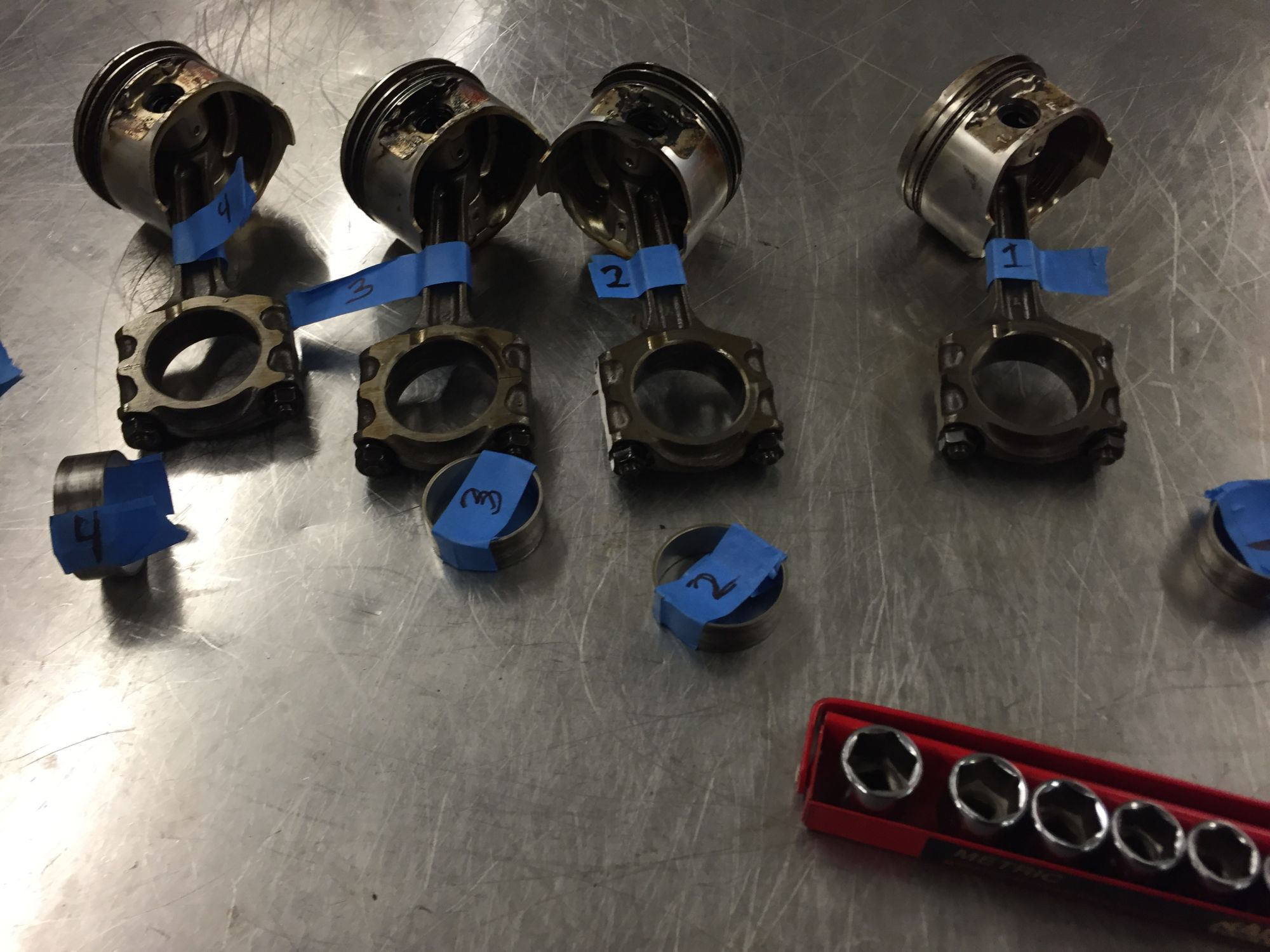

Initial removal and tagging


Attached Thumbnails
My 1.8 engine build for swap-80-image_456343099be2eb4ed754f34e16d05287ef5585be.jpeg   My 1.8 engine build for swap-80-image_4231c83d91212de4435476f3b4b4456f24273130.jpeg   My 1.8 engine build for swap-80-image_c6b30b94af880cce4b68354bc03aa132714353e4.jpeg   My 1.8 engine build for swap-80-image_b8dc56203fe7855a047fce582319989d45f155db.jpeg   My 1.8 engine build for swap-80-image_f19ba15ead6dfc026a1ef7108d726690c92405a0.jpeg

Utefan66 is offline   Reply With Quote
Old 04-07-2016, 11:46 PM   #2
Junior Member
Thread Starter

Join Date: Apr 2015
Location: salt lake city UTAH
Posts: 70
Total Cats: -2
Default

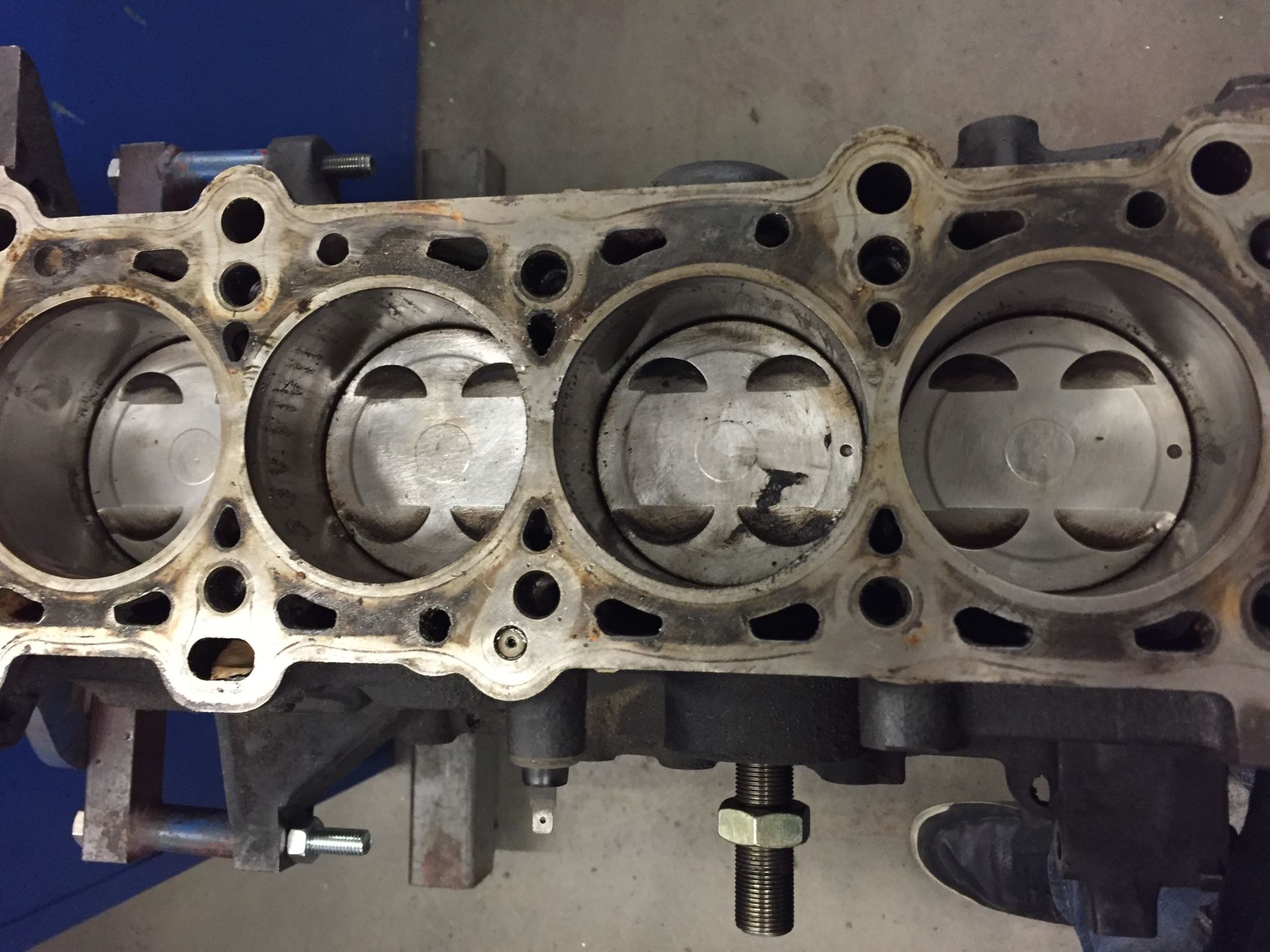

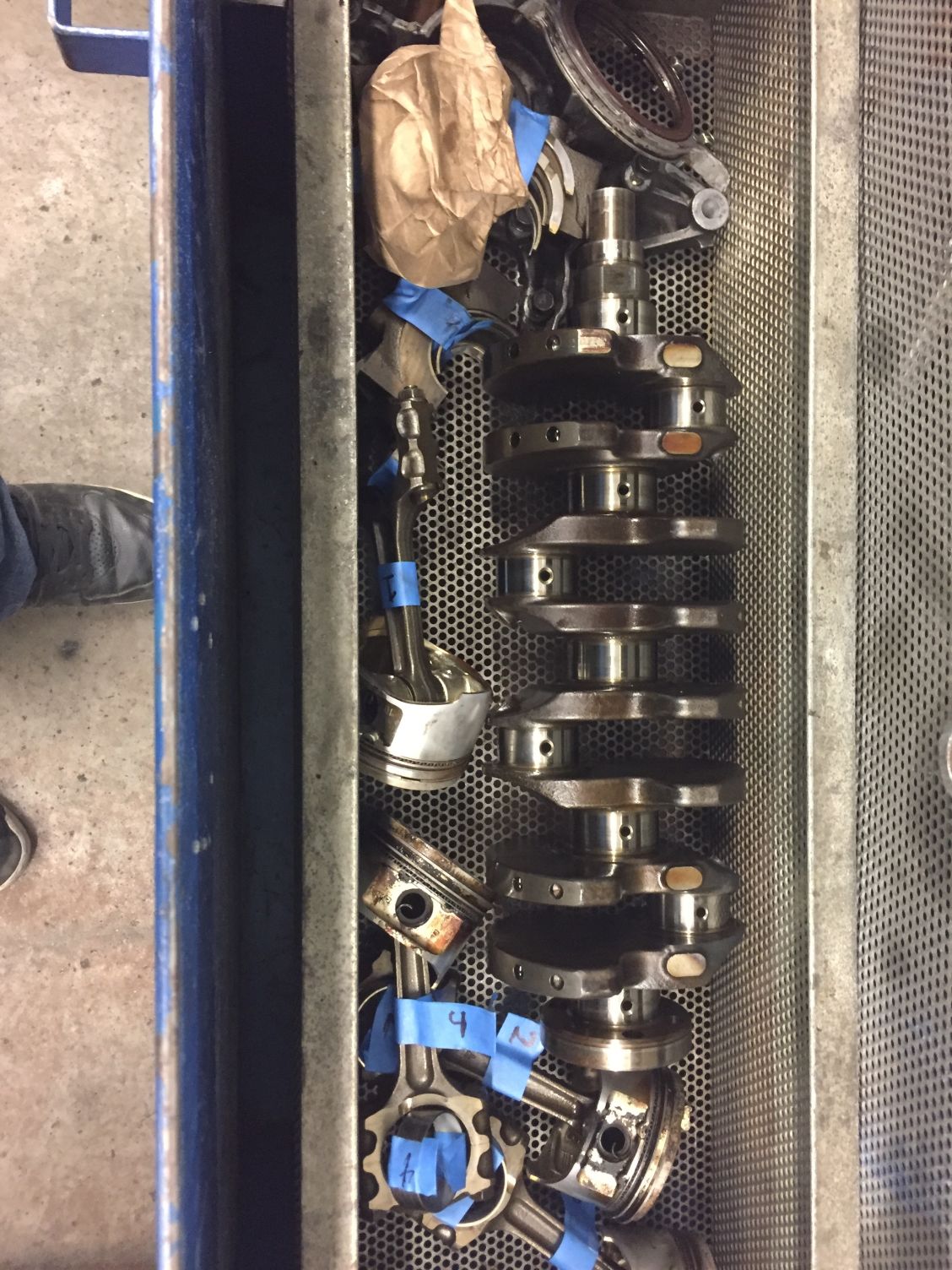

Everything disassembled





Dang these were dirty





Took like an hour to do them all fingers left in permenant claw position

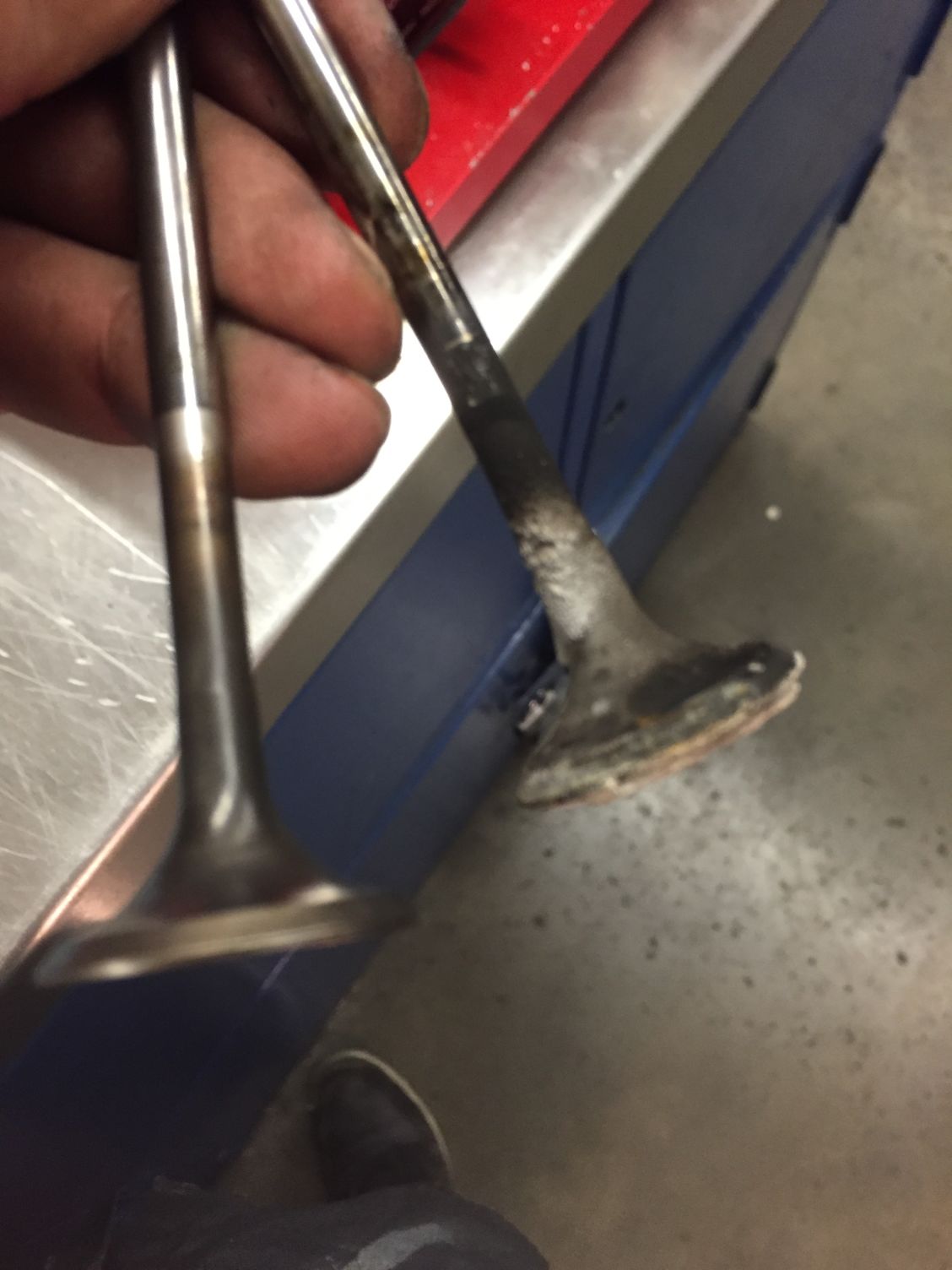

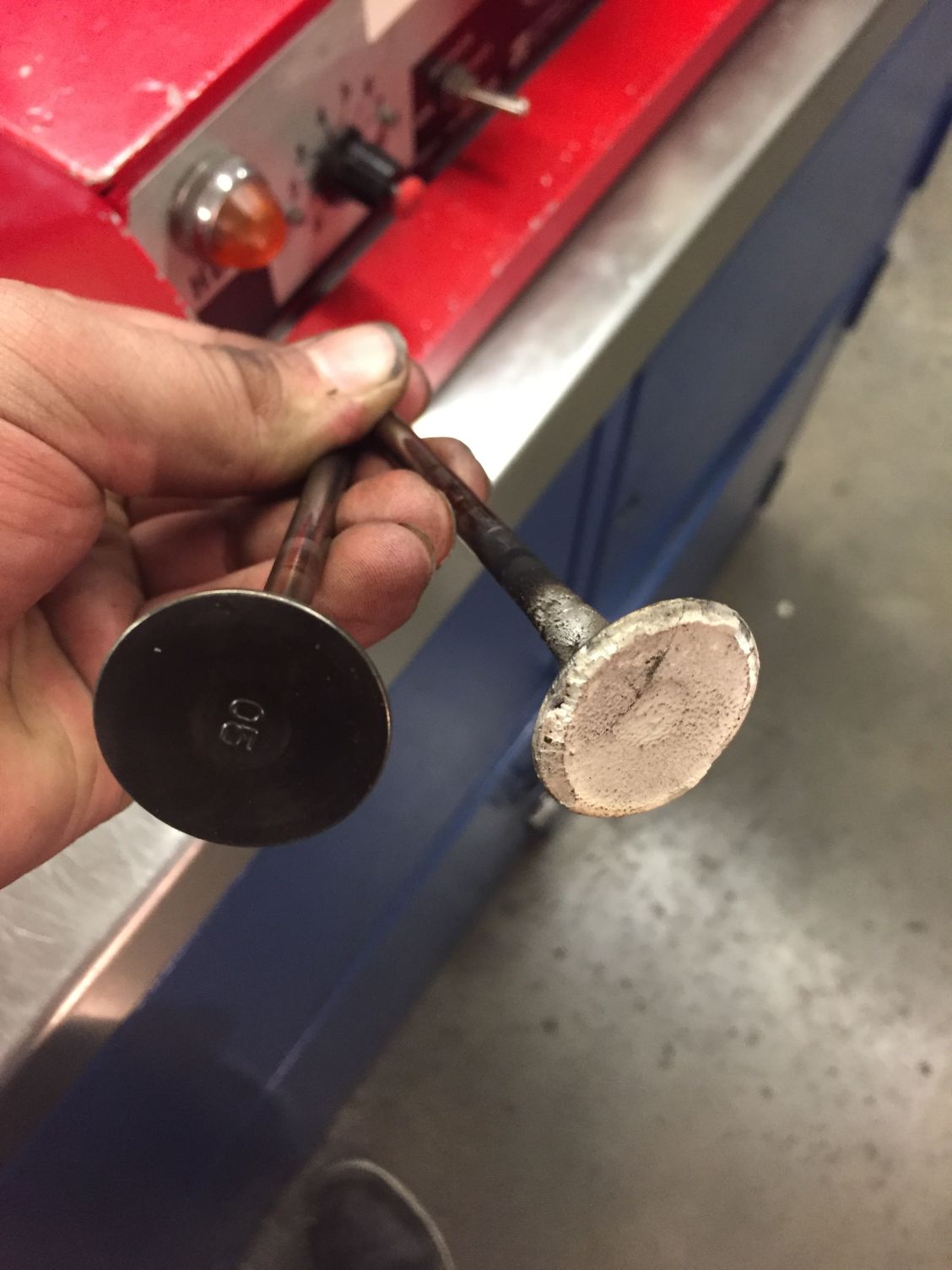

Damn burnt valve
Attached Thumbnails
My 1.8 engine build for swap-80-image_1848b43684345ce62f1c06d3d9ea4f59ad0bb1a9.jpeg   My 1.8 engine build for swap-80-image_7383fb1db777480c9281b8c0f1ddcdc39abdf75e.jpeg   My 1.8 engine build for swap-80-image_f36b7f7518eb2fd33a5fbcf2bdda4c297fcd8b3c.jpeg   My 1.8 engine build for swap-80-image_dc48aa08b88a2ed309e4a2d519d7975b948205bc.jpeg
Utefan66 is offline   Reply With Quote
Old 04-07-2016, 11:49 PM   #3
Junior Member
Thread Starter

Join Date: Apr 2015
Location: salt lake city UTAH
Posts: 70
Total Cats: -2
Default

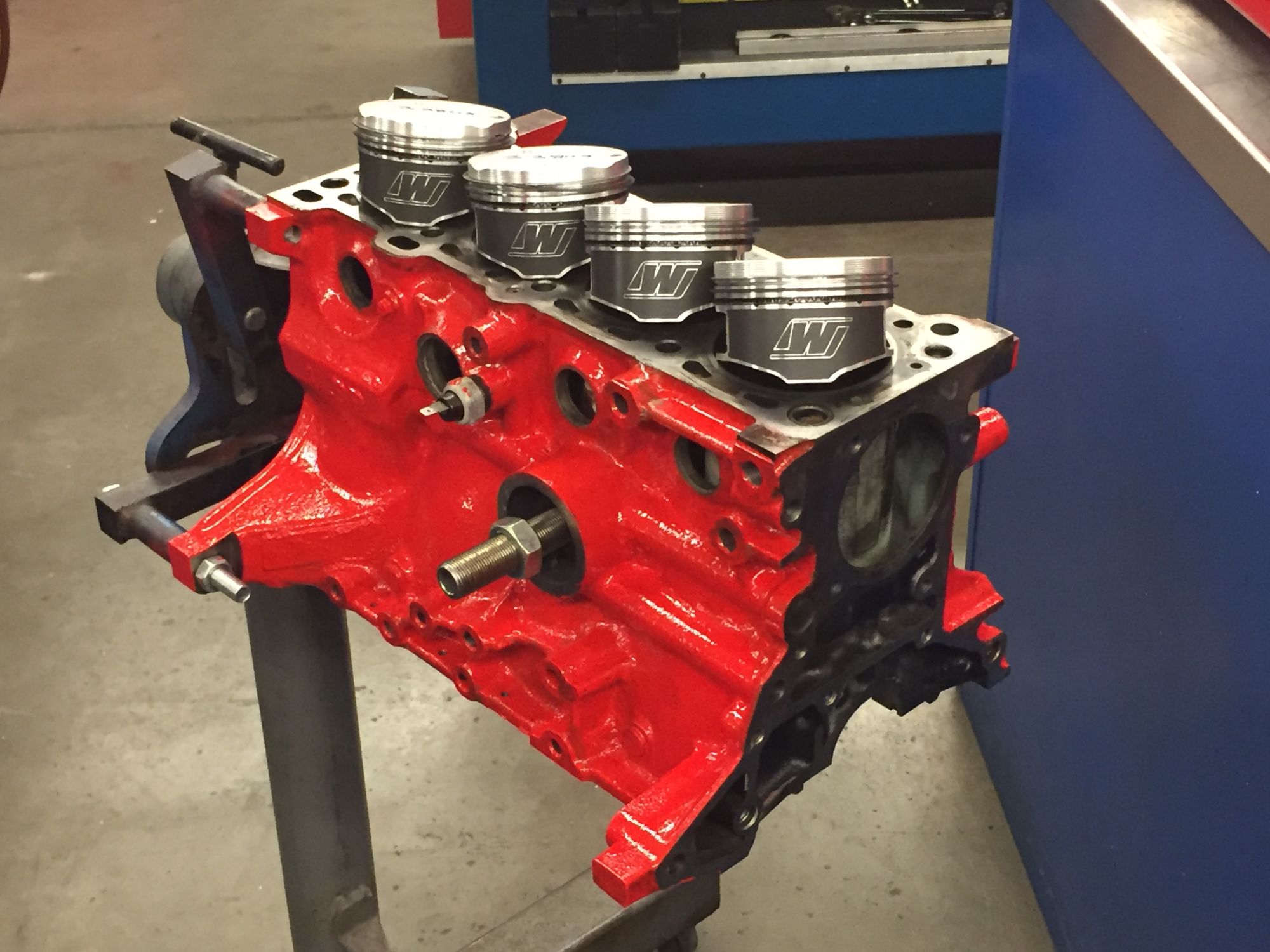

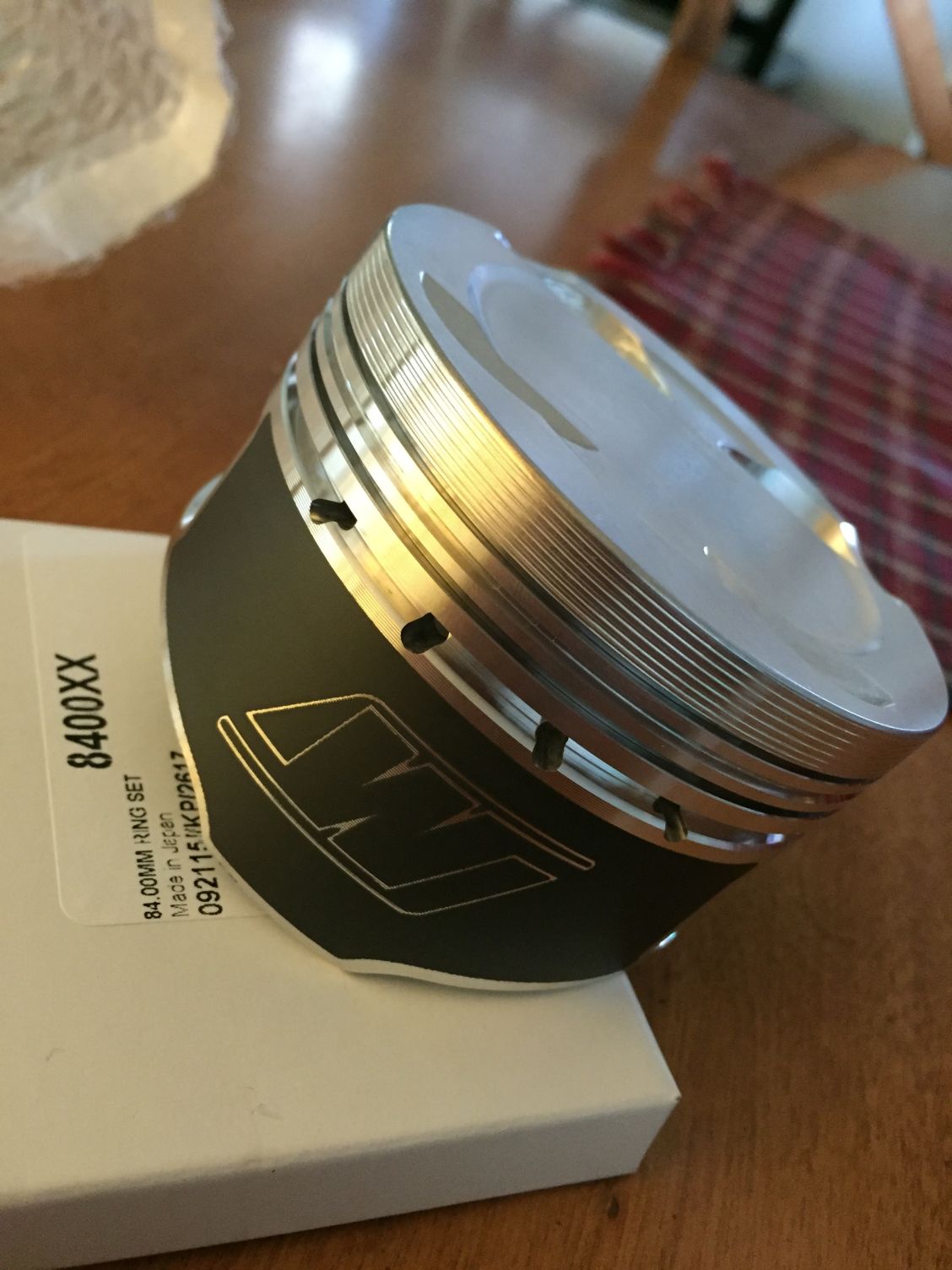

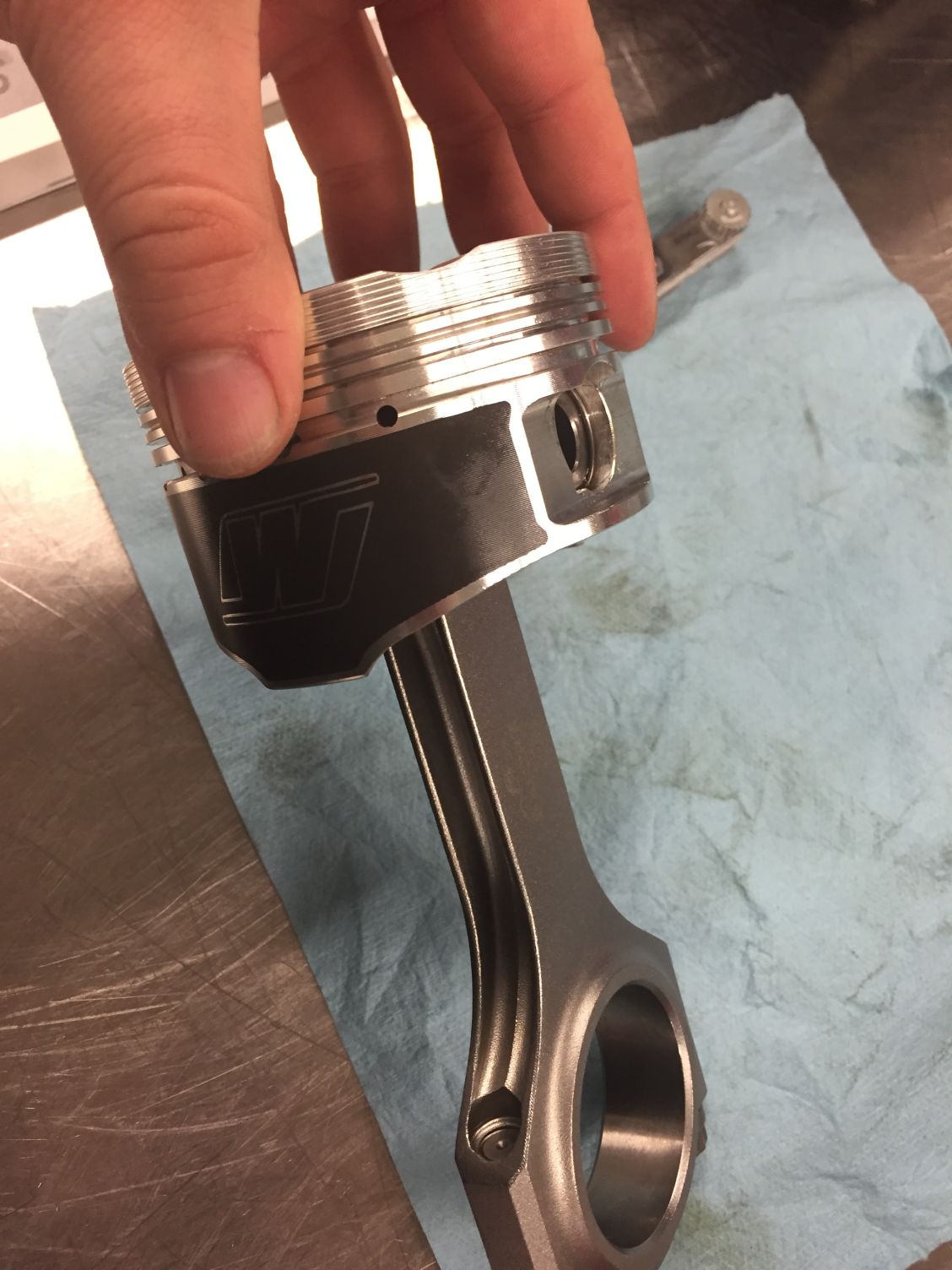

Wiseco 8.8 84mm bore forged Pistons

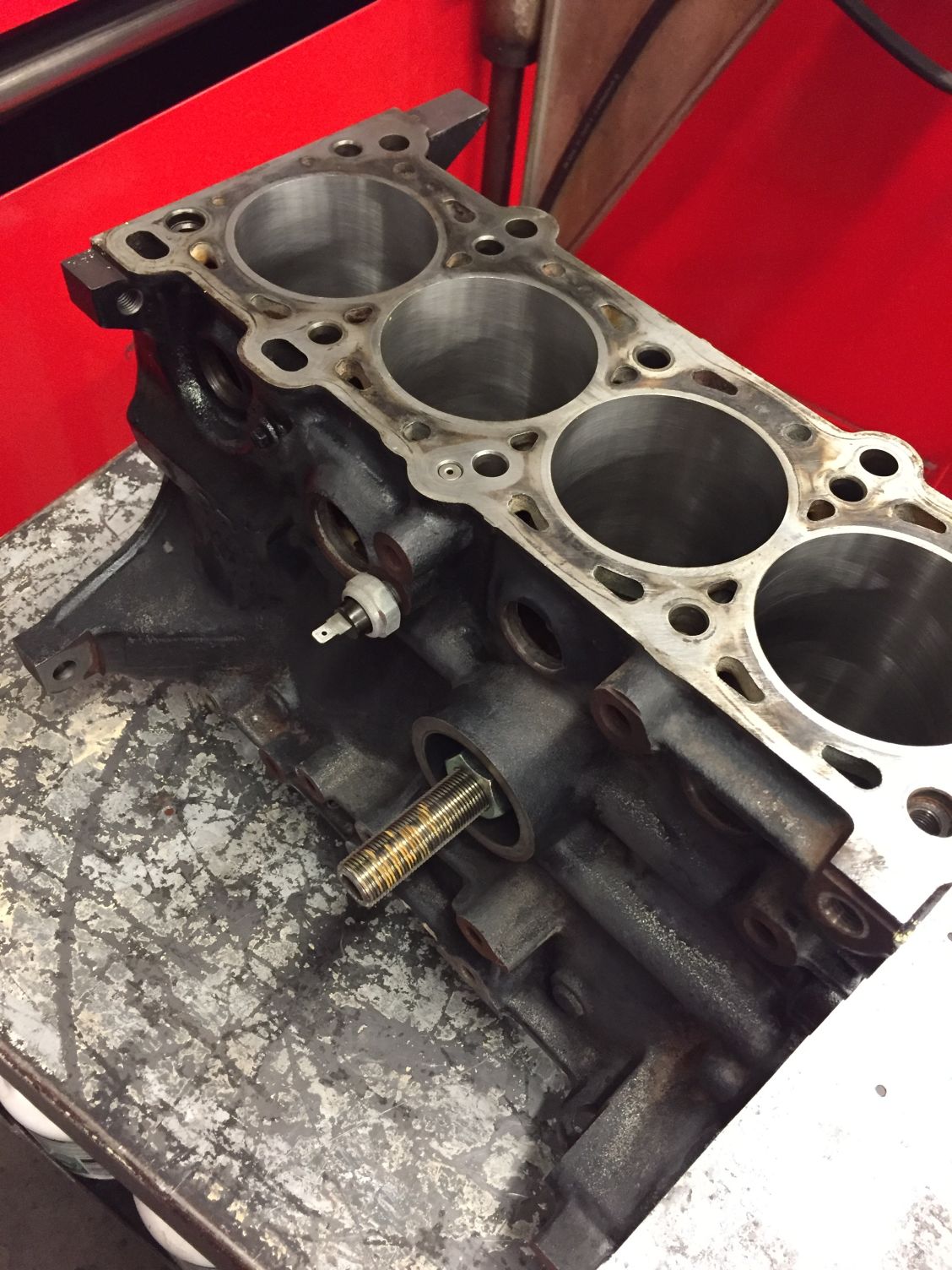

My beautiful bore is complete and engine clean





Rods and Pistons assembled
Attached Thumbnails
My 1.8 engine build for swap-80-image_a87bc0a2fdc7c9ec82140fc579f0ec08358c0f1f.jpeg   My 1.8 engine build for swap-80-image_a088df343f64bf57b8ee38117b88310d87e81017.jpeg   My 1.8 engine build for swap-80-image_348ab221e168cd442acdcf1045156c3a61729e0f.jpeg
Utefan66 is offline   Reply With Quote
Old 04-07-2016, 11:54 PM   #4
Junior Member
Thread Starter

Join Date: Apr 2015
Location: salt lake city UTAH
Posts: 70
Total Cats: -2
Default

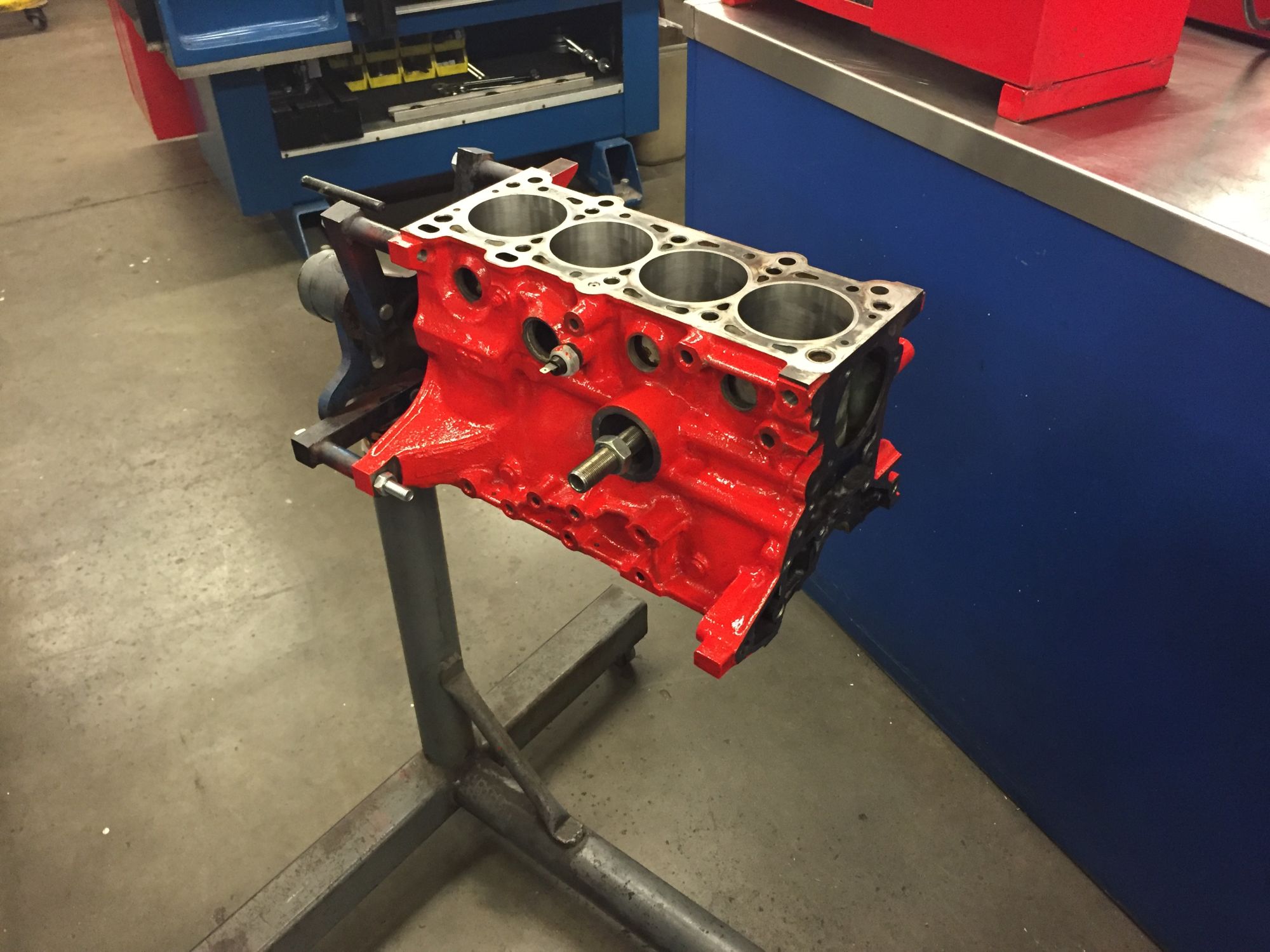

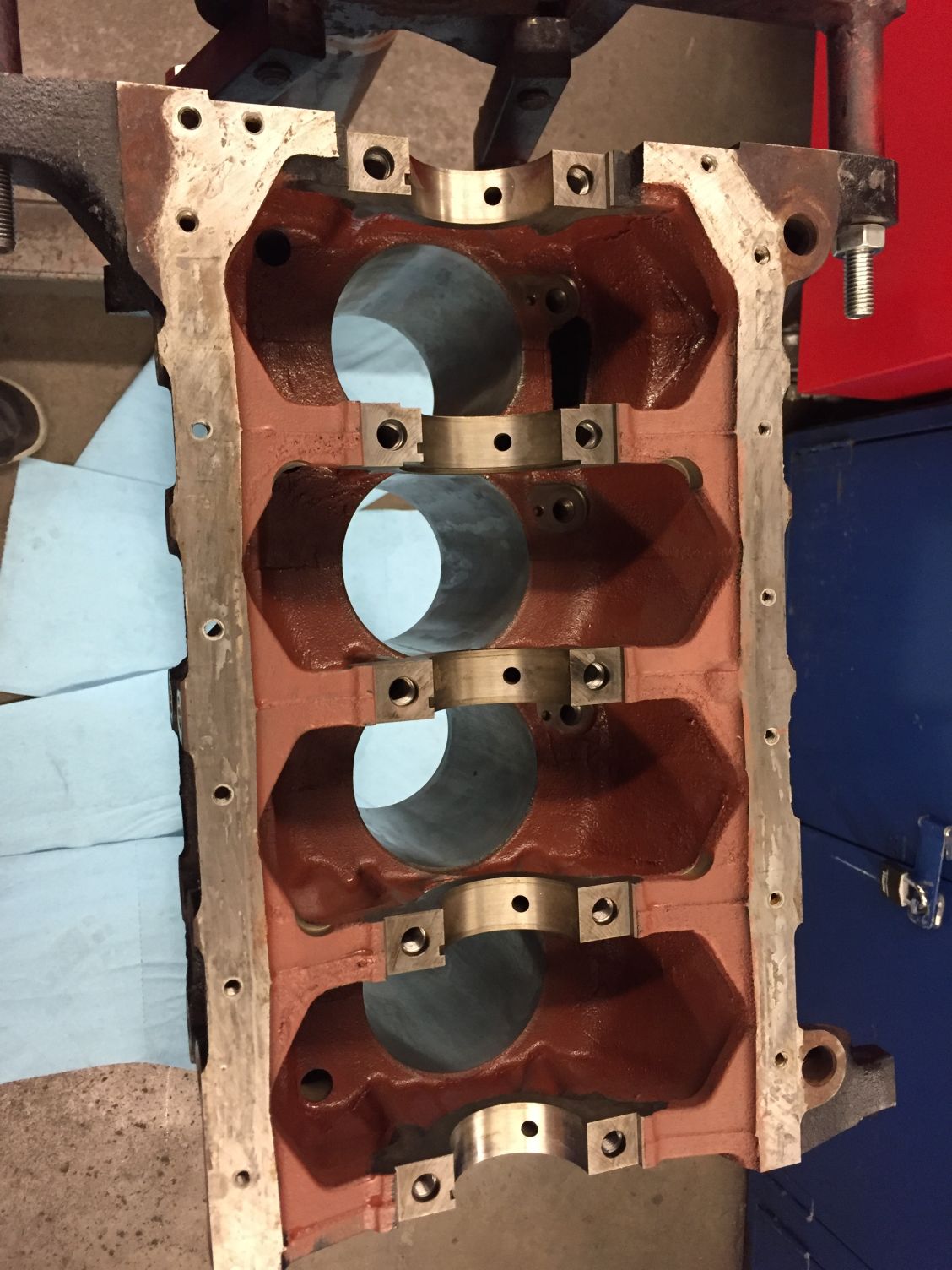

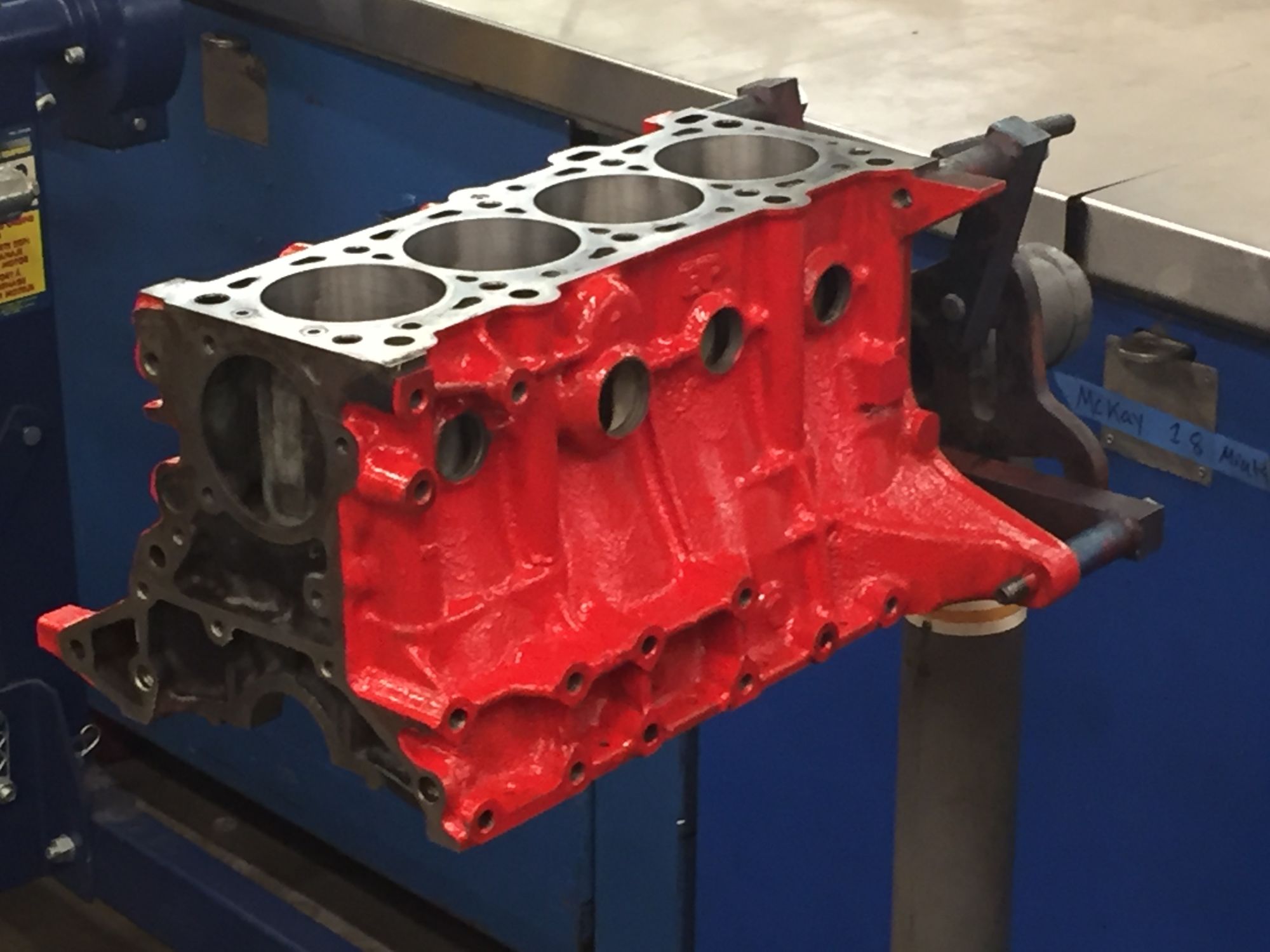

Primer/ painted the inside of the block after removing all the bad casting material at recomemdation from my teacher who is an NHRA dragster for improved oil flow back





Primer applied time for paint





Omg I'm in love ����

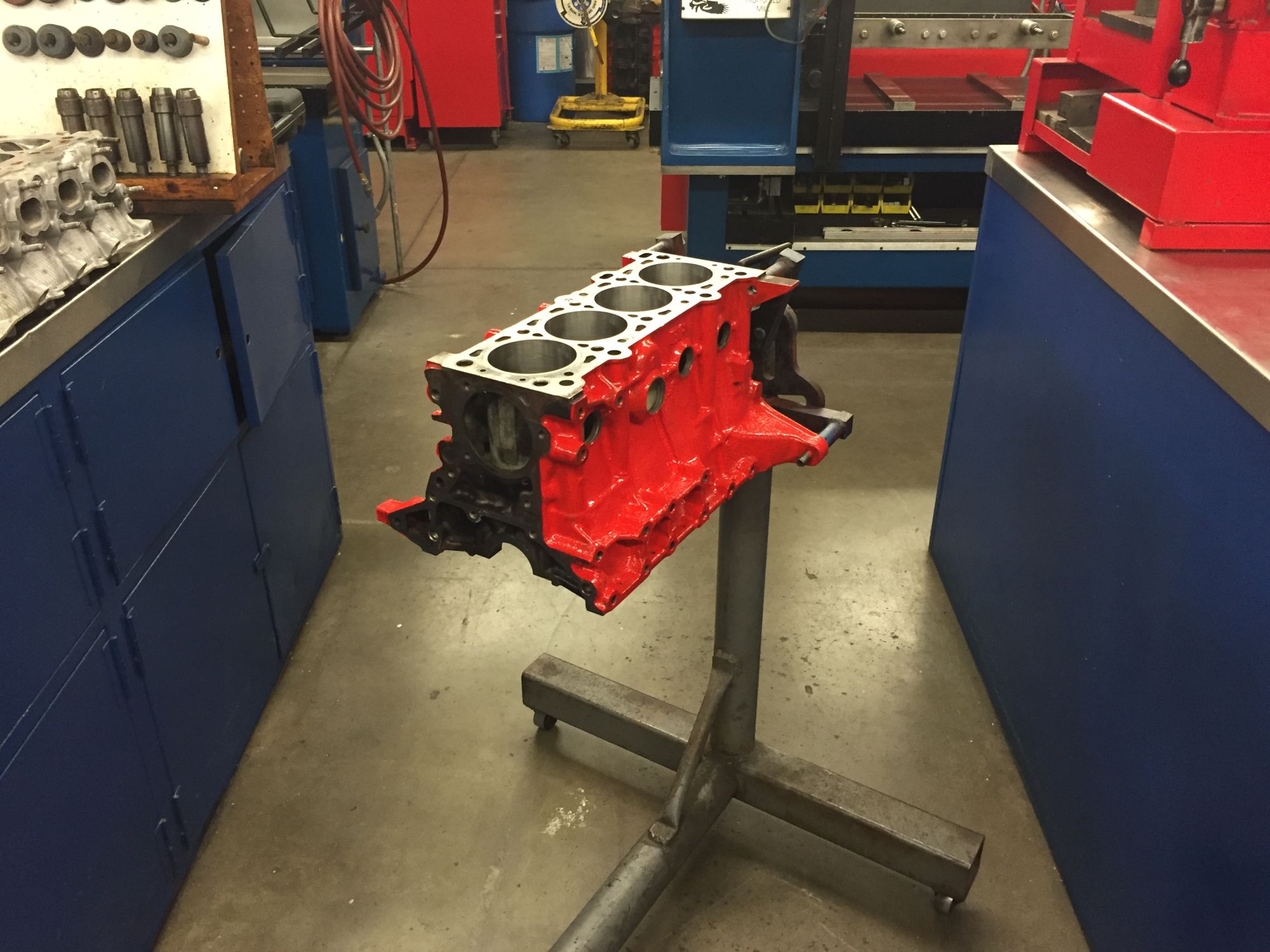

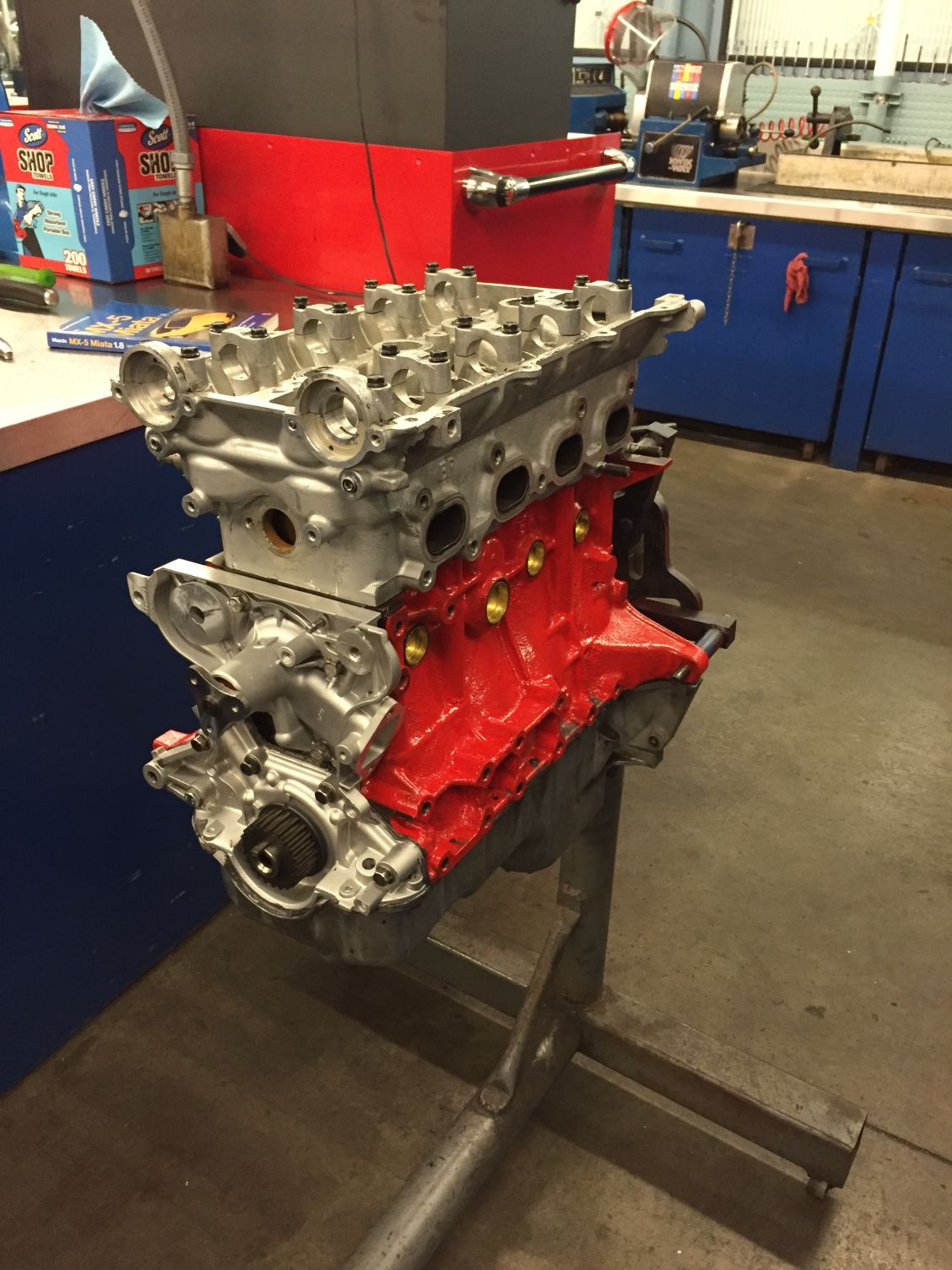

Now ready for assembly





Attached Thumbnails
My 1.8 engine build for swap-80-image_58cc84066d32c93b3743a6c96a1d6b81b38d0cab.jpeg   My 1.8 engine build for swap-80-image_8e88c4ba983cbb2c30fd39a575f107dec4d95403.jpeg   My 1.8 engine build for swap-80-image_0d397a1c1dfec3c22a27fab7870e814b610047a7.jpeg   My 1.8 engine build for swap-80-image_7707a7e15742cfba0e3fe12a220e8427a0df0408.jpeg   My 1.8 engine build for swap-80-image_990cda217fe208b9b9386a0ec0df81d24f0514b1.jpeg

My 1.8 engine build for swap-80-image_0d50db0d32481618431ce04935f4b28b375704c3.jpeg   My 1.8 engine build for swap-80-image_eb84c15206bb92c855ef8062457619f93afd17d4.jpeg
Utefan66 is offline   Reply With Quote
Old 04-30-2016, 08:50 PM   #5
Junior Member
Thread Starter

Join Date: Apr 2015
Location: salt lake city UTAH
Posts: 70
Total Cats: -2
Default

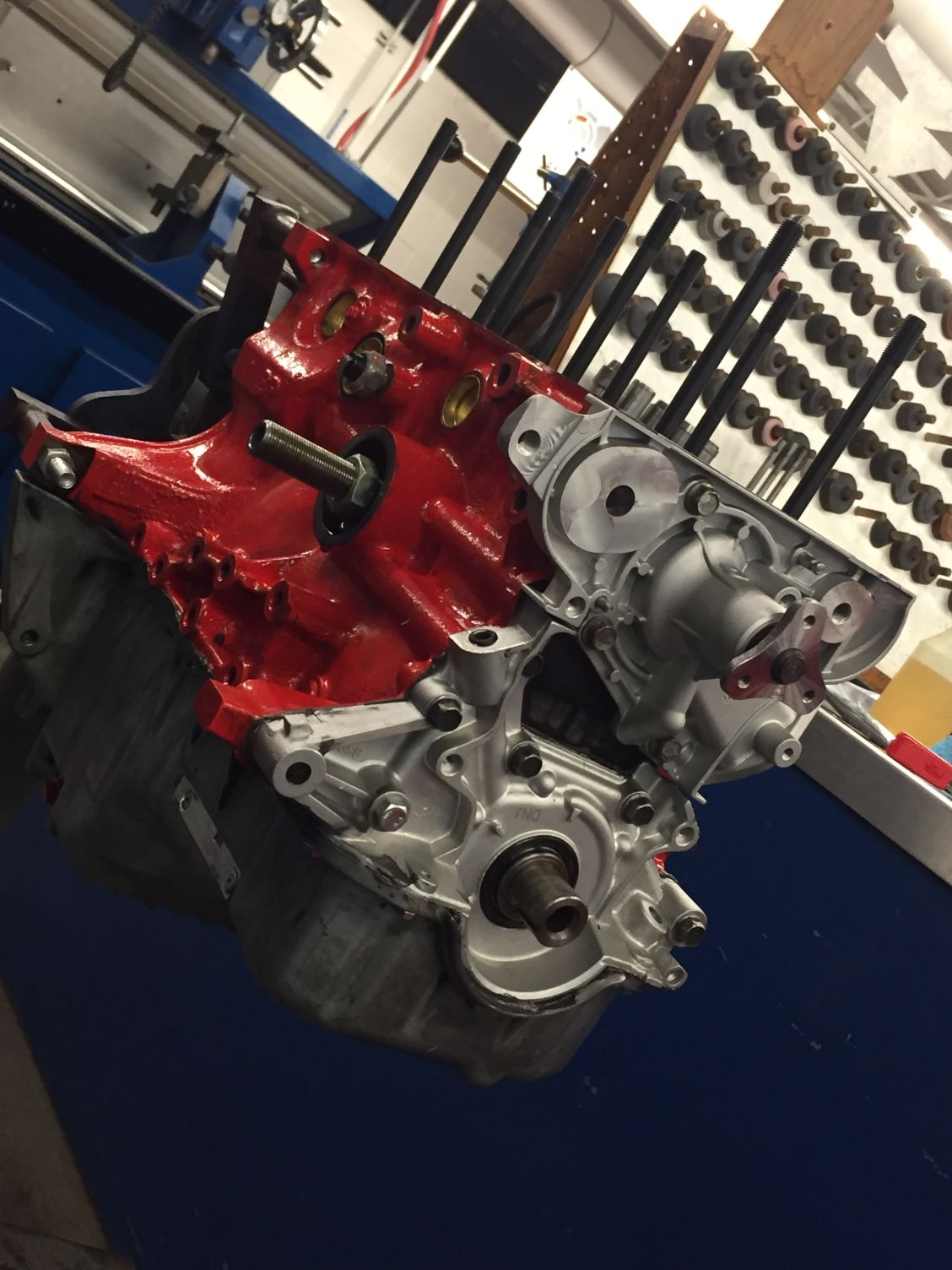

Attached Thumbnails
My 1.8 engine build for swap-80-image_bd9f3e7706d7296767e926c4c099c24da75ee1df.jpeg   My 1.8 engine build for swap-80-image_1da7276575b60c9da057b5fd1a01ce43df23a837.jpeg   My 1.8 engine build for swap-80-image_67307b9021b20f0761df618438ff43a253dc21cf.jpeg   My 1.8 engine build for swap-80-image_f346f8bd88196edd79f60f3423998e0cf0d0e3aa.jpeg   My 1.8 engine build for swap-80-image_cefe1d9595d7a712214c79f48dd1bfcfb04ffa8a.jpeg

Utefan66 is offline   Reply With Quote
Old 04-30-2016, 09:27 PM   #6
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,686
Total Cats: 560
Default

Nice pics.
rleete is offline   Reply With Quote
Old 05-01-2016, 12:15 PM   #7
Junior Member
Thread Starter

Join Date: Apr 2015
Location: salt lake city UTAH
Posts: 70
Total Cats: -2
Default

Thank u
Utefan66 is offline   Reply With Quote
Old 05-01-2016, 01:56 PM   #8
Newb

Join Date: Dec 2014
Posts: 12
Total Cats: 1
Default

Looks like a great build so far. One note of concern from my point of view would be the paint on the inside of the block. I would be concerned that over time the paint may degrade and flake off causing debris to clog the oil pickup.
RHD_Tarzan is offline   Reply With Quote
Old 05-01-2016, 11:49 PM   #9
Newb

Join Date: Oct 2015
Location: south florida
Posts: 32
Total Cats: 0
Default

Wow this is looking good so far! Keep on keeping on man
captain_kjr is offline   Reply With Quote
Old 05-02-2016, 01:35 AM   #10
Junior Member
Thread Starter

Join Date: Apr 2015
Location: salt lake city UTAH
Posts: 70
Total Cats: -2
Default

The inner coat of paint was suggested to me by my teacher I had the same concerns my self but my teacher has been doing NHRA top fuel cars and building engines for 40 years so when he told me to do it I asked him y and he said it helps improve oil drain back flow and said he hadn't ever had any deterioration with time and he was pretty insistent about it so I figured I'd go for it I mean if 8000 hp engines can use it with no problem but idk I'll keep it posted over time if you want I'm curious too
Utefan66 is offline   Reply With Quote
Old 05-02-2016, 04:58 PM   #11
Junior Member

Join Date: Nov 2012
Location: Netherlands, Europe
Posts: 79
Total Cats: 7
Default

Quote:
Originally Posted by RHD_Tarzan View Post
Looks like a great build so far. One note of concern from my point of view would be the paint on the inside of the block. I would be concerned that over time the paint may degrade and flake off causing debris to clog the oil pickup.
Depends on the type of paint used. I think Glyptal will not come off.
This is an interesting watch:


I think it is not worth the effort on a Miata engine, but why not while you are at it anyway?
DaWaN is offline   Reply With Quote
Old 05-03-2016, 03:38 PM   #12
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 200
Default

8,000 hp engines get rebuilt every 45,000 rpm. Yep. 10,000 rpm engine runs about 4.5 minutes, give or take. Fire, set idle, brunout, stage, race. Dead. Tear down.
ryansmoneypit is offline   Reply With Quote
Old 05-05-2016, 02:49 PM   #13
Junior Member
Thread Starter

Join Date: Apr 2015
Location: salt lake city UTAH
Posts: 70
Total Cats: -2
Default

Lmfao �� That sounds about right if not sooner hahaha ....but they don't repaint it every time basically I just had to make sure I cleaned the surface very thoroughly with brake cleaner so there was zero oil on it when it was painted
Utefan66 is offline   Reply With Quote
Old 05-05-2016, 02:53 PM   #14
Junior Member
Thread Starter

Join Date: Apr 2015
Location: salt lake city UTAH
Posts: 70
Total Cats: -2
Default

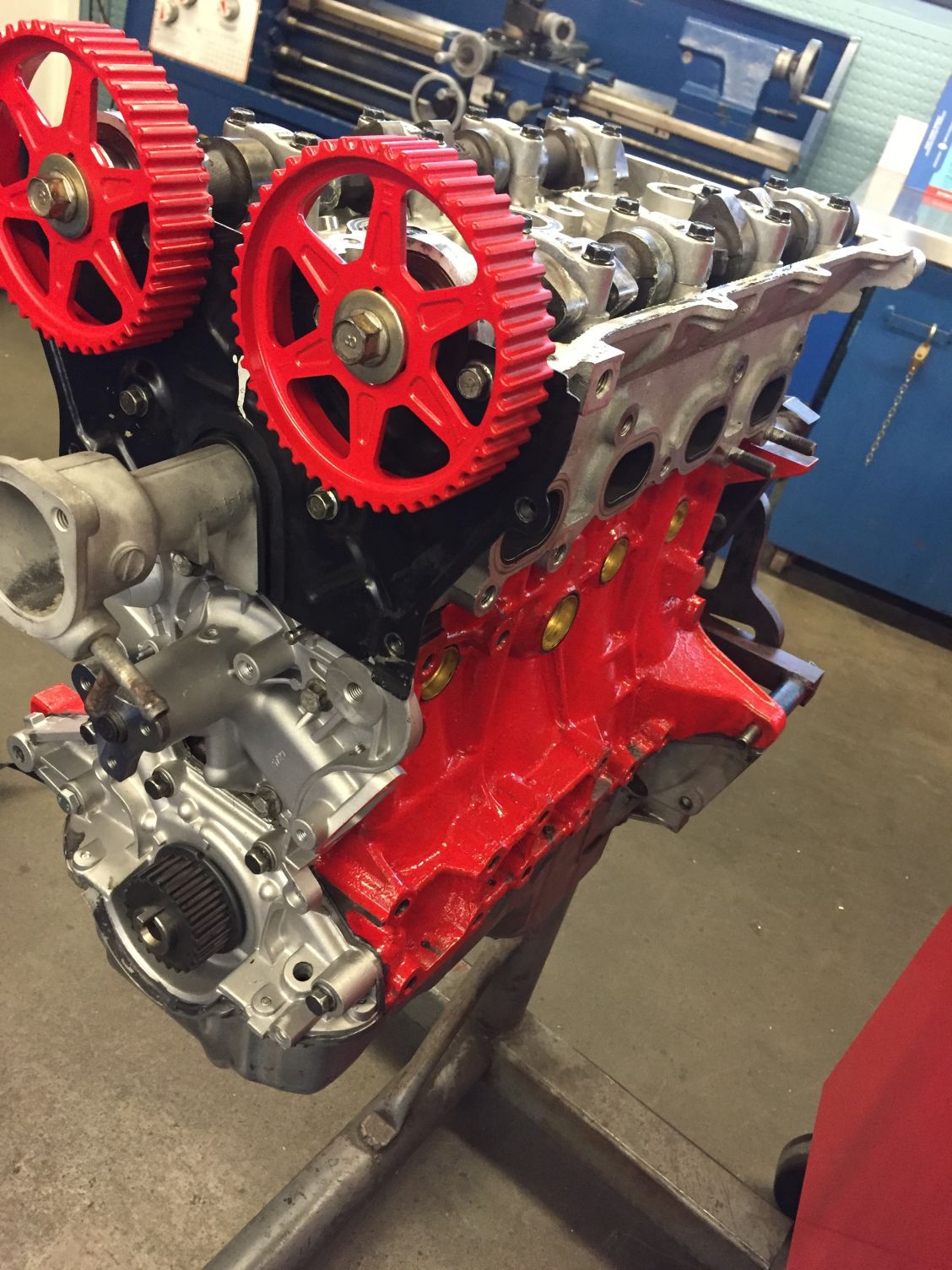

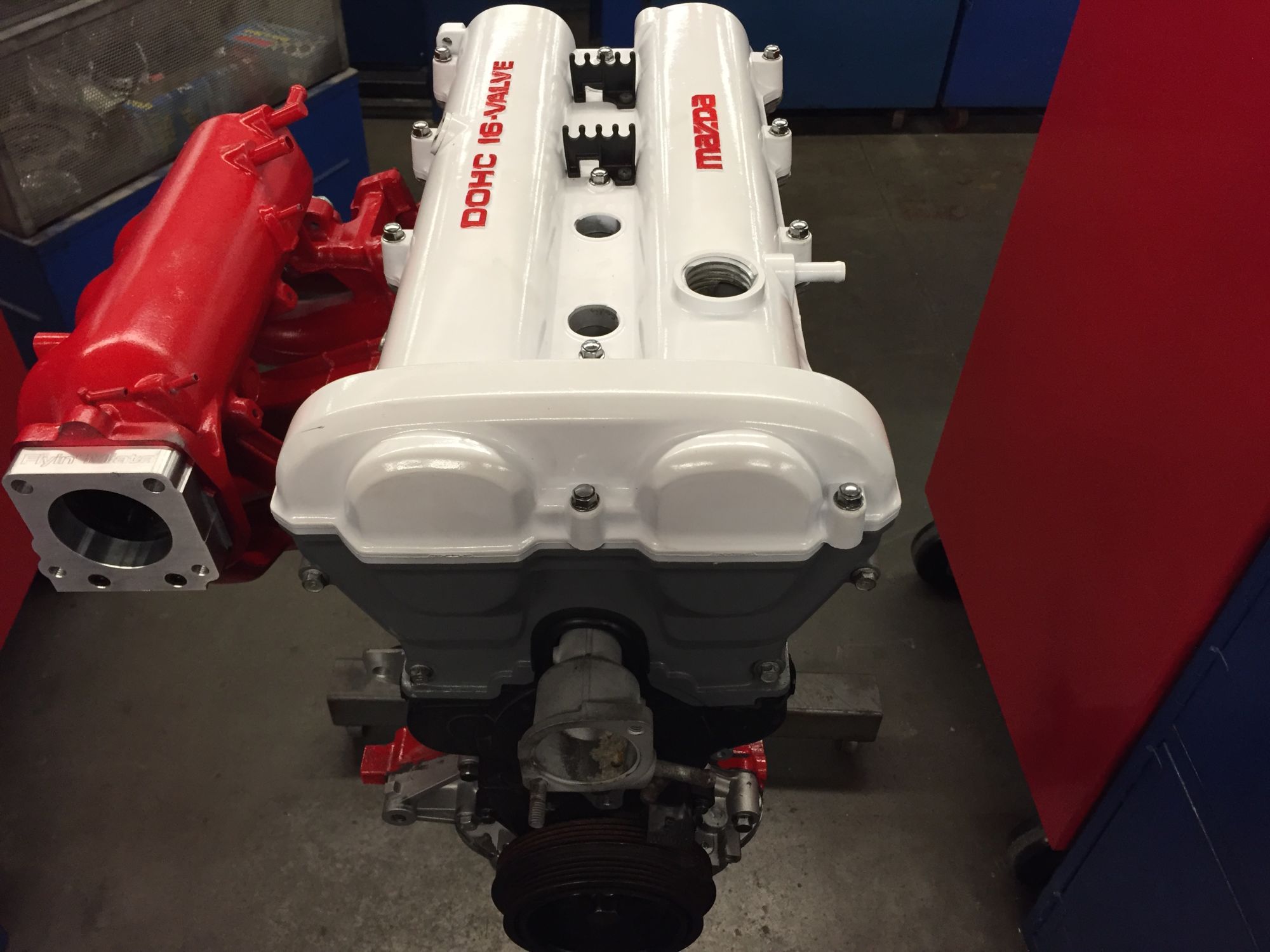

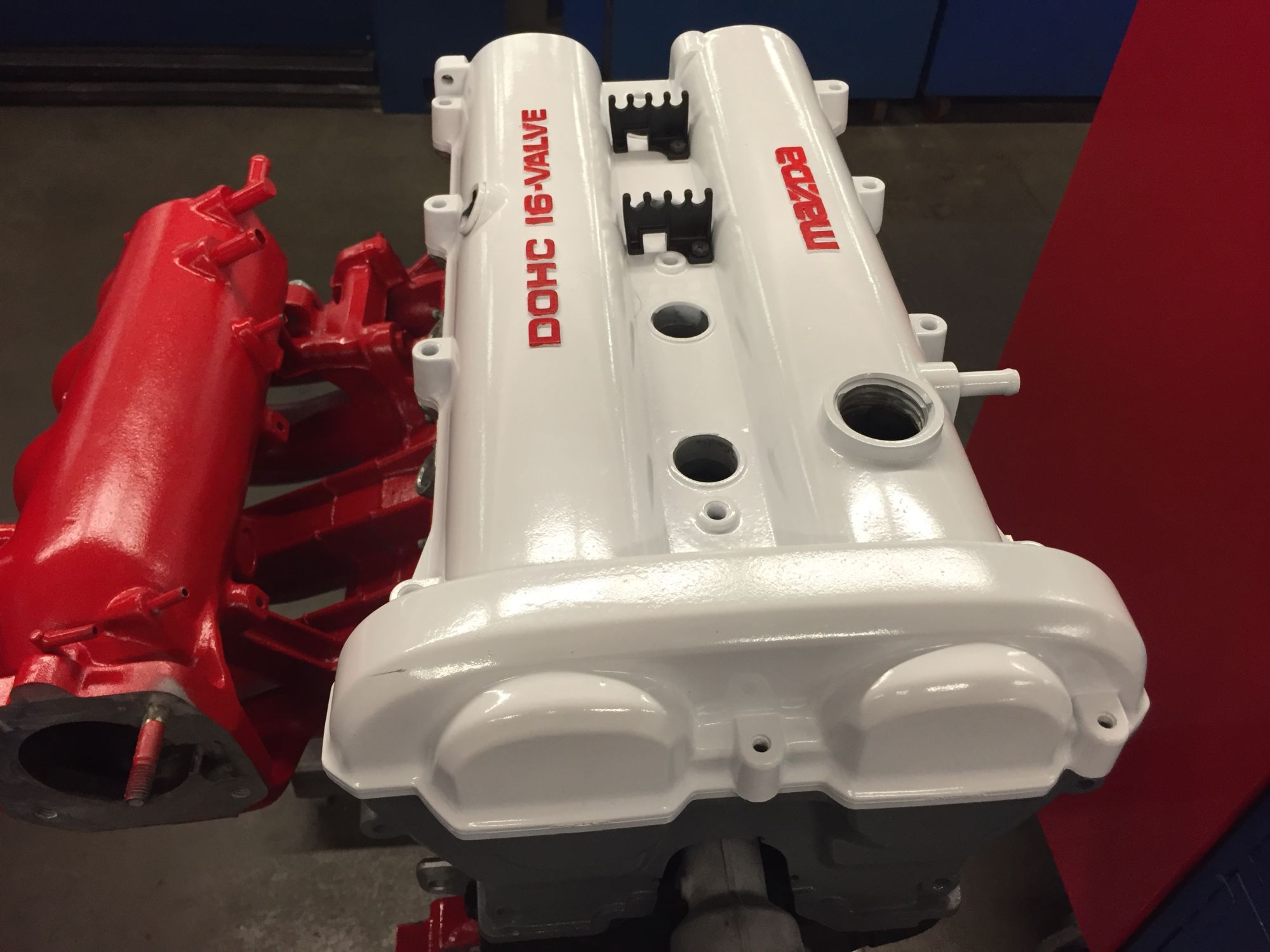

What's everyone think of color combo

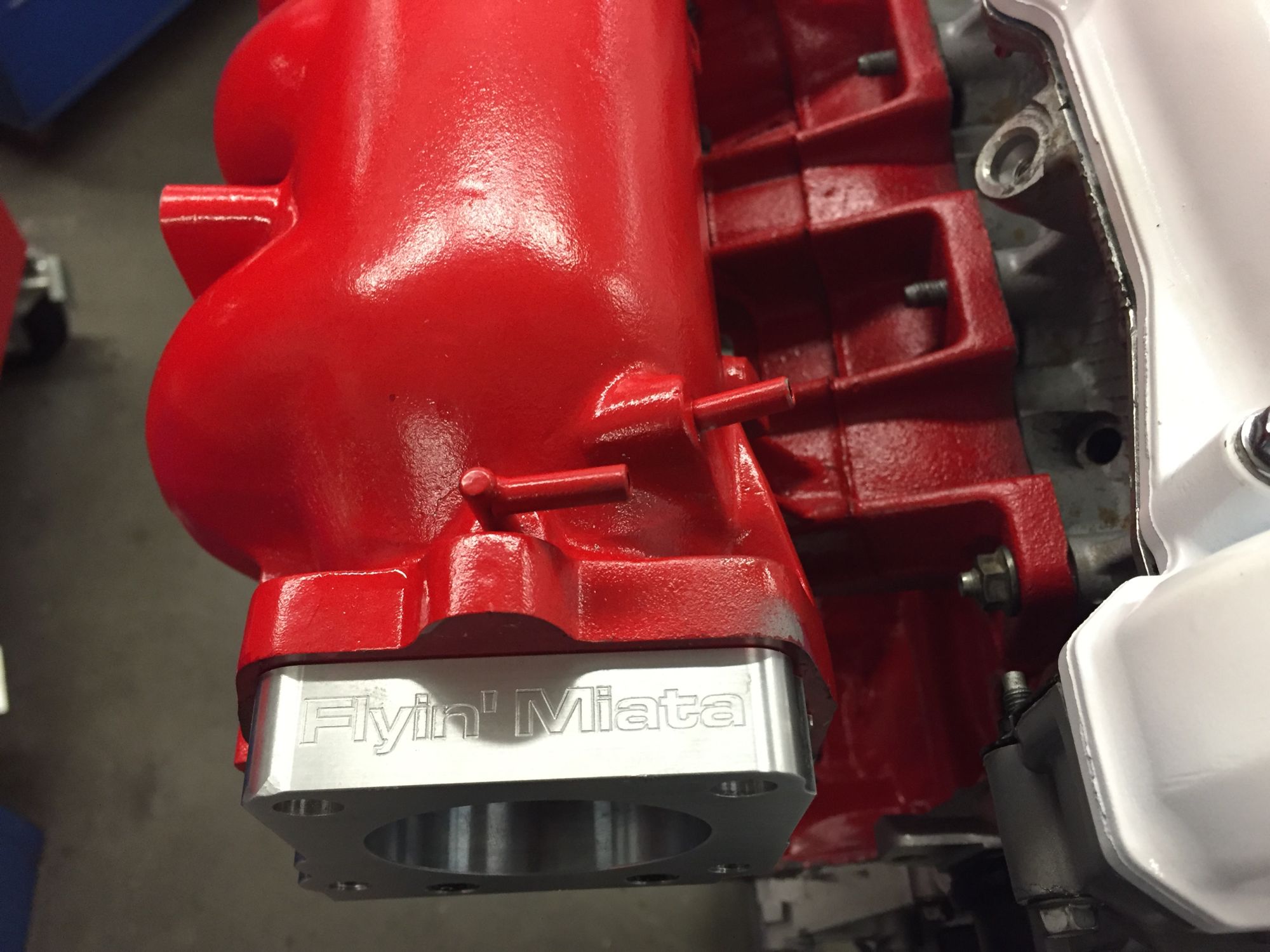

Fm throttle bracket thanks Keith and all the good guys in Colorado
Attached Thumbnails
My 1.8 engine build for swap-80-image_07d24d141992d311a36f6c9979e2d45230bafe0f.jpeg   My 1.8 engine build for swap-80-image_fb040b789f40a1ad10540676d3ae953b69352953.jpeg   My 1.8 engine build for swap-80-image_976603db17ade2e2328c1ff9ff555f29e9229d40.jpeg
Utefan66 is offline   Reply With Quote
Old 05-05-2016, 03:04 PM   #15
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,712
Total Cats: 319
Default

That's a lot of paint. Show us a picture after you've finished installing it.


...before all the touchup and oil smudges
psyber_0ptix is online now   Reply With Quote
Old 05-05-2016, 03:35 PM   #16
Junior Member
Thread Starter

Join Date: Apr 2015
Location: salt lake city UTAH
Posts: 70
Total Cats: -2
Default

Ya that picture probably won't look nearly as good lol but I will for sure should be goin in about 2-3 weeks it should be running hopefully
hey I have a question for everyone though in regards to ignition timing my engine didn't come with a cam angle sensor and came disassembled so I was not able to put any marks on CAS now my only worry is that to adjust timing the engine is supposed to be running but how can I start it if it's not timed.....or is that just like a fine tune adjustment and and putting the CAS in the correct way gets you close enough to start the engine
Utefan66 is offline   Reply With Quote
Old 05-06-2016, 04:04 AM   #17
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,777
Total Cats: 1,106
Default

Quote:
Originally Posted by Utefan66 View Post
Ya that picture probably won't look nearly as good lol but I will for sure should be goin in about 2-3 weeks it should be running hopefully
hey I have a question for everyone though in regards to ignition timing my engine didn't come with a cam angle sensor and came disassembled so I was not able to put any marks on CAS now my only worry is that to adjust timing the engine is supposed to be running but how can I start it if it's not timed.....or is that just like a fine tune adjustment and and putting the CAS in the correct way gets you close enough to start the engine
Throw the CAS in and try starting, then adjust it till it does start. Once you get it running either set timing correctly in MS, or using the diagnostics box.
shuiend is online now   Reply With Quote
Old 05-06-2016, 07:21 AM   #18
Junior Member
iTrader: (1)

Downmented's Avatar

Join Date: Oct 2014
Location: Annapolis, MD
Posts: 485
Total Cats: 59
Default

So, the timing is something I too am curious about. I have had a hard time finding any definitive way the timing process, installing timing belt, then getting the motor to start, then doing the actual timing after that. I will not be running the CAS so that is not really an option for me. If someone could link some info that would be great, I am sure its out there, but as I mentioned, I haven't had much luck finding it.

BTW OP, everything looks beautiful thus far, keep up the good work
Downmented is offline   Reply With Quote
Old 05-06-2016, 08:05 AM   #19
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,712
Total Cats: 319
Default

Quote:
Originally Posted by Downmented View Post
So, the timing is something I too am curious about. I have had a hard time finding any definitive way the timing process, installing timing belt, then getting the motor to start, then doing the actual timing after that. I will not be running the CAS so that is not really an option for me. If someone could link some info that would be great, I am sure its out there, but as I mentioned, I haven't had much luck finding it.

BTW OP, everything looks beautiful thus far, keep up the good work

Chris, you're using NB sensors. Pat yourself on the back, you don't physically adjust the CAS. Just worry about ignition timing in your ECU and throw it to 10° BTDC to check base timing. The End.
psyber_0ptix is online now   Reply With Quote
Old 05-06-2016, 08:06 AM   #20
Junior Member
iTrader: (1)

Downmented's Avatar

Join Date: Oct 2014
Location: Annapolis, MD
Posts: 485
Total Cats: 59
Default

Quote:
Originally Posted by psyber_0ptix View Post
Chris, you're using NB sensors. Pat yourself on the back, you don't physically adjust the CAS. Just worry about ignition timing in your ECU and throw it to 10° BTDC to check base timing. The End.
: pats self on back:

Kthnxbai
Downmented is offline   Reply With Quote
