Old 04-23-2013, 09:25 AM   #21
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,092
Total Cats: 90
Default

Somewhere in my patch harness from trackspeed the aem ecu connects to the dash. So there must be a wire that goes to the ecu to the dash. On the 1.8 at least.
Leafy is offline   Reply With Quote
Old 04-23-2013, 09:52 AM   #22
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

1.8 is different.
Zaphod is offline   Reply With Quote
Old 04-23-2013, 09:57 AM   #23
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,092
Total Cats: 90
Default

Quote:
Originally Posted by Zaphod View Post
1.8 is different.
Maybe, but stock my car still took the tach signal from the ignitor in each coil. You really just need to find the wring diagram from a 96 euro FSM.
Leafy is offline   Reply With Quote
Old 04-23-2013, 10:38 AM   #24
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

I have that here and already tried a sketch in page 1 on what I have to do...



My problem is that there is only a wire going from the igniter to the dash - as I will throw out the igniter there will be nothing firing the tach in dash. TO the igniter there are only two wires going from the ECU/MS - which I will both need as trigger for my coils. I thought one of the other 1,6 swapper could tell me their solution...
Zaphod is offline   Reply With Quote
Old 04-23-2013, 11:10 AM   #25
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

It looks like that Yellow/Blue needs to go from your MS to your tach.
shuiend is online now   Reply With Quote
Old 04-23-2013, 03:18 PM   #26
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by Zaphod View Post
@the 1,6 to VVT crew - how did you handle the Tach signal to the dash?
what coils are you using?
Braineack is offline   Reply With Quote
Old 04-23-2013, 06:19 PM   #27
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Quote:
Originally Posted by Braineack View Post
what coils are you using?
Plan is to use the OEM VVT coils
Zaphod is offline   Reply With Quote
Old 04-23-2013, 06:22 PM   #28
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

okay and you're saying you wont be able to send the tachout through the B/W wire to the ignitor and splice that the the Y/B?
Braineack is offline   Reply With Quote
Old 04-24-2013, 03:50 AM   #29
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

By B/W wire you mean the Nr. 5 B/W from your picture at the Toyota COPs thread?



That wire is not existent on that Euro past '93 MX-5 1.6...
See here:



So I think I will make a new wire to either the igniter or directly to the tach.
Zaphod is offline   Reply With Quote
Old 04-24-2013, 09:20 AM   #30
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,092
Total Cats: 90
Default

Wait wait wait. If thats the case the tach should be getting signal directly from the ecu already.
Leafy is offline   Reply With Quote
Old 04-24-2013, 10:41 AM   #31
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Quote:
Originally Posted by Leafy View Post
Wait wait wait. If thats the case the tach should be getting signal directly from the ecu already.
Crazy ****... it's getting the tach signal from the igniter module...

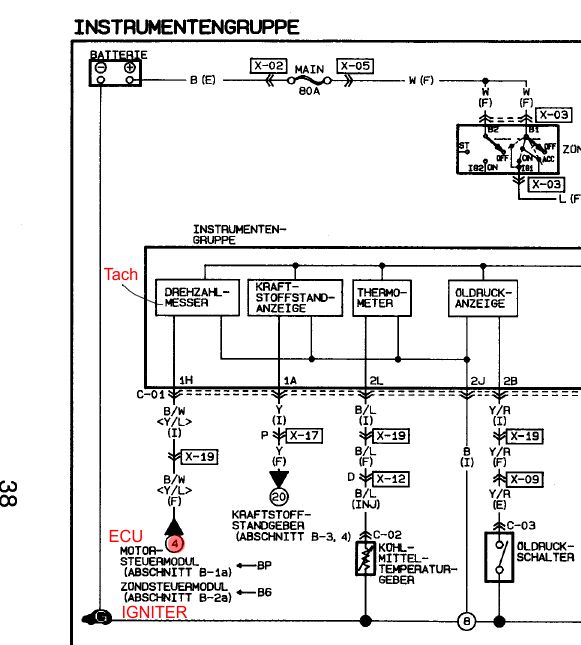

Here is the cutout from the Factory wiring diagram for the car:

Instruments:

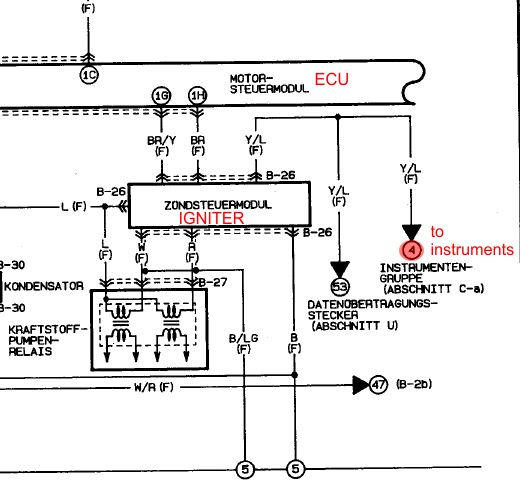

Igniter:


You can clearly see, that the tach signal comes from the igniter...
Attached Thumbnails
My VVT swap attempt - little different because 1,6 1996 Euro car-instruments_tach.jpg   My VVT swap attempt - little different because 1,6 1996 Euro car-igniter_tach.jpg
Zaphod is offline   Reply With Quote
Old 04-24-2013, 07:22 PM   #32
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by Zaphod View Post
By B/W wire you mean the Nr. 5 B/W from your picture at the Toyota COPs thread?

That wire is not existent on that Euro past '93 MX-5 1.6...
See here:



So I think I will make a new wire to either the igniter or directly to the tach.
Quote:
Originally Posted by Zaphod View Post
Crazy ****... it's getting the tach signal from the igniter module...

Here is the cutout from the Factory wiring diagram for the car:

Instruments:


Igniter:


You can clearly see, that the tach signal comes from the igniter...

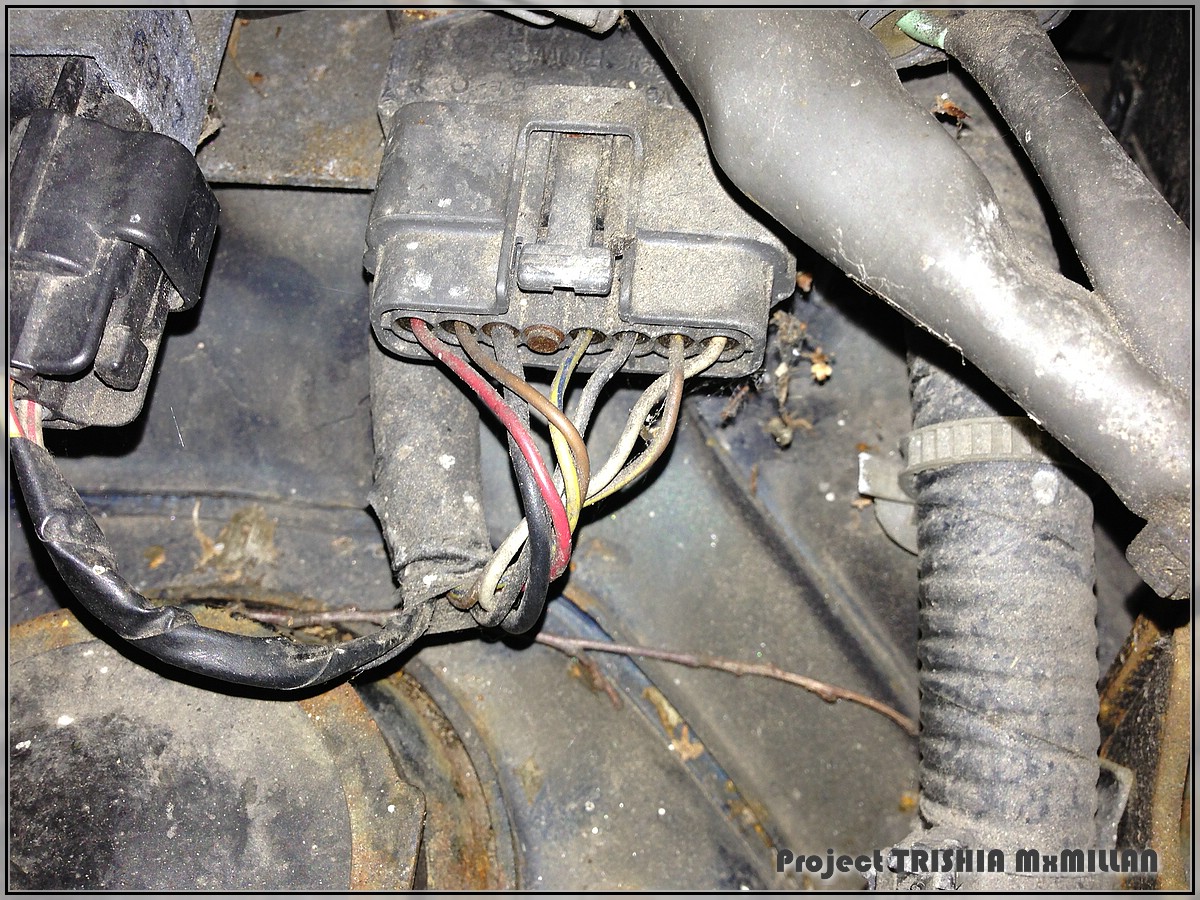

Is it the B/W wire at place 3 in the first picture? Can you unplug your gauge cluster and find the b/w wire there and then check continuity to the b/w wire on the ignitor?
Attached Thumbnails
My VVT swap attempt - little different because 1,6 1996 Euro car-montego_093.jpg
shuiend is online now   Reply With Quote
Old 04-25-2013, 03:45 AM   #33
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Quote:
Originally Posted by shuiend View Post
Is it the B/W wire at place 3 in the first picture? Can you unplug your gauge cluster and find the b/w wire there and then check continuity to the b/w wire on the ignitor?
No B/W wire at the igniter connector:



The Y/L is going from the igniter to the dash/diagnostic connector.
Attached Thumbnails
My VVT swap attempt - little different because 1,6 1996 Euro car-igniter.jpg
Zaphod is offline   Reply With Quote
Old 04-25-2013, 08:29 AM   #34
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

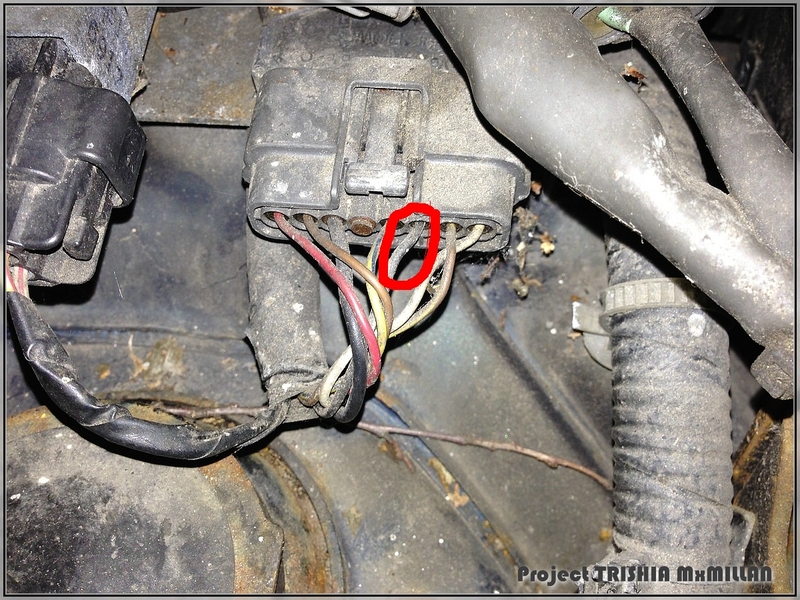

Is that not a b/w wire that I circled in red?
Attached Thumbnails
My VVT swap attempt - little different because 1,6 1996 Euro car-ignitor.jpg
shuiend is online now   Reply With Quote
Old 04-25-2013, 09:36 AM   #35
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

looks like it. his diagram says it should be blue, but that doesn't look like a blue wire and i almost make out a white stripe right where it's going into the connector.


what is the blue wire going to the kraffstoff pumpen relay supposed to be?
Braineack is offline   Reply With Quote
Old 04-25-2013, 10:06 AM   #36
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

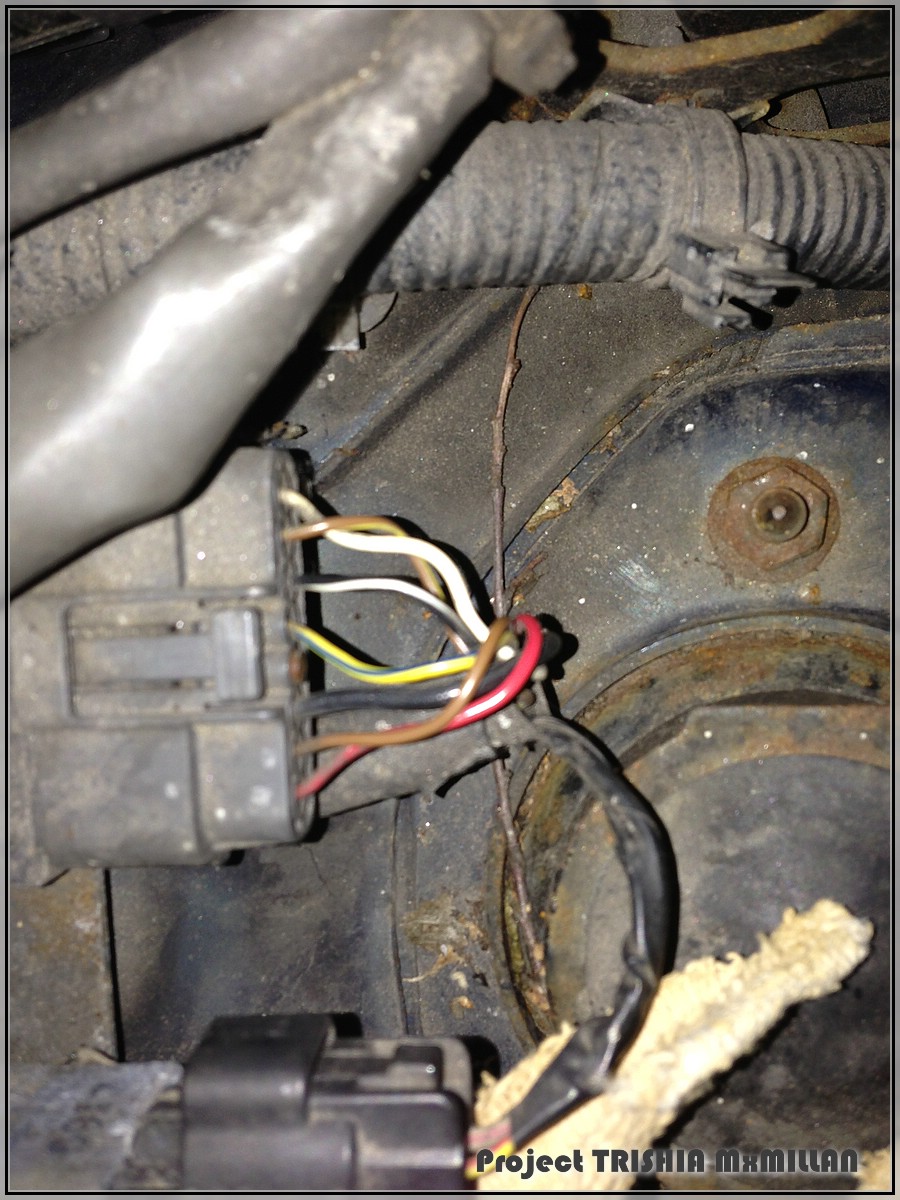

**** it.. this ought to be a "L" aka blue wire but it is indeed a B/W wire

I cleaned it a bit:


Now I have to see if there is a wire at 2I at the ECU because that would be the spot for the B/W wire at the 90-93 1,6 ECUs.
Attached Thumbnails
My VVT swap attempt - little different because 1,6 1996 Euro car-montego_097.jpg
Zaphod is offline   Reply With Quote
Old 04-25-2013, 10:08 AM   #37
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

so you should be able to run tachout through that white/black wire, then tie it into the yellow/blue somewhere ove rhte rainbow to send to dash.
Braineack is offline   Reply With Quote
Old 04-25-2013, 11:13 AM   #38
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

IIRC that black/white wire is the 12V.
Reverant is offline   Reply With Quote
Old 04-25-2013, 11:17 AM   #39
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

yeah, but it's a pull up from the ECU for the tach signal.
Braineack is offline   Reply With Quote
Old 04-25-2013, 03:31 PM   #40
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by Zaphod View Post
**** it.. this ought to be a "L" aka blue wire but it is indeed a B/W wire

I cleaned it a bit:


Now I have to see if there is a wire at 2I at the ECU because that would be the spot for the B/W wire at the 90-93 1,6 ECUs.
Also just see if you can check continuity between that pin on the plug and the b/w pin at either the ECU or gauge cluster to see if it is the correct one.
shuiend is online now   Reply With Quote
