Old 05-16-2011, 11:20 PM   #21
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

I have access to a lift.
What's the easiest way to pull the oil pump?


It's high RPM oil pressure that's important, as long as idle has > 10 psi.
I barely get over 30 psi hot at 4000 RPM. 5w50.
My main bearing clearance are ~0.0028 - 0.0032"

I have a 91+ real OPG which I verified with another gauge.

shuiend,
How much does your OP drop when VVT "kicks in"? What do you mean by "kicks in"? AFAIK

faeflora,
I did an oil anaylisis at 3000 miles and it looked "normal" for an engine that's <5000 miles since a rebuild. I hadn't been revving the engine all that hard.
JasonC SBB is offline   Reply With Quote
Old 05-16-2011, 11:40 PM   #22
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,778
Total Cats: 1,106
Default

Quote:
Originally Posted by JasonC SBB View Post
I have access to a lift.
What's the easiest way to pull the oil pump?


It's high RPM oil pressure that's important, as long as idle has > 10 psi.
I barely get over 30 psi hot at 4000 RPM. 5w50.
My main bearing clearance are ~0.0028 - 0.0032"

I have a 91+ real OPG which I verified with another gauge.

shuiend,
How much does your OP drop when VVT "kicks in"? What do you mean by "kicks in"? AFAIK

faeflora,
I did an oil anaylisis at 3000 miles and it looked "normal" for an engine that's <5000 miles since a rebuild. I hadn't been revving the engine all that hard.
Honestly a lift will not be to helpful. You need to lift the engine up a little bit with a cherry picker. Then unbolt it from the subframe. Next it taking off the oil pan. Then oil pump. The hard part is putting the pan back on correctly.

If you have help there is no reason why you could not pull the motor and replace oil pump in a weekend.

My oil pressure seems to drop about 5psi when VVT kicks in. Still well above 50psi+.
shuiend is offline   Reply With Quote
Old 05-16-2011, 11:44 PM   #23
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

What are you bearing clearances?

Are you saying your pressure drops 5 psi when you run anything less than full retard?
JasonC SBB is offline   Reply With Quote
Old 05-16-2011, 11:58 PM   #24
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,778
Total Cats: 1,106
Default

Quote:
Originally Posted by JasonC SBB View Post
What are you bearing clearances?

Are you saying your pressure drops 5 psi when you run anything less than full retard?
I honestly do not remember what my bearing clearances were. I know they were within stock spec.

Oil pressure seemed to drop about 5psi when the came were not at full retard. My vvt has not been tuned yet at all and I was going off settings I got from y8s, so that may change. I know when I had VVT disabled my oil pressure would not drop any.
shuiend is offline   Reply With Quote
Old 05-17-2011, 04:50 AM   #25
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

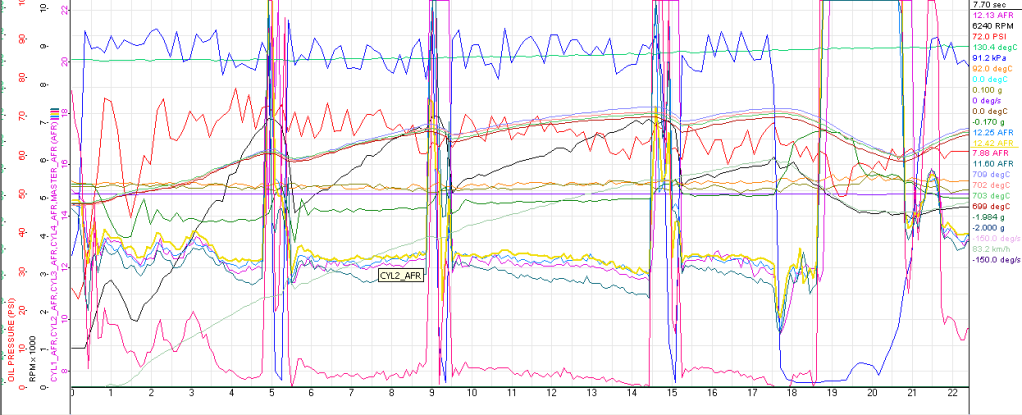

Maybe this helps. ~70psi during WOT pulls. It's the red graph. You can actually see the pressure going down as the oil temperature goes up.

Name:  log1.png
Views: 8
Size:  171.5 KB
Reverant is offline   Reply With Quote
Old 05-17-2011, 10:56 AM   #26
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,778
Total Cats: 1,106
Default

Quote:
Originally Posted by Reverant View Post
Maybe this helps. ~70psi during WOT pulls. It's the red graph. You can actually see the pressure going down as the oil temperature goes up.

What software are you using to log oil pressure? Maybe I need to figure out how to get MS to log it.
shuiend is offline   Reply With Quote
Old 05-17-2011, 11:51 AM   #27
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by JasonC SBB View Post
faeflora,
I did an oil anaylisis at 3000 miles and it looked "normal" for an engine that's <5000 miles since a rebuild. I hadn't been revving the engine all that hard.
I don't understand why you are pulling the motor then. I had a long talk with clevite or king-- I forget. I was telling them that I was considering pulling my motor because I had somewhat low oil pressure, stock bearings, and was heavily boosted. They emphatically suggested a) looking at the oil filter/oil for particles and b) doing an oil analysis. They said that if there are no particles and the analysis comes back ok, don't worry about it.

Honestly, I do worry about it but their recommendation makes sense to me. Do you think otherwise? I am open to persuasion on this matter.
Faeflora is offline   Reply With Quote
Old 05-17-2011, 12:26 PM   #28
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Ahh makes sense, thanks.
Perhaps I should do a track day then send the oil for ----.
JasonC SBB is offline   Reply With Quote
Old 05-17-2011, 12:44 PM   #29
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Quote:
Originally Posted by JasonC SBB View Post
Perhaps I should do a track day then send the oil for ----.
First I was like.... but then I
Reverant is offline   Reply With Quote
