Default Oil Temp Sensor Location

I am getting ready to start my motor build. So getting an oil temp sensor in the new motor will be done. Where is the best place to put the sensor? Should I just drill and tap the oil pan? Any specific place on the oil pan work better?
shuiend is offline   Reply With Quote
Old 06-28-2010, 02:54 PM   #2
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

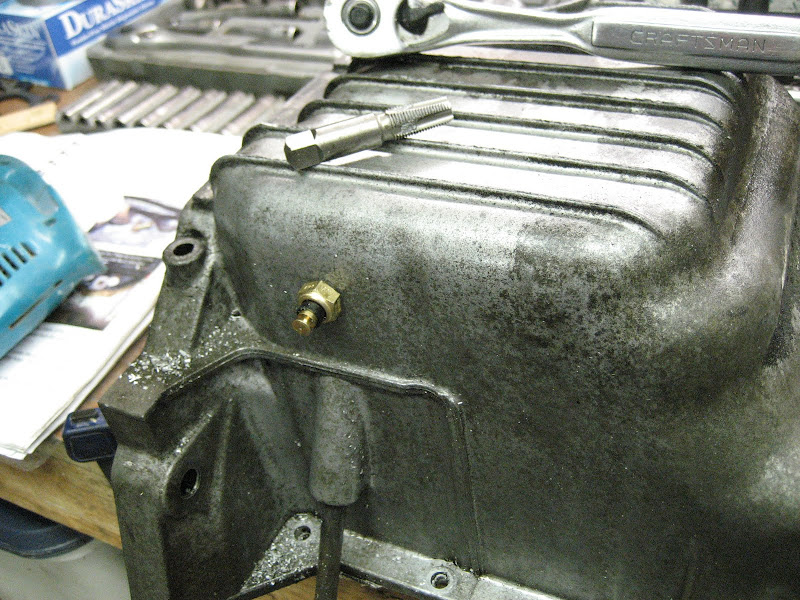

Mine is in the rear driver's side corner of the sump of the oil pan.
Bryce is offline   Reply With Quote
Old 06-28-2010, 03:37 PM   #3
Junior Member
iTrader: (2)

Join Date: Feb 2009
Location: 94401
Posts: 240
Total Cats: -2
Default

Quote:
Originally Posted by bryce View Post
mine is in the rear driver's side corner of the sump of the oil pan.
pics?
proughj is offline   Reply With Quote
Old 06-28-2010, 04:53 PM   #4
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

I'll upload one later today.
Bryce is offline   Reply With Quote
Old 06-28-2010, 05:33 PM   #5
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

That'll be one cookie please.




C
chriscar is offline   Reply With Quote
Old 06-28-2010, 05:56 PM   #6
mkturbo.com
Thread Starter
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,107
Default

Quote:
Originally Posted by chriscar View Post
That'll be one cookie please.
C
Thanks a lot.

shuiend is offline   Reply With Quote
Old 07-01-2010, 02:05 PM   #7
Senior Member
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

I have been throwing around the idea of where to mount my temp sensor and I actually have that same spot marked on the oil pan but havn't had the ***** to drill it yet. Is there anything that interferes in that area once the engine is installed? I was debating on moving it to the other side of the engine to get away from the turbo side which is getting rather crowded with other crap.
Rallas is online now   Reply With Quote
Old 07-01-2010, 04:03 PM   #8
Junior Member

Join Date: Jul 2006
Location: UK
Posts: 157
Total Cats: 0
Default

I bought one of these and fitted the temp sensor in that. Provides plenty of other places to source pressure/turbo feeds from. I have the stock pressure gauge in there, with the pressure sender from this gauge in the stock location to provide firstly accurate engine oil pressure but also to provide an idea of the pressure drop across the oilcooler and oil filter.
slowmx5 is offline   Reply With Quote
Old 07-01-2010, 04:12 PM   #9
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Name:  DSC_0020.jpg
Views: 5
Size:  115.3 KB

Name:  DSC_0022.jpg
Views: 5
Size:  103.9 KB

Name:  DSC_0027.jpg
Views: 5
Size:  59.9 KB

Pardon my blown out whites.
Bryce is offline   Reply With Quote
Old 07-01-2010, 06:37 PM   #10
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Put it on the other side, my DP melts it and on some right turns it reads 300* from bumping into stuffs, lol.
hustler is offline   Reply With Quote
Old 07-01-2010, 06:41 PM   #11
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by slowmx5 View Post
I bought one of these and fitted the temp sensor in that. Provides plenty of other places to source pressure/turbo feeds from. I have the stock pressure gauge in there, with the pressure sender from this gauge in the stock location to provide firstly accurate engine oil pressure but also to provide an idea of the pressure drop across the oilcooler and oil filter.
Its a decent idea but you want to make sure you get oil temp from the "feed" side of the oil filter deck because we're interested in the temp of the oil in the pan, not the **** that just went through the cooler.

Well, I'm interested in the temp from the cooler, but that's what temp-strips are for. ...which brings me to another concept, if we use a temp strip to determine oil temp in lets say the blazing summer, do we really need an oil temp gauge? I may pull that oil temp gauge out and replace it with teh EGT gauge after all this time.
hustler is offline   Reply With Quote
Old 07-01-2010, 07:07 PM   #12
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Your DP needs to get a life. This is the same oil temp sensor that has been in a motor making over 500hp. It has also seen heavy track use. Maybe your DP is closer?
