Old 01-04-2016, 05:03 PM   #81
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

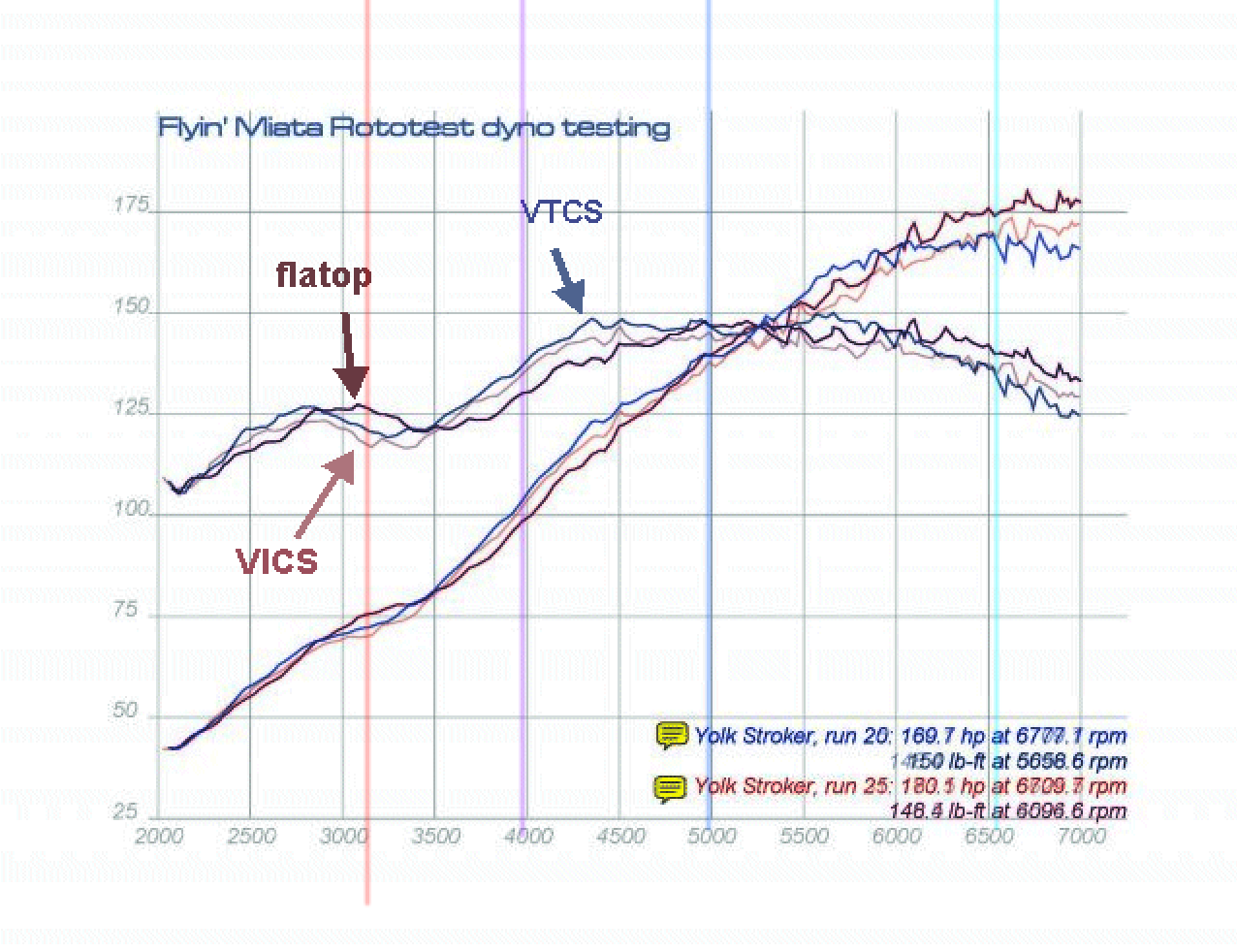

Keith found a document with the cam spec in it. I plugged it into my spreadsheet and now the numbers make a little more sense:





So for the square top, read left to right, this is 6th wave through third wave. Waves 5 and 6 ought to be pretty weak so I think wave 5 not being on the dyno chart isn't necessarily conflicting. Many miata dyno sheets have a torque hole here. Anyone know why? Otherwise, this correlates pretty closely. It actually looks even closer if you go to a 11.5" runner prediction. You can also change the air temp by about 5 degrees to make it closer, and runner taper isn't factored in correctly. If I keep finding good results I will clean up the spreadsheet and turn it into a public doc.
Attached Thumbnails
Thread for naturally aspirated manifold design-80-5crwyr3_f922cbcd4dfa802194c262c8c9d0a4b79c3053c4.png

Last edited by asmasm; 01-04-2016 at 05:17 PM.
asmasm is offline   Reply With Quote
Old 01-04-2016, 06:48 PM   #82
ʎpunq qoq

Join Date: Jan 2014
Location: Western Australia
Posts: 502
Total Cats: 100
Default

Quote:
Originally Posted by vteckiller2000 View Post
He posted in his thread about some hilariously big 315+ degree cams.
Mine are actually slightly less crazy at 310 degrees. The skunk2 manifold is cut on a bit of an angle so it would be right on 8".

I think harmonic calcs become very fluid the higher the revs with lots of variables like intake length, how smooth the runners are and pressure waves bouncing all over the place. They probably all combine to move the harmonics up or down a bit on the rev range. Thats why there is so much trial an error with intake manifolds.
Madjak is offline   Reply With Quote
Old 01-04-2016, 11:24 PM   #83
Senior Member
iTrader: (4)

Join Date: May 2010
Location: Cedar Rapids
Posts: 673
Total Cats: 29
Default

Quote:
Originally Posted by Madjak View Post
Mine are actually slightly less crazy at 310 degrees. The skunk2 manifold is cut on a bit of an angle so it would be right on 8".

I think harmonic calcs become very fluid the higher the revs with lots of variables like intake length, how smooth the runners are and pressure waves bouncing all over the place. They probably all combine to move the harmonics up or down a bit on the rev range. Thats why there is so much trial an error with intake manifolds.
I agree. The fluidity of what is going on in there plus differences between cars and setups is why I am just going to try it myself and see what happens.

Soon we shall see the true result of the S2 Ultra Street manifold on a full bolt on BP5A.
vteckiller2000 is offline   Reply With Quote
Old 01-04-2016, 11:34 PM   #84
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

Please post that dyno sheet in here when you do. That will be useful info.
asmasm is offline   Reply With Quote
Old 01-04-2016, 11:35 PM   #85
ʎpunq qoq

Join Date: Jan 2014
Location: Western Australia
Posts: 502
Total Cats: 100
Default

Quote:
Originally Posted by vteckiller2000 View Post
Soon we shall see the true result of the S2 Ultra Street manifold on a full bolt on BP5A.
Awesome... I can't wait to see how it goes. How much the engine gains will depend on where the bottlenecks are. I have no idea what the result will be!

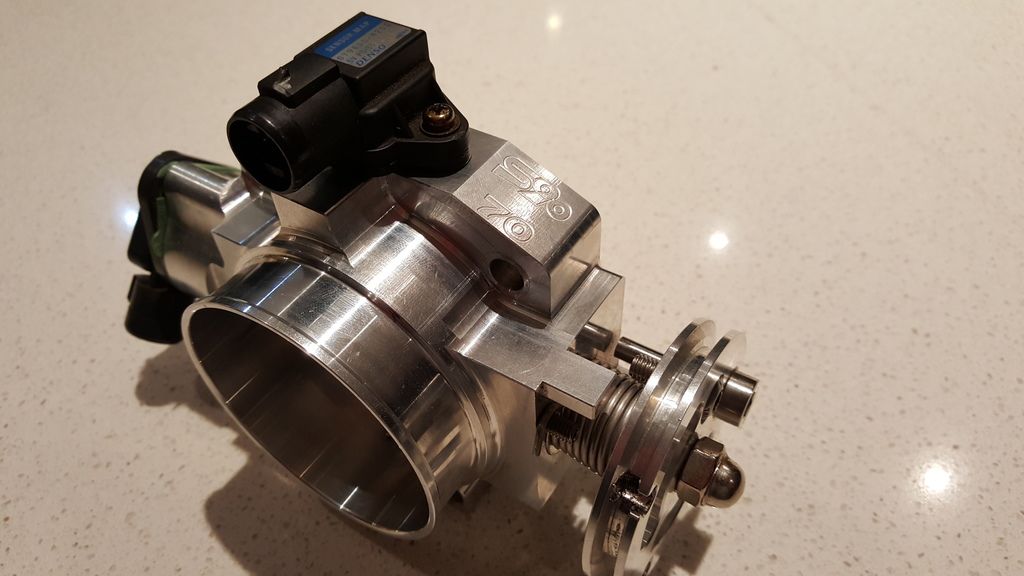

BTW, I had issues with the S2 throttle body. It is a common issue among the Honda guys where the bracket connecting the TPS to the throttle comes loose or fails entirely. If you run the S2 thottle body, make sure you locktight the tiny bolt that holds it all together. I found a S90 70mm throttle body on ebay for $70 and that is 1000 times better.

Attached Thumbnails
Thread for naturally aspirated manifold design-80-20151217_195042_zpszyggk2fh_052a96f7a7e4109dc6ad9bface53f208047c6cee.jpg
Madjak is offline   Reply With Quote
Old 01-04-2016, 11:44 PM   #86
Senior Member
iTrader: (4)

Join Date: May 2010
Location: Cedar Rapids
Posts: 673
Total Cats: 29
Default

Quote:
Originally Posted by Madjak View Post
Awesome... I can't wait to see how it goes. How much the engine gains will depend on where the bottlenecks are. I have no idea what the result will be!

BTW, I had issues with the S2 throttle body. It is a common issue among the Honda guys where the bracket connecting the TPS to the throttle comes loose or fails entirely. If you run the S2 thottle body, make sure you locktight the tiny bolt that holds it all together. I found a S90 70mm throttle body on ebay for $70 and that is 1000 times better.
Hopefully I won't have any of those issues. To be fair, I am going to try to run the Miata specific 64mm throttle body. It has been installed for about 1500 miles already with no issues. I have to run the miata throttle body since I am still using the stock ECU and idle motor. I will run an adapter though so I can use the larger Honda TB if I need to later.
vteckiller2000 is offline   Reply With Quote
Old 01-04-2016, 11:57 PM   #87
ʎpunq qoq

Join Date: Jan 2014
Location: Western Australia
Posts: 502
Total Cats: 100
Default

Does the S2 Miata thottle body run a similar screwed in plate to connect the TPS to the throttle shaft? I would have a look and loctite it in just to be safe. I think my issue might have been related to the lumpy idle and very high revs I pull shaking the throttle body apart.

Either way the S90 70mm is what I'd recommend to anyone looking to buy a throttle body, even for a stock miata intake. It's just build so much nicer than the S2 and a simple conversion plate would fit it to any manifold.
Madjak is offline   Reply With Quote
Old 01-05-2016, 12:00 AM   #88
Senior Member
iTrader: (4)

Join Date: May 2010
Location: Cedar Rapids
Posts: 673
Total Cats: 29
Default

Quote:
Originally Posted by Madjak View Post
Does the S2 Miata thottle body run a similar screwed in plate to connect the TPS to the throttle shaft? I would have a look and loctite it in just to be safe. I think my issue might have been related to the lumpy idle and very high revs I pull shaking the throttle body apart.

Either way the S90 70mm is what I'd recommend to anyone looking to buy a throttle body, even for a stock miata intake. It's just build so much nicer than the S2 and a simple conversion plate would fit it to any manifold.
It has a screwed on adapter plate for the Idle motor, not the TPS.

Sorry for the threadjack OP, thought some of this may be relevant and useful.
vteckiller2000 is offline   Reply With Quote
Old 01-05-2016, 12:11 AM   #89
ʎpunq qoq

Join Date: Jan 2014
Location: Western Australia
Posts: 502
Total Cats: 100
Default

yeah sorry OP... back on topic!

It might be worth having a look at ITB dynos, specifically different length trumpets. Since there is no plenum I think the harmonics should be closer to the calcs.

https://www.miataturbo.net/engine-pe...5/#post1267655

I think Emilio said Taxi was running around 9 - 9.5" runners(trumpets to head)... which should give peaks at 4000, 5000, 6750 which is pretty close to the actual dyno results, at least the bottom two anyway.
Madjak is offline   Reply With Quote
Old 01-05-2016, 08:29 PM   #90
Junior Member

Join Date: Jan 2015
Posts: 272
Total Cats: -22
Default

Zzz

Last edited by Alternative; 01-05-2016 at 08:57 PM. Reason: Junk
Alternative is offline   Reply With Quote
Old 01-05-2016, 08:31 PM   #91
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

I think you're in the wrong thread.
aidandj is offline   Reply With Quote
Old 01-19-2016, 09:42 AM   #92
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

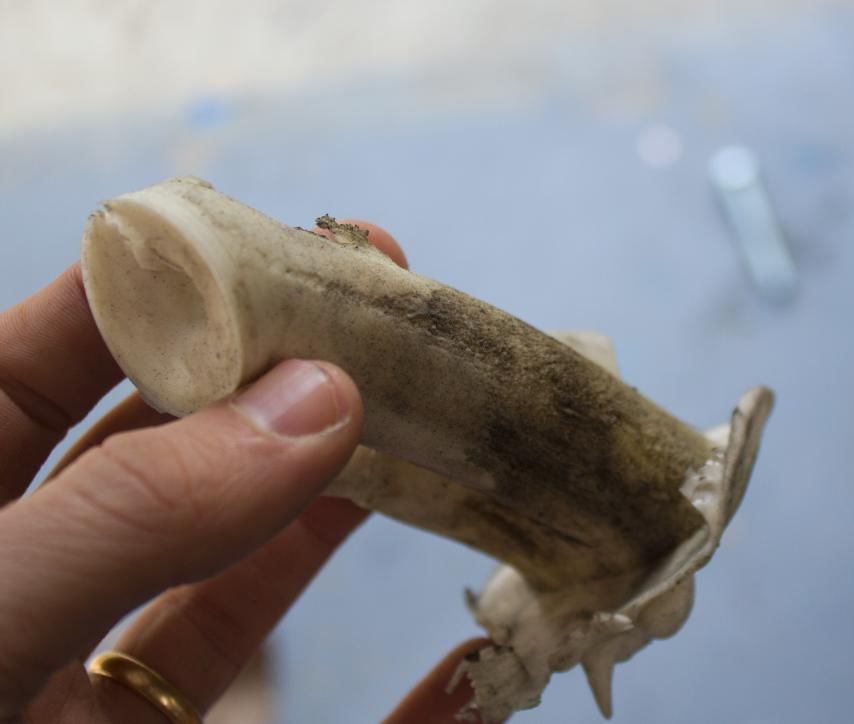

Silicone cast of intake ports:

Attached Thumbnails
Thread for naturally aspirated manifold design-80-y0iertg_d44f91f4cf9f0dc328379cdd27583bbd9acb2123.jpg
asmasm is offline   Reply With Quote
Old 01-19-2016, 09:05 PM   #93
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Looks like an innovative way to clean your intake runners!
stefanst is offline   Reply With Quote
Old 01-19-2016, 09:11 PM   #94
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

Any time I have extra mixed silicone rubber I pour it onto workbench surfaces- It does a really good job of cleaning up crap that would be difficult to get with a vacuum.

Last edited by asmasm; 01-19-2016 at 11:09 PM.
asmasm is offline   Reply With Quote
