Old 07-24-2014, 11:19 PM   #61
Junior Member

Join Date: Oct 2010
Location: Montréal, Qc
Posts: 62
Total Cats: 8
Default

I wanted to add my 2 cents here... as you can see, earlier in this thread I posted about my fear of the blanket. I've been running a blanket on my TD04 since day one but it was mostly street use.

It turns out, after a couple of lapping sessions, the car started to smoke really bad on idle (blue smoke)... no issue on boost. And when I say really bad, it was really bad.

After a bit of troubleshooting (compression test + leakdown) and with the help of this thread I decided to go ahead and rebuild the turbo in a local shop since the engine was looking okay.

Bearings were black. Overheated. A lot. (I suck, I forgot to take pictures)

Looks like my bearings didn't like lapping session with the blanket on.

No longer smoke on idle since I installed the rebuilt turbo.

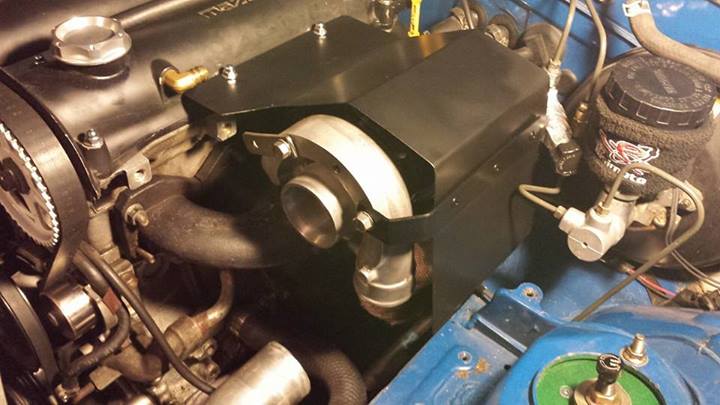

Made a heatshield to replace the blanket.

So I learned, blanket for street use. Heatshield for track use.
Attached Thumbnails
turbo blankets: beneficial or a burden?-fxtdkfx.jpg
PaCHeKo! is offline   Reply With Quote
Old 07-25-2014, 11:24 AM   #62
Junior Member
iTrader: (5)

Join Date: Mar 2010
Location: Houston
Posts: 370
Total Cats: 62
Default

Quote:
Originally Posted by PaCHeKo! View Post
I wanted to add my 2 cents here... as you can see, earlier in this thread I posted about my fear of the blanket. I've been running a blanket on my TD04 since day one but it was mostly street use.

It turns out, after a couple of lapping sessions, the car started to smoke really bad on idle (blue smoke)... no issue on boost. And when I say really bad, it was really bad.

After a bit of troubleshooting (compression test + leakdown) and with the help of this thread I decided to go ahead and rebuild the turbo in a local shop since the engine was looking okay.

Bearings were black. Overheated. A lot. (I suck, I forgot to take pictures)

Looks like my bearings didn't like lapping session with the blanket on.

No longer smoke on idle since I installed the rebuilt turbo.

Made a heatshield to replace the blanket.

So I learned, blanket for street use. Heatshield for track use.
I like your heat shield, just leave it that way.
hankclaussen is offline   Reply With Quote
Old 07-25-2014, 06:35 PM   #63
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

Heat shield period. If track car, nothing else over there to fry but maybe the mixing manifold anyway. And hood vents. If I use a blanket at all it will be over the brake and clutch masters. Except not because brake fluid is horrible flammable caustic crap and a spongy blanket of it catching fire right by an open driver's side window is not a fun exit drill. It would probably be slightly worse than dripping brake fluid down the firewall and catching it of the exhaust under the car.

Shield plus vents wins because it does not fry the turbo (helps it) and it protects all the other stuff in there and lowers the overall temps. Evo's are setup this way from the factory.
Sparetire is offline   Reply With Quote
Old 07-26-2014, 09:57 AM   #64
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,684
Total Cats: 1,562
Default

The rubber heater/coolant hoses will get brittle and fail, too.
sixshooter is online now   Reply With Quote
Old 07-26-2014, 12:19 PM   #65
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,705
Total Cats: 269
Default

Quote:
Originally Posted by sixshooter View Post
The rubber heater/coolant hoses will get brittle and fail, too.
Is it a recommended practice to switch to silicone hoses?
DNMakinson is offline   Reply With Quote
Old 07-26-2014, 12:34 PM   #66
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 499
Total Cats: 48
Default

I couldn't find a silicone heater hose for the nb. So I just wrapped them in a lava heat wrap.
BlackBandit is offline   Reply With Quote
Old 07-26-2014, 01:13 PM   #67
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,855
Total Cats: 272
Default

Ehh, interesting to find this thread.

I currently have my turbo exhaust housing in a PTP Blanket with begi downpipe wrapped in the lava heat wrap.

It DOES cut down on heat, but it also holds in that heat on the turbine. I've noticed I have been leaking oil from my compressor side, not sure on the exhaust but I wouldn't doubt it.
Girz0r is offline   Reply With Quote
Old 07-27-2014, 10:21 PM   #68
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by BlackBandit View Post
I couldn't find a silicone heater hose for the nb. So I just wrapped them in a lava heat wrap.
I just put fire sleeve over mine, which did require disconnecting it on one end to slide the sleeve on.
Leafy is offline   Reply With Quote
Old 07-28-2014, 12:42 PM   #69
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by BlackBandit View Post
I couldn't find a silicone heater hose for the nb. So I just wrapped them in a lava heat wrap.
The Mishimoto 94-97 silicone heater hoses fit and work perfectly in an NB, ask me how I know.
EO2K is offline   Reply With Quote
