Old 03-13-2018, 09:28 AM   #21
Newb

Join Date: Oct 2012
Location: Sioux Falls SD
Posts: 37
Total Cats: 3
Default

How late did you end up staying at the shop last night?
blackdbl9NB is offline   Reply With Quote
Old 03-13-2018, 10:42 AM   #22
Junior Member
Thread Starter

Join Date: Nov 2015
Location: Sioux Falls, South Dakota
Posts: 78
Total Cats: 15
Default

About 11pm. I'm thinking about taking a few days off to hammer out a majority of the work once I get the wiring harness and the rest of the goodies.
dickamusmaxamus is offline   Reply With Quote
Old 03-13-2018, 11:34 AM   #23
Junior Member

Join Date: Feb 2016
Location: Panama City Beach, FL
Posts: 100
Total Cats: 24
Default

I'd love to know the weights on the subframes.
MrJon is offline   Reply With Quote
Old 03-13-2018, 07:48 PM   #24
Junior Member
iTrader: (30)

Join Date: Jul 2011
Location: Chandler, AZ
Posts: 430
Total Cats: -11
Default

Nice build so far, picking up all the goodies.

What kind of numbers are you hoping for?
Silentoreo34 is offline   Reply With Quote
Old 03-13-2018, 10:49 PM   #25
Junior Member
Thread Starter

Join Date: Nov 2015
Location: Sioux Falls, South Dakota
Posts: 78
Total Cats: 15
Default

Hooooping for 220-230whp. Hoping.
dickamusmaxamus is offline   Reply With Quote
Old 03-13-2018, 11:58 PM   #26
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,816
Total Cats: 245
Default

Quote:
Originally Posted by dickamusmaxamus View Post
Hooooping for 220-230whp. Hoping.
Pretty typical dynojet numbers for that engine with good bolt-ons and a tune. A bit of it is in the header, a bit more in dialing in the VCT.
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-14-2018, 10:05 AM   #27
Junior Member
Thread Starter

Join Date: Nov 2015
Location: Sioux Falls, South Dakota
Posts: 78
Total Cats: 15
Default

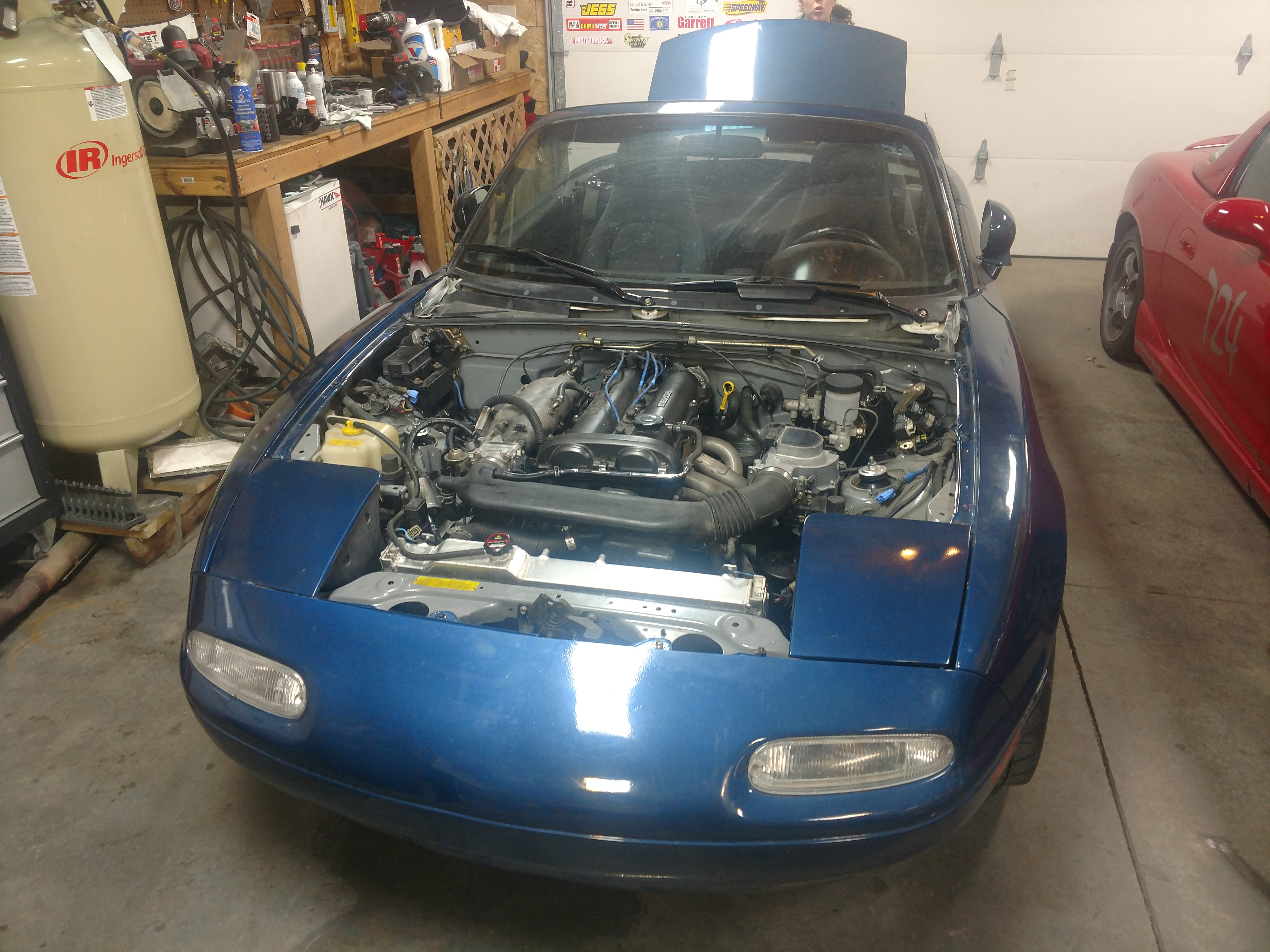

Front Suspension bolted up.



New NB steering rack kinda half fitted. My new one was missing bolts and the new subframe has a larger bolt requirement than the old subframe.

For somebody who's never really worked on cars before, seeing the steering wheel move the wheels again made me cheese out pretty hard haha.
dickamusmaxamus is offline   Reply With Quote
Old 03-20-2018, 11:49 PM   #28
Junior Member
Thread Starter

Join Date: Nov 2015
Location: Sioux Falls, South Dakota
Posts: 78
Total Cats: 15
Default

Lesson learned. If it sounds too good to be true, it almost certainly is.
Fortunately I've got great friends, and with blackdbl9NB's help the car now has a new temporary home while we finish it.
dickamusmaxamus is offline   Reply With Quote
Old 03-21-2018, 02:14 PM   #29
Newb

Join Date: Oct 2012
Location: Sioux Falls SD
Posts: 37
Total Cats: 3
Default

Should I post embarrassing pics of your car with PRTSCAR's hard top on?
blackdbl9NB is offline   Reply With Quote
Old 03-21-2018, 02:27 PM   #30
Junior Member
Thread Starter

Join Date: Nov 2015
Location: Sioux Falls, South Dakota
Posts: 78
Total Cats: 15
Default

Lol, yeah G0cart 2.0 in a bit of a depressing state right now. Full of gofast parts, no fenders, no bumper, missmatched HT. Ugh....





At least it's in good company.
dickamusmaxamus is offline   Reply With Quote
Old 03-26-2018, 09:34 AM   #31
Newb

Join Date: Oct 2012
Location: Sioux Falls SD
Posts: 37
Total Cats: 3
Default



I call this one: **** you South Dakota!
blackdbl9NB is offline   Reply With Quote
Old 03-26-2018, 11:59 AM   #32
Junior Member

Join Date: Mar 2015
Location: Columbus Indiana
Posts: 149
Total Cats: 65
Default

I was going to school in Rapid City during the October 2013 blizzard, that was an experience I will never forget. Glad I don't have to deal with that anymore. Yes, SD winters suck.
cal_len1 is offline   Reply With Quote
Old 03-30-2018, 09:44 AM   #33
Newb

Join Date: Oct 2012
Location: Sioux Falls SD
Posts: 37
Total Cats: 3
Default



Hey, this means we can stop screwing around with my stuff and get to working on yours.
blackdbl9NB is offline   Reply With Quote
Old 03-31-2018, 08:05 PM   #34
Junior Member
Thread Starter

Join Date: Nov 2015
Location: Sioux Falls, South Dakota
Posts: 78
Total Cats: 15
Default


Got the motor back up on a stand today.
Pulling the crank was a massive PITA. It was seized up on there hard and required a lot of lube and patience to pull.




VTC Cam gear swapped out. The bolt on this one wasn't quite as bad but was still on there pretty good. Very straight forward to swap on. One bolt, swap on and off. Even I could figure that one out.



Spent about an hour pissing around trying to get that little piece out so we could get that bolt in.




But we got it.
Unfortunately this is where we ran into a bit of an issue. I had all the components for the oil pump swap except it would seem the replacement wind-age tray.
Now to be fair, I was forced to move my car mid-swap, and I'm in a new garage so it's entirely possible something got left behind, but for the life of me I don't remember seeing the piece in the kit, an in one of the very first photos posted where I had all the parts together, I don't see it.
I've contacted KMiata and I'm sure we'll figure it out, I'm not too worried about it.




That oil pan is a proper work of art.


More oil-****.
Guess which dumbass forgot to drain the old oilpan before flipping the motor.... -_-
Can you tell I've never done this before.




Feels very good to make progress on this again. Can't wait to get the motor bolted back together.
While we figure out the windage tray situation, I'll be moving onto fuel, and the diff swap.
dickamusmaxamus is offline   Reply With Quote
Old 04-05-2018, 12:01 PM   #35
Junior Member
Thread Starter

Join Date: Nov 2015
Location: Sioux Falls, South Dakota
Posts: 78
Total Cats: 15
Default

My only suggestion would be putting the paper stickers not in the oil pan, but it wasn't anything some brake cleaner didn't quickly fix.
Loose fitting the TracTuff RBC/RBB Water Bypass Adapter.
Fiddled with the oil pump/adapter for a while. Like a moron I put them together dry, and they just would not move like I thought they should.

Took everything apart, threw some motor oil in there, and things started to move like it seemed like they should.

Picked up the new windage tray, and got the new oil pump bolted up and torqued down.
Starting to come back together.
Timed the motor, re-installed the new chain tensioner, and bolted the timing chain back up following the instructions on the following video on their youtube channel.

dickamusmaxamus is offline   Reply With Quote
Old 04-06-2018, 09:14 AM   #36
Newb

Join Date: Oct 2012
Location: Sioux Falls SD
Posts: 37
Total Cats: 3
Default

DIcky will update, but I wanted to post a couple of pics for him.







blackdbl9NB is offline   Reply With Quote
Old 04-06-2018, 11:23 AM   #37
Junior Member
Thread Starter

Join Date: Nov 2015
Location: Sioux Falls, South Dakota
Posts: 78
Total Cats: 15
Default

Last night was another successful night.
Don't really have much to add picture wise, but the bay and transmission was cleaned, car was put up on jacks, wheels are off, and we started the major work on the car.
Things move pretty quickly when you have 3 extremely knowledgeable people helping you pull things apart.

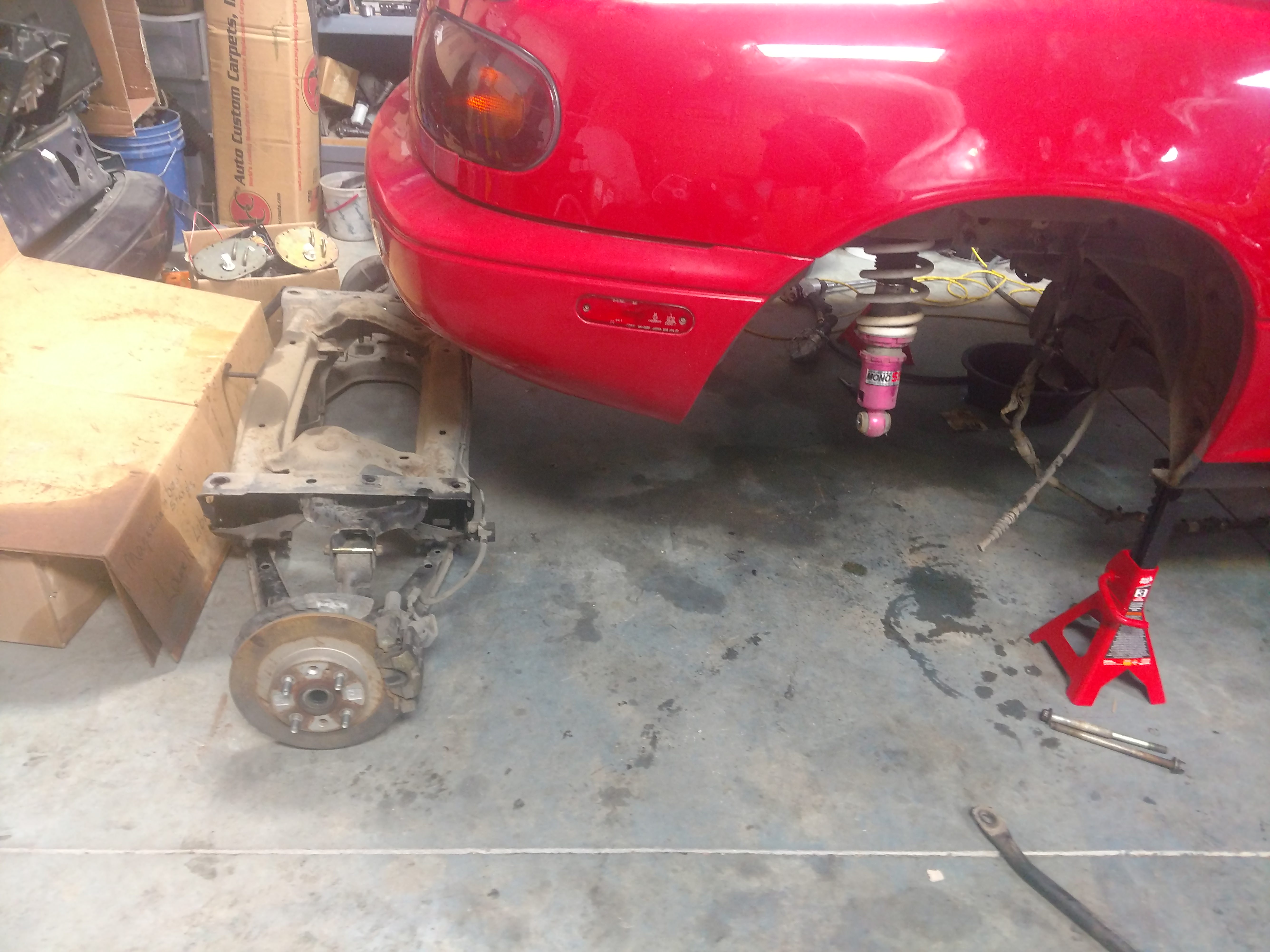

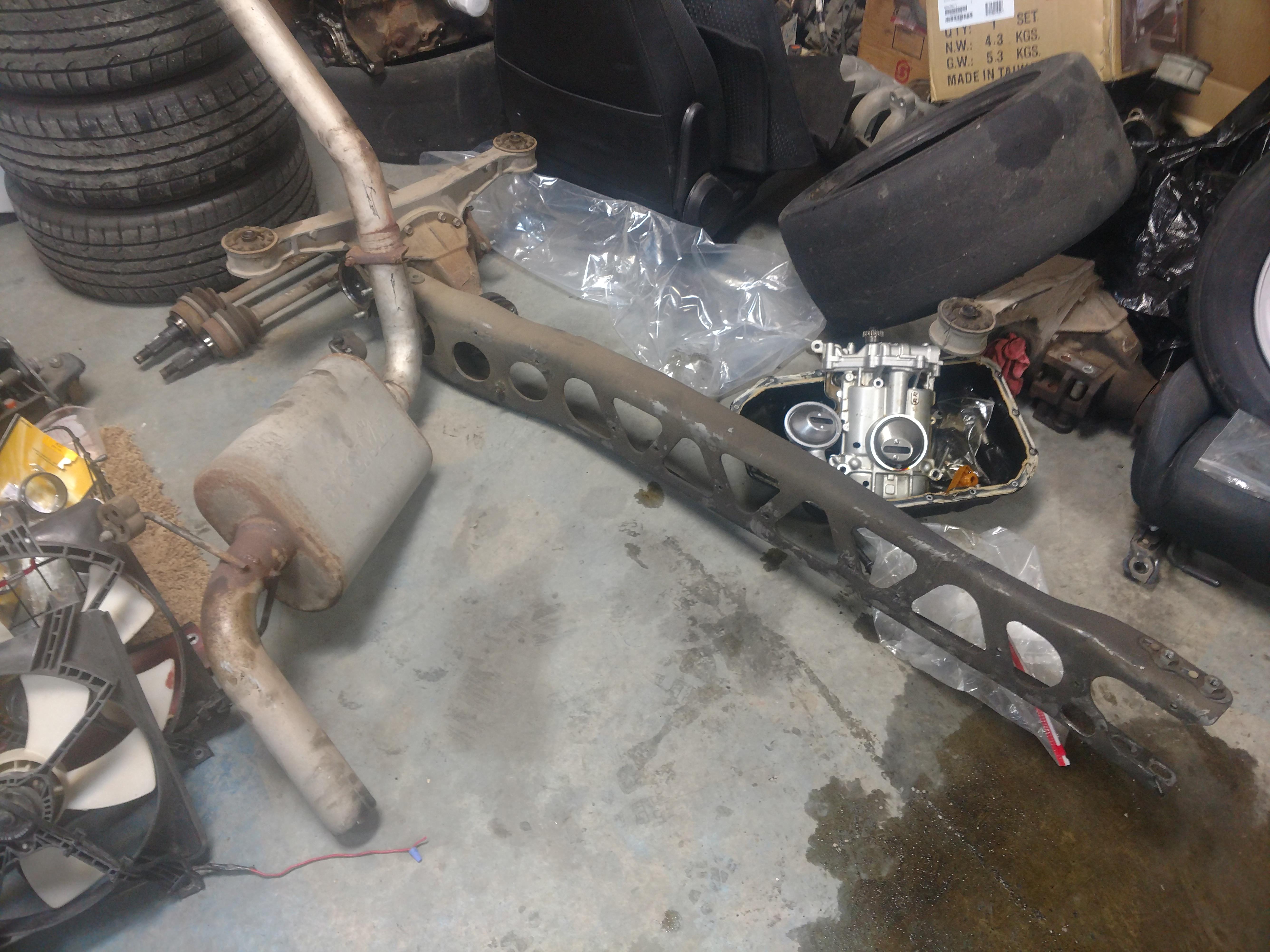

  • Got the rear subframe dropped, PPF and diff removed so the diff can be swapped for a Torsen unit I purchased.
  • Getting ready to drain and drop (the almost full) gas tank so we can start looking at removing the old lines.
  • Getting ready to install the new line that runs down the driver side of the trans tunnel installed.
  • Pulled the fuel pump and stripped the **** out of that little shitty Phillips screw that holds the base of the pump. Not entirely sure what to do about that.
Purchased:
  • Tie rod ends
  • Rear axles
  • Re-manufactured K24a2 alternator
  • Re-manufactured K24a2 starter
Found that more parts are missing since I swapped garages. Ugh. Missing half the clutch.
I should also mention that I reached out to David at Kmiata, and requested he check on his end to see if there may have been a mix up with the missing windage tray. He verified that it should have gone out, but if I thought it wasn't delivered with the kit he would gladly replace the unit.
Considering the hasty move from garage to garage, there's no way I can put the missing part on David, so I pony'd up the 30 bucks, called it a cheap lesson and got myself another one. Top service from David as per the usual.
No word from Wire-worx on the wiring harness, but I'm assuming that should be getting shipped out fairly soon.

I'll break out all the costs at the end, but I've now broken well into the 11k barrier on the swap. However, considering I'm doing so much general maintenance that NEEDED to be done, I'm not in the least bit upset about how much I've spent.
  • Tie Rod ends: 13.38 x2 = $26.76
  • k24a2 Starter motor: $141.79
  • k24a2 Alternator $71.89
  • Shipping 14.00
  • Axles 63.00 x2 = $126
Total: $378.44

Last edited by dickamusmaxamus; 04-06-2018 at 11:42 AM.
dickamusmaxamus is offline   Reply With Quote
Old 04-09-2018, 09:47 AM   #38
Junior Member
Thread Starter

Join Date: Nov 2015
Location: Sioux Falls, South Dakota
Posts: 78
Total Cats: 15
Default

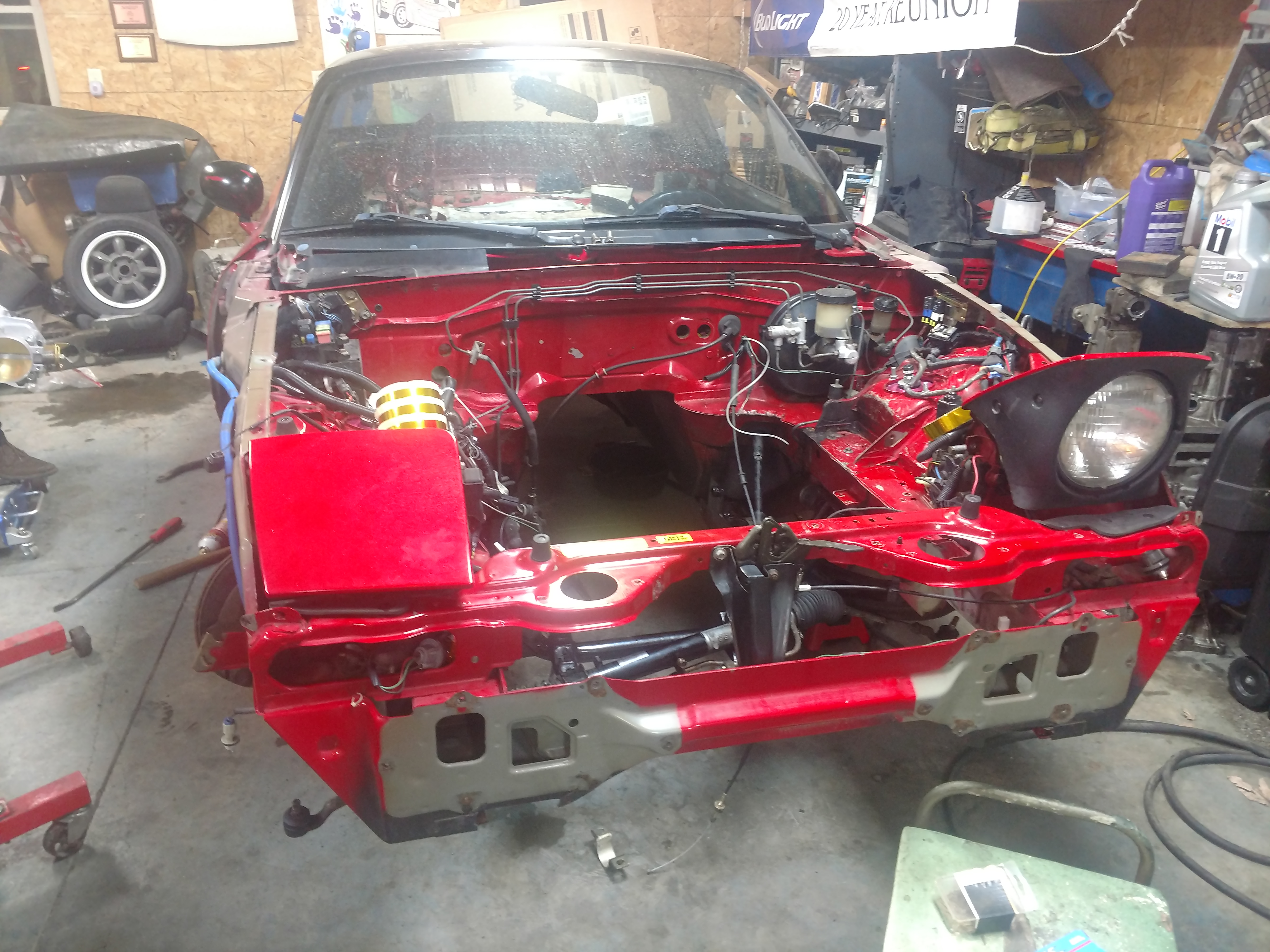

Plugging away at what I can while I wait for parts. Starting on the more interesting piece of this build, which involves swapping the now single fuel line to the driver side frame rail.

In case you haven't noticed, the intake/exhaust manifolds are flipped on the K series motor, which leaves you with your fuel lines feeding the exhaust manifold side of the car.
Occasionally what I've seen for fuel delivery involves a -6AN fuel fitting on the stock line in it's stock location, and running a stainless steel line all the way around the back of the firewall, to the regulator, then to the rail.

This option sketches me right the **** out, because if the fitting on the stock fuel line fails you're spraying fuel directly on the exhaust manifold. The following pic of an Ecotech swap shows some of the stuff I've seen.



In the interest of not turning my new toy into a pile of ash, we pulled all the fuel lines, dropped the tank, and started pondering the options.

Effectively what we're going to try and accomplish is moving the entire fuel delivery system over to the driver side.

I didn't like the idea of bending the fuel line over the transmission tunnel, and I didn't like the idea of keeping the stock fuel filter location and running the fuel line up over the diff. In the event that drivetrain were to fail, I don't want the fuel line getting smoked by a driveshaft and potentially starting a fire.
Maybe I'm over thinking this portion of the swap, but that's what we're going to shoot for.

Couple of other things happened yesterday too.
I pulled the nasty *** clutch hydrolics that had likely never been changed and swapped in some shiny new ones.



Got some reflection tape installed on the firewall. Because I'll be running interiorless for the rest of the summer while I figure out how to make my own carpeting, I figured it was a cheap way to keep interior temps down.
Also.... I mean...... look at it.....


Installed the fuel regulator.


And finally, appropriated some Subaru culture. *rips vape*

dickamusmaxamus is offline   Reply With Quote
Old 04-10-2018, 12:45 PM   #39
Junior Member
Thread Starter

Join Date: Nov 2015
Location: Sioux Falls, South Dakota
Posts: 78
Total Cats: 15
Default

Just ordered all the fittings and fuel line for the -6AN delivery. Does anybody know how to get a -6AN fitting on the outlet of the tank? Is there an adapter of some sort, or am I looking at welding a fitting on the end of the tank?
dickamusmaxamus is offline   Reply With Quote
Old 04-10-2018, 02:56 PM   #40
Senior Member
iTrader: (14)

Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 1,426
Total Cats: 67
Default

Emilio just posted some the Vegas build thread: https://www.miataturbo.net/build-thr...-89595/page10/
