Old 02-18-2016, 11:51 PM   #61
Junior Member

slug_dub's Avatar

Join Date: Sep 2010
Location: QLD, 'straya
Posts: 111
Total Cats: 21
Default

Quote:
Originally Posted by Madjak View Post
70mm is getting pretty large for a stock motor though and thats the smallest they make.
I presume you mean direct bolt up to the manifold you're using Madjak, but I see S90 do have a 55mm TB for the Honda Fit/Jazz on their website, is that a possible option for an MX5 inlet mani?
S90 Performance

Being a bit new to owning a built motor (not the same as researching and trying to understand them... owning is the operative word here!) I've begun to worry about the shaft and screw problem. Its a BP05 inlet manifold in my case.

I'm know the motor in my car isn't so hawt and my driving on track so good that 70mm S90 would see any gains, but I would certainly swap for reliability on any level if a stock TB could kill my bits.

Last edited by slug_dub; 02-19-2016 at 12:14 AM. Reason: I mean the plate shaft and screw whups
slug_dub is offline   Reply With Quote
Old 02-18-2016, 11:58 PM   #62
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

Thats stock size, might work.

The issue is the throttle plate screw, or shaft. Not the idle screw.
aidandj is offline   Reply With Quote
Old 02-19-2016, 12:07 AM   #63
ʎpunq qoq

Join Date: Jan 2014
Location: Western Australia
Posts: 502
Total Cats: 100
Default

Quote:
Originally Posted by slug_dub View Post
I presume you mean direct bolt up to the manifold you're using Madjak, but I see S90 do have a 55mm TB for the Honda Fit/Jazz on their website, is that a possible option for an MX5 inlet mani?
S90 Performance

Being a bit new to owning a built motor (not the same as researching and trying to understand them... owning is the operative word here!) I've begun to worry about the idle screw problem. Its a BP05 inlet manifold in my case.

I'm know the motor in my car isn't so hawt and my driving on track so good that 70mm S90 would see any gains, but I would certainly swap for reliability on any level if a stock TB could kill my bits.
Just had a look and s90racing yeah they do make a 55mm... and 68mm also. Whether or not this is a good choice is dependent on your own skills and if you like being a pioneer or not as you'd be moving into new territory. I don't think it's hard to fit any throttle body up to any manifold, it's other issues like throttle cable length, idle control, throttle position sensor that can make it tricky or not depending on how the stars align. Really someone just needs to go and try it and see how hard it is. Or one of the vendors could approach s90 and get them to make an actual solution specific for a miata thats not a compromise either way. If the S2 can be made reliable with the knowledge of what to correct it's still a good option, just out of the box it's not so great.

Personally I think the stock throttle body is fine, but then it would suck to be the one where it's not and you destroy a motor. I ran one for over a year, reving the engine over 8500. I'd be lying to say it's one thing I'm happy not to worry about... but then I have other issues to compensate. Also it's the shaft that fails not the idle adjustment.
Madjak is offline   Reply With Quote
Old 02-19-2016, 12:11 AM   #64
Junior Member

slug_dub's Avatar

Join Date: Sep 2010
Location: QLD, 'straya
Posts: 111
Total Cats: 21
Default

Quote:
Originally Posted by aidandj View Post
Thats stock size, might work.

The issue is the throttle plate screw, or shaft. Not the idle screw.
I did mean the shaft sorry, thanks for the correction. Idle screw on the brain jibbering here about another car.
slug_dub is offline   Reply With Quote
Old 02-19-2016, 12:29 AM   #65
ʎpunq qoq

Join Date: Jan 2014
Location: Western Australia
Posts: 502
Total Cats: 100
Default

Can't find any information online but I guestimate the hole spacing to be at 65mm x 65mm centered around the throttle opening. I think there would be enough meat to drill and tap those hole centres into a stock manifold. It would probably just bolt up.
Madjak is offline   Reply With Quote
Old 02-29-2016, 04:57 PM   #66
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

update on this: we dyno'd the car, immediately ported the IM, and re-dyno'd asap

picked up a few hp

then leaned it out a little bit (12.2->12.5afr) and picked up a few more hp

The biggest power bump was 6500-7000rpm as expected

pics/plots later
18psi is offline   Reply With Quote
Old 02-29-2016, 05:01 PM   #67
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,843
Total Cats: 271
Default

Girz0r is offline   Reply With Quote
Old 03-01-2016, 03:05 AM   #68
Mr Broke Pants
Thread Starter
iTrader: (9)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,599
Total Cats: 30
Default

Ugh. you are such a tease. Where. Are. My. Flapjacks.
thumpetto007 is offline   Reply With Quote
Old 03-01-2016, 09:59 AM   #69
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

on mah phone lolz

I keep forgetting to upload
18psi is offline   Reply With Quote
Old 03-02-2016, 05:58 PM   #70
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 264
Default

Quote:
Originally Posted by 18psi View Post
on mah phone lolz

I keep forgetting to upload
We care not about your failures. Your memory lapses are disturbing our flow of free internet entertainment!
Mobius is offline   Reply With Quote
Old 03-05-2016, 02:06 PM   #71
Senior Member
iTrader: (4)

Join Date: May 2010
Location: Cedar Rapids
Posts: 673
Total Cats: 29
Default

About how far did you port the upper? graph pics?
vteckiller2000 is offline   Reply With Quote
Old 03-05-2016, 03:19 PM   #72
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

How do you tag people in a thread?

@18psi
curly is offline   Reply With Quote
Old 03-05-2016, 03:22 PM   #73
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

#18psi
curly is offline   Reply With Quote
Old 03-05-2016, 03:22 PM   #74
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

curly is offline   Reply With Quote
Old 03-05-2016, 03:22 PM   #75
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

18psi

Ha!
curly is offline   Reply With Quote
Old 03-05-2016, 03:28 PM   #76
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

I texted the pictures to him he will upload them
18psi is offline   Reply With Quote
Old 03-05-2016, 03:47 PM   #77
Senior Member
iTrader: (4)

Join Date: May 2010
Location: Cedar Rapids
Posts: 673
Total Cats: 29
Default

Quote:
Originally Posted by 18psi View Post
I texted the pictures to him he will upload them
Why can't you just post them to the thread?
vteckiller2000 is offline   Reply With Quote
Old 03-05-2016, 04:22 PM   #78
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

Because we are in the garage right now soldering his OEM barometric pressure sensor in to work with the ms3

I'm on my phone
18psi is offline   Reply With Quote
Old 03-05-2016, 07:34 PM   #79
Mr Broke Pants
Thread Starter
iTrader: (9)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,599
Total Cats: 30
Default

^lol

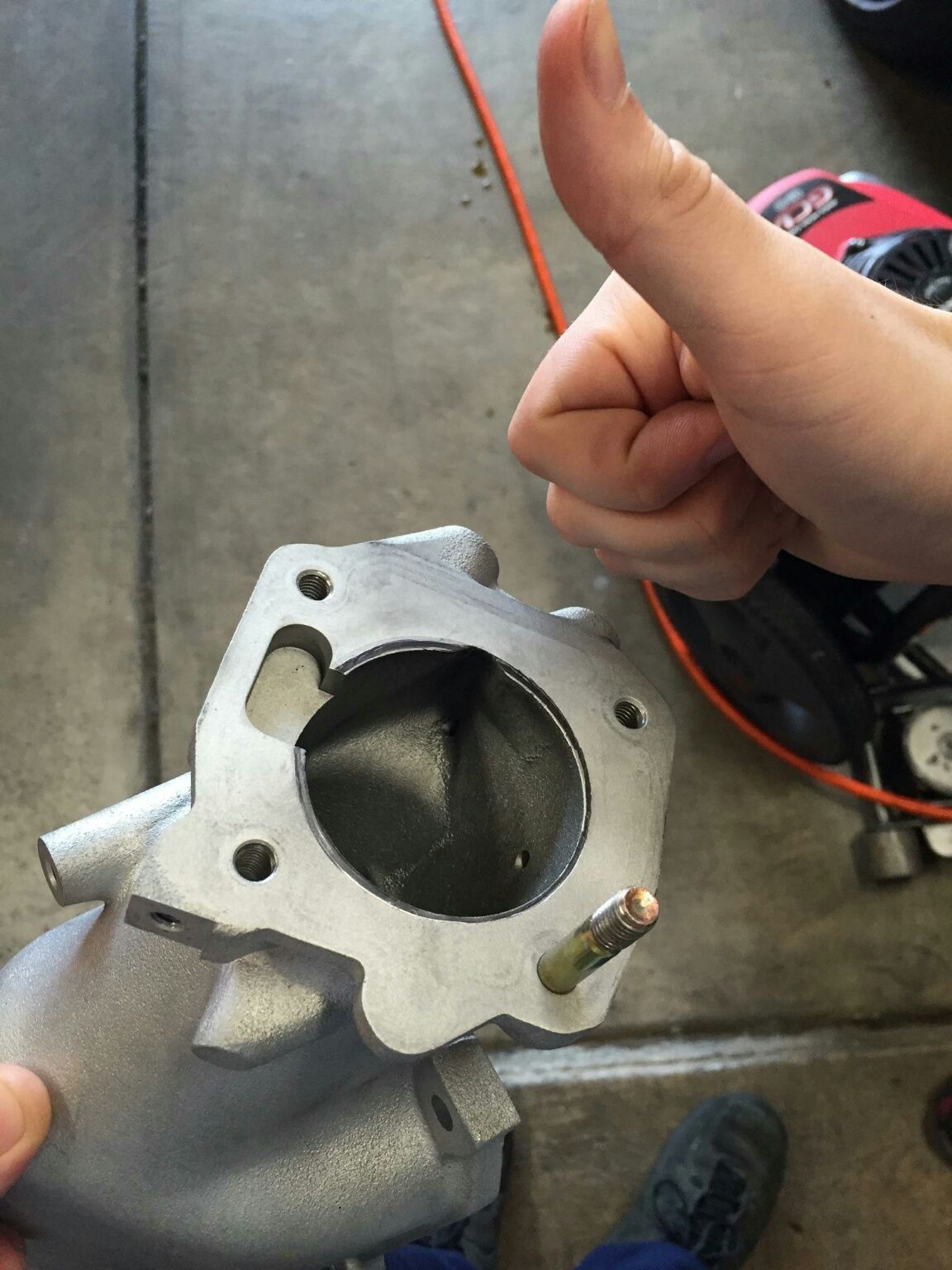

marked up, pre porting

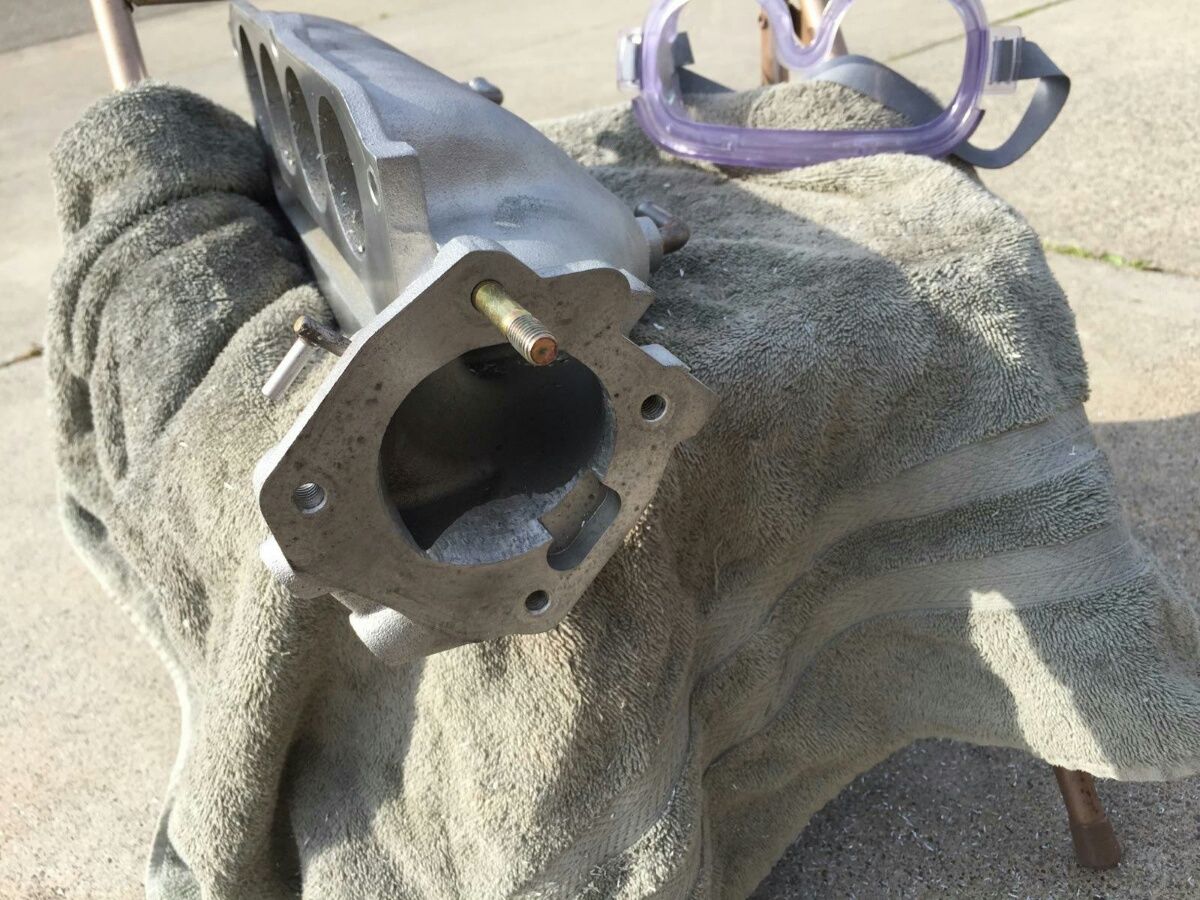

just starting

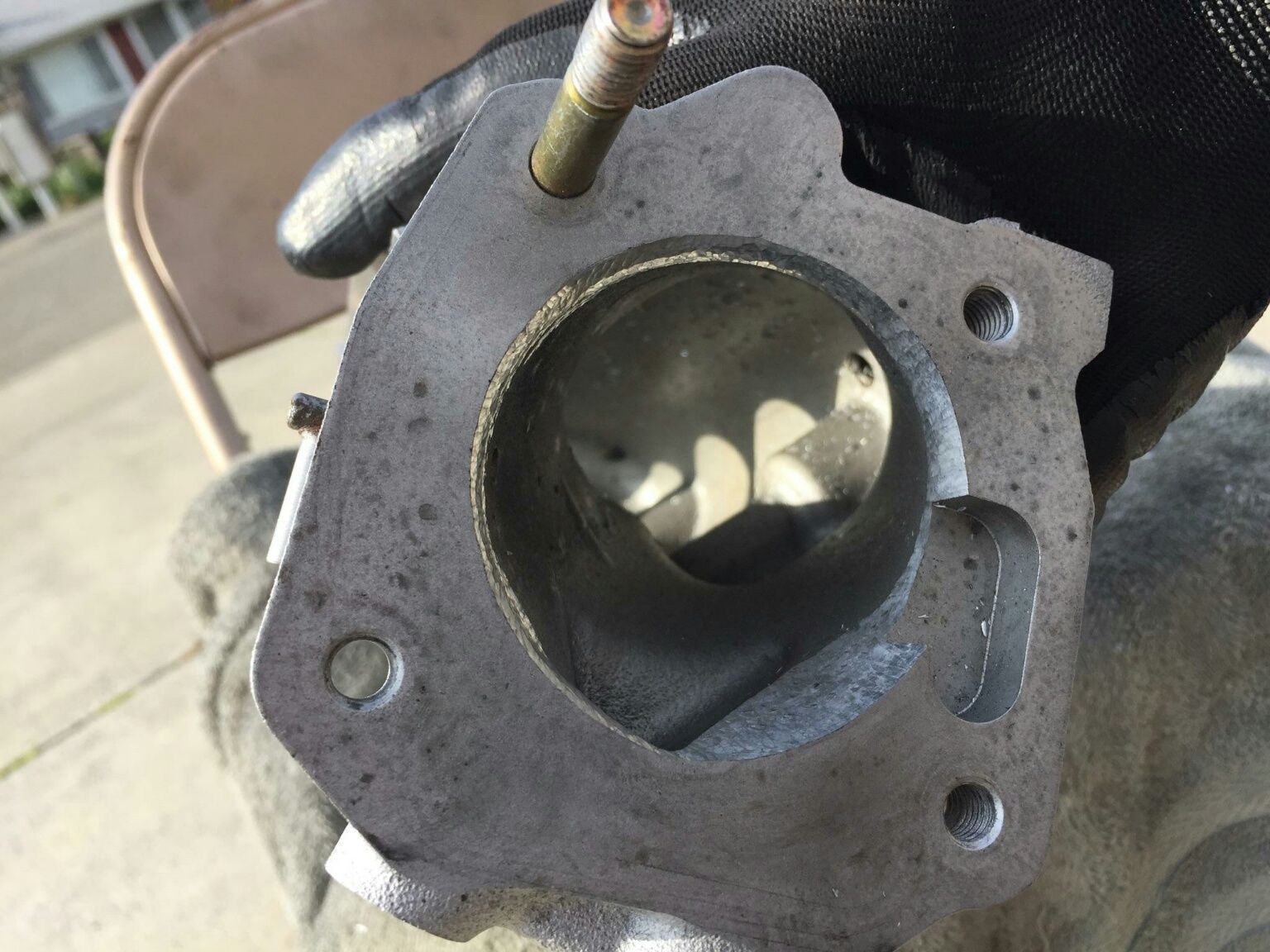

part of the way done

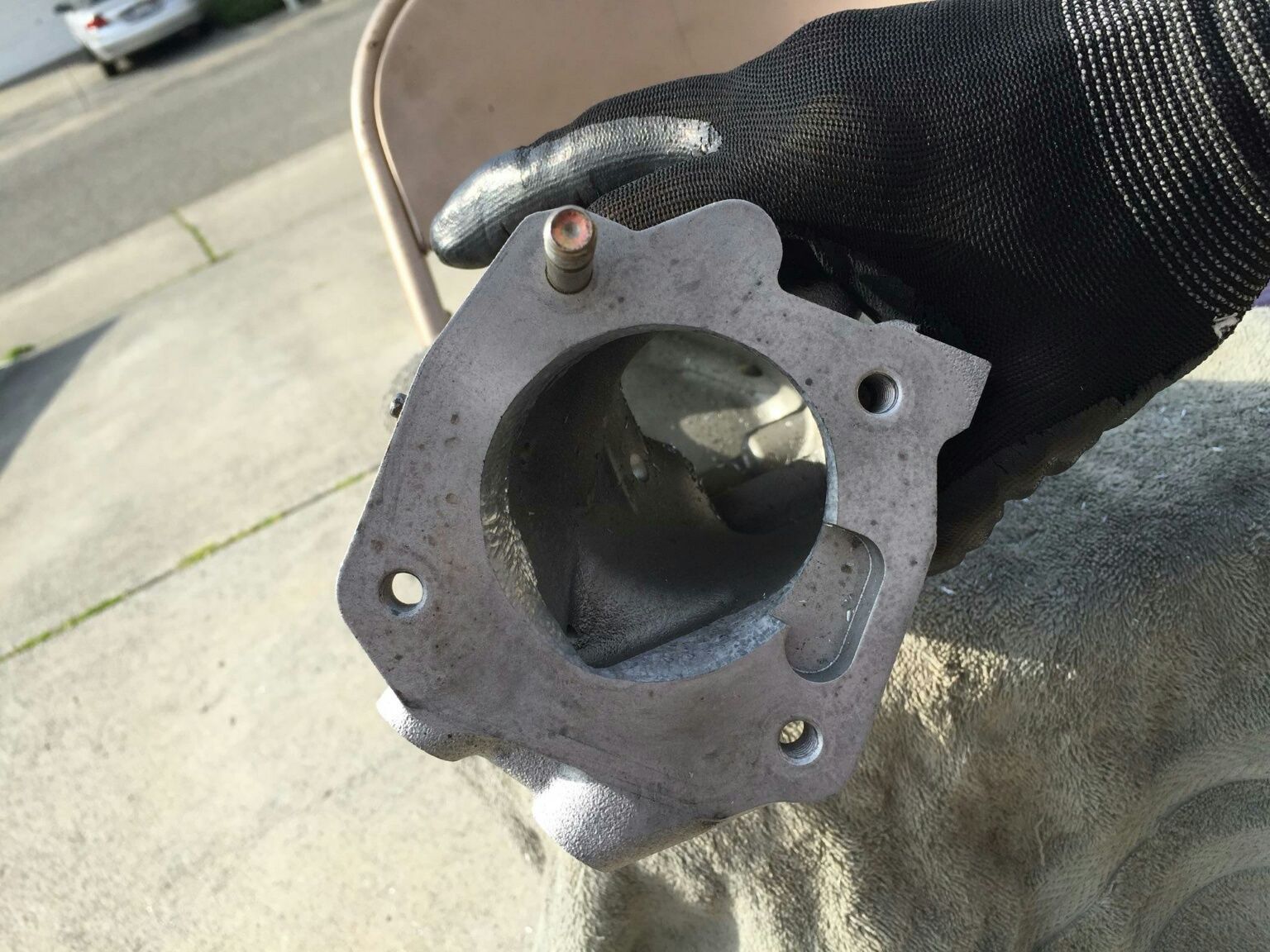

mostly finished
Attached Thumbnails
Would port matching my Skunk2 to FlatTop lose power?-80-img_1917_resized_61cbbc81eca8e971392e5336348b7bba8d714440.jpg   Would port matching my Skunk2 to FlatTop lose power?-80-img955063_resized_64c9ae63433fbd888613751312462591353e47f3.jpg   Would port matching my Skunk2 to FlatTop lose power?-80-img953077_resized_4aa98e3319ebdf0566600037bc722e1565133997.jpg   Would port matching my Skunk2 to FlatTop lose power?-80-img959704_resized_5e381e67dee407474f94f53d3ee45b0186c107c8.jpg
thumpetto007 is offline   Reply With Quote
Old 03-05-2016, 08:51 PM   #80
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

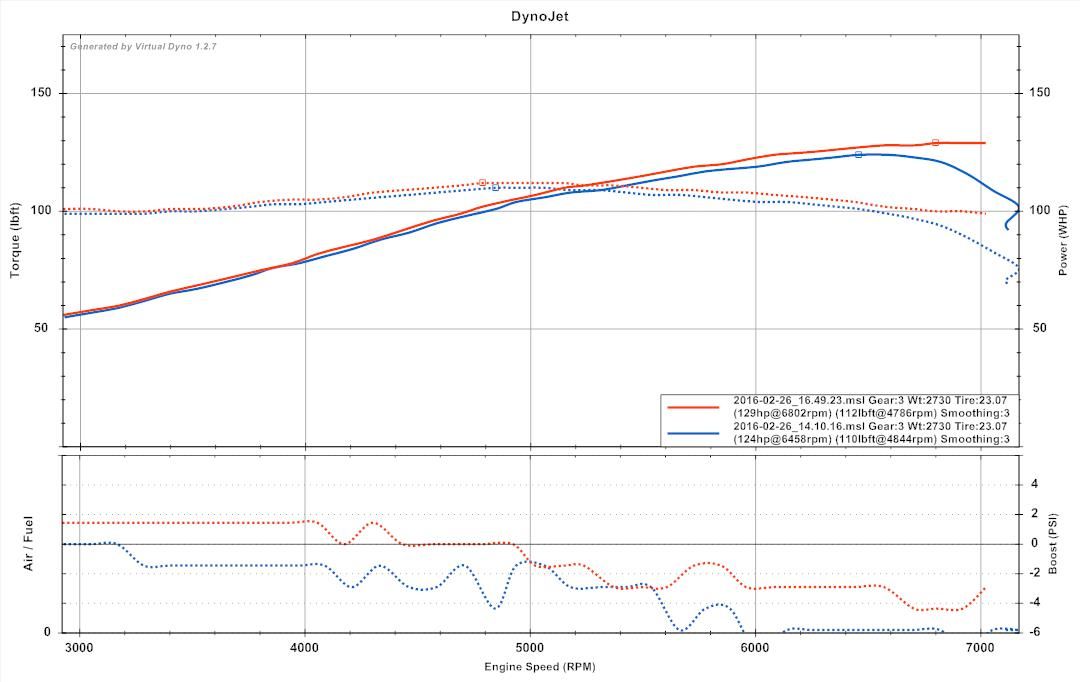

CORRECTED
this is corrected with temp/baro and Air/Fuel is actually displaying MAT
Car picked up power with the porting. Multiple back-to-back runs resulting in these gains.

Attached Thumbnails
Would port matching my Skunk2 to FlatTop lose power?-80-pre_porting_vs_post_porting_plots_38d746a17cd75697ab6674cad24cb60c31e3fc98.jpg

Last edited by 18psi; 03-05-2016 at 09:14 PM.
18psi is offline   Reply With Quote
