Oh, so the very top end was killed by the "step" of a non portmatched IM.

I didn't realize it was that big of a difference. That's huge.
thumpetto007 is online now   Reply With Quote
Old 03-05-2016, 10:58 PM   #82
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

VD?
curly is offline   Reply With Quote
Old 03-05-2016, 11:03 PM   #83
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

18psi is offline   Reply With Quote
Old 03-05-2016, 11:16 PM   #84
Mr Broke Pants
Thread Starter
iTrader: (9)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,599
Total Cats: 30
Default

With barometric stability velocity attraction correction dynamics.
thumpetto007 is online now   Reply With Quote
Old 03-06-2016, 02:43 AM   #85
Mr Broke Pants
Thread Starter
iTrader: (9)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,599
Total Cats: 30
Default

Ok, there is no way that's the correct plot... I was looking back at the pre and post skunk 2 plots back on page 3, and neither one of them take a nose dive... something must have been wrong with that pull?

The only reason I care is SCIENCE
thumpetto007 is online now   Reply With Quote
Old 03-06-2016, 02:57 AM   #86
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

I dunno, you made it, so...
18psi is offline   Reply With Quote
Old 03-06-2016, 01:58 PM   #87
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,707
Total Cats: 19
Default

Nice gains, but looking at the throat of the square top, I thought it would be a smoother transition. I'd love to see a comparo between flat top and a 99 with the throat cutout and re-welded
Stealth97 is offline   Reply With Quote
Old 03-06-2016, 10:48 PM   #88
Mr Broke Pants
Thread Starter
iTrader: (9)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,599
Total Cats: 30
Default

There isn't enough wall thickness to take much material out of the "throat" It's hard to see from the pictures.

I purposely stayed "shallow" with the portmatching, because I wanted to minimize potential ill effects.
thumpetto007 is online now   Reply With Quote
Old 03-07-2016, 02:55 AM   #89
ʎpunq qoq

Join Date: Jan 2014
Location: Western Australia
Posts: 502
Total Cats: 100
Default

Similar to a 3 angle cut on a valve, or a rear diffuser, the air can flow over around a 15 degree change in angle smoothly, but any more and it separates and start to form a turbulent zone. As long as there is a smooth transition that's not super radical you'll pick up 90% of the airflow gains from removing the step. You could port is better to get that last 10% but it's hardly worth it for a stock motor.

So step vs no step was a 2-5hp difference? Not bad actually considering the engine isn't limited by the throttle body and it's such a simple job to do. The same mod on an engine that needs more air, like a stroker or a ported head with big valve and the difference would be double that.
Madjak is offline   Reply With Quote
Old 03-07-2016, 06:11 AM   #90
Junior Member

Join Date: Dec 2009
Location: Brisbane, AUSTRALIA
Posts: 485
Total Cats: 44
Default

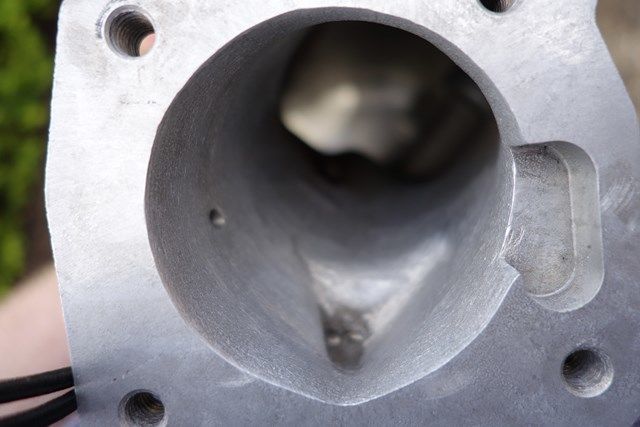

You've still got plenty of meat to take off - here's my efforts for comparison:



I wasn't game enough to take any more off between 12 and 2 but everywhere else I've still got plenty of material left.
Attached Thumbnails
Would port matching my Skunk2 to FlatTop lose power?-80-intakefinalport_zps5fb2b533_b7d8d45af0b08dfb026e81df4799541aca3de733.jpg
Lokiel is offline   Reply With Quote
Old 03-07-2016, 10:19 AM   #91
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

/\ that looks super smooth, good job.

I think ours turned out even better than the pictures show, somehow the pictures make it look more rough than it actually was. Overall it was a time consuming and messy job, but not hard at all.

and yeah he made sure to make the transition smooth. I was holding the thing down, OP was grinding
18psi is offline   Reply With Quote
Old 03-07-2016, 11:49 AM   #92
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,359
Total Cats: 1,323
Default

Quote:
Originally Posted by 18psi View Post
this is corrected with temp/baro
Savington is offline   Reply With Quote
Old 03-07-2016, 09:49 PM   #93
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,310
Total Cats: 1,330
Default

Inspired by this we're going to include a same day A/B test between the matched squaretop and Skunk TB tomorrow while we're dynoing some prototype Supermiata cams. The ported IM was on Deviate when we made 300whp with the Rotrex.
emilio700 is online now   Reply With Quote
Old 03-07-2016, 10:30 PM   #94
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

18psi is offline   Reply With Quote
Old 03-07-2016, 11:57 PM   #95
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Yay! I was going to do this myself, but the engine is a few weeks away from being completed.
curly is offline   Reply With Quote
