Default Fab9 Oil Cooler Component Kit - Now SHIPPING!



Engine oil is responsible for a MUCH larger percentage of engine cooling than most people give it credit for. That being said, cool engine temps are also not the only reason this oil cooler kit might be a good idea for your build.

We all know oil viscosity is very important, engine oil is rated on what's called a "Viscosity Index", this index shows the change in viscosity between hot and cold oil. Your engine clearances are designed for a specific thickness or viscosity of oil and this thickness changes greatly with oil temperatures. For this exact reason, we've put together this kit with a premium thermostatic oil adapter plate to properly regulate temperatures. Just like the thermostat in the cooling system of your Miata, this sandwich plate bypasses the flow of oil to allow the engine oil to get to operating temperature before starting to do it's job. Warming oil up is just as important as keeping it within operating temps.

This kit contains all of the premium components you'll need for installation. The pieces of this kit have been carefully selected to serve a very functional purpose.

Key Features:
  • Our AN lines are Black Nylon (steel reinforced) to avoid damage to other
  • components on the car and to remain light weight.
  • The Mocal Thermostatic Oil Sandwich plate was picked because of it’s large success in motor-sport and the compact integration of the thermostatic valve.
  • Two different oil cooler options to suit the needs of the daily spirited driven setup to a full blown track monster.
  • A mounting solution that isolates the core from heat transfer and vibration and allows a number of installation opportunities

Kit Includes:
  • Setrab 600 Series Oil Cooler (choose from 10, 16 or 25 row configurations)
  • 10ft of -10AN Black Nylon (Stainless Steel lined) hose
  • 2x Setrab low profile -10AN Fittings
  • 2x Setrab -10AN Fittings
  • Setrab temperature and vibration isolated mounting bracket
  • Setrab sandwich plate adapters
  • Mocal Thermostatic Sandwich Plate 180*F
  • AN Line Assembly Lube

PRODUCT LINK HERE

These kits, like everything on our site will ship for only $9 anywhere in the Contiguous United States. International shipping can be arranged, please contact us or place your order and you'll be invoiced for international charges beyond the $9 flat rate fee.

Last edited by FAB; 07-02-2015 at 02:49 PM.
FAB is offline   Reply With Quote
Old 04-08-2015, 12:05 PM   #2
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,701
Total Cats: 319
Default

nice! any provision for filter relocation?
psyber_0ptix is offline   Reply With Quote
Old 04-08-2015, 12:10 PM   #3
Junior Member
iTrader: (1)

Join Date: Jun 2014
Location: Metro Detroit
Posts: 270
Total Cats: 26
Default

Looks like a nice kit at a nice price.

What would take this to the next level is Miata-specific brackets to locate this in place of the stock A/C fan.
Ryephile is offline   Reply With Quote
Old 04-08-2015, 12:15 PM   #4
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Quote:
Originally Posted by Ryephile View Post
Looks like a nice kit at a nice price.

What would take this to the next level is Miata-specific brackets to locate this in place of the stock A/C fan.

This. 10/10, would buy.
concealer404 is offline   Reply With Quote
Old 04-08-2015, 04:04 PM   #5
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

BTW, just some nits in the description:

1. Engine oil absorbs little of the heat from producing power, but almost all of the heat from engine friction (i.e., oil gets really hot if you spin the engine to 7K even if the throttle's closed). For street driving, I really wouldn't bother even with mega-boost. For track driving, a really great thing to do even with a stock motor.

2. No thermostatic sandwich plate that I've seen shuts off the flow of oil to the cooler. What they do is open a bypass -- but those ports to the cooler are still open. This makes them failsafe (they never restrict oil flow). Take a look at your sandwich plate and you'll see what I mean. If you ever do run across a sandwich plate that shuts off flow to the cooler ports . . . RUN! LOL.
hornetball is offline   Reply With Quote
Old 04-08-2015, 04:07 PM   #6
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

Quote:
Originally Posted by concealer404 View Post
This. 10/10, would buy.
If you end up buying the same cooler I did I can just make 2 sets when I make my brackets, PM me.

Do the low profile fittings mean that the thermostat plate can be installed without a spacer or oil warmer?

Mods, delete this if you think it clutters too much.
aidandj is offline   Reply With Quote
Old 04-08-2015, 04:08 PM   #7
FAB
Fab9Tuning.com
Thread Starter
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Quote:
Originally Posted by hornetball View Post
BTW, just some nits in the description:
No thermostatic sandwich plate that I've seen shuts off the flow of oil to the cooler. What they do is open a bypass -- but those ports to the cooler are still open. This makes them failsafe (they never restrict oil flow). Take a look at your sandwich plate and you'll see what I mean. If you ever do run across a sandwich plate that shuts off flow to the cooler ports . . . RUN! LOL.
Good eye - I'll make some edits.
FAB is offline   Reply With Quote
Old 04-08-2015, 05:26 PM   #8
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

Does this use a 180* or 205* thermostat?

Do the low profile fittings mean that the thermostat plate can be installed without a spacer or oil warmer?
aidandj is offline   Reply With Quote
Old 04-08-2015, 05:39 PM   #9
FAB
Fab9Tuning.com
Thread Starter
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Quote:
Originally Posted by aidandj View Post
Does this use a 180* or 205* thermostat?

Do the low profile fittings mean that the thermostat plate can be installed without a spacer or oil warmer?
- 180 Degree thermostat
- That'd be nice but the fittings are for the oil cooler side. They give you almost an inch more clearance over using the older style fittings. Take a look here:

FAB is offline   Reply With Quote
Old 04-08-2015, 05:40 PM   #10
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

Nice, wish the hose/fittings I'm using had those, hopefully they will still fit.
aidandj is offline   Reply With Quote
Old 04-30-2015, 02:40 PM   #11
FAB
Fab9Tuning.com
Thread Starter
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Tracking info issued! - Please send install photos to [email protected]
FAB is offline   Reply With Quote
Old 04-30-2015, 02:45 PM   #12
FAB
Fab9Tuning.com
Thread Starter
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

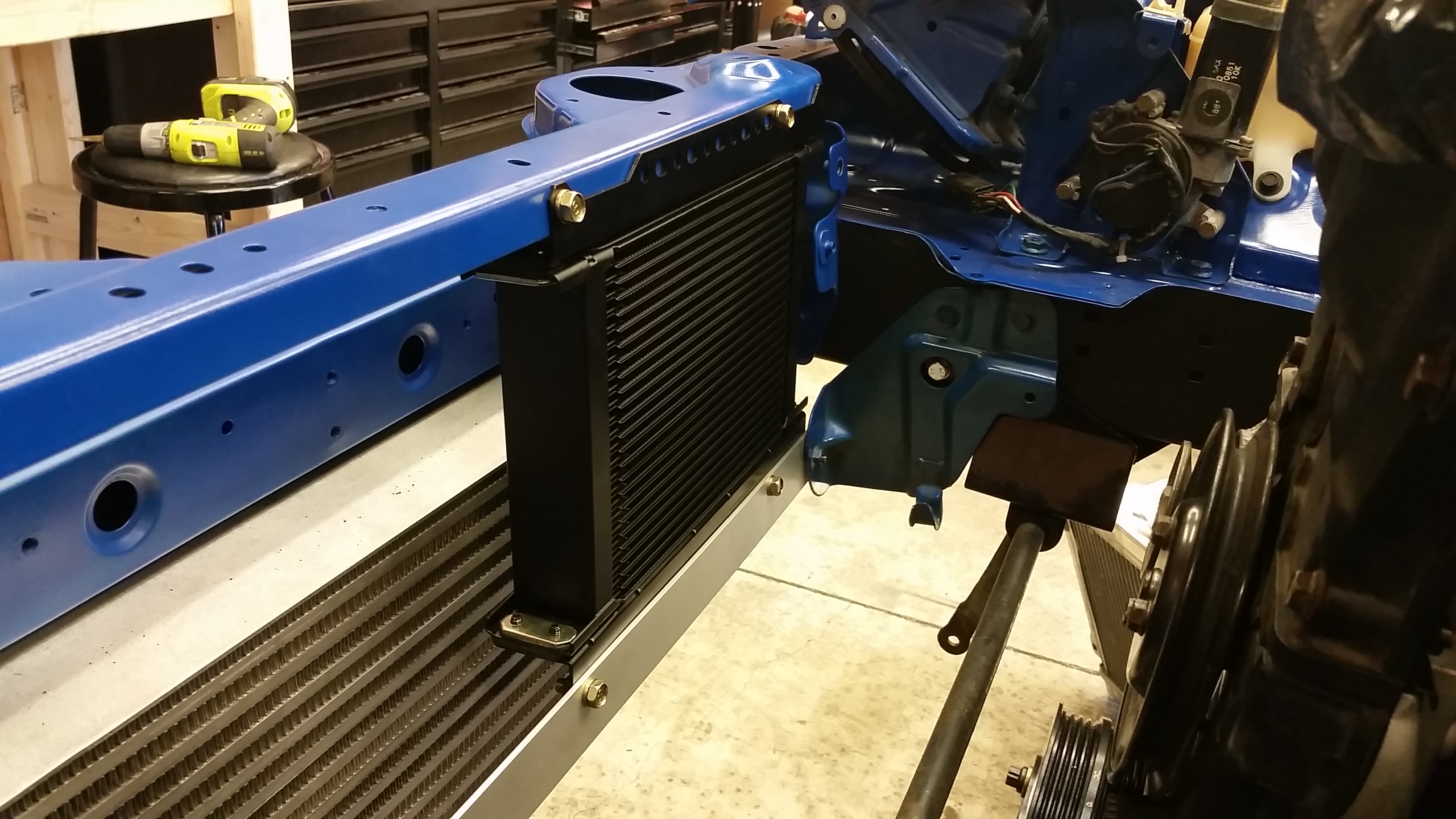

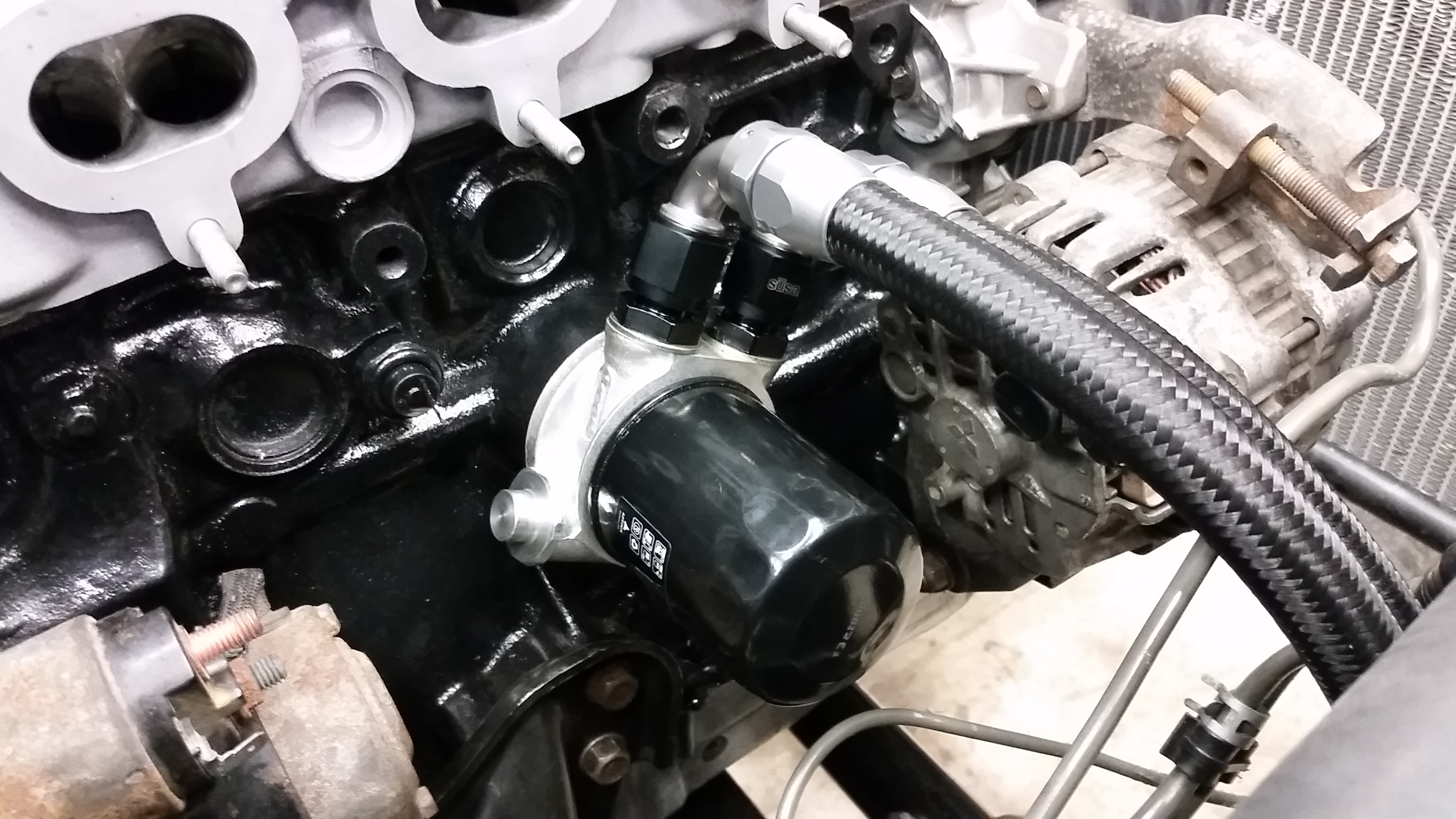

Shown here installed without the use of the warmer.



Clean installation done by Paul.

FAB is offline   Reply With Quote
Old 04-30-2015, 03:02 PM   #13
FAB
Fab9Tuning.com
Thread Starter
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Most of our customers will be using some type of sensor, whether or not it will be for pressure or temp monitoring. The trouble with this is the Mocal thermostatic adapter does have ports for these sensors.

After some custom tooling we were able to have our machine shop properly tap the housing. Difficult task due to the shallow depth to drive a tap properly. This was only 1/2 of the work, as you can see the housing does not have clearance for most pressure sensors.- That's why we tapped it much larger than necessary for a sensor and installed a spacer.- This should allow the use of any 1/8 npt sensor.





We will be offering this configuration if there is a desire for it. It will be put to use on our personal NB so I'm sure others would find it beneficial.
FAB is offline   Reply With Quote
Old 06-30-2015, 03:08 PM   #14
FAB
Fab9Tuning.com
Thread Starter
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

25 row options back in stock!



New product link: Premium Setrab Oil Cooler Component Kit by Fab9Tuning
FAB is offline   Reply With Quote
Old 07-02-2015, 12:53 PM   #15
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

In for pics of installed spacer with pressure sender. Also, "PRODUCT LINK HERE" in OP is broken?

Anyway, neat stuff, keep up the good work!
EO2K is offline   Reply With Quote
Old 07-02-2015, 01:12 PM   #16
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Do you only do the 25 row now? Do all the sammiches come tapped for sensor(s)? (Looking to run oil temp and oil pressure)
concealer404 is offline   Reply With Quote
Old 07-02-2015, 02:48 PM   #17
FAB
Fab9Tuning.com
Thread Starter
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Quote:
Originally Posted by concealer404 View Post
Do you only do the 25 row now? Do all the sammiches come tapped for sensor(s)? (Looking to run oil temp and oil pressure)
We stock the 16 and the 25 row setups.

The plates don't come tapped as of now - I've done 3 of them this way and I'm not quite sure it's something we're ready to start shipping.
FAB is offline   Reply With Quote
Old 07-02-2015, 04:00 PM   #18
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

What's the price on the 16? Couldn't find it on your site.

And it sounds like i need to get my search on and find out where to run the oil things easily.
concealer404 is offline   Reply With Quote
Old 07-02-2015, 04:12 PM   #19
FAB
Fab9Tuning.com
Thread Starter
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Quote:
Originally Posted by concealer404 View Post
What's the price on the 16? Couldn't find it on your site.

And it sounds like i need to get my search on and find out where to run the oil things easily.
$418 for the 16 row and $463 for the 25. It's all under one product page using the link above, just choose the size near the "add to cart" area.

I've changed it to a more simple drop down instead of a highlighted box. Should make it easier to navigate.
FAB is offline   Reply With Quote
Old 09-11-2015, 09:12 AM   #20
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,701
Total Cats: 319
Default

I just ordered the MOCAL sandwich plate from you guys to test fit against a relocation adapter I'm trying to use. If it works, can I order the rest of the kit sans mocal?
