I bought an off the shelf M-tuned coolant reroute and did a little custom fab to improve it. The original reroute relies on the 2mm hole in the thermostat to flow warm coolant over it before it opens. This never sat well with me since that's pretty much a static column of water from the back of the motor to the relocated T-stat.

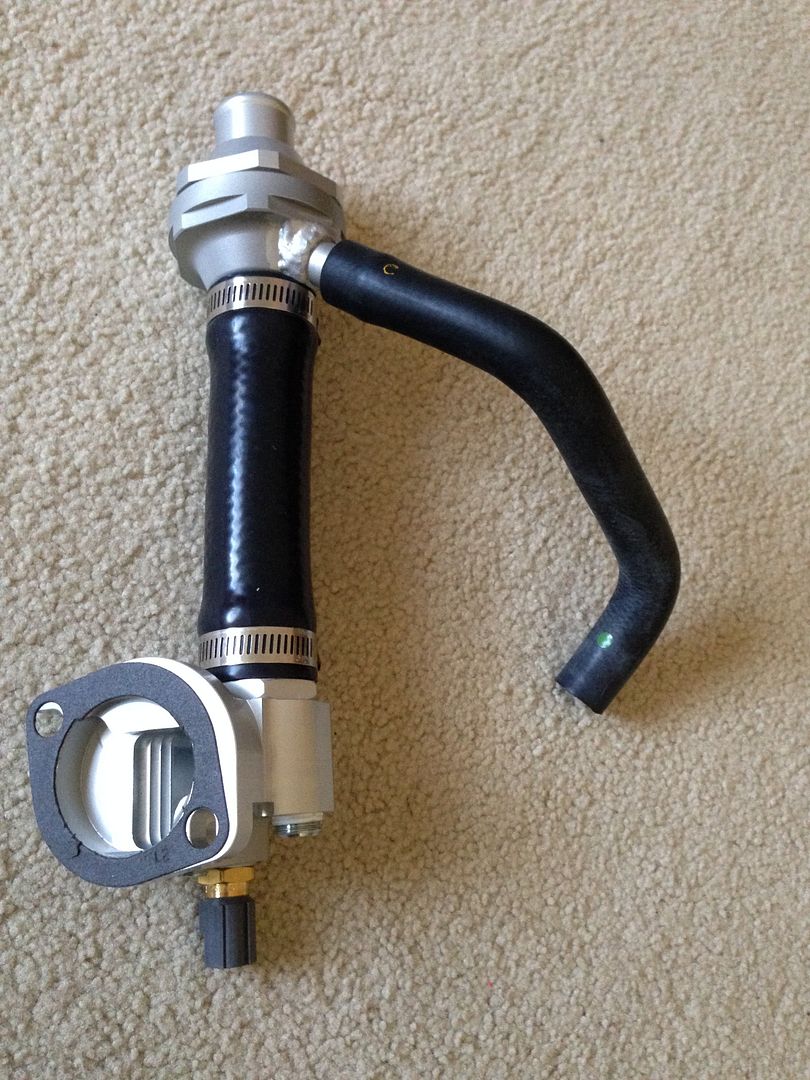

Quickie fab/modification to the M-tuned T-stat housing:





The hot water flows directly over (or against) the T-stat before returning to the heater core as compared to before where the water pretty much bypassed the T-stat entirely and relied on convection/system heat soak to trigger the T-Stat.

Last edited by Jumbosrule; 01-04-2016 at 04:08 PM.
Jumbosrule is offline   Reply With Quote
Old 12-31-2015, 11:10 PM   #2
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,406
Total Cats: 200
Default

Teach me. I don't understand why a static column is bad. If it's not up to temp, then.?
ryansmoneypit is offline   Reply With Quote
Old 12-31-2015, 11:40 PM   #3
Junior Member

Join Date: Mar 2010
Location: Durham, NC
Posts: 409
Total Cats: 19
Default

The hole is to let air through so you can bleed the cooling system. Convection takes care of opening the thermostat.
FatKao is offline   Reply With Quote
Old 01-01-2016, 12:26 AM   #4
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

Ummm, water doesn't enter there in the back of the engine....and its the water pump inlet on the side of the engine.

This will still work, but you have the flow path backwards.
aidandj is offline   Reply With Quote
Old 01-01-2016, 02:43 AM   #5
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,406
Total Cats: 200
Default

I was confused, when comparing my other knowledge.
ryansmoneypit is offline   Reply With Quote
Old 01-01-2016, 01:01 PM   #6
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

Quote:
Originally Posted by ryansmoneypit View Post
I was confused, when comparing my other knowledge.
He's a little confused too
aidandj is offline   Reply With Quote
Old 01-01-2016, 01:49 PM   #7
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

Every time I have a brilliant idea, I do the research to make sure it's not something someone else already considered. 9 out of 10 times, someone has

In this case, I think aidan is right

Last edited by 18psi; 01-01-2016 at 03:08 PM.
18psi is offline   Reply With Quote
Old 01-01-2016, 02:21 PM   #8
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

I'm always right.

It will work, but not for the reason you think it will.
aidandj is offline   Reply With Quote
Old 01-01-2016, 02:22 PM   #9
Junior Member
iTrader: (6)

Join Date: Feb 2011
Posts: 421
Total Cats: 9
Default

you probably could have put more holes in the t-stat
Twibs415 is offline   Reply With Quote
Old 01-01-2016, 02:25 PM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

it will just have to make a 270* turn
still better than the stupid begi "racer re-route"
18psi is offline   Reply With Quote
Old 01-01-2016, 02:35 PM   #11
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

Quote:
Originally Posted by 18psi View Post
it will just have to make a 270* turn
still better than the stupid begi "racer re-route"
Yeah. Heater flow might be compromised.
aidandj is offline   Reply With Quote
Old 01-01-2016, 03:02 PM   #12
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Yeah... The one I worked with, I just drilled a couple more holes in the thermostat. Heater outlet is blocked. No heater core in the car.
Ben is offline   Reply With Quote
Old 01-01-2016, 03:05 PM   #13
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,701
Total Cats: 269
Default

He is thinking the direction of flow backwards, but the concept is sound and should work well. Hot coolant will travel from the head, through the large hose, then out the small one to the heater. Thus hot coolant (when the engine warms) will cause he TStat to open and send some / most / of the hot coolant to the radiator, while some portion continues through the heater core and on to the mixing manifold.
DNMakinson is offline   Reply With Quote
Old 01-01-2016, 03:08 PM   #14
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

I'd be more worried about loosing flow to the heater core because of the angle.
aidandj is offline   Reply With Quote
Old 01-01-2016, 03:28 PM   #15
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,323
Total Cats: 1,920
Default

Assuming the hose attached to the welded fitting goes to the heater core (which is what I assume the OP meant by "back of the engine," then this is a good thing. It corrects the one minor design flaw in the M-tuned hardware, and makes it functionally equivalent to the traditional DIY reroute using the spacer and the Kia water neck.
Joe Perez is offline   Reply With Quote
Old 01-01-2016, 04:25 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

every time i read a thread with this same title im never disappointed.
Braineack is offline   Reply With Quote
Old 01-01-2016, 05:03 PM   #17
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Quote:
Originally Posted by aidandj View Post
I'd be more worried about loosing flow to the heater core because of the angle.
Then you must not know how a miata cooling system works. I expected more from you, Mr. know it all.

Thermostats have notches in the sealing flange to prevent a static columb, cook one in a pot of water and you'll see what I mean. I wouldn't even rip the air bleed float pin out and certainly no extra holes, because that's what kills heater core action.
deezums is offline   Reply With Quote
Old 01-01-2016, 05:14 PM   #18
Junior Member
iTrader: (6)

Join Date: Feb 2011
Posts: 421
Total Cats: 9
Default

and what happens when there is too much flow to the heater core?
Twibs415 is offline   Reply With Quote
Old 01-01-2016, 05:17 PM   #19
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

Quote:
Originally Posted by deezums View Post
Then you must not know how a miata cooling system works. I expected more from you, Mr. know it all.

Thermostats have notches in the sealing flange to prevent a static columb, cook one in a pot of water and you'll see what I mean. I wouldn't even rip the air bleed float pin out and certainly no extra holes, because that's what kills heater core action.
When the thermostat is open. Not close.

No such thing as too much heater flow
aidandj is offline   Reply With Quote
Old 01-01-2016, 05:21 PM   #20
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Oh.

Well, 99.9% of coolant reroutes work just fine with a heater core at right angle because the heater core is low pressure compared to the block, thermostat open or not.
deezums is offline   Reply With Quote
