Default QuickJack is now available from Flyin' Miata - with an exclusive sale price.

The QuickJack is now available from Flyin' Miata - and to celebrate the Rolex 24 at Daytona, we've arranged a special discount. Until the end of January, we can sell them for $979 - that's 18% off the list price. Free shipping, too! This is an offer that's exclusive to Flyin' Miata.

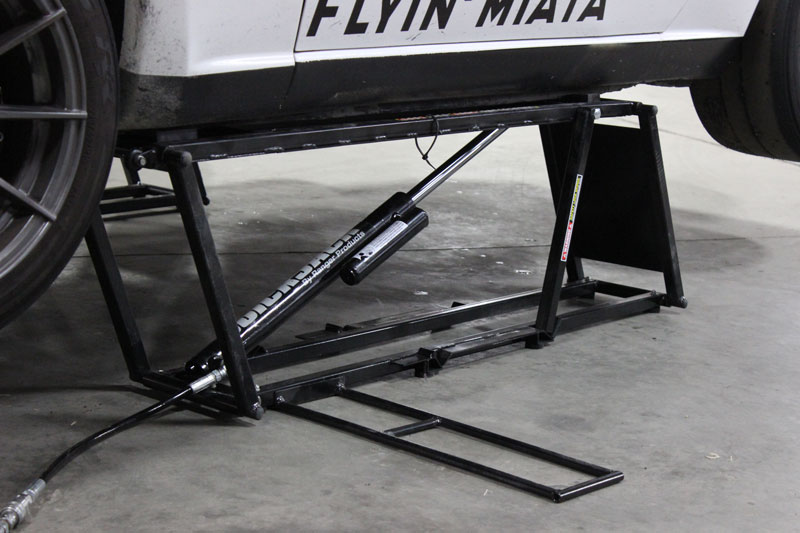

So, what is the QuickJack? It's a portable hydraulic lift that's perfect for Miatas. It's lifts the car high enough to swap a transmission or do suspension work. It locks into place with one of two heights and is more stable than jackstands. You can get the car up in the air quickly and easily with just one person in about a minute using the 110v AC power unit. According to the specs, the 12v DC power unit should lift it even faster, but we'll confirm that when we get to test it. A customer of ours has shown us a video that indicates it lifts about 1.5x faster.

The lifting units each weigh 45 lbs and all the hoses have quick disconnects, so it's really easy to stash away when you're not using it - either at home or at the track. 3500 lb lifting load.

Flyin' Miata : Miscellaneous : Tools : QuickJack portable pit lift

Video!

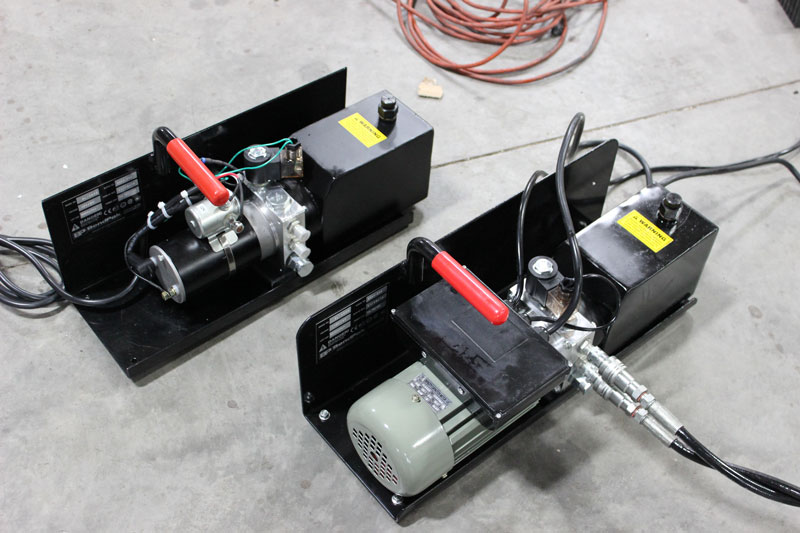

12v power unit on the top left, 110v power unit on the bottom right. You get one of them.
Attached Thumbnails
QuickJack is now available from Flyin' Miata - with an exclusive sale price.-quickjack3.jpg   QuickJack is now available from Flyin' Miata - with an exclusive sale price.-lquickjack2.jpg
Keith@FM is offline   Reply With Quote
Old 01-23-2015, 04:24 PM   #2
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,854
Total Cats: 271
Default

nice!

I just saw these in one of "Tom's Turbo Garage" videos on youtube. Very handy.
Girz0r is offline   Reply With Quote
Old 01-23-2015, 04:25 PM   #3
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

I'm never going to the track without it.

A tip: the 12v version lifts faster. So get that one plus a good jumper box, and you'll have a lift you can use everywhere AND a jumper box
Keith@FM is offline   Reply With Quote
Old 01-23-2015, 04:41 PM   #4
Junior Member

Join Date: May 2014
Location: North St Paul, MN
Posts: 397
Total Cats: 23
Default

This looks awesome! It has made the list of stuff to buy.

Stupid question. What are you suggesting running the 12V off of? The car?
ofspunk7 is offline   Reply With Quote
Old 01-23-2015, 05:01 PM   #5
Senior Member
iTrader: (1)

revlimiter's Avatar

Join Date: Jan 2009
Location: ABQ, NM
Posts: 528
Total Cats: 92
Default

What's the lowered/closed height? In other words, will it slide under a moderately slammed (tm) Miata?
revlimiter is offline   Reply With Quote
Old 01-23-2015, 05:17 PM   #6
Junior Member

Join Date: May 2014
Location: North St Paul, MN
Posts: 397
Total Cats: 23
Default

Quote:
Originally Posted by revlimiter View Post
What's the lowered/closed height? In other words, will it slide under a moderately slammed (tm) Miata?
Specifications

Weight capacity: 3,500-lbs. / 1588 kg.
Individual frame weight: 45 lbs. / 20 kg.
Platform lifting height (frame only): 16.75” / 406 mm.
Platform lifting height (with rubber lift blocks): 20” / 508 mm.
Minimum collapsed height: 3” / 76 mm.
Rubber block position MIN: 28.75” / 730 mm.
Rubber block position MAX: 43.75” / 1111 mm.
Frame width: 10.5” / 267 mm.
Frame length: 61.5” / 1562 mm.
Lifting time: 10 seconds
Packaged weight (jack system complete - less power unit): 108 lbs. / 49 kg.
Packaged weight (power unit and power unit carrier): 18 lbs. / 8 kg.
Packaged dimensions (jack system frames only – pair): 63” x 11.75” x 6.5” / 1600 mm x 298 mm. x 165 mm.
Packaged dimensions (power unit and power unit carrier): 8.5” x 18.5” / 216 mm. x 470 mm.
The QuickJack BL-3500 AC includes: (2) Ea. 150" Hydraulic Hoses, (2) Ea. 14" Aux. Hoses, (2) Ea. Jack Frame Assemblies, (1) Ea. Mini Hydraulic Power Unit 110V-AC Standard, with pendant control, (Optional 12V-DC Available), (2) Ea. Quick-Mount Handles, (4) Ea. 3" x 3" x 4" Rubber Blocks, (4) Ea. 1.5" x 3" x 4" Rubber Blocks. Please see picture #3 for more information.


Hydraulic Jack- Portable Car Lift- Race Car Lift- Race Car Jack- QuickJack
ofspunk7 is offline   Reply With Quote
Old 01-23-2015, 05:32 PM   #7
Senior Member
iTrader: (1)

revlimiter's Avatar

Join Date: Jan 2009
Location: ABQ, NM
Posts: 528
Total Cats: 92
Default

Thanks! 3" is nice and compact.
revlimiter is offline   Reply With Quote
Old 01-23-2015, 05:37 PM   #8
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

3.5" with the rubber pads in place, but you could probably shave them down a bit. There's a reason we used the Targa Miata in track mode for the video, that thing is a royal pain to get on a lift. But it was super easy with the QuickJack. Enough that I'm considering buying one to use at home.

As for the 12v source, it could run off the car. I'd leave it running and hook up straight to the battery, as it will pull 125A for about 30 seconds. Or run it off a jumper box or your tow vehicle.

I'm going to see if this thing will fit in the trunk of a Miata. I'm not sure it will.
Keith@FM is offline   Reply With Quote
Old 01-23-2015, 06:27 PM   #9
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

I was asked about using these in a narrow workspace. You can't drive over the lifting units directly, but you can straddle them. The jack has handles on the side to make this easy. The car in the video is running an FM Stage 2.5 kit with 175/65-14 snow tires.

Keith@FM is offline   Reply With Quote
Old 01-23-2015, 11:16 PM   #10
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: SE NM
Posts: 1,460
Total Cats: 48
Default

Try to fit them in an NC trunk, as well. I could make an honest track car out of my NC, if I could take these with me.
Chilicharger665 is offline   Reply With Quote
Old 01-23-2015, 11:40 PM   #11
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

Well, they won't fit in an NA with the hardtop bolted on. They'll fit in, you just can't get them in. A soft top, you could lower the top, put them in the passenger's seat, then pop it back up when you're done. This is based on some experimentation in a dark parking lot, I may be able to figure a way when I can see what I'm doing.

I don't think they'll fit in an NC trunk. The trunk opening is narrow enough that the same problem would likely apply.
Keith@FM is offline   Reply With Quote
Old 01-24-2015, 01:41 AM   #12
Newb

Join Date: Sep 2014
Posts: 21
Total Cats: 3
Default

Quote:
Originally Posted by [email protected] View Post
The QuickJack is now available from Flyin' Miata - and to celebrate the Rolex 24 at Daytona, we've arranged a special discount. Until the end of January, we can sell them for $979 - that's 18% off the list price. Free shipping, too! This is an offer that's exclusive to Flyin' Miata.
How about the BL5000? I need one of each.
shlbygt is offline   Reply With Quote
Old 01-24-2015, 02:23 AM   #13
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

We will be adding the BL5000 to the product line. However, we were unable to arrange for exceptional pricing. It will be available at market price. We should have it listed early next week.
Keith@FM is offline   Reply With Quote
