~$100, 38mm Aluminum NA Radiator
#4
Former Vendor
iTrader: (31)
Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,442
Total Cats: 2,099
The chinese 55mm stuff doesn't cool much better than a 37mm Koyo. I doubt a 38mm Chinabay core would do much more than stock. Probably why you don't see it. I assume it's naturally aspirated?
#8
Boost Czar
iTrader: (62)
Join Date: May 2005
Location: Chantilly, VA
Posts: 79,493
Total Cats: 4,080
what about just this?
cxracing.com: Aluminum Radiator For 90-97 Mazda Miata Manual;Core Size: 25"x13"x2",1.25" Inlet & Outlet
50mm for $150.
or get Lars to pull the rad out of my car and swap him a stocker plus a few $$. Mine was an old 50mm CSP rad.
cxracing.com: Aluminum Radiator For 90-97 Mazda Miata Manual;Core Size: 25"x13"x2",1.25" Inlet & Outlet
50mm for $150.
or get Lars to pull the rad out of my car and swap him a stocker plus a few $$. Mine was an old 50mm CSP rad.
#10
Supporting Vendor
Thread Starter
iTrader: (33)
Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,659
Total Cats: 134
I'm buying a new rad one way or the other, was just hoping to get one with aluminum tanks. However that may be my best option if an inexpensive, OE-sized aluminum unit does not exist.
__________________
91 Turbo | 10AE Turbo | 01 Track Rat | #323 Mazda Champcar
Chief of Floor Sweeping, DIYAutoTune.com & AMP EFI
Crew Chief, Car Owner & Least Valuable Driver, HongNorrthRacing
Last edited by Ben; 06-16-2014 at 10:40 AM. Reason: spelling
#14
Boost Czar
iTrader: (62)
Join Date: May 2005
Location: Chantilly, VA
Posts: 79,493
Total Cats: 4,080
yeah not seeing any all-aluminum 1-row rads. There used to be one, I remember when i bought my 2" core there was the option to buy the single-row replacement one. But that was back in like 2003 and the company, coolradiators.com, no longer exists.
The price on the plastic/alumin 1-row is so good, might as well just get one, if what you want is the lightest/smallest one you can fit; plenty for under $100 shipped on ebay.
The price on the plastic/alumin 1-row is so good, might as well just get one, if what you want is the lightest/smallest one you can fit; plenty for under $100 shipped on ebay.
#17
Any idea on why? Crappy fins. Worthless soft alloy. ???
I'm looking at replacing my 38(ish) PWR with half width EG Civic model. Gotta get rid of weight on the front of the XP car somehow. I currently have a cheap ebay one that I'll use for test fitment but I want to spring for something better.
I know the PWR fins are much more substantial, as in you can actually touch them without bending them. The fins on the cheap one bend if you look at them funny.
#18
Boost Czar
iTrader: (62)
Join Date: May 2005
Location: Chantilly, VA
Posts: 79,493
Total Cats: 4,080
the density of the fins is just not there. they are cheaply made and not with efficiency in mind. where good manufacturers will design the fins
I think it was Corky Bell that said they had a customer car with an intercooler from ebay that had no fins at all, inside the core.
While I haven't personally dealt with cheap radiators, im sure the same holds true with them as it does with intercooler cores.

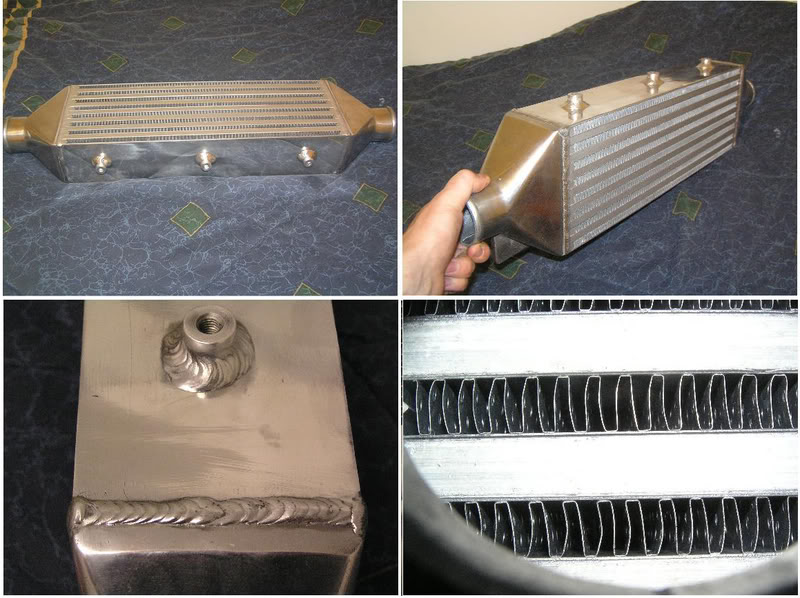

Consider this chinese core:
the fins are loosely folded/packed, and it appears there are holes drilled in them throughout.

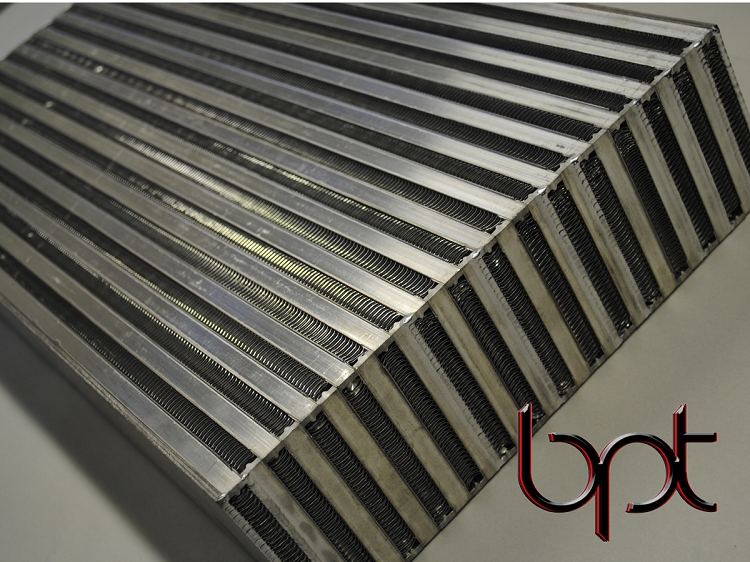

compared to this core:
the fins are densely packed.

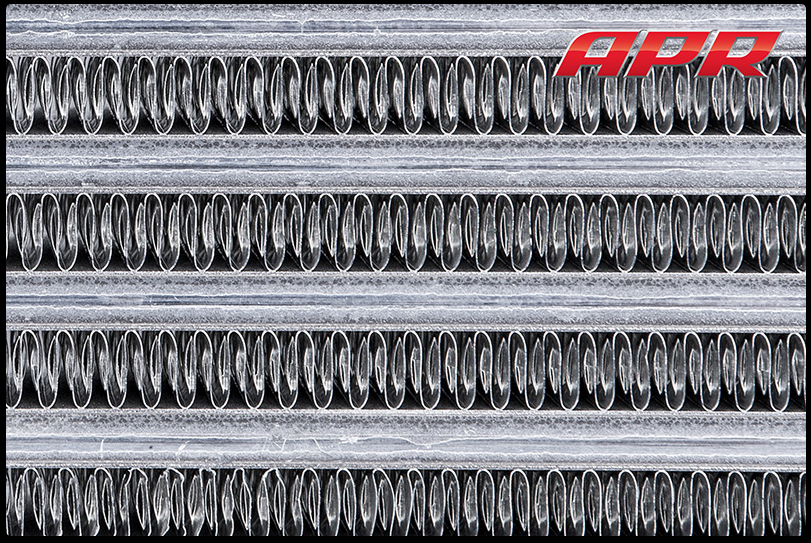

Good cores will have fins that have louvers cut in them that increase the cooling effectiveness:

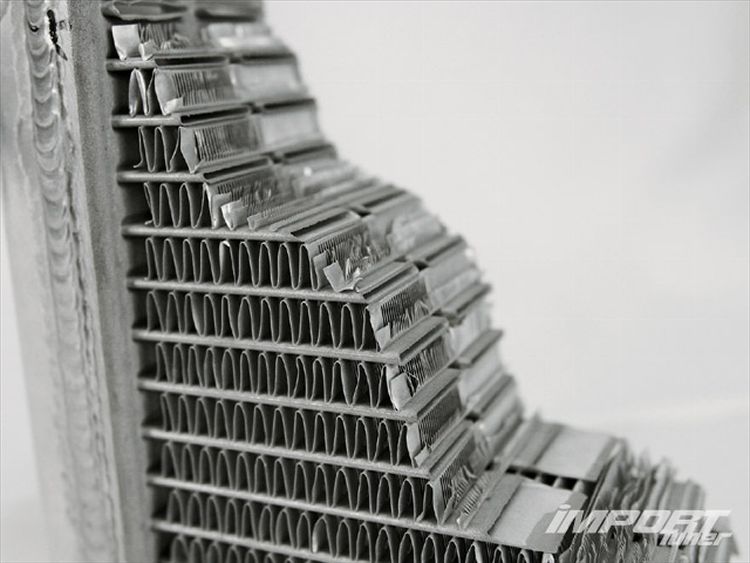

here's a KOYO radiator core cut open, you can see the dense louvers:
This ebay rad doesn't appear to have that sort of goodness:
not to mention even how cheap and fragile the ebay cores are in comparison to a Percision or Bell core. Night and Day.
I think it was Corky Bell that said they had a customer car with an intercooler from ebay that had no fins at all, inside the core.
While I haven't personally dealt with cheap radiators, im sure the same holds true with them as it does with intercooler cores.
Consider this chinese core:
the fins are loosely folded/packed, and it appears there are holes drilled in them throughout.
compared to this core:
the fins are densely packed.
Good cores will have fins that have louvers cut in them that increase the cooling effectiveness:
here's a KOYO radiator core cut open, you can see the dense louvers:
This ebay rad doesn't appear to have that sort of goodness:
not to mention even how cheap and fragile the ebay cores are in comparison to a Percision or Bell core. Night and Day.
#20
Edit: I have read this but never weighed it myself.
The manual transmission OEM radiator is lighter/lower coolant volume than the automatic version. All of the ~$100 OEM replacements you can find are of the automatic radiator so if you are really trying to lose weight get a manual transmission version from mazdaspeed.
I am also super curious to see the final weight of your naturally aspirated exocet. I did napkin math a while back and it seemed like you be able to get one just under 1400lb with some effort. (aluminum shocks, kirkey seats, 2lb battery...)
The manual transmission OEM radiator is lighter/lower coolant volume than the automatic version. All of the ~$100 OEM replacements you can find are of the automatic radiator so if you are really trying to lose weight get a manual transmission version from mazdaspeed.
I am also super curious to see the final weight of your naturally aspirated exocet. I did napkin math a while back and it seemed like you be able to get one just under 1400lb with some effort. (aluminum shocks, kirkey seats, 2lb battery...)
