Old 05-13-2008, 04:32 PM   #21
Elite Member
Thread Starter
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

Wait to see if this one holds up, I am not brave enough to put my name on a motor other than my own yet.
btw-I think it would be cheaper to get me a ticket to the DR then it would be to send me an engine and then have to ship it back
I plan on to documenting the entire process as well as $$ spent so everyone has a pretty good idea of what to expect if they want to tacle this on their own.
Should be lots of fun, i can't want to get in over my head.
Cross yo' fingas!
Zabac is offline   Reply With Quote
Old 05-13-2008, 04:59 PM   #22
Elite Member
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

Let's do it Z!!! This is gonna be a great thread, just keep your promise and document everything very well! And we want LOTTTTTTTS of pics!!!
As I said before=SUBSCRIBED
TonyV is offline   Reply With Quote
Old 05-13-2008, 05:08 PM   #23
Newb
iTrader: (2)

Join Date: Apr 2008
Location: Richmond, CA
Posts: 16
Total Cats: 0
Default

Looking forward to following this thread, please keep us updated!
autox_axela is offline   Reply With Quote
Old 05-13-2008, 05:26 PM   #24
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by Zabac View Post
Wait to see if this one holds up, I am not brave enough to put my name on a motor other than my own yet.
btw-I think it would be cheaper to get me a ticket to the DR then it would be to send me an engine and then have to ship it back
I plan on to documenting the entire process as well as $$ spent so everyone has a pretty good idea of what to expect if they want to tacle this on their own.
Should be lots of fun, i can't want to get in over my head.
Cross yo' fingas!
I see some vacation at the beach in your future!
Rafa is offline   Reply With Quote
Old 05-13-2008, 05:27 PM   #25
Elite Member
Thread Starter
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

Oh snap, what have I done? lol
j/k
I plan on satisfying all questions the best I can and post lots a pics for you with learning dissabilities. I will also have lots of questions myself so feel free to contribute your $.02 as well when I get stuck.
Zabac is offline   Reply With Quote
Old 05-15-2008, 01:12 AM   #26
Elite Member
Thread Starter
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default Update with pics!

OK, so got the block apart, took all of one hour including eating some pizza and drinking some cold brew while watching Seinfeld, IOW it's pretty easy.
Not to insult any of the pros, but these are noob directions since I figured that's who would need them and I am pretty much a noob myself

I started of with the block upside down and broke all the 14mm crank bearing support bolts and all the 14mm Rod bearing nuts loose. (appologize if I use the wrong terminology-ESL here)

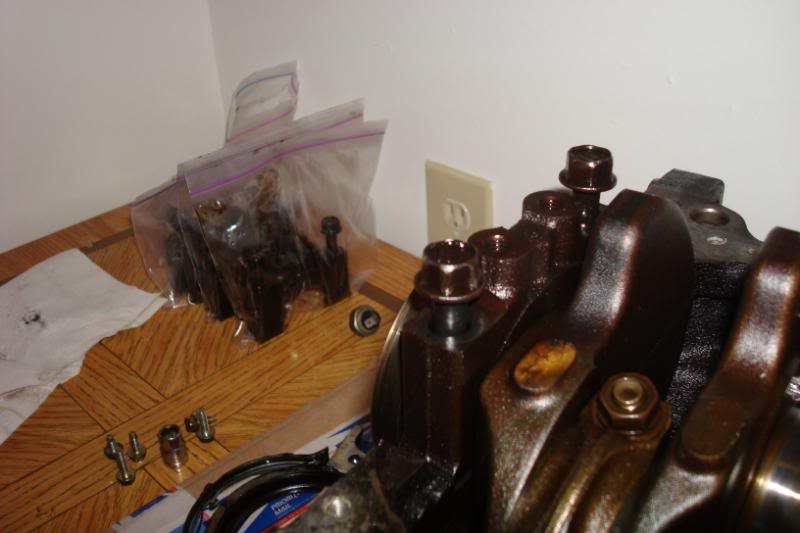

Like this:
Crank bearing support
Name:  164.jpg
Views: 40
Size:  48.6 KB
Once you have loosened all the nuts and bolts, you remove the crank bearing support by wiggling it back and forth to get it loose.
In the corner of the pic you can see how I placed the crank bearing supports in individual bags with their respective bolts. No idea if that is neccasary, but what the hell. The crank bearing support are numbered from 1-5 so you can't really mess them up.

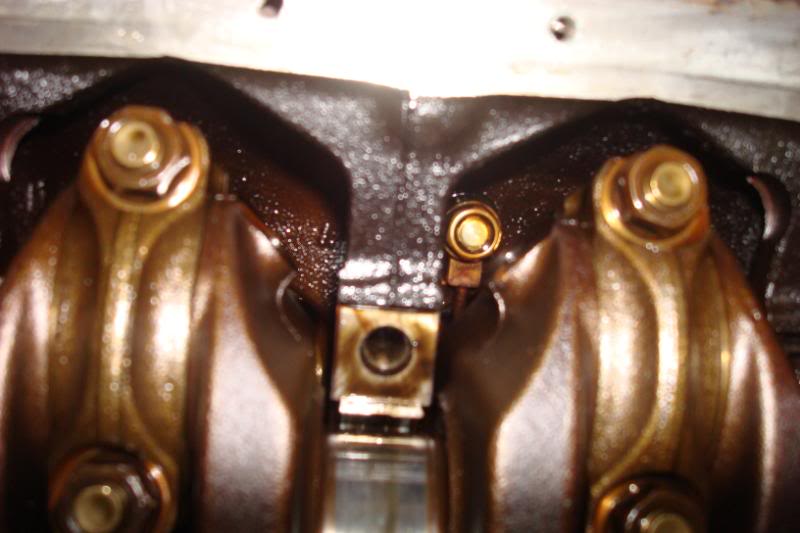

Rod bearing support
Name:  165.jpg
Views: 40
Size:  54.9 KB
You can loosen the rod bearing support loose by tapping the studs until it separates and then you just pull it off.
In the above pic you can also see where the oil squirters are, you will need to remove them as well and now is a good time, or you can do it once you have the crank out.

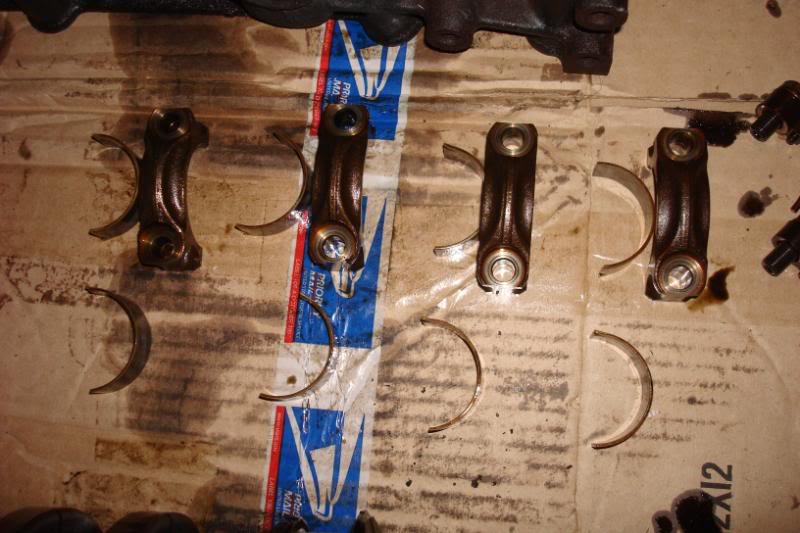

Next, I went ahead and separated the rod bearings from the rod bearing supports.
Name:  166.jpg
Views: 40
Size:  75.2 KB

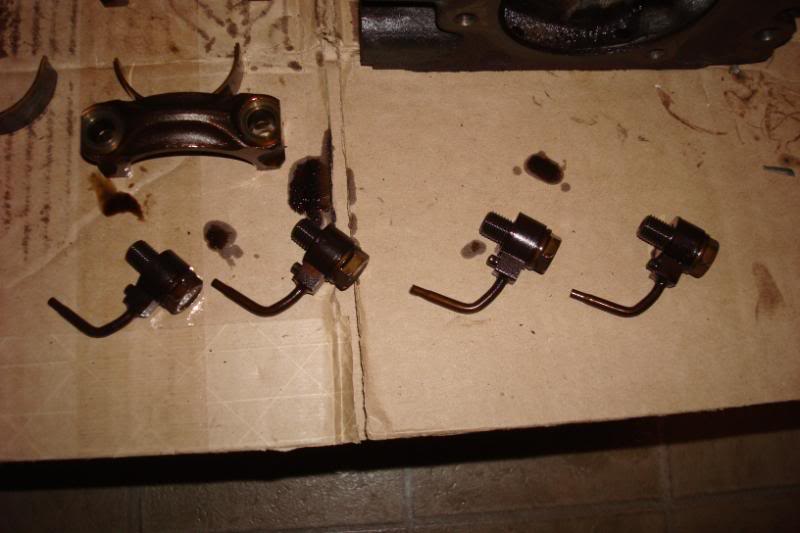

The oil squirters with their bolts and washers.
Name:  167.jpg
Views: 37
Size:  52.8 KB

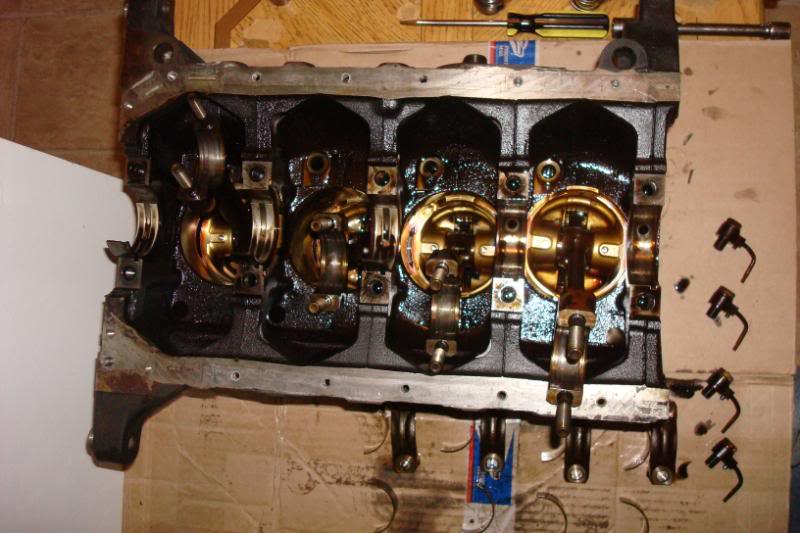

This is what you should have left.
Name:  168.jpg
Views: 37
Size:  74.5 KB

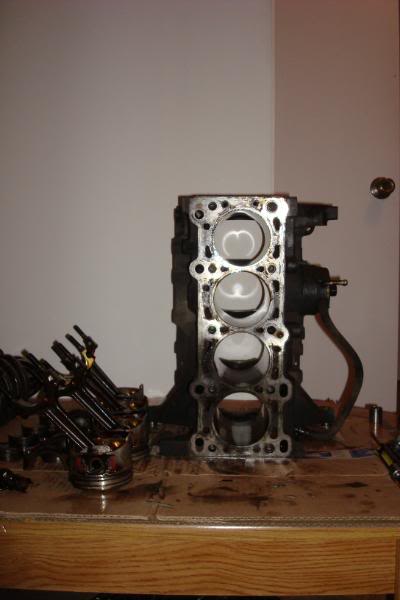

You cannot remove the pistons from this side, you have to stand the block up like this in order to get them out, when they stop coming out, just wiggle them gently until they come out.
Name:  170.jpg
Views: 36
Size:  33.1 KB

The cyl walls look good, this is the part that gets honed so your new rings can get properly seated and broken in. More on this later.
Name:  171.jpg
Views: 36
Size:  36.4 KB

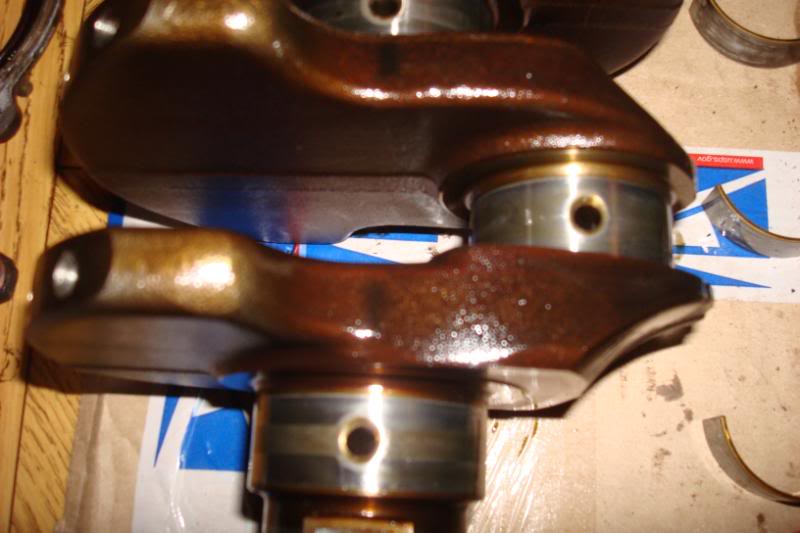

The crank also looks good as there are no aparant scratches, I will more than likely use standard size bearings, but do not know for sure until I hear from the shop cause the crank still needs to get polished at these "bearing seats".
Once the shop is done with the crank they will tell me what bearings I need for sure.
Name:  172.jpg
Views: 37
Size:  54.8 KB

Next I have to separate the Pistons from the rods by removing the wrist pins, i forgot the pliers at the house so I have to wait till tomorrow to do so. Once I do that, well, it's time to look for a local reputable shop to do the machine work on the crank and block and take pistons to HPC to recieve their Ceramic makeover.

Hopefully more to come soon.

ps-If anyone feels I makde a mistake somewhere please let me know, input is appreciated.
Zabac is offline   Reply With Quote
Old 05-15-2008, 01:51 AM   #27
Elite Member
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

wooooow, nice progress man!
Great pics, walkthru so far (dunno bout accuracy-but def noob friendly!! lol)
TonyV is offline   Reply With Quote
Old 05-15-2008, 01:32 PM   #28
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

I don't trust myself to keep bearing and rod caps in the proper order... I usually stamp them or engrave them to ensure they stay a matched set on re-assembly. This will also help you out if the shop that balances them doesn't keep them in the right order, your box falls over during transport to/from the shop, your wife trips on the **** and scatters it all over the living room floor, etc etc.

*edit* worst grammar ever.
Arkmage is offline   Reply With Quote
Old 05-15-2008, 03:06 PM   #29
Elite Member
Thread Starter
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

The bearing caps are numbered, so no issues there, the rod caps are getting replaced since I am using ETD rods and their caps, so no biggie there, reason I mention anything is for the people who will be re-using their so they know to keep them in order. Thanks for pointing that out.
Zabac is offline   Reply With Quote
Old 05-15-2008, 03:59 PM   #30
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Quote:
Originally Posted by Zabac View Post
The bearing caps are numbered.


Sometimes the angry japaneese robot that does the numbering has a hangover and the numbers are really hard to read.


Good writeup so far!
BenR is offline   Reply With Quote
Old 05-15-2008, 05:46 PM   #31
Elite Member
Thread Starter
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

haha, true, my #3 stamp looks a lot like a turd
Zabac is offline   Reply With Quote
Old 05-15-2008, 07:23 PM   #32
Elite Member
Thread Starter
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default Usefull info!

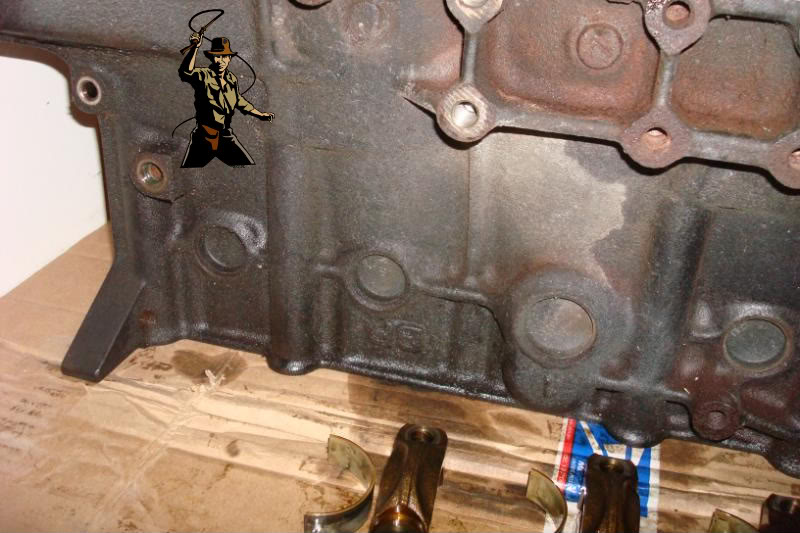

On the driver side of the block, there are two holes.
They are capped of by bolts, the 14mm bolt is the oil feed, thread pattern is 10mm x 1.5.
More usefull info here
Name:  169.jpg
Views: 36
Size:  80.1 KB

Question-Does anyone know what the other hole is for?
Zabac is offline   Reply With Quote
Old 05-16-2008, 01:43 AM   #33
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

I see one small problem with reusing your factory pistons..

If the machine shop (which they will) over-bores your cylinders, you'll need physically larger diameter pistons.. ie, .020, .030, .040 overbore, etc...

Other than that, Subscribe!
elesjuan is offline   Reply With Quote
Old 05-16-2008, 11:03 AM   #34
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

he wont need an overbore if the bores aren't scored. just a light re-hone to put a cross-hatch back in and remove any lip from the top edge. shouldn't change the bore diameter significantly.
y8s is offline   Reply With Quote
Old 05-16-2008, 11:13 AM   #35
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

you call him doctor, rady.
hustler is offline   Reply With Quote
Old 05-16-2008, 02:34 PM   #36
Elite Member
Thread Starter
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

I am not boring it out, the walls look pretty good, no scoring that I see yet. A light hone is all it needs (I hope) which removes less than 2/1000" of metal, should still be within sepc even.
Zabac is offline   Reply With Quote
Old 05-16-2008, 06:12 PM   #37
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

I'm pretty skeptical of that, with low compression and high mileage I seriously doubt a hone will bring it true -- I could be wrong.

The second hole is a coolant jacket. Leave that plug out for the cleaning, it'll help things a bit.
elesjuan is offline   Reply With Quote
Old 05-16-2008, 06:35 PM   #38
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by elesjuan View Post
I'm pretty skeptical of that, with low compression and high mileage I seriously doubt a hone will bring it true -- I could be wrong.

The second hole is a coolant jacket. Leave that plug out for the cleaning, it'll help things a bit.
it really depends on his machine shop. He can measure the bores after honing and get real numbers.

me... I've got new pistons already
y8s is offline   Reply With Quote
Old 05-17-2008, 03:33 PM   #39
Elite Member
Thread Starter
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

I found the shop I was looking for!!!
This guy does not advertise, he's been in business for longer than I've been alive, and he is a racer himself. I got referred to him by the guy who painted my car, he says he would never take any of his motors anywhere else.
I'll let everyone know what he says about my block once he cleans in and hones, if he says it's ok and withon spec, OE pisotons go back in, if not, well then I'll bend over and get soe forged ones.
Zabac is offline   Reply With Quote
Old 05-26-2008, 06:34 PM   #40
Junior Member
iTrader: (1)

Join Date: May 2008
Location: NJ
Posts: 146
Total Cats: 0
Default

any updates? this is an interesting thread.
as a few others have said i'd be a bit surprised if a reputable machine shop was ok with recommending a hone without boring the block, but you could get lucky....these engines a quite a bit different than a lot of the older v8 types.

either way good luck with the build.
