Old 07-30-2008, 06:28 PM   #41
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by cueball1 View Post
The headlamp Naca duct feeds directly into the open air intake which is surrounded by a heat sheild. I'm sure there is some overall pressure increase but it can't be much.

Hustler,

I haven't done much for cooling. BEGI did the standard water reroute and I installed the GS group buy radiator. I'm fabbing up the splitter/undertray and will add slim fans in parallel. Temps were climbing at the end of the sessions. I don't think the single stock fan, which isn't sealed well against the rad, is enough. The lack of any undertray can't be helping as well as the exhaust leak at the turbo/downpipe connection from the loose bolts.
which radiator?
hustler is offline   Reply With Quote
Old 07-30-2008, 06:30 PM   #42
Elite Member
Thread Starter
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

The Godspeed big aluminum thing that's been a group buy forever.
cueball1 is offline   Reply With Quote
Old 07-30-2008, 06:41 PM   #43
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

You know.. the ones that are on infinite back order.
Arkmage is offline   Reply With Quote
Old 07-30-2008, 06:44 PM   #44
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Quote:
Originally Posted by Arkmage View Post
You know.. the ones that are on infinite back order.
The Chinese are making war on the US. A very slow, subtle and methodical one. First it will be no more radiators, the next wave could be intercoolers and badly made tools!
jayc72 is offline   Reply With Quote
Old 07-30-2008, 06:47 PM   #45
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

oh - ok, isolated air box is cool. I'd be surprised if the fans solved any on track heat issues. At track speed the fan will only help if the oncoming is NOT being forced through the exchangers. Whether it's lacking of direction in the mouth or too many layers of obstruction (lack of exposure).
m2cupcar is offline   Reply With Quote
Old 07-30-2008, 06:56 PM   #46
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by m2cupcar View Post
oh - ok, isolated air box is cool. I'd be surprised if the fans solved any on track heat issues. At track speed the fan will only help if the oncoming is NOT being forced through the exchangers. Whether it's lacking of direction in the mouth or too many layers of obstruction (lack of exposure).
but you can spend $400 on fans from miata.net? That's $400 in performance that you can't get from resourcefulness.
hustler is offline   Reply With Quote
Old 07-30-2008, 07:24 PM   #47
Elite Member
Thread Starter
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

I'm hoping the undertray helps flow at speed. Also considering venting the hood but it's got to be subtle. The Mini vent looks OK still a little big for my taste. Maybe some fake Buick fender vents will help?!?
cueball1 is offline   Reply With Quote
Old 07-30-2008, 10:39 PM   #48
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

My big *** 20amp fan works great in 98f ambient after a bunch of boost when I've been sitting at stop light. I can only hope it does as well once the a/c is charged and running. But if fans are bringing temps down at speed on a track, there must be an unidentified issue and a better (IMO proper) solution. I know they'd work in some slow turns... like 45mph max, but there's not too many of those on a single track.

Cue if you do all the proper stuff, like sealing up the mouth and running the undertray, then I'd say get a cheap used hood and put a vent in it. Just swap it out before the event and swap your street hood back on for DD duty. I'd considered the same thing for here in the South- winter and summer hoods.
m2cupcar is offline   Reply With Quote
Old 07-30-2008, 11:08 PM   #49
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

My God some of you people sound like bickering old women talking about what yarn is best for making a scarf.

I've used EBC on the street (forgot what compound) and they sucked. I've been using HP+ since with great results. From track days to mountain runs to auto-x... no problems. The only time I had one problem was on Talladega Grand Prix and doing time-attack style laps with a passenger and i got some fade. But it never happened again. I've also never been a fan of super shitty "cross drilled rotors". I'm sorry, but plenty of cars use plain old solid face rotors with no problem, so why would you want to decrease surface area? ***** retarded.

BTW, some of you guys should look into these. I have a pair of them and am just waiting to have the time to install them...

Doppelgänger is offline   Reply With Quote
Old 07-30-2008, 11:46 PM   #50
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

Cueball take a peak at this thread for wiring the fans in parallel. I'm going to be doing it this weekend my self. http://forum.miata.net/vb/showthread...llel+fan+relay
johndoe is offline   Reply With Quote
Old 07-31-2008, 09:07 AM   #51
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Doppelgänger View Post
BTW, some of you guys should look into these. I have a pair of them and am just waiting to have the time to install them...

how much are those *******?
hustler is offline   Reply With Quote
Old 07-31-2008, 06:21 PM   #52
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

i got a set from eBay that were BRAND NEW for like $60 shipped. IIRC the retail is north of $200

part # 000-03-5301

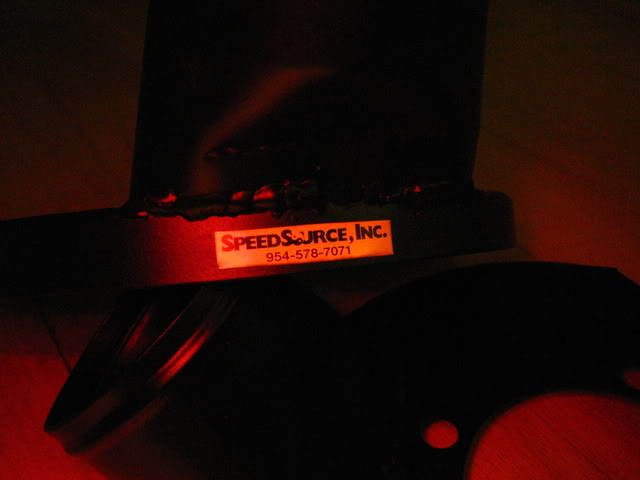

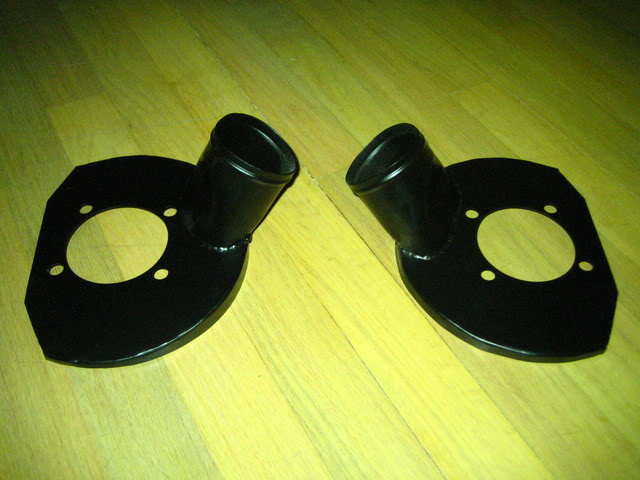

Here are the actual pieces...oddly enough, made by SpeedSource Engineering....

Name:  IMG_4468-1.jpg
Views: 0
Size:  44.7 KB

Name:  IMG_4470.jpg
Views: 0
Size:  21.1 KB
Doppelgänger is offline   Reply With Quote
Old 07-31-2008, 06:38 PM   #53
Guest
iTrader: (1)

ray_sir_6's Avatar

Join Date: Dec 2006
Location: DFW, TX
Posts: 714
Total Cats: 0
Default

http://iscracing.net/Miata_Brake_Diff.htm

Or get a set for $105 from ISC.
ray_sir_6 is offline   Reply With Quote
Old 07-31-2008, 07:11 PM   #54
Elite Member
Thread Starter
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

John Doe- thanks for that link. Perfect. Just what I needed.

Doppelgangbanger- I am an old woman! What's wrong with that!

Thanks for the brake duct pics and links. Was going to fab something myself. I was thinking about using cardboard as a prototype like the undertray. Figured the flames wouldn't last too long but would look cool while they lasted.
cueball1 is offline   Reply With Quote
Old 07-31-2008, 07:15 PM   #55
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Doppdrifto I'm kinda amazed that the HP+ are not fading for you. I was able to fade thoes at the 160whp within 5 minutes of track abuse.
BenR is offline   Reply With Quote
Old 07-31-2008, 07:16 PM   #56
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

I don't know about track, but I overheated both EBC green stuff (****) and HawkHP+ at the Gap.
The EBC's were ok for the street, but sucked at the Gap alltogether.
The Hawk's overheated the first go around, and just worked afterwards.
Zabac is offline   Reply With Quote
Old 07-31-2008, 07:38 PM   #57
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

maybe I can get some dryer ducting and just rivet that **** on?
hustler is offline   Reply With Quote
Old 07-31-2008, 08:26 PM   #58
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Ben/Zbac - I'm also running them on the 01+ sport brakes and using 17" wheels that allow for a LOT of ventilation/cooling. Yes, running a bigger wheel makes a difference as opposed to running a wheel that is close to the brakes and does not allow air to circulate around them. Trust me, i was driving 10/10ths at TGP...i don't have ABS and i might have had a bit of bite still available but i didn't want to risk flat spotting my slicks (i did lock the inside a couple times though).


Fagmuffin...errr... Hustler- dunno if i'd use dryer ducting as it's made to als insulate against giving off heat into a given area and is rather thick. What might be a good cheap product is that aluminium hose that is sold at most parts stores as "exhaust pre heating" hose for carb'ed cars.
Doppelgänger is offline   Reply With Quote
Old 07-31-2008, 08:28 PM   #59
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Quote:
Originally Posted by cueball1 View Post
John Doe- thanks for that link. Perfect. Just what I needed.

Doppelgangbanger- I am an old woman! What's wrong with that!

Thanks for the brake duct pics and links. Was going to fab something myself. I was thinking about using cardboard as a prototype like the undertray. Figured the flames wouldn't last too long but would look cool while they lasted.
If you want to McGyver some, i bet you can use the stock brake shields and get creative with a welder and some pipe.
Doppelgänger is offline   Reply With Quote
Old 07-31-2008, 09:17 PM   #60
Elite Member
Thread Starter
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Weld? Pop rivet to the stock shields. That was my plan anyway!
cueball1 is offline   Reply With Quote
