I have zero plans to do anything like that. There are people that have 3D printed molds for composite panels to be made from, but I personally do not trust plastic 3D printed parts on their own for a wide variety of reasons.



per forum member request, BP4W intake manifold scan is live.

https://leftlanedesigns.net/collecti...nifold-3d-scan



Got a few for todays update:

1.8 VVT Longblock: https://leftlanedesigns.net/collecti...engine-3d-scan


NC front subframe: https://leftlanedesigns.net/collecti...​​


NC rear subframe: https://leftlanedesigns.net/collecti...​​



Odd request, I know, but any plans to scan the fuel tank? Or maybe the underside rear in detail of an NB?



This would be the first request for that one. I'll add it to my list, but this is probably going to take a bit of digging to find one locally.



NB gauge cluster file is up

https://leftlanedesigns.net/products...luster-3d-scan



If you know why this file is valuable, we are on the same wavelength

https://leftlanedesigns.net/products...-pedal-3d-scan



I would like to know why that file is important - I’m not thrilled with the Subaru DBW pedal I set up in my K swap. I have a BMW floor-mount pedal I bought for $20 off eBay that I want to try out, eventually.

As nerdy as I am, I’m the type to hold a part up to the car, make some sharpie marks, and go from there.

Any chance you have an NA headlight cover you can scan? I want to make some blanking plates and I’d like to do a little better than tracing onto paper and winging it from there.



This is just my subjective opinion after looking at a wide variety of DBW pedals, but the nice part on this pedal is how close you can get it to fit in the OEM Miata position. Ryan walks through a bit of that in this thread linked below. It's entirely possible that other pedals could fit and work the same, but I've not spent hours looking through OEM parts catalogs.
https://www.miataturbo.net/engine-pe...4/#post1327003

I've done both. Each has their pros/cons, but I have my own reasoning as to why I scanned this pedal this time.

I have an NA8 in the garage and can get this relatively quickly. I'll add it to my list.



Sorry @Padlock , I think my post may have come across in the wrong tone; I'm definitely interested in seeing what comes out of your scan, not crapping on your approach. I bought the BMW pedal because it was cheap and floor-mounted. My Subaru pedal just doesn't seem to line up right for heel-toe and I was thinking that it might be easier to get that right if I'm moving the pedal around on the quasi-flat plane of the floor, rather than the mess that is the firewall.

Having re-read Ryan's thread for the first time in a long time... yeah, I should probably just go Camaro pedal.

Thanks for this, very much appreciated.



Zero offense taken. Just was explaining my nerdy approach knowing that there are probably 20 other pedal combos out there that could work with varying degrees of success and effort.



Burnt some midnight oil tonight with the scanner

NA engine bay
https://leftlanedesigns.net/products...ne-bay-3d-scan



NA front bumper
https://leftlanedesigns.net/products...bumper-3d-scan



NA front fender
https://leftlanedesigns.net/products...fender-3d-scan



NA headlight cover (both the top lid and the trim bezel)
https://leftlanedesigns.net/products...r-trim-3d-scan

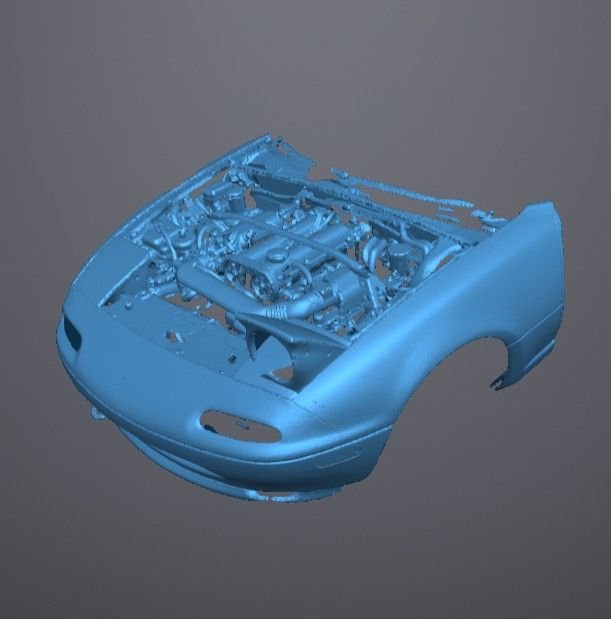

...and then if you want all 4 of them meshed together, you can grab that here for a bundled package deal
https://leftlanedesigns.net/products...sembly-3d-scan



Wow, that was fast! Order placed. I may return for the front bumper skin at some point, but I don’t want to start that project yet…



Appreciate the support!



holy **** man this stuff is awesome! great work to support the Miatasphere!

wombat



This first one (NA/NB pedal assembly) may not seem like much, but if you combine it with post #47, you may see the value... there is my hint...
https://leftlanedesigns.net/products...sembly-3d-scan


I don't know there is much strong value here for this one unless you're a V8 miata member scrolling past this, but I had this LS3 intake manifold for my build laying around and scanned it.
https://leftlanedesigns.net/products...sembly-3d-scan


This one could be fun for those of you wanting to build your own Getrag mounting solution. Remember, I have the subframe scan in post #19 as well.
https://leftlanedesigns.net/products...ential-3d-scan



Starting off with miata specific stuff tonight. I was asked by multiple people to get the NA kick panel done, so here ya go!
https://leftlanedesigns.net/products...-panel-3d-scan


From there we deviated a bit to stuff that may continue to be helpful for the v8 miata folks (like myself). Starting with a Gen4 6.2L truck longblock scan
https://leftlanedesigns.net/products...engine-3d-scan


then the water pump for said truck longblock
https://leftlanedesigns.net/products...r-pump-3d-scan


then the intake manifold
https://leftlanedesigns.net/products...sembly-3d-scan



Any chance you could get a scan of the interior of the front lower bumper "tupperware"? Mostly interested in the vent area below the foglight.

You do amazing work!



I've tried to get this one actually, but found that the tupperware lip on its own is too flexible, which creates some issues as you move it and the whole thing contorts/twists to different geometry. I have not had a car available to scan with the lip rigidly mounted to the car, but will definitely grab that when I have the chance.



Someone was looking for this file last month. Finally had some time to disassemble the NA in my garage and grab it.

https://leftlanedesigns.net/products...ousing-3d-scan
