Default '90 miata mystery tube

Pulled the splash guard off my girlfriend's (new to her) 90 for an oil change, and this tube hung down.

It seems to be kinda crimped, but not really crimped well--almost as if it got run over or pinched or something.

Her a/c and p/s work perfectly.. she has aftermarket braided brakes. is this a leftover from the old setup?

It disappears into the subframe and I'm unable to follow it from there...





mlev is offline   Reply With Quote
Old 09-23-2014, 09:50 PM   #2
Newb

Join Date: Nov 2013
Posts: 42
Total Cats: 0
Default

Looks more like a fuel line
No lift is offline   Reply With Quote
Old 09-23-2014, 09:50 PM   #3
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,198
Total Cats: 260
Default

For the charcoal canister?
Erat is online now   Reply With Quote
Old 09-23-2014, 09:51 PM   #4
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Part of the evaporative emission controls (i.e., charcoal canister).
hornetball is offline   Reply With Quote
Old 09-23-2014, 09:53 PM   #5
Senior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

So, where is it coming from and where do I need to make sure fuel isn't spilling out? o.O
mlev is offline   Reply With Quote
Old 09-23-2014, 09:57 PM   #6
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,198
Total Cats: 260
Default

It just vents the charcoal canister to atmosphere...

Chances are the canister is shot anyway. I think it goes to the bottom of the can anyway.
Erat is online now   Reply With Quote
Old 09-23-2014, 10:05 PM   #7
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

That's the charcoal cannister's vent to atmosphere. Vents out the frame rail somewhere.

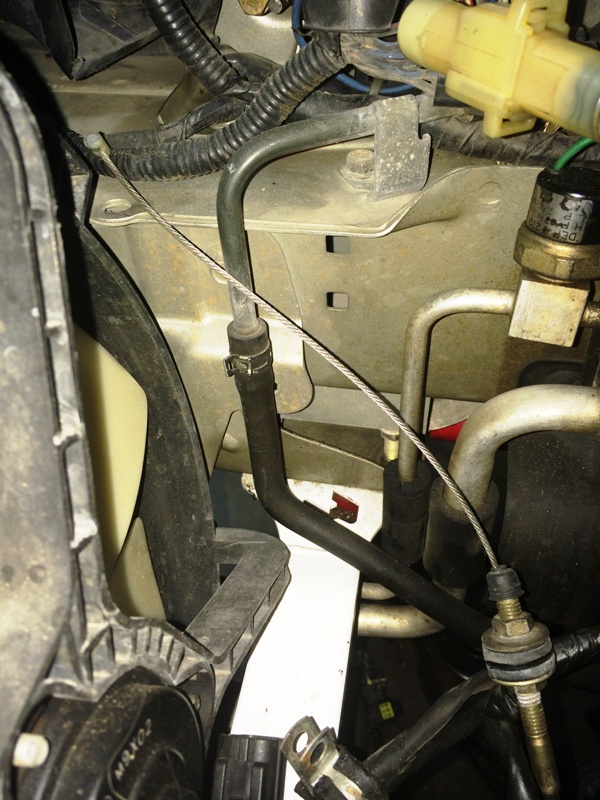

Here's how the bracket attaches to the shelf on the passenger side behind the headlight:

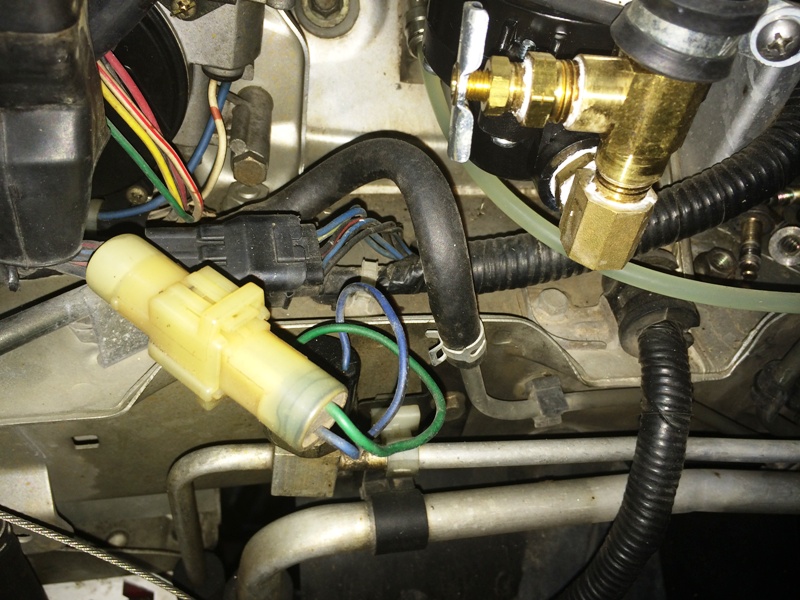

Here's a picture of my charcoal cannister bypass:
Attached Thumbnails
'90 miata mystery tube-img_0414.jpg   '90 miata mystery tube-img_0413.jpg
hornetball is offline   Reply With Quote
Old 09-23-2014, 10:19 PM   #8
Senior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

Y'all rock, thanks. As long as it isn't dumping fuel right out the tank or anything, I think it'll be fine.
