Default 95 turbo miata still running hot.

I apologize if this is the wrong section. 95 turbo miata mishimoto radiator and fans, coolant reroute, 180 degree t stat.

After turbocharging my miata with stock radiator, fans, and t stat, I noticed that on the highway the car would run fairly warm. the car would get up to halfway between normal and hot. I would pull over, wait for it to cool down and limp it home. After being tired of not being able to go on the highway, I bought the 3 core mishimoto radiator and fans, along with a coolant reroute from fm. That's when all these problems started occurring. I installed both as the directions said, bled the system and added an aftermarket temp sensor. Before I could even drive the car I noticed the temp was up at about 210 degrees on the aftermarket temp gauge so I looked under the hood and noticed ed the fans weren't coming on. I cut the car off, looked over all the wires and none were wrong. I let the car cool down, started it up and decided to take it to the gas station. It was a long staight road that I didn't think the car would need fans on. I noticed the temp would slowly climb and never go back down. I cut the car off at 240 degrees. My concern/questions are why is the car still wanting to run warm while moving? It shouldn't need fans while moving. Also, why are my fans not coming on. I know my stock ones turned on but I tested my new ones by adding power and they do work but they wont come on when the car needs them. Has anyone else had anything like this? Please help it's been to long since I have driven this car.
boostin on em is offline   Reply With Quote
Old 11-27-2014, 02:51 PM   #2
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,333
Default

Put your undertray back on
Savington is offline   Reply With Quote
Old 11-27-2014, 05:24 PM   #3
Newb
Thread Starter

Join Date: Nov 2014
Posts: 7
Total Cats: -1
Default

But why would it just now start to not want to cool down? I never had the tray on before I upgraded the radiator, fans and reroute. It was only after all those that it started messing up.
boostin on em is offline   Reply With Quote
Old 11-27-2014, 05:27 PM   #4
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Fm reroute? Is that the m-tuned reroute? Is there a small bypass hole drilled in the stat so it sees the warm water from the block when closed?
hornetball is offline   Reply With Quote
Old 11-27-2014, 05:30 PM   #5
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by boostin on em View Post
But why would it just now start to not want to cool down? I never had the tray on before I upgraded the radiator, fans and reroute. It was only after all those that it started messing up.
You don't have an undertray!?! They're $60 brand new! Think of the money you could have saved!
hornetball is offline   Reply With Quote
Old 11-27-2014, 05:30 PM   #6
Newb
Thread Starter

Join Date: Nov 2014
Posts: 7
Total Cats: -1
Default

Yes its the m tuned kit and yes it has the small hole in the top. I made sure that the hole is at the 12 o'clock position.
boostin on em is offline   Reply With Quote
Old 11-27-2014, 05:31 PM   #7
Newb
Thread Starter

Join Date: Nov 2014
Posts: 7
Total Cats: -1
Default

I needed to upgrade my radiator and fans anyways so I fugured I'd do the reroute while I was there.
boostin on em is offline   Reply With Quote
Old 11-27-2014, 09:03 PM   #8
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

What are your fan temperature settings in Megasquirt?

If you are not running a Megasquirt then did you reinstall the stock temp switch that cycles the fans?
sixshooter is offline   Reply With Quote
Old 11-27-2014, 09:54 PM   #9
Newb
Thread Starter

Join Date: Nov 2014
Posts: 7
Total Cats: -1
Default

I am running a megasquirt pnp2 and also the old fans were fine with megasquirt. But can you explain to me how to change the fan settings*
boostin on em is offline   Reply With Quote
Old 11-27-2014, 10:08 PM   #10
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:
Originally Posted by boostin on em View Post
I am running a megasquirt pnp2 and also the old fans were fine with megasquirt. But can you explain to me how to change the fan settings*

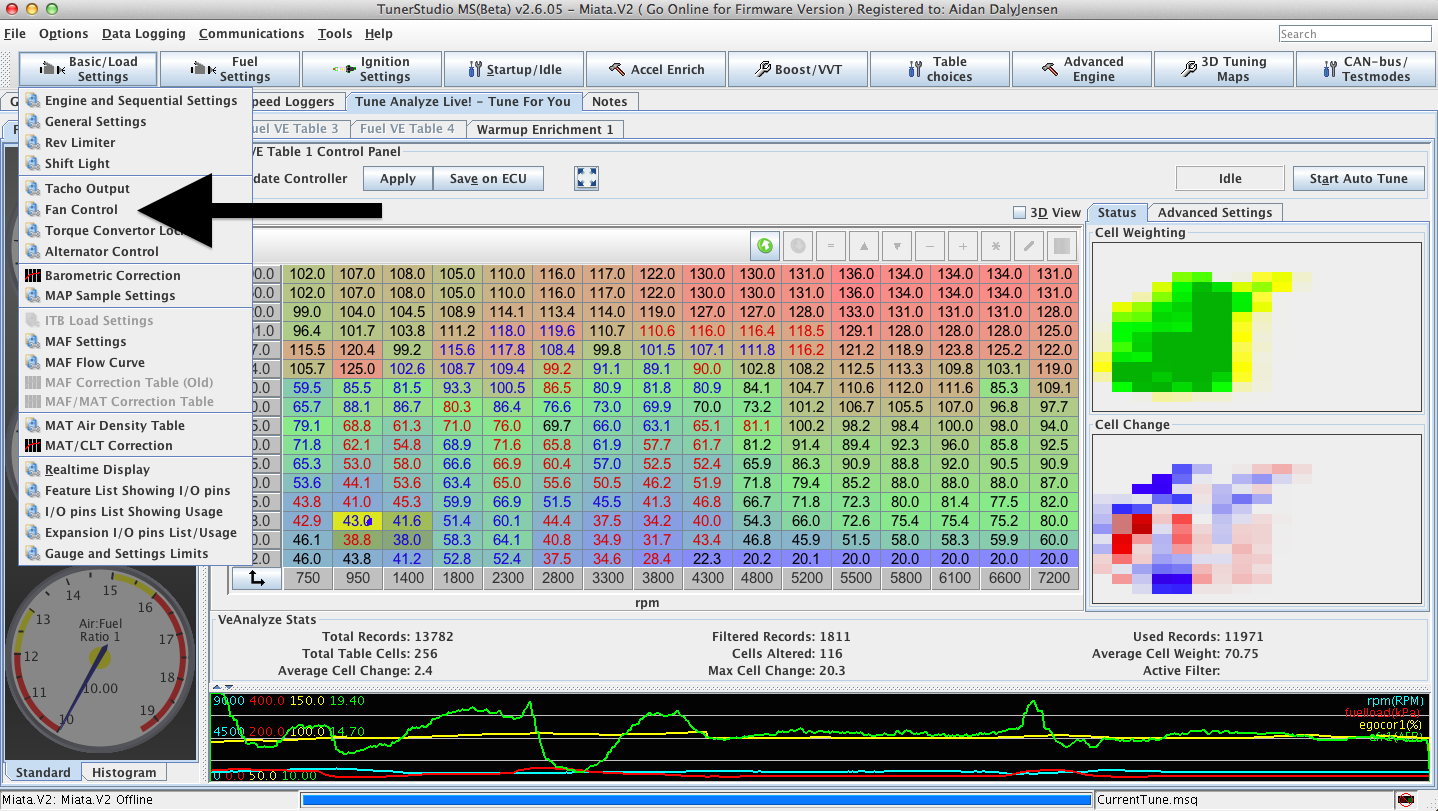

This menu:

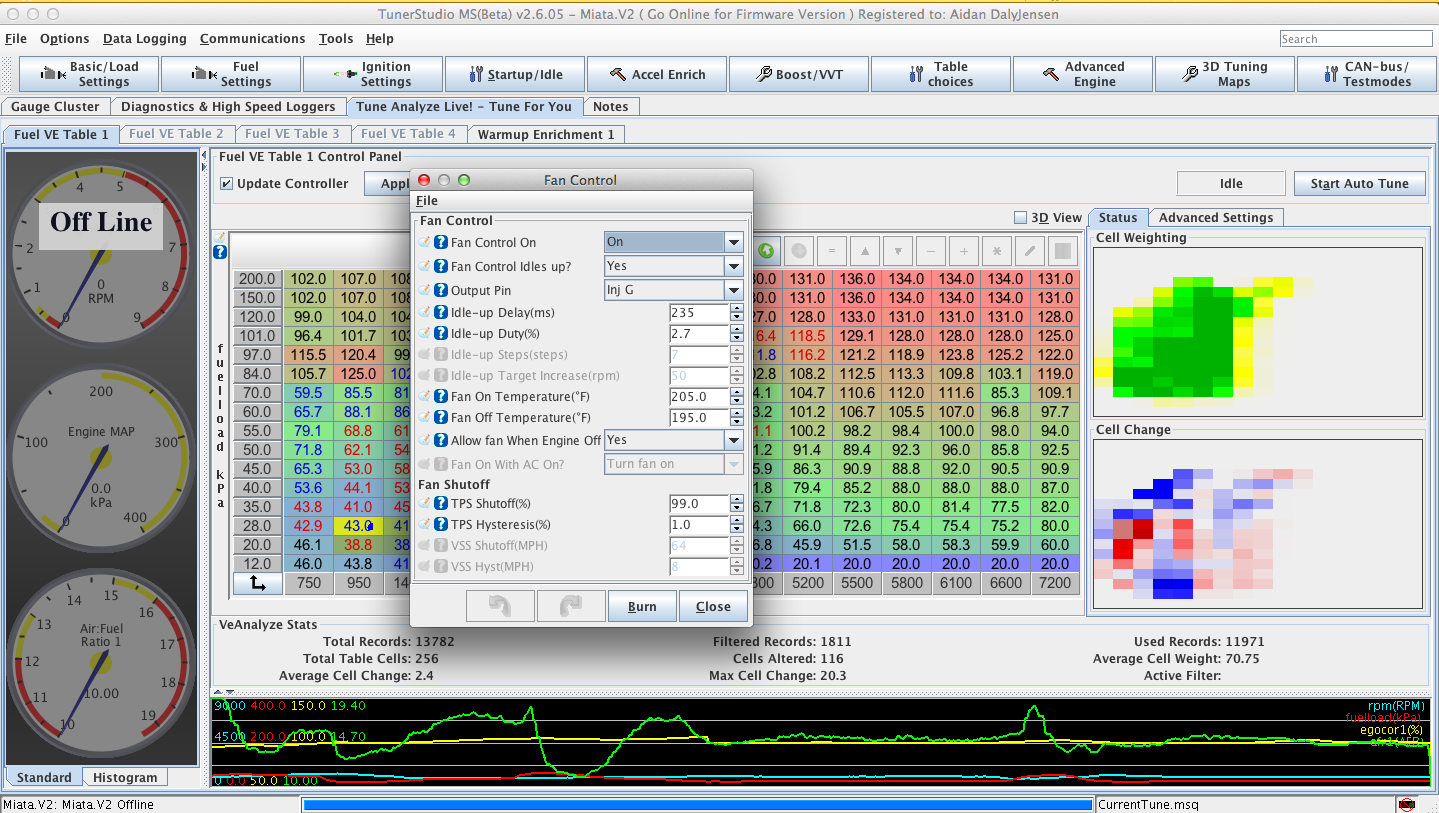

Then change temps:

aidandj is offline   Reply With Quote
Old 11-27-2014, 10:22 PM   #11
Newb
Thread Starter

Join Date: Nov 2014
Posts: 7
Total Cats: -1
Default

Awesome, thanks I'm gonna try to get on it sometime soon, I'll let you know how it goes.
boostin on em is offline   Reply With Quote
Old 11-27-2014, 10:30 PM   #12
Senior Member
iTrader: (2)

Join Date: Aug 2013
Location: Houston, TX
Posts: 598
Total Cats: 31
Default

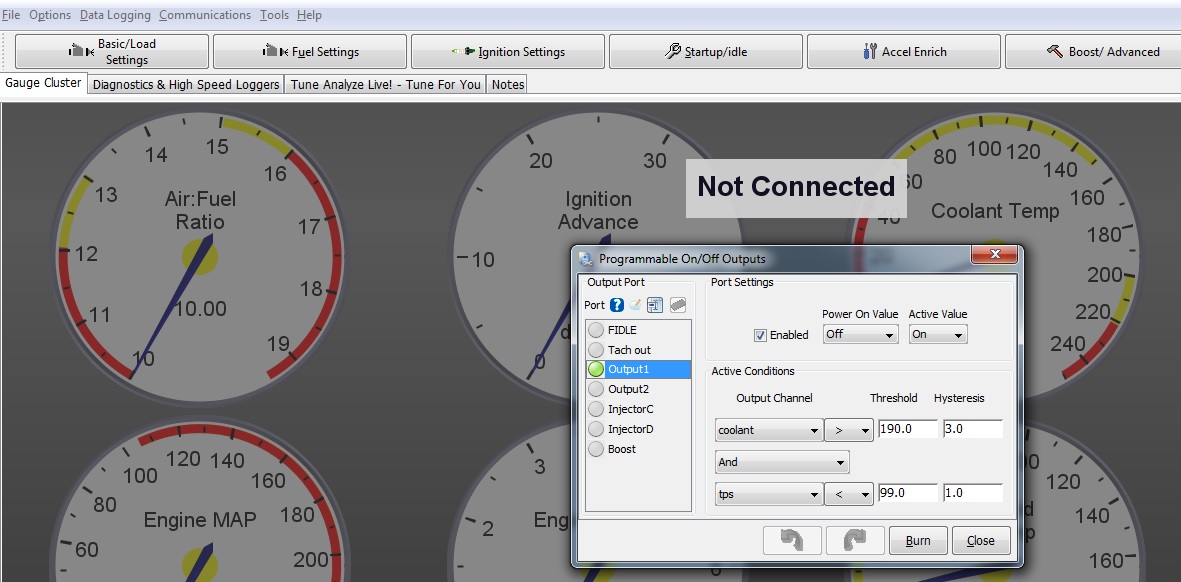

Or, if you can't find the Fan Control there, look under the Boost/Advanced button... for Programmable On/Off Outputs...


Then drill down to Output 1... and enter your desired settings there.

In this example my fan kicks on at 190 degrees... turns off 3 degrees cooler (187) when the throttle is under 99%.
Attached Thumbnails
95 turbo miata still running hot.-ms%2520fan%2520control.jpg
SchmoozerJoe is offline   Reply With Quote
Old 11-28-2014, 09:49 AM   #13
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

I know you're all excited about the fans, but it sure sounds like your t'stat isn't opening. Is your upper radiator hose hot?
hornetball is offline   Reply With Quote
Old 11-28-2014, 09:51 AM   #14
Newb
Thread Starter

Join Date: Nov 2014
Posts: 7
Total Cats: -1
Default

I tested the thermostat in boiling water and it worked but yes it does. Not like unbearably hot to the touch but pretty warm.
boostin on em is offline   Reply With Quote
Old 11-30-2014, 09:20 PM   #15
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,333
Default

Once you fix your fans, put your undertray on so the car doesn't overheat on the highway.
Savington is offline   Reply With Quote
