Default 99 Head damaged in shipping

Hi all. I need some advice. I received a head that was damaged in shipping. The exhaust cam gear was broken, the shroud on the front of the head was bent, and one of the intake manifold studs was bent.

In no way is this a reflection on who sold it to me so don't get the wrong impression. What I am concerned about is whether I should attempt to use the head. I am not sure if the collision with the cam gear could have damaged the cam and the journals it rotates on. Do you have any suggestions/tips for inspecting these parts of the head?

I'll submit some pics later once I am on my personal pc.
Big Boy is offline   Reply With Quote
Old 10-27-2008, 04:21 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

I bet you wish I sent your head. Ask Ben how his looked when I sent it to him....
Braineack is offline   Reply With Quote
Old 10-27-2008, 04:22 PM   #3
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

What was the medium for shipping?
Was there shipping insurance?
What company shipped it?
What was the declared value?

PICS!!!
"exhaust cam gear broken" doesn't tell us if a tooth is chipped or the spokes are cracked, or if half the gear is missing
samnavy is offline   Reply With Quote
Old 10-27-2008, 04:23 PM   #4
Junior Member
iTrader: (6)

Join Date: Oct 2007
Location: So Cal
Posts: 331
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
I bet you wish I sent your head. Ask Ben how his looked when I sent it to him....
I bet he wishes that anyone who took time and went through a valid postal service along with an insurance claim & perfect packaging sent it.
99NBMia is offline   Reply With Quote
Old 10-27-2008, 04:51 PM   #5
Junior Member
Thread Starter

Join Date: Nov 2007
Location: St. Paul MN
Posts: 110
Total Cats: 0
Default

Quote:
Originally Posted by samnavy View Post
What was the medium for shipping?
Was there shipping insurance?
What company shipped it?
What was the declared value?

PICS!!!
"exhaust cam gear broken" doesn't tell us if a tooth is chipped or the spokes are cracked, or if half the gear is missing
UPS
Private Sale
Declared value = not sure (I didn't setup the shipping myself)

The gear is still in one piece but it is split open.

I talked with UPS and they are going to send someone to inspect it.
Big Boy is offline   Reply With Quote
Old 10-27-2008, 05:01 PM   #6
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Scott did a very good job.
When I ship out a head, I wrap it up with stretch wrap, then I wrap it with special bubble wrap designed for heavy items, then go with stretch wrap again. I then put it in a double layer cardboard box that I got expressly for shipping miata cyl heads, shore it up with more cardboard so nothing can shift in transit.

So far I have a perfect 0 damage record. Though I have had a few parts go missing. :(
Ben is offline   Reply With Quote
Old 10-27-2008, 05:12 PM   #7
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by Big Boy View Post
UPS

I talked with UPS and they are going to send someone to inspect it.
Bear in mind that if additional insurance was not paid, the maximum that they will pay out is $100. That ASSumes that they deem that the packaging for something as big and heavy as a head was "adequate".
Stein is offline   Reply With Quote
Old 10-27-2008, 05:36 PM   #8
Junior Member
Thread Starter

Join Date: Nov 2007
Location: St. Paul MN
Posts: 110
Total Cats: 0
Default

I am not very concerned with the bent stud or the bent shroud which can both be replaced. The cam gear is disappointing. My main concern is whether the head or cams are warped. If I brought it to a machine shop would they be able to tell me if it was warped?
Big Boy is offline   Reply With Quote
Old 10-27-2008, 05:37 PM   #9
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

it sure does reflect on the seller.

for what it's worth, partsgroup bolts the head to a piece of particle board on the bottom to act as a sacrificial component. it hits before the head does.
y8s is offline   Reply With Quote
Old 10-27-2008, 05:37 PM   #10
Elite Member
iTrader: (1)

Join Date: Jun 2007
Location: VA, Germany, Afghanistan
Posts: 2,967
Total Cats: 3
Default

Quote:
Originally Posted by Big Boy View Post
I am not very concerned with the bent stud or the bent shroud which can both be replaced. The cam gear is disappointing. My main concern is whether the head or cams are warped. If I brought it to a machine shop would they be able to tell me if it was warped?
If they can't then I think it is time to start shopping around for a new machine shop.
KPLAFIN is offline   Reply With Quote
Old 10-27-2008, 09:27 PM   #11
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,172
Total Cats: 5
Default

Quote:
Originally Posted by y8s View Post
it sure does reflect on the seller.

for what it's worth, partsgroup bolts the head to a piece of particle board on the bottom to act as a sacrificial component. it hits before the head does.
That is actually a good idea.
miatamania is offline   Reply With Quote
Old 10-28-2008, 12:35 AM   #12
Junior Member
Thread Starter

Join Date: Nov 2007
Location: St. Paul MN
Posts: 110
Total Cats: 0
Default

So far the seller has been working well with me. I will let you know what I find out about the condition of the head.
Attached Thumbnails

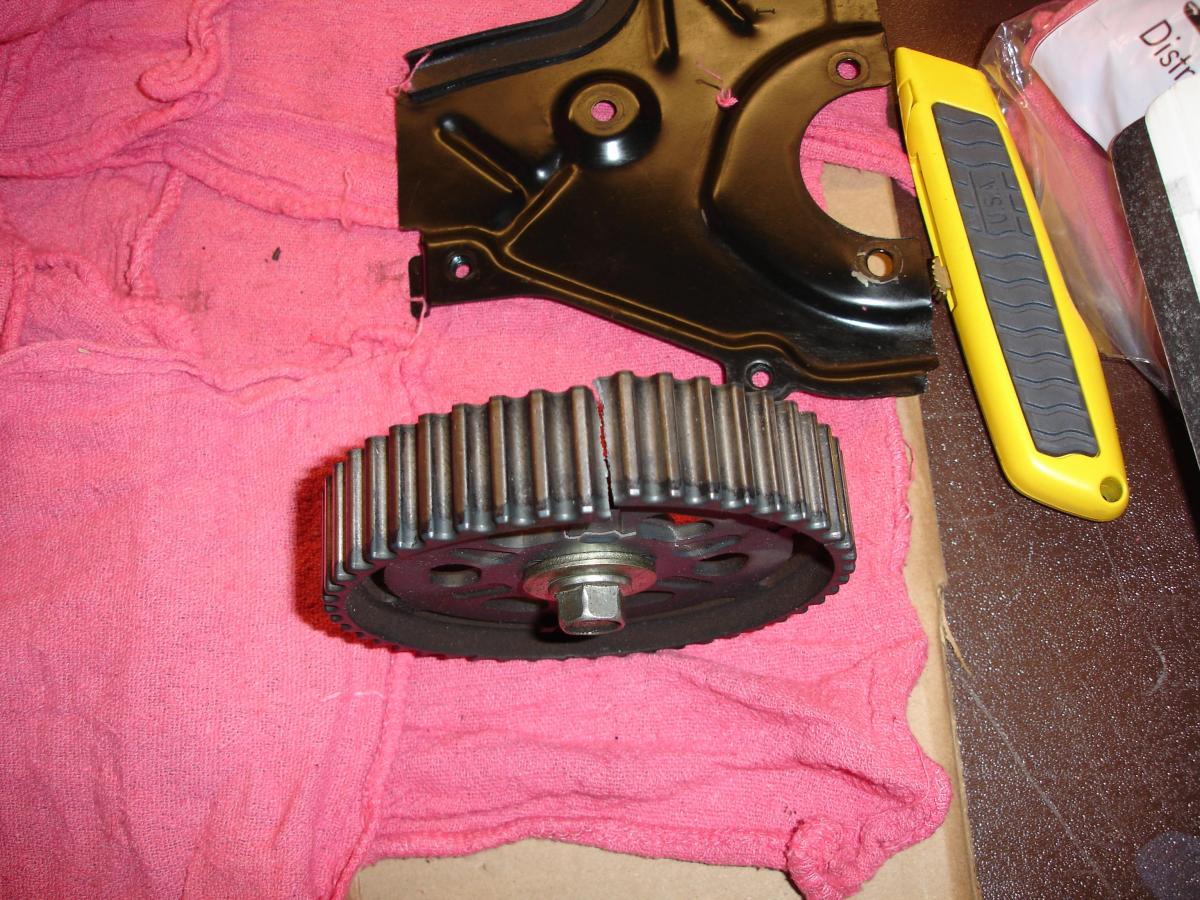

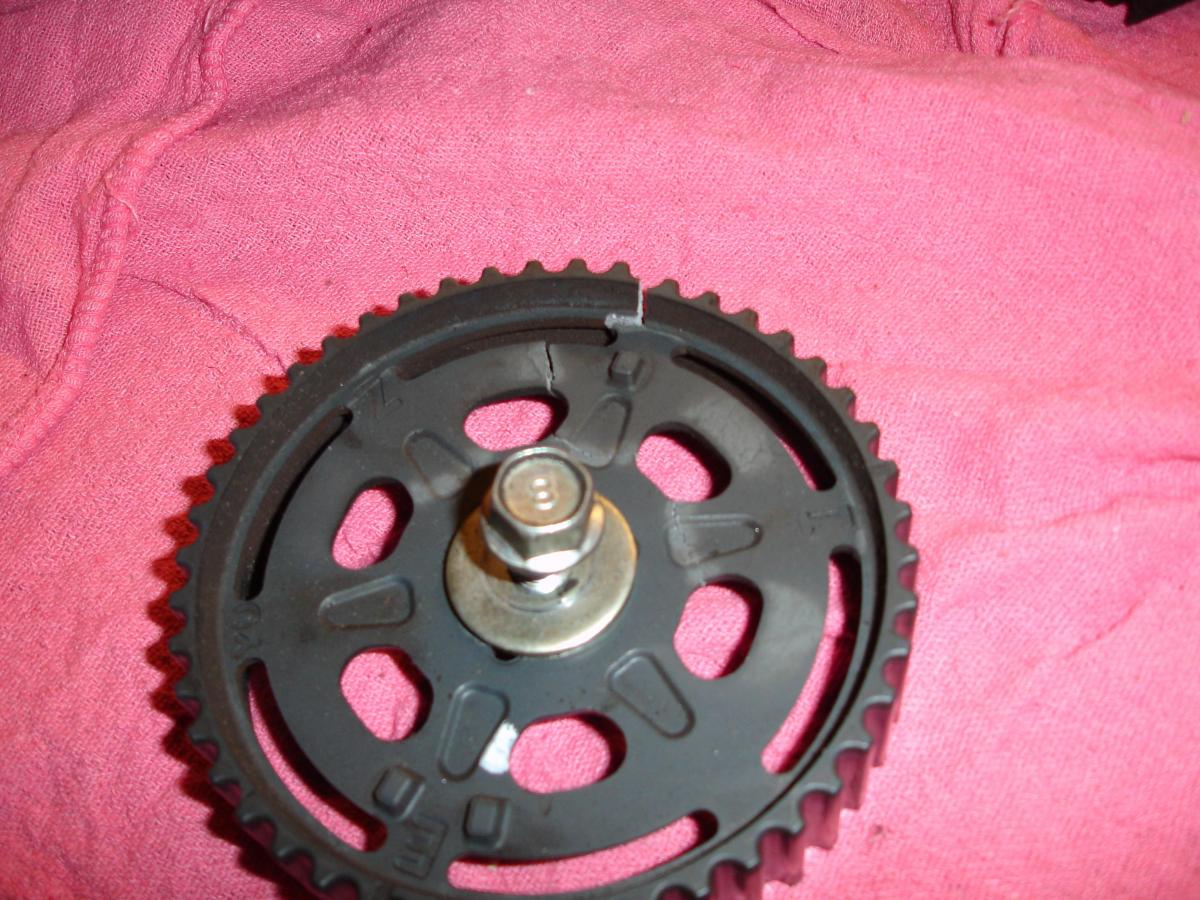

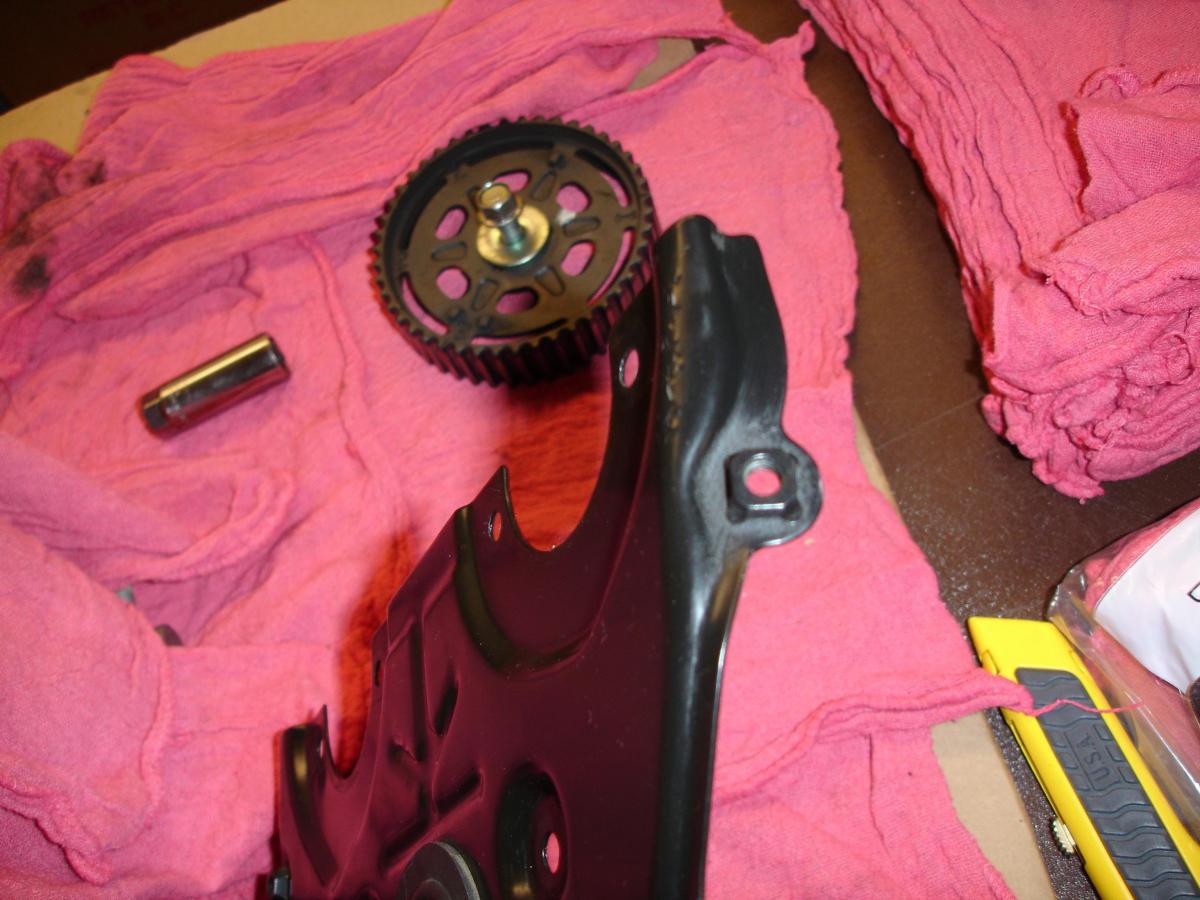

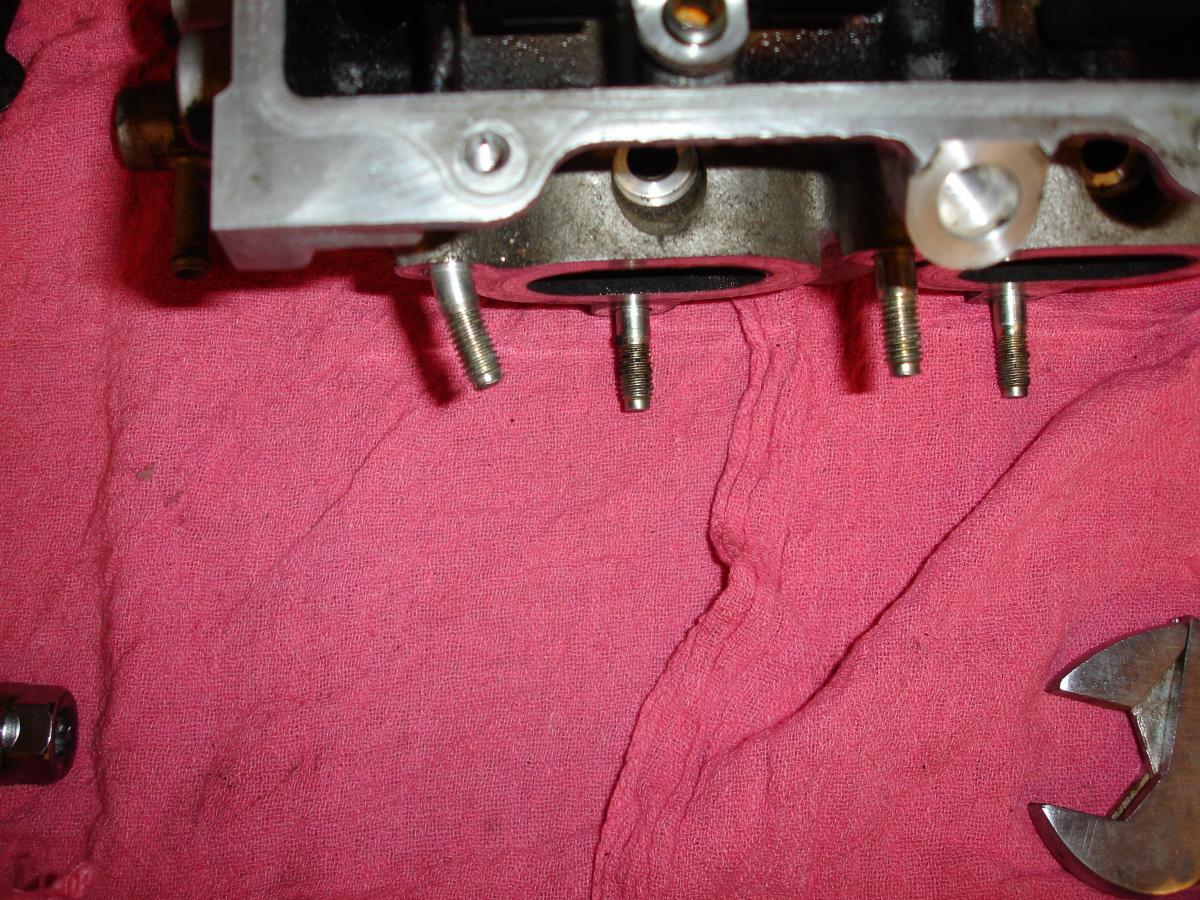

99 Head damaged in shipping-dsc03954.jpg   99 Head damaged in shipping-dsc03958.jpg   99 Head damaged in shipping-dsc03960.jpg   99 Head damaged in shipping-dsc03962.jpg
Big Boy is offline   Reply With Quote
Old 10-28-2008, 12:58 AM   #13
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

the cam gear and stud can be replaced. I'd very carefully inspect the cams and journals and see what's salvagable.
y8s is offline   Reply With Quote
Old 10-28-2008, 01:53 AM   #14
Junior Member

Join Date: Sep 2008
Location: Tulsa, Oklahoma
Posts: 350
Total Cats: -1
Default

Dude, that **** was dropped. Hard. Having worked in shipping, I know first hand how people treat boxes and whatnot. Looks like it fell right off the back of the truck onto the pavement when being unloaded at one point. That's nothing the seller can prevent, although Ben's method could have saved the cam gear. Makes you wonder what isn't visibly damaged.
944obscene is offline   Reply With Quote
Old 10-28-2008, 08:19 AM   #15
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Longs, SC
Posts: 2,583
Total Cats: 13
Default

Damn what shipping company shipped that? Gotta make sure to avoid them.
icantthink4155 is offline   Reply With Quote
Old 10-28-2008, 09:04 AM   #16
Junior Member
Thread Starter

Join Date: Nov 2007
Location: St. Paul MN
Posts: 110
Total Cats: 0
Default

Quote:
Originally Posted by 944obscene View Post
Looks like it fell right off the back of the truck onto the pavement when being unloaded at one point. That's nothing the seller can prevent, although Ben's method could have saved the cam gear. Makes you wonder what isn't visibly damaged.
That is what I am thinking. I found out that we have insurance on it for the full cost of the head. I just hope I get an inspector who understands how precise the head needs to be. It may not look damaged but it very well could be. If I do get the full insurance I will be in search of another head.
Big Boy is offline   Reply With Quote
Old 10-28-2008, 09:06 AM   #17
Elite Member
iTrader: (1)

Join Date: Jun 2007
Location: VA, Germany, Afghanistan
Posts: 2,967
Total Cats: 3
Default

Quote:
Originally Posted by Big Boy View Post
That is what I am thinking. I found out that we have insurance on it for the full cost of the head. I just hope I get an inspector who understands how precise the head needs to be. It may not look damaged but it very well could be. If I do get the full insurance I will be in search of another head.
If they jerk you around over it, take it to a machine shop and get them to write on a letter head that the thing is trashed. May not help but, it couldn't hurt.
KPLAFIN is offline   Reply With Quote
Old 11-26-2008, 08:00 PM   #18
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Actually, while I've given up on a couple heads I probably could have used in the past, I'm with the other poster - while I would make the insurance pay you for another gear, and to have the stud changed - really, I've got several gears sitting around my garage, I'm sure you could find one cheap (or get adjustables, since you're going to build a real motor anyway you'll want this! OEM price on a gear would buy you a fine adjustable), and a stud will set you back a dollar. Checking to see if the head is flat is 1 minute of work, perhaps a pressure test would make sense there too.

Basically, if the bottom has no real marks on it, and the cams turn over smooth (you could plastiguage under the caps), there's no real issue. I don't see anything in what you showed which would keep you from using this. Hey, don't feel bad, I built two motors due to stuff like this, only set me back an extra $800 or a k and now any weird noise I hear I can swap motors in a weekend.
AbeFM is offline   Reply With Quote
Old 11-29-2008, 01:10 AM   #19
Junior Member
Thread Starter

Join Date: Nov 2007
Location: St. Paul MN
Posts: 110
Total Cats: 0
Default

I actually removed a few of the caps on the exhaust camshaft and found some small metal flakes. Is this normal? The Exhaust cam pulley was the one that was smashed.
Big Boy is offline   Reply With Quote
Old 11-29-2008, 08:22 PM   #20
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

I doubt the metal flakes are from the smash, but that's not at all typical. Likely from the motor it came from (was this grenaded?)

At this point, I would highly recommend taking it to a shop, let them inspect and clean it.

If you want to get some tools together, you can do it yourself - buy a straight edge and some plastigauge with the money you would have paid someone else to do it - but either way, if there's any metal anywhere (is it magnetic - i.e. steel or alum?), you really want to clean it out.
AbeFM is offline   Reply With Quote
