Are all knock sensors melted?


Old 03-14-2018, 04:17 PM
  #1
Elite Member
Thread Starter
iTrader: (11)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,889
Total Cats: 30
Default Are all knock sensors melted?

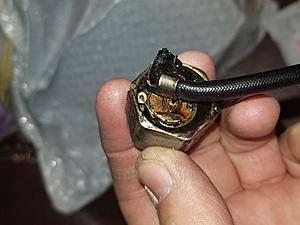

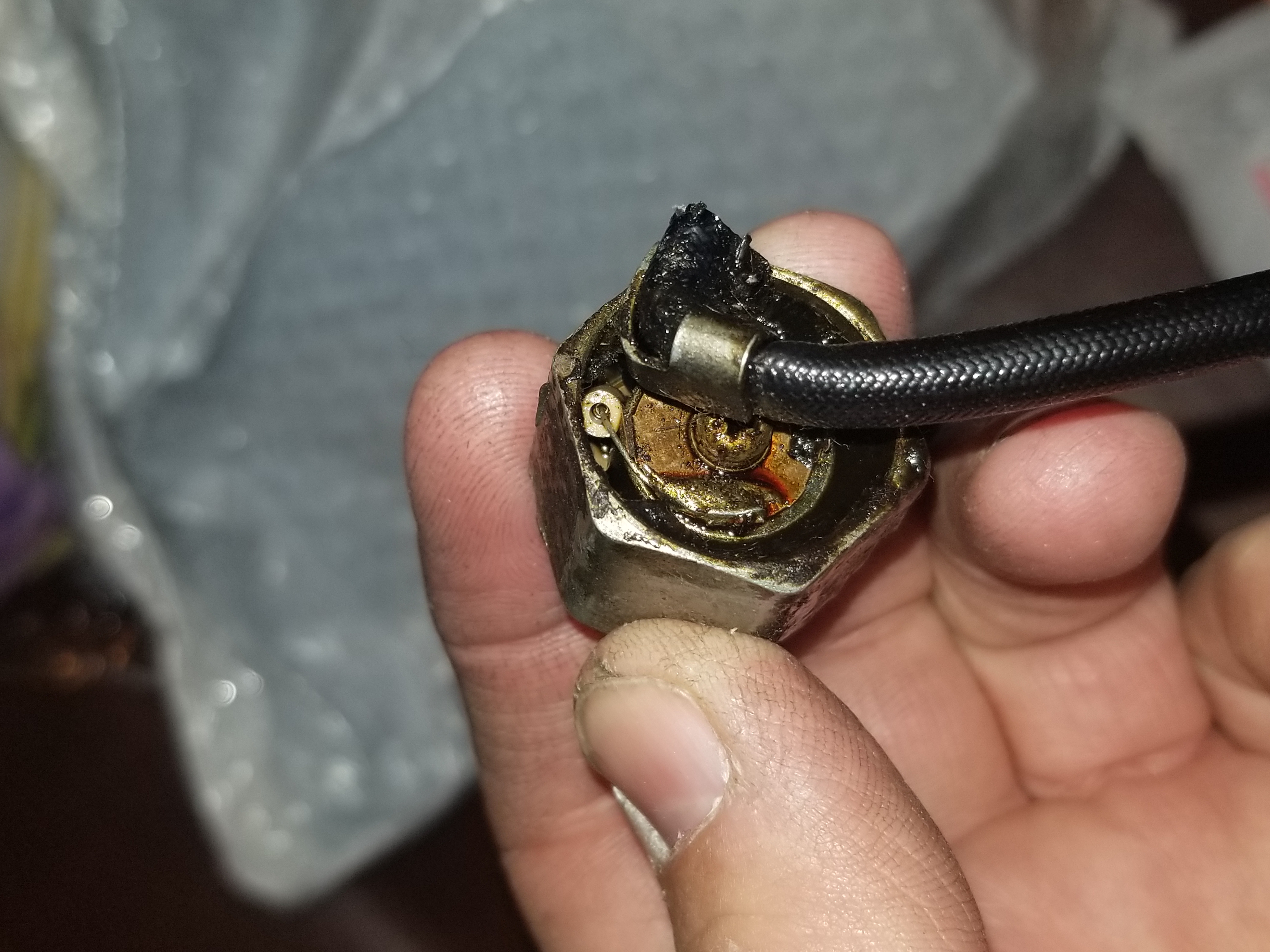

I'm building a 04 and sensor looked like it overheated and the epoxy type substance had driped out of it. Wanting to keep stock Mazda sensors I ordered a used one and it came in looking worse than the one it had. This happen to them? Are they still good??
Attached Thumbnails Are all knock sensors melted?-20180314_155933.jpg
IcantDo55 is offline
Old 03-14-2018, 04:45 PM
  #2
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,141
Total Cats: 3,145
Default

Most. Yep still good
18psi is offline
Old 03-14-2018, 04:57 PM
  #3
Elite Member
Thread Starter
iTrader: (11)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,889
Total Cats: 30
Default

Sending it.....thx
IcantDo55 is offline
Old 03-14-2018, 05:05 PM
  #4
Senior Member

Join Date: Jul 2016
Location: San Diego
Posts: 558
Total Cats: 53
Default

Yes, same here. I though I had an oil leak in 2002 NB from somewhere until i found out it was resin leaking form the sensor.
2slow is offline
Old 03-14-2018, 08:56 PM
  #5
Junior Member

Join Date: Nov 2016
Location: Chicago
Posts: 252
Total Cats: -11
Default

Have been searching used sensors and keep asking about resin and they are all as you said already melted.
stevos555 is offline
Old 03-14-2018, 09:06 PM
  #6
Elite Member
iTrader: (2)

Join Date: Aug 2016
Location: Woostuh, MA
Posts: 3,879
Total Cats: 108
Default

Is there a better alternative that's still compatible?
ridethecliche is offline
Old 03-14-2018, 09:45 PM
  #7
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,141
Total Cats: 3,145
Default

no
18psi is offline
Old 03-14-2018, 09:55 PM
  #8
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago. (The non-murder part.)
Posts: 29,086
Total Cats: 2,846
Default

So long as neither lead is shorted to ground (via the housing), and the sensor element is still rigidly connected to it, I see no reason why a partially-melted sensor wouldn't continue to function.

In theory, you should be able to test it by whacking the intake manifold with a hammer while watching the pulley with a timing light. Never tried this myself.
Joe Perez is offline
Old 03-15-2018, 08:31 PM
  #9
Junior Member

Join Date: Nov 2016
Location: Chicago
Posts: 252
Total Cats: -11
Default

Is there any other way to test with a meter ?
stevos555 is offline
Old 03-15-2018, 08:45 PM
  #10
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago. (The non-murder part.)
Posts: 29,086
Total Cats: 2,846
Default

Not really. It's a piezoelectric sensor, so it's not like sticking an ohmmeter across it is going to do any good.

If you have access to an oscilloscope, you could measure the voltage across it (maybe 5-10mv/div) while you bang on it with a hammer.
Joe Perez is offline
Old 03-15-2018, 09:03 PM
  #11
Junior Member

Join Date: Nov 2016
Location: Chicago
Posts: 252
Total Cats: -11
Default

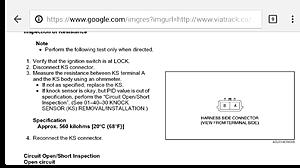

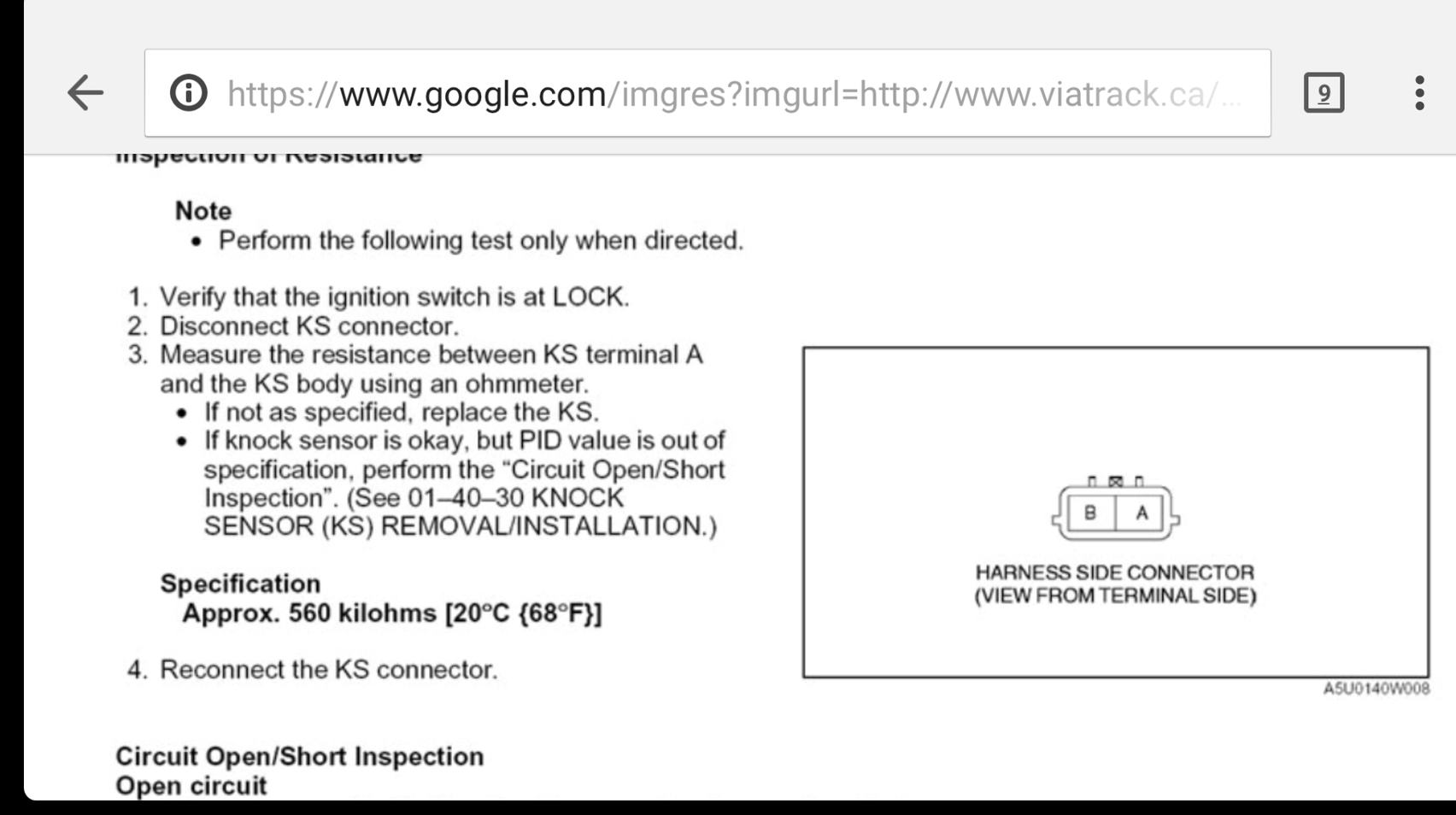

would this procedure from FSM help to test ?
Attached Thumbnails Are all knock sensors melted?-photo581.jpg
stevos555 is offline
Old 03-15-2018, 09:09 PM
  #12
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago. (The non-murder part.)
Posts: 29,086
Total Cats: 2,846
Default

Originally Posted by stevos555 View Post
would this procedure from FSM help to test ?
Yes, that's exactly what I said a few posts ago, re: "So long as neither lead is shorted to ground (via the housing)..."

(OK, to be fair, they specified a resistance range and I didn't.)
Joe Perez is offline
Old 03-15-2018, 09:17 PM
  #13
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 4,471
Total Cats: 530
Default

AIUI, a knock sensor is basically a specialized microphone. I *think* this means you could do a basic function test by hooking it to the audio in on a PC, tapping it with a hammer while recording, and then play back the sound file to see if you can hear the "knocks".

(disclaimer: I'm a software guy, not a hardware one, so this might blow up your computer, set your house on fire, and trigger the collapse of the false vacuum thus ending the universe as we know it.)

--Ian
codrus is offline
Old 03-15-2018, 09:18 PM
  #14
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago. (The non-murder part.)
Posts: 29,086
Total Cats: 2,846
Default

Originally Posted by codrus View Post
AIUI, a knock sensor is basically a specialized microphone.
This is correct.

And I kinda feel dumb for not thinking of the "plug it into a computer" test.
Joe Perez is offline
Old 03-15-2018, 10:21 PM
  #15
Junior Member

Join Date: Nov 2016
Location: Chicago
Posts: 252
Total Cats: -11
Default

So if resistance checks out and only small amount of resin is gone, buying a used one may be ok it seems. The OEM sensors are ridiculously priced - $140 on Mazdacomp.
stevos555 is offline
Old 03-16-2018, 12:02 PM
  #16
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 14,389
Total Cats: 1,328
Default

I pulled the water lines to the stock oil cooler/heater to stop from melting my knock sensors.
shuiend is offline
Old 03-16-2018, 12:22 PM
  #17
Junior Member

Join Date: Nov 2016
Location: Chicago
Posts: 252
Total Cats: -11
Default

That got me thinking that a hose heat shield maybe a good idea to wrap around the oil cooler hose and maybe a spark plug boot over the knock sensor body to keep some heat off.
stevos555 is offline
Old 03-16-2018, 12:24 PM
  #18
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,141
Total Cats: 3,145
Default

What’s the point of all that? Why waste time and effort fixing a nonexistent problem?
18psi is offline
Old 03-16-2018, 12:29 PM
  #19
Junior Member

Join Date: Nov 2016
Location: Chicago
Posts: 252
Total Cats: -11
Default

So just let it melt?
stevos555 is offline
Old 03-16-2018, 12:38 PM
  #20
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,141
Total Cats: 3,145
Default

the sensor will not melt. the dollop of resin that does melt is the stuff that simply holds the wire in place. Have you ever even looked at the sensor in person?

I know you're enthusiastic about wrenching on your car, and that's good, but it seems like you're just jumping into topics completely clueless and starting conversations about fixing problems that are just not there instead of focusing on issues that actually need attention.

So to re-cap: oem nb knock sensor is a perfectly good solution for knock detection on our cars. Nothing "better" needed. The resin melting doesn't affect anything or you'd see hundreds of people replacing their knock sensors every 5 years and/or complaining about it.

So basically, this is not a problem
18psi is offline
