Default Anyone ever remove 99-00 ecu?

It's tight to climb in, and I got the bolt out on the bracket that goes against the firewall behind the brake pedal, but is there another bolt I don't see?
Any tips on removing this correctly would be appreciated.
thirdgen is offline   Reply With Quote
Old 01-27-2015, 01:41 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,575
Default

Yes, another above the ecu.
The best way is to unwad your panties, stop caring about your nail polish, and remove it like a man.
18psi is offline   Reply With Quote
Old 01-27-2015, 01:45 PM   #3
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

You know what you need to do.
shuiend is offline   Reply With Quote
Old 01-27-2015, 03:18 PM   #4
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

Quote:
Originally Posted by thirdgen View Post
It's tight to climb in, and I got the bolt out on the bracket that goes against the firewall behind the brake pedal, but is there another bolt I don't see?
Any tips on removing this correctly would be appreciated.

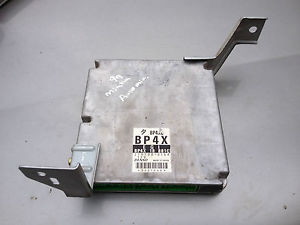

There are 2 bolts, the lower one you removed, and another one at the top. Both 10mm. By bolt, I mean nuts that thread on to a stud, so you remove both nuts, slide the ecu towards the rear of the vehicle about 1/2 and inch, it falls off the studs, lower it out and you got it.

Attached Thumbnails
Anyone ever remove 99-00 ecu?-%24t2ec16r-ke9s4z-llibqmzpoy4vw%7E%7E60_35.jpg
patsmx5 is offline   Reply With Quote
Old 01-27-2015, 07:54 PM   #5
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Vlad, thanks for the quick response.

Lars, do I look like Faeflora? You've seen my car. My frame rail is mint.

Patrick, props for the visual aid and the detail!
thirdgen is offline   Reply With Quote
Old 01-27-2015, 09:22 PM   #6
Elite Member
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

On my NB, you have to remove the passenger side floormat first.
Then you roll the carpet back, and then there are three nuts on studs on the floor, one on a stud on the firewall, and one short bolt in the right corner...
And, that's just for the cover.
You have to remove the bracket bolts to get the ECU out. ABS controller resides right next to the ECU.
Godless Commie is offline   Reply With Quote
Old 01-27-2015, 09:28 PM   #7
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,575
Default

on your NON-US nb
18psi is offline   Reply With Quote
Old 01-27-2015, 09:28 PM   #8
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Crazy turkey dude.

His is above the steering column. He's mad jealous of your correctly positioned ECU though.

Under the kick panel, as god(1.6 Miatas) intended.
curly is offline   Reply With Quote
Old 01-28-2015, 12:28 AM   #9
Junior Member

Join Date: Mar 2013
Location: Flower Mound, TX
Posts: 235
Total Cats: 26
Default

Take out the drivers seat first, only four bolts.
EricJ is offline   Reply With Quote
Old 01-28-2015, 02:21 AM   #10
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

I just got it out. My advice? 1) take the cover off that's under the steering column first. 2) use a long extension with a swivel and a deep well 10mm socket for the top bolt.
3) Don't ever do this on a car that has door bars, unless you already have an appointment scheduled with your chiropractor.
thirdgen is offline   Reply With Quote
Old 01-28-2015, 03:00 AM   #11
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 262
Default

Rollbar recommended for proper calf support after seat removal. Also gives you something to grab onto when trying to get your head out from under the dash with gravity working against you.

Fortuitous timing as I shall be doing this tomorrow.
Mobius is offline   Reply With Quote
Old 01-28-2015, 10:12 AM   #12
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,575
Default

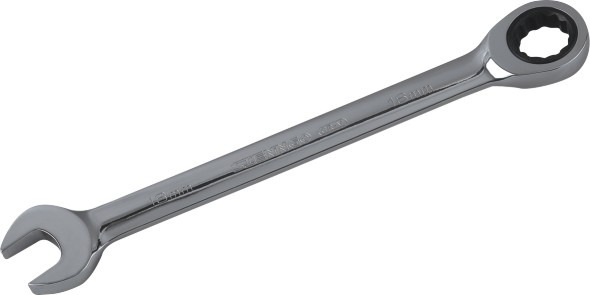

I removed 4 NB ecu's yesterday. I use one of these for the top nut


it takes all of 45 seconds, and I'm really slow.
You just feel for it, no need to pull the panel and really no need to go under there with your whole body.
just picture the brackets and you get an idea of where the two nuts are
Attached Thumbnails
Anyone ever remove 99-00 ecu?-171100837468_171100837468.jpg
18psi is offline   Reply With Quote
Old 01-28-2015, 12:35 PM   #13
Junior Member

Join Date: Jan 2010
Location: Anderson, SC
Posts: 149
Total Cats: 6
Default

I always pull the steering column panel because it's only two screws, and it helps me get line of sight when I'm lining up the plugs to hook it back up. /shrug
sharkythesharkdogg is offline   Reply With Quote
Old 02-14-2015, 02:48 PM   #14
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 262
Default

Quote:
Originally Posted by 18psi View Post
I removed 4 NB ecu's yesterday. I use one of these for the top nut


it takes all of 45 seconds, and I'm really slow.
You just feel for it, no need to pull the panel and really no need to go under there with your whole body.
just picture the brackets and you get an idea of where the two nuts are
How the **** did you get that bigass wrench up in there. Vlad are you like 18" tall? Top bolt is a real bitch in my car. Haven't been able to get my flexhead gearwrench onto it yet.
Mobius is offline   Reply With Quote
Old 02-14-2015, 03:20 PM   #15
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

I didn't use a wrench I used a deep well socket with a swivel and a long extension...1/4" drive of course.
thirdgen is offline   Reply With Quote
Old 02-14-2015, 04:14 PM   #16
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 262
Default

I figured it out. I was looking at/for the wrong bolt in the wrong places.

NB ECU removal broken down into baby steps:
a) remove the obvious nut, the lower nut, behind the clutch pedal to the left.
b) remove the seat
c) the other nut you want is on another stud oriented the same as the first one - pointing towards the rear of the car. It is above the steering column, to the driver's side.
d) get upside down under the dash. Take a 10mm wrench and a long screwdriver.
In front of the ecu, towards your belt, there's a big chunk of harness wrapped in black tape. This is attached via a plastic clip onto the stud containing the nut you need to remove. Using your long screwdriver, pop the harness retainer off the stud.
e) Get the wrench onto the nut, avoid dropping the wrench onto your forehead, break the nut loose, avoid dropping the wrench on your forehead, then spin the nut off with your fingers.

Attached is the page from the FSM referencing the second nut. It conveniently does not reference the fact the harness is attached to that stud also, and that you can't get to the nut until you remove the harness clip.
Attached Files
File Type: pdf NB_ECU_REMOVAL.pdf (102.1 KB, 156 views)
Mobius is offline   Reply With Quote
Old 02-14-2015, 05:15 PM   #17
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

U serious?
How bout you just take the cover off under the dash that has 2 Phillips head screws in it and the top bolt is right there.
Sheeeeaaat mang, I left my seat in, I have door bars, and I'm 6' tall and I just leaned in there and got to it like nothing.
thirdgen is offline   Reply With Quote
Old 02-14-2015, 06:08 PM   #18
Junior Member
iTrader: (2)

Join Date: Mar 2008
Location: Navarre, Fl
Posts: 203
Total Cats: 3
Default

Thank you for this thread. I've been looking for that top nut forever. Finally the stock ecu is gone.
ericsbestshot is offline   Reply With Quote
Old 02-14-2015, 11:33 PM   #19
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 262
Default

I had that plate off. I didn't see it as being directly accessible from the front. I have a lot of gauge wiring running through there, and the scanguage cable extra length is bundled up in that area, so maybe my view was obscured.

Knowledge is power. Hopefully others removing one for the first time will find this thread and avoid some of the massive frustration some of us have experienced.
